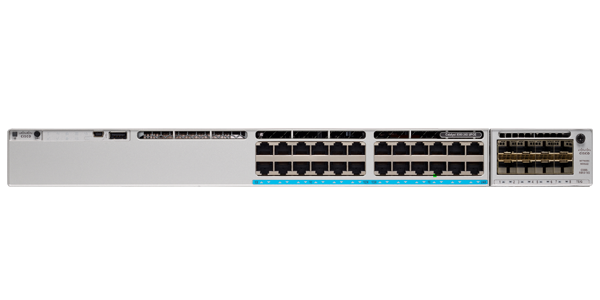

Cisco C9300-24H-A network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Roll over image to zoom inClick to Open expanded view
Print
Model: C9300-24H-A

Cisco C9300-24H-A network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Manufacturer:
Cisco
Cisco C9300-24H-A, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco C9300-24H-A. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 32000 entries, Switching capacity: 208 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Product Properties

  • Model
  • C9300-24H-A
  • Data transmission
  • Forwarding rate
  • 154.76 Mpps
  • Jumbo frames
  • 9198
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Number of queues
  • 8
  • Packet buffer memory
  • 16 MB
  • Switching capacity
  • 208 Gbit/s
  • Design
  • Certification
  • UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 QCVN 118:2018/BTTTT VCCI-CISPR 32 Class A
  • Form factor
  • 1U
  • LED indicators
  • Yes
  • Number of fans
  • 3 fan(s)
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Redundant fans support
  • Yes
  • Stackable
  • Yes
  • Management features
  • ARP inspection
  • Yes
  • Cloud-managed
  • Yes
  • Configuring Location Settings (CLI)
  • Yes
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Traffic classification
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Full duplex
  • Yes
  • Half duplex
  • Yes
  • IP routing
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Number of VLANs
  • 4094
  • Routing entries
  • 16000
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • Port-based VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Heat dissipation
  • 3793 BTU/h
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • -5 - 45 °C
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Performance
  • Flash memory
  • 16000 MB
  • Internal memory
  • 8000 MB
  • Mean time between failures (MTBF)
  • 238410 h
  • Memory type
  • DRAM
  • Ports & interfaces
  • Gigabit Ethernet (copper) ports quantity
  • 24
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 115 - 240 V
  • Number of power supply units
  • 1
  • Power source
  • AC
  • Power supply included
  • Yes
  • Redundant power supply (RPS) support
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 90 W
  • Power over Ethernet plus (PoE+) ports quantity
  • 24
  • Protocols
  • Management protocols
  • SNMPv1, v2c, v3
  • Multicast protocols
  • PIM, PIM SM, SSM
  • Routing protocols
  • BGP6, BGP4, EIGRP, IS-IS, OSPF, OSPFv3, RIP-1, RIP-2, RIPng
  • Security
  • Authentication
  • Port-based authentication
  • Authentication type
  • RADIUS
  • DHCP features
  • DHCP snooping
  • Security algorithms
  • 256-bit AES, IPSec
  • Sustainability
  • Sustainability certificates
  • RoHS
  • Sustainability compliance
  • Yes
  • Weight & dimensions
  • Depth
  • 409 mm
  • Height
  • 44 mm
  • Weight
  • 7.54 kg
  • Width
  • 444.5 mm
