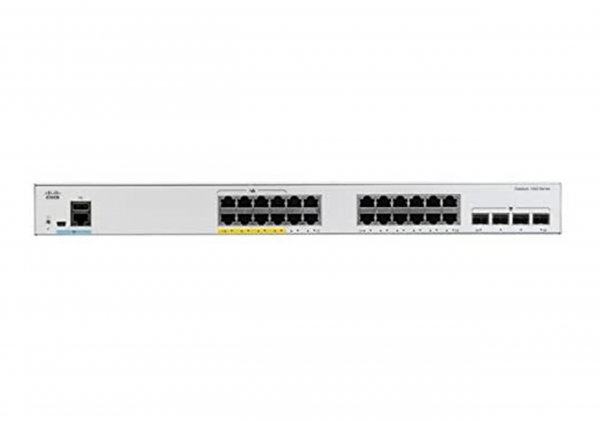

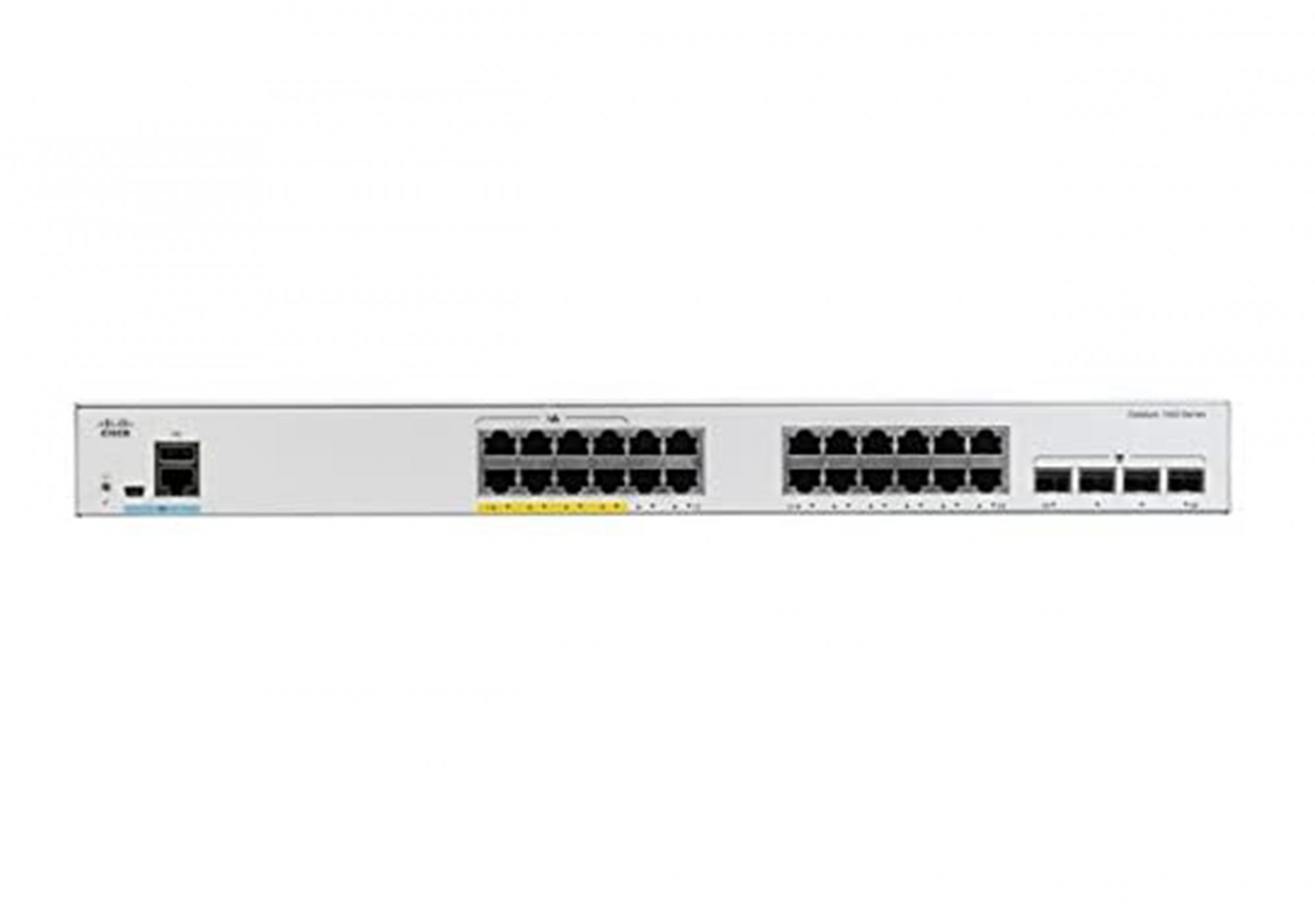

Cisco Catalyst 1000-24FP-4G-L Network Switch, 24 Gigabit Ethernet (GbE) PoE+ Ports, 370W PoE Budget, four 1 G SFP Uplink Ports, Enhanced Limited Lifetime Warranty (C1000-24FP-4G-L)
Roll over image to zoom inClick to Open expanded view
Model: C1000-24FP-4G-L
EAN: 889728248556

Cisco Catalyst 1000-24FP-4G-L Network Switch, 24 Gigabit Ethernet (GbE) PoE+ Ports, 370W PoE Budget, four 1 G SFP Uplink Ports, Enhanced Limited Lifetime Warranty (C1000-24FP-4G-L)

Manufacturer:
Cisco
Cisco Catalyst 1000-24FP-4G-L Network Switch, 24 Gigabit Ethernet (GbE) PoE+ Ports, 370W PoE Budget, four 1 G SFP Uplink Ports, Enhanced Limited Lifetime Warranty (C1000-24FP-4G-L), Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethe
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst 1000-24FP-4G-L Network Switch, 24 Gigabit Ethernet (GbE) PoE+ Ports, 370W PoE Budget, four 1 G SFP Uplink Ports, Enhanced Limited Lifetime Warranty (C1000-24FP-4G-L). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power over Ethernet (PoE)

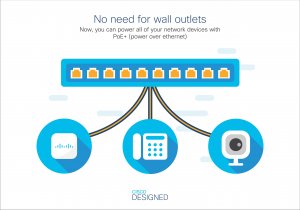

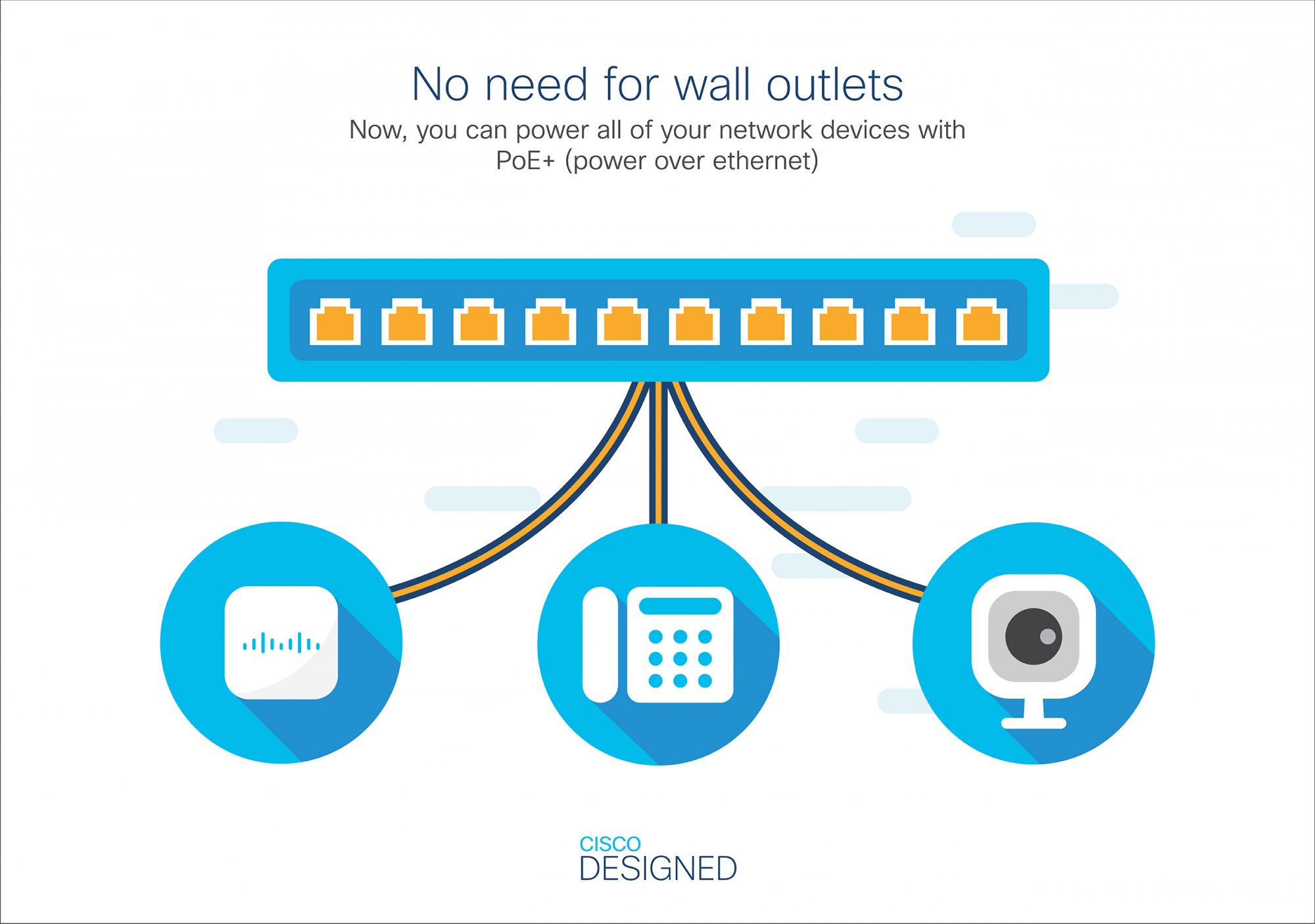

  • HARDWARE CONFIGURATION: 24 10/100/1000 Gigabit Ethernet (GbE) PoE+ ports, 4 SFP uplink ports with Power budget of 370W and Perpetual PoE+ support for uninterrupted power to PoE devices even in case of switch reboot
  • MANAGEMENT: Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI. Centrally monitor and configure up to 8 switches via a Single IP or with any third party network management tool
  • SECURITY: Enterprise Class Security which natively supports IPv4/IPv6 FHS Security features such as port security, DHCP snooping, dynamic ARP inspection which can easily be configured using a Single 'Auto-Secure' command along with 802.1x support for all connected devices
  • Enterprise Class Hardware: Tamper-proof switch designed with the best of Cisco's trustworthy solutions technologies like HW anchored secure boot and Trust anchor Module to ensure you get an authentic and secure product
  • PEACE OF MIND: Enhanced limited lifetime warranty

Product Properties

  • Model
  • C1000-24FP-4G-L
  • EAN
  • 889728248556
  • Bullet points
  • Point
  • Enterprise Class Hardware
    HARDWARE CONFIGURATION
    MANAGEMENT
    PEACE OF MIND: Enhanced limited lifetime warranty
    SECURITY
  • Data transmission
  • Forwarding rate
  • 41.67 Mpps
  • Jumbo frames
  • 10240
  • Jumbo frames support
  • Yes
  • MAC address table
  • 16000 entries
  • Number of static routes
  • 16
  • Static route
  • Yes
  • Switching capacity
  • 56 Gbit/s
  • Design
  • Certification
  • UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A EN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24 Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU Common Language Equipment Identifier (CLEI) code
  • Country of origin
  • China
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Quantity per pack
  • 1 pc(s)
  • Management features
  • ARP inspection
  • Yes
  • Configuring Location Settings (CLI)
  • Yes
  • MIB support
  • Y
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2
  • Switch type
  • Managed
  • Traffic classification
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • IPv4 multicast entries
  • 1024
  • IPv6 multicast entries
  • 1024
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Broadcast storm control
  • Yes
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Full duplex
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
  • Number of VLANs
  • 4094
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Non-operating altitude
  • 0 - 4500 m
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • -5 - 50 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -25 - 70 °C
  • Other features
  • Packaging content
  • C1000-24FP-4G-L Switch, Accessory Kit, 1 printed document
  • Packaging data
  • Package depth
  • 549.4 mm
  • Package height
  • 147.6 mm
  • Package weight
  • 6.59 kg
  • Package width
  • 444.5 mm
  • Performance
  • Built-in processor
  • Yes
  • Flash memory
  • 256 MB
  • Internal memory
  • 512 MB
  • Mean time between failures (MTBF)
  • 698220 h
  • Memory type
  • DRAM
  • Processor frequency
  • 800 MHz
  • Processor model
  • ARM7
  • Ports & interfaces
  • Console port
  • RJ-45/Mini-USB
  • SFP module slots quantity
  • 4
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • USB 2.0 ports quantity
  • 1
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 110 - 220 V
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet plus (PoE+) ports quantity
  • 24
  • Total Power over Ethernet (PoE) budget
  • 370 W
  • Security
  • Access Control List (ACL)
  • Yes
  • Authentication
  • Web-based authentication
  • Authentication type
  • RADIUS
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP snooping
  • IGMP entries
  • 1024
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • SSH/SSL support
  • Yes
  • Weight & dimensions
  • Depth
  • 345 mm
  • Height
  • 44 mm
  • Weight
  • 4.6 kg
  • Width
  • 444.5 mm
