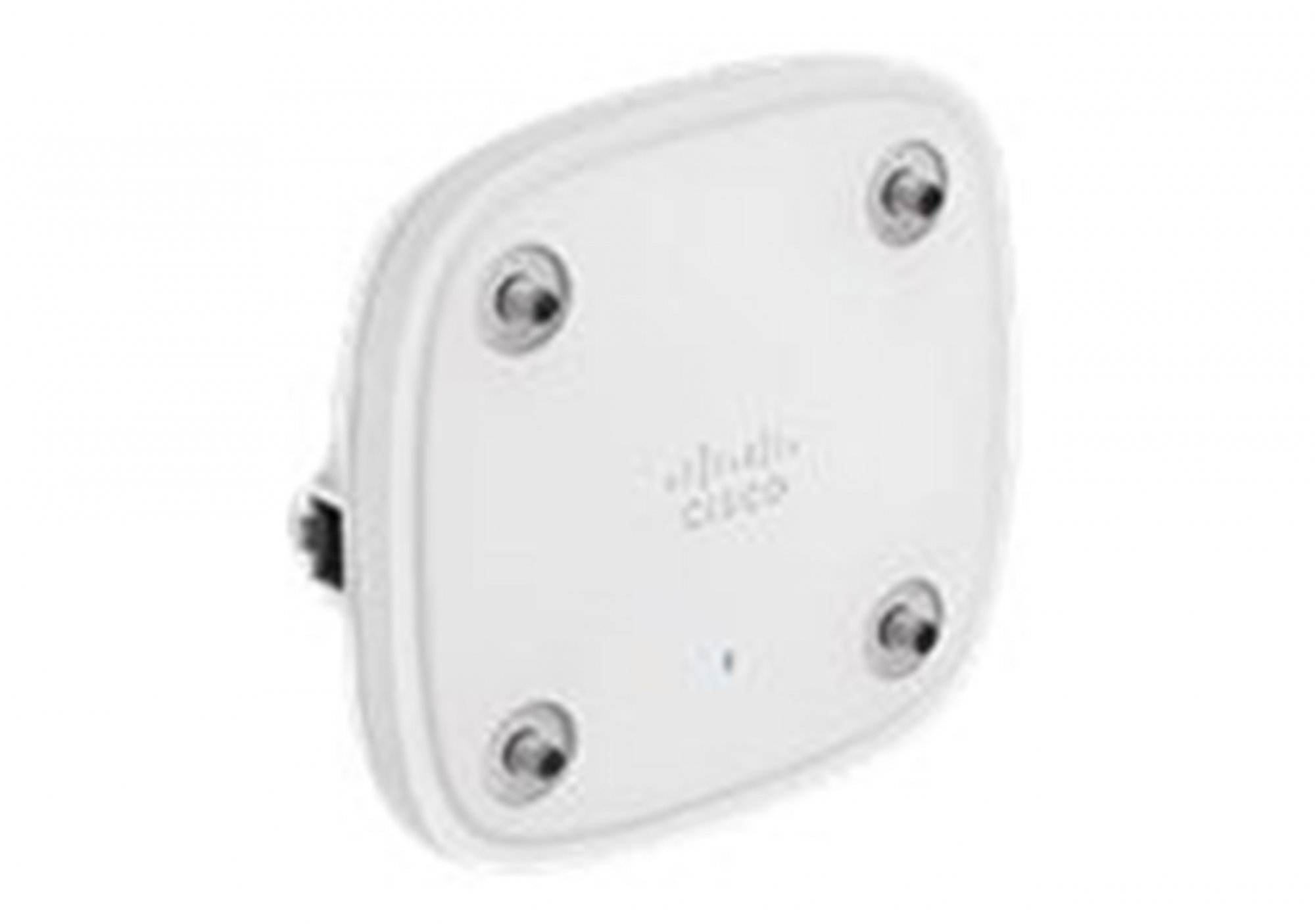

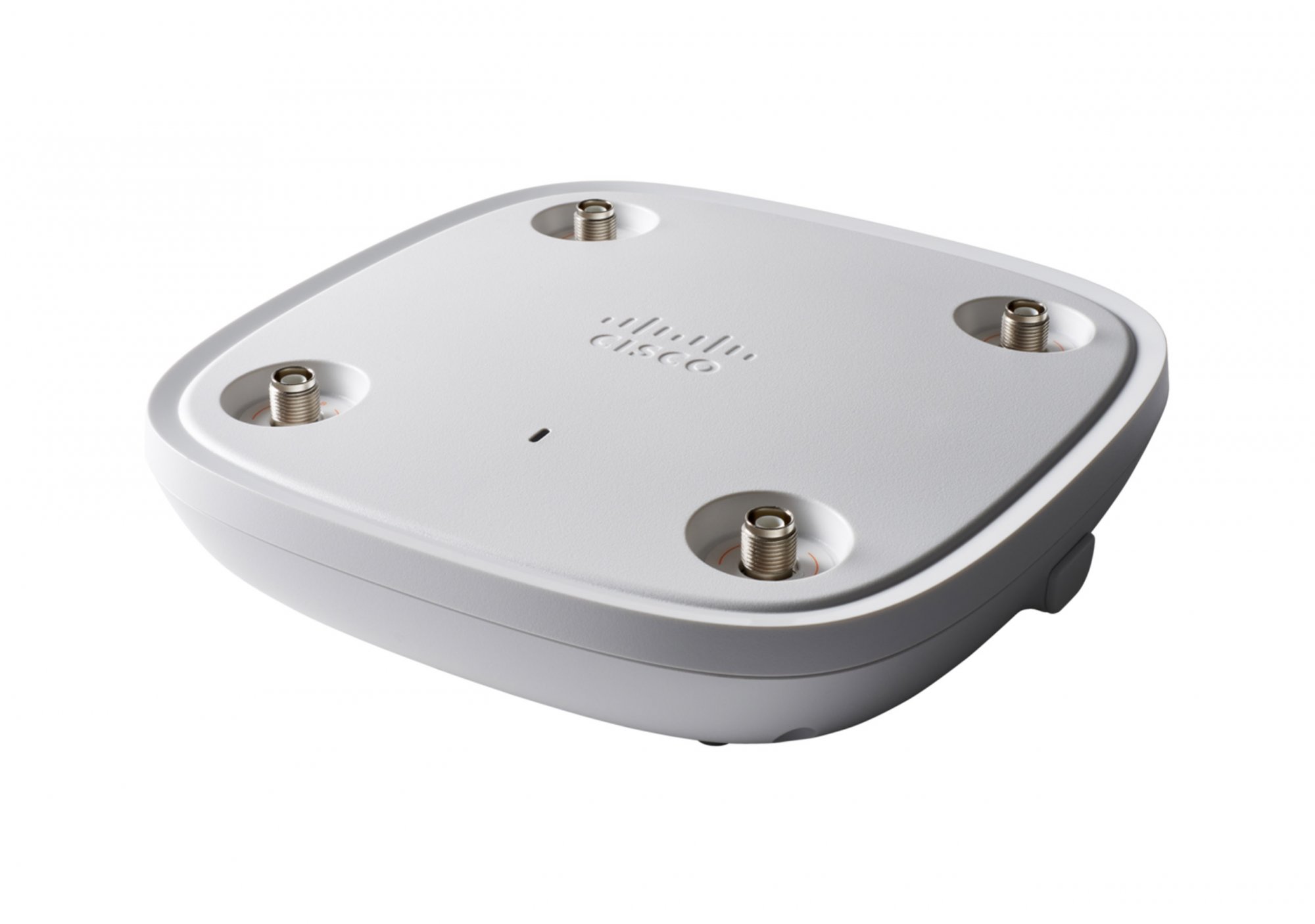

Cisco Catalyst 9120AXE-EWC-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, Embedded Wireless Controller (EWC), PoE, External antenna, (C9120AXE-EWC-E)
Roll over image to zoom inClick to Open expanded view
Cisco Catalyst 9120AXE-EWC-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, Embedded Wireless Controller (EWC), PoE, External antenna, (C9120AXE-EWC-E)
Cisco Catalyst 9120AXE-EWC-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, Embedded Wireless Controller (EWC), PoE, External antenna, (C9120AXE-EWC-E)
Cisco Catalyst 9120AXE-EWC-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, Embedded Wireless Controller (EWC), PoE, External antenna, (C9120AXE-EWC-E)
Print
Model: C9120AXE-EWC-E
EAN: 889728267540

Cisco Catalyst 9120AXE-EWC-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, Embedded Wireless Controller (EWC), PoE, External antenna, (C9120AXE-EWC-E)

Manufacturer:
Cisco
Cisco Catalyst 9120AXE-EWC-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, Embedded Wireless Controller (EWC), PoE, External antenna, (C9120AXE-EWC-E), 5000 Mbit/s, 2500 Mbit/s, 5000 Mbit/s, 100,1000,2500,5000 Mbit/s
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst 9120AXE-EWC-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, Embedded Wireless Controller (EWC), PoE, External antenna, (C9120AXE-EWC-E). Maximum data transfer rate: 5000 Mbit/s, Maximum data transfer rate (2.4 GHz): 2500 Mbit/s, Maximum data transfer rate (5 GHz): 5000 Mbit/s. Security algorithms: AES, EAP, EAP-GTC, EAP-SIM, MSCHAPv2, TLS, TTLS, WPA, WPA2, WPA3. WAN connection: Ethernet (RJ-45), Mobile network (SIM), Wi-Fi. Placement: Ceiling, Floor, Table, Product colour: White, Country of origin: Mexico. Antenna type: Internal & external, Antenna direction type: Omni-directional, Antenna features: Detachable antenna
  • POWERFUL Wi-Fi 6 PERFORMANCE: 4x4 Flexible Dual Radio with 5GHz and 2.4GHz or two 5GHz configuration, up to 5.38 Gbps data rate, uplink/downlink OFDMA, MU-MIMO, BBS colouring, TWT and Embedded IoT radios enabling BLE 5.0 and Zigbee
  • CISCO CLEANAIR: Powered by Cisco RF ASIC, offer superior analytics and security
  • ECOSYSTEM: End-point interoperability and optimised performance on Apple and Samsung devices
  • EMBEDDED WIRELESS CONTROLLER: Controller functions embedded in the Access Point for easy deployment, network monitoring and troubleshooting. Support with WebGUI and mobile app (C9120AXI(E)-EWC models only)
  • PEACE OF MIND: 90-day software and limited lifetime hardware warranty

Product Properties

  • Model
  • C9120AXE-EWC-E
  • EAN
  • 889728267540
  • Antenna
  • Antenna connector type
  • RP-TNC
  • Antenna direction type
  • Omni-directional
  • Antenna features
  • Detachable antenna
  • Antenna gain level (max)
  • 6 dBi
  • Antenna type
  • Internal & external
  • Antennas quantity
  • 4
  • Number of connectors
  • 2
  • Bullet points
  • Point
  • CISCO CLEANAIR: Powered by Cisco RF ASIC, offer superior analytics and security
    ECOSYSTEM: End-point interoperability and optimised performance on Apple and Samsung devices
    EMBEDDED WIRELESS CONTROLLER
    PEACE OF MIND: 90-day software and limited lifetime hardware warranty
    POWERFUL Wi-Fi 6 PERFORMANCE
  • Design
  • Country of origin
  • Mexico
  • On/off switch
  • Yes
  • Placement
  • Ceiling, Floor, Table
  • Product colour
  • White
  • Features
  • 2.4 GHz
  • Yes
  • 5 GHz
  • Yes
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.0
  • Channels quantity
  • 29 channels
  • Ethernet LAN data rates
  • 100,1000,2500,5000 Mbit/s
  • Maximum data transfer rate
  • 5000 Mbit/s
  • Maximum data transfer rate (2.4 GHz)
  • 2500 Mbit/s
  • Maximum data transfer rate (5 GHz)
  • 5000 Mbit/s
  • MIMO
  • Yes
  • MIMO type
  • Multi User MIMO
  • Networking standards
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Quantity per pack
  • 1 pc(s)
  • Management features
  • Firmware upgradeable
  • Yes
  • Syslog
  • Yes
  • Operational conditions
  • Non-operating altitude
  • 0 - 4572 m
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • -20 - 50 °C
  • Storage temperature (T-T)
  • -39 - 70 °C
  • Packaging content
  • AC adapter included
  • Yes
  • Number of products included
  • 1 pc(s)
  • PoE adapter included
  • Yes
  • Packaging data
  • Package depth
  • 263.7 mm
  • Package height
  • 90.4 mm
  • Package weight
  • 539.68 g
  • Package width
  • 244.6 mm
  • Performance
  • Flash memory
  • 1024 MB
  • Internal memory
  • 2048 MB
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 1
  • Switch Number of Ports
  • 1
  • USB 2.0 ports quantity
  • 1
  • WAN connection
  • Ethernet (RJ-45), Mobile network (SIM), Wi-Fi
  • Power
  • Power over Ethernet (PoE)
  • Yes
  • Security
  • Security algorithms
  • AES, EAP, EAP-GTC, EAP-SIM, MSCHAPv2, TLS, TTLS, WPA, WPA2, WPA3
  • Weight & dimensions
  • Depth
  • 216 mm
  • Height
  • 51 mm
  • Weight
  • 1.36 kg
  • Width
  • 216 mm
