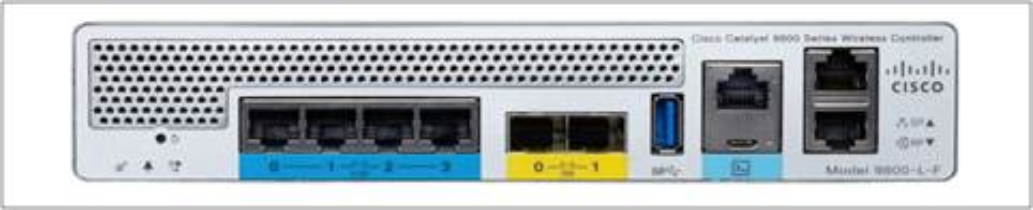

Cisco Catalyst 9800-L-F gateway/controller 10, 100, 1000, 10000 Mbit/s
Roll over image to zoom inClick to Open expanded view
Model: C9800-L-F-K9
EAN: 889728225489

Cisco Catalyst 9800-L-F gateway/controller 10, 100, 1000, 10000 Mbit/s

Manufacturer:
Cisco
Cisco Catalyst 9800-L-F, Grey, UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1, FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2),..., 10,100,1000,10000 Mbit/s, IEEE 802.11a, IEEE 802.
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst 9800-L-F. Product colour: Grey, Safety: UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1, Certification: FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2),.... Ethernet LAN data rates: 10,100,1000,10000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE.... Security algorithms: AES, DES, EAP, HTTPS, IPSec, SSL/TLS, WEP, WPA2. Console port: RJ-45. Width: 215.9 mm, Depth: 230.1 mm, Height: 40.2 mm
  • Choose between copper and fiber uplinks. This choice gives you flexibility in your network
  • High availability and seamless software updates, enabled by hot and cold patching, keep your clients and services always on in planned and unplanned events
  • Secure the air, devices, and users with the Cisco Catalyst 9800-L. The wireless infrastructure becomes the strongest first line of defense, with Encrypted Traffic Analytics and Software-Defined Access (SD-Access). The controller comes with built-in security: Secure Boot, runtime defenses, image signing, integrity verification, and hardware authenticity
  • Built on a modular operating system, the controller features open and programmable APIs that enable automation of day-0 to day-N network operations. Model-driven streaming telemetry provides deep insights into your network and client health

Product Properties

  • Model
  • C9800-L-F-K9
  • EAN
  • 889728225489
  • Bullet points
  • Point
  • Choose between copper and fiber uplinks. This choice gives you flexibility in your network
    Secure the air, devices, and users with the Cisco Catalyst 9800-L. The wireless infrastructure becomes the strongest first line of defense, with Encrypted Traffic Analytics and Software-Defined Access (SD-Access). The controller comes with built-in security
  • Design
  • Certification
  • FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EN61000-3-2, EN61000-3-3
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Safety
  • UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Syslog
  • Yes
  • Web-based management
  • Yes
  • Network
  • Ethernet LAN data rates
  • 10,100,1000,10000 Mbit/s
  • Networking standards
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
  • Wi-Fi
  • Yes
  • Operational conditions
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 10 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -25 - 70 °C
  • Performance
  • Control display unit
  • No
  • Ports & interfaces
  • Console port
  • RJ-45
  • Ethernet LAN (RJ-45) ports
  • 6
  • Fixed SFP ports quantity
  • 2
  • Security
  • Security algorithms
  • AES, DES, EAP, HTTPS, IPSec, SSL/TLS, WEP, WPA2
  • VLAN support
  • Yes
  • Weight & dimensions
  • Depth
  • 230.1 mm
  • Height
  • 40.2 mm
  • Weight
  • 1.82 kg
  • Width
  • 215.9 mm
