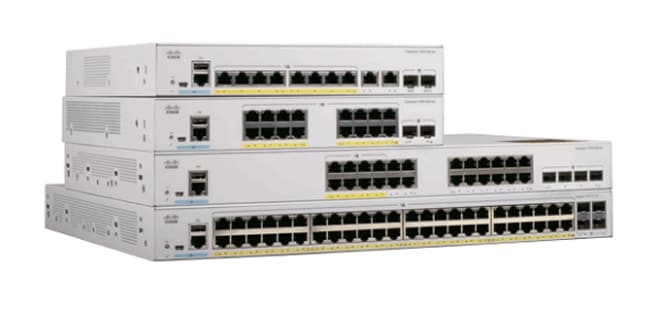

Cisco Catalyst C1000FE-24T-4G-L network switch Managed L2 Grey
Roll over image to zoom inClick to Open expanded view
Print
Model: C1000FE-24T-4G-L
EAN: 889728309943

Cisco Catalyst C1000FE-24T-4G-L network switch Managed L2 Grey

Manufacturer:
Cisco
Cisco Catalyst C1000FE-24T-4G-L, Managed, L2, Full duplex
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst C1000FE-24T-4G-L. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE...

Product Properties

  • Model
  • C1000FE-24T-4G-L
  • EAN
  • 889728309943
  • Data transmission
  • Forwarding rate
  • 41.67 Mpps
  • Jumbo frames
  • 10240
  • Jumbo frames support
  • Yes
  • MAC address table
  • 16000 entries
  • Number of static routes
  • 16
  • Static route
  • Yes
  • Switching capacity
  • 56 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • ARP inspection
  • Yes
  • Configuring Location Settings (CLI)
  • Yes
  • MIB support
  • Y
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2
  • Switch type
  • Managed
  • Traffic classification
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • IPv4 multicast entries
  • 1024
  • IPv6 multicast entries
  • 1024
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Broadcast storm control
  • Yes
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Full duplex
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
  • Number of VLANs
  • 4094
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Non-operating altitude
  • 0 - 4500 m
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • -5 - 50 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -25 - 70 °C
  • Performance
  • Built-in processor
  • Yes
  • Flash memory
  • 256 MB
  • Internal memory
  • 512 MB
  • Mean time between failures (MTBF)
  • 2026793 h
  • Memory type
  • DRAM
  • Processor frequency
  • 800 MHz
  • Processor model
  • ARM7
  • Ports & interfaces
  • Combo SFP ports quantity
  • 2
  • Console port
  • RJ-45/Mini-USB
  • Switch Number of Ports
  • 24
  • USB 2.0 ports quantity
  • 1
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 110 - 240 V
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Security
  • Access Control List (ACL)
  • Yes
  • Authentication
  • Web-based authentication
  • Authentication type
  • RADIUS
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP snooping
  • IGMP entries
  • 1024
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • SSH/SSL support
  • Yes
  • Weight & dimensions
  • Depth
  • 240 mm
  • Height
  • 44 mm
  • Weight
  • 2.63 kg
  • Width
  • 444.5 mm
