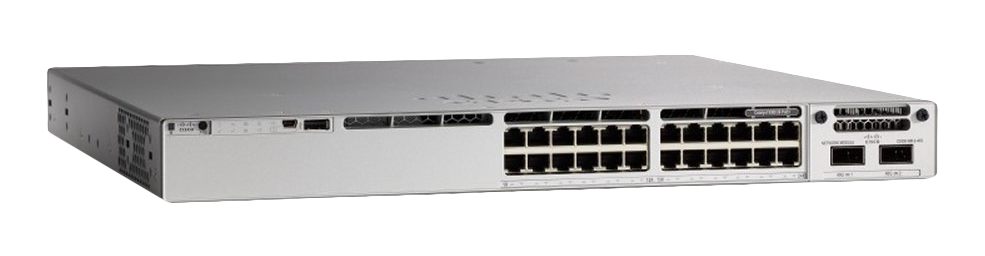

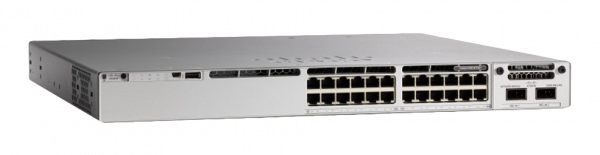

Cisco Catalyst C9300-24UX-E network switch Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey
Roll over image to zoom inClick to Open expanded view
Print
Model: C9300-24UX-E

Cisco Catalyst C9300-24UX-E network switch Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey

Manufacturer:
Cisco
Cisco Catalyst C9300-24UX-E, Managed, L2/L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products
Cisco
All network switches

Description

Cisco Catalyst C9300-24UX-E. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Product Properties

  • Model
  • C9300-24UX-E
  • Data transmission
  • Forwarding rate
  • 476.19 Mpps
  • Jumbo frames
  • 9198
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Packet buffer memory
  • 32 MB
  • Switching capacity
  • 640 Gbit/s
  • Design
  • Electromagnetic compatibility
  • 47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317
  • Form factor
  • 1U
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Safety
  • UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • ARP inspection
  • Yes
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Multicast features
  • IPv4 multicast entries
  • 32000
  • IPv6 multicast entries
  • 16000
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Broadcast storm control
  • Yes
  • Cable types supported
  • Cat5e, Cat6, Cat6a
  • Flow control support
  • Yes
  • Full duplex
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Number of VLANs
  • 4094
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • Private VLAN
  • VLAN support
  • Yes
  • Zero Touch Provisioning (ZTP)
  • Yes
  • Operational conditions
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • -5 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Performance
  • Built-in processor
  • Yes
  • Firmware upgradeable
  • Yes
  • Flash memory
  • 16000 MB
  • Mean time between failures (MTBF)
  • 214760 h
  • Plug and Play
  • Yes
  • Ports & interfaces
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • 10G Ethernet (100/1000/10000)
  • USB 2.0 ports quantity
  • 1
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Total Power over Ethernet (PoE) budget
  • 560 W
  • Protocols
  • Routing protocols
  • EIGRP, OSPF, RIP
  • Virtual Router Redundancy Protocol (VRRP)
  • Yes
  • Security
  • Access Control List (ACL)
  • Yes
  • DHCP features
  • DHCP snooping
  • Security algorithms
  • 128-bit AES, 256-bit AES
  • Weight & dimensions
  • Depth
  • 434 mm
  • Height
  • 44 mm
  • Weight
  • 8.25 kg
  • Width
  • 445 mm
