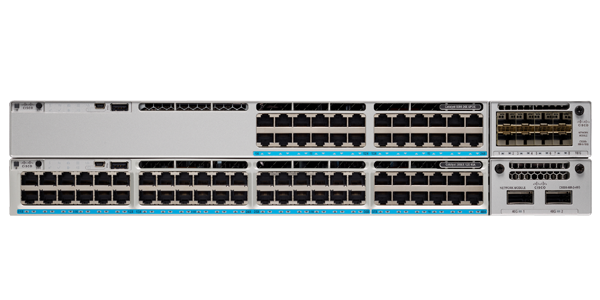

Cisco Catalyst C9300-48S-E network switch Managed L2/L3 Grey
Roll over image to zoom inClick to Open expanded view
Model: C9300-48S-E

Cisco Catalyst C9300-48S-E network switch Managed L2/L3 Grey

Manufacturer:
Cisco
Cisco Catalyst C9300-48S-E, Managed, L2/L3, Full duplex, Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst C9300-48S-E. Switch type: Managed, Switch layer: L2/L3. Full duplex. MAC address table: 32000 entries, Switching capacity: 256 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting

Product Properties

  • Model
  • C9300-48S-E
  • Data transmission
  • Forwarding rate
  • 190.47 Mpps
  • Jumbo frames
  • 9198
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Switching capacity
  • 256 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • MIB support
  • Y
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • Full duplex
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
  • Number of VLANs
  • 4000
  • VLAN support
  • Yes
  • Operational conditions
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • -5 - 40 °C
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Performance
  • Mean time between failures (MTBF)
  • 281920 h
  • Ports & interfaces
  • SFP module slots quantity
  • 48
  • Switch Port Speed
  • No
  • Security
  • Access Control List (ACL)
  • Yes
  • DHCP features
  • DHCP snooping
  • Weight & dimensions
  • Depth
  • 488 mm
  • Height
  • 43 mm
  • Weight
  • 7.86 kg
  • Width
  • 444 mm
