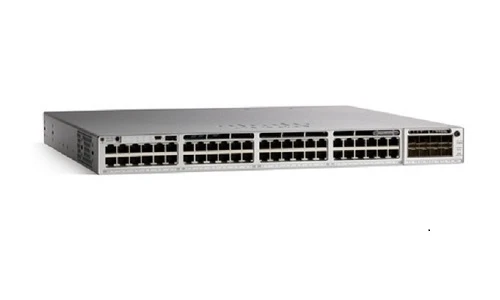

Cisco Catalyst C9300L-48UXG-4X-A network switch Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Roll over image to zoom inClick to Open expanded view
Print
Model: C9300L-48UXG-4X-A

Cisco Catalyst C9300L-48UXG-4X-A network switch Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey

Manufacturer:
Cisco
Cisco Catalyst C9300L-48UXG-4X-A, Managed, L2/L3, 10G Ethernet (100/1000/10000), Full duplex, Power over Ethernet (PoE), Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst C9300L-48UXG-4X-A. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32000 entries, Switching capacity: 392 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting

Product Properties

  • Model
  • C9300L-48UXG-4X-A
  • Data transmission
  • Forwarding rate
  • 291.66 Mpps
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Switching capacity
  • 392 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Full duplex
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
  • Number of VLANs
  • 4094
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • -5 - 40 °C
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Performance
  • Flash memory
  • 16000 MB
  • Internal memory
  • 8000 MB
  • Mean time between failures (MTBF)
  • 273820 h
  • Ports & interfaces
  • 10G Ethernet (copper) ports quantity
  • 12
  • Gigabit Ethernet (copper) ports quantity
  • 36
  • Switch Number of Ports
  • 48
  • Switch Port Speed
  • 10G Ethernet (100/1000/10000)
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Total Power over Ethernet (PoE) budget
  • 675 W
  • Security
  • Access Control List (ACL)
  • Yes
  • Access Control List (ACL) rules
  • 5120
  • DHCP features
  • DHCP snooping
  • Weight & dimensions
  • Depth
  • 448 mm
  • Height
  • 44 mm
  • Weight
  • 7.65 kg
  • Width
  • 445 mm
