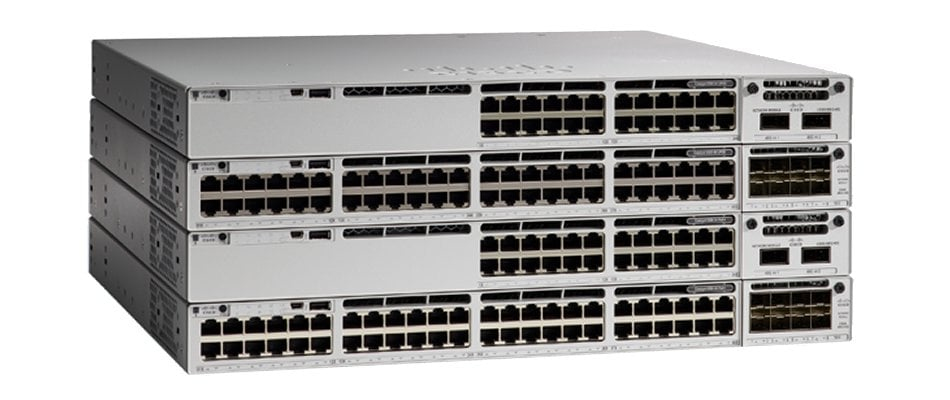

Cisco Catalyst C9300X-12Y-A network switch Managed L3 Grey
Roll over image to zoom inClick to Open expanded view
Print
Model: C9300X-12Y-A

Cisco Catalyst C9300X-12Y-A network switch Managed L3 Grey

Manufacturer:
Cisco
Cisco Catalyst C9300X-12Y-A, Managed, L3, Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst C9300X-12Y-A. Switch type: Managed, Switch layer: L3. MAC address table: 32000 entries, Switching capacity: 1000 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting

Product Properties

  • Model
  • C9300X-12Y-A
  • Data transmission
  • Forwarding rate
  • 744.04 Mpps
  • Jumbo frames
  • 9198
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Switching capacity
  • 1000 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Network
  • 10G support
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • -5 - 45 °C
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Performance
  • Mean time between failures (MTBF)
  • 265650 h
  • Ports & interfaces
  • SFP28 ports quantity
  • 12
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 230 V
  • Power consumption (typical)
  • 715 W
  • Power source
  • AC
  • Power supply included
  • Yes
  • Weight & dimensions
  • Depth
  • 409 mm
  • Height
  • 43.9 mm
  • Width
  • 445 mm
