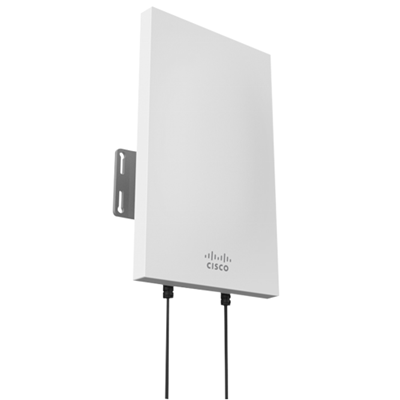

Cisco Meraki MA-ANT-27 network antenna Sector antenna N-type 12 dBi
Roll over image to zoom inClick to Open expanded view
Print
Model: MA-ANT-27

Cisco Meraki MA-ANT-27 network antenna Sector antenna N-type 12 dBi

Manufacturer:
Cisco
Cisco Meraki MA-ANT-27, 12 dBi, 2.400 – 2.500, 5.150 – 5.875, 9 / 12 dBi, 9 dBi, 12 dBi, 65°
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MA-ANT-27. Antenna gain level (max): 12 dBi, Frequency band: 2.400 – 2.500, 5.150 – 5.875, Gain: 9 / 12 dBi. Antenna type: Sector antenna, Antenna connector type: N-type, Mounting: Wall/Pole. Width: 140 mm, Depth: 48 mm, Height: 230 mm. Quantity per pack: 1 pc(s), Package type: Box

Product Properties

  • Model
  • MA-ANT-27
  • Features
  • Antenna connector type
  • N-type
  • Antenna type
  • Sector antenna
  • Housing material
  • Plastic
  • Mounting
  • Wall/Pole
  • Product colour
  • White
  • Purpose
  • Indoor & outdoor
  • Ultraviolet (UV) resistant
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85177100
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • Mounting kit
  • Yes
  • Package type
  • Box
  • Quantity per pack
  • 1 pc(s)
  • Performance
  • Antenna gain (2.4 GHz)
  • 9 dBi
  • Antenna gain (5 GHz)
  • 12 dBi
  • Antenna gain level (max)
  • 12 dBi
  • Frequency band
  • 2.400 – 2.500, 5.150 – 5.875
  • Gain
  • 9 / 12 dBi
  • Horizontal beam width
  • 65°
  • Vertical beam width
  • 18°
  • Weight & dimensions
  • Depth
  • 48 mm
  • Height
  • 230 mm
  • Weight
  • 630 g
  • Width
  • 140 mm
