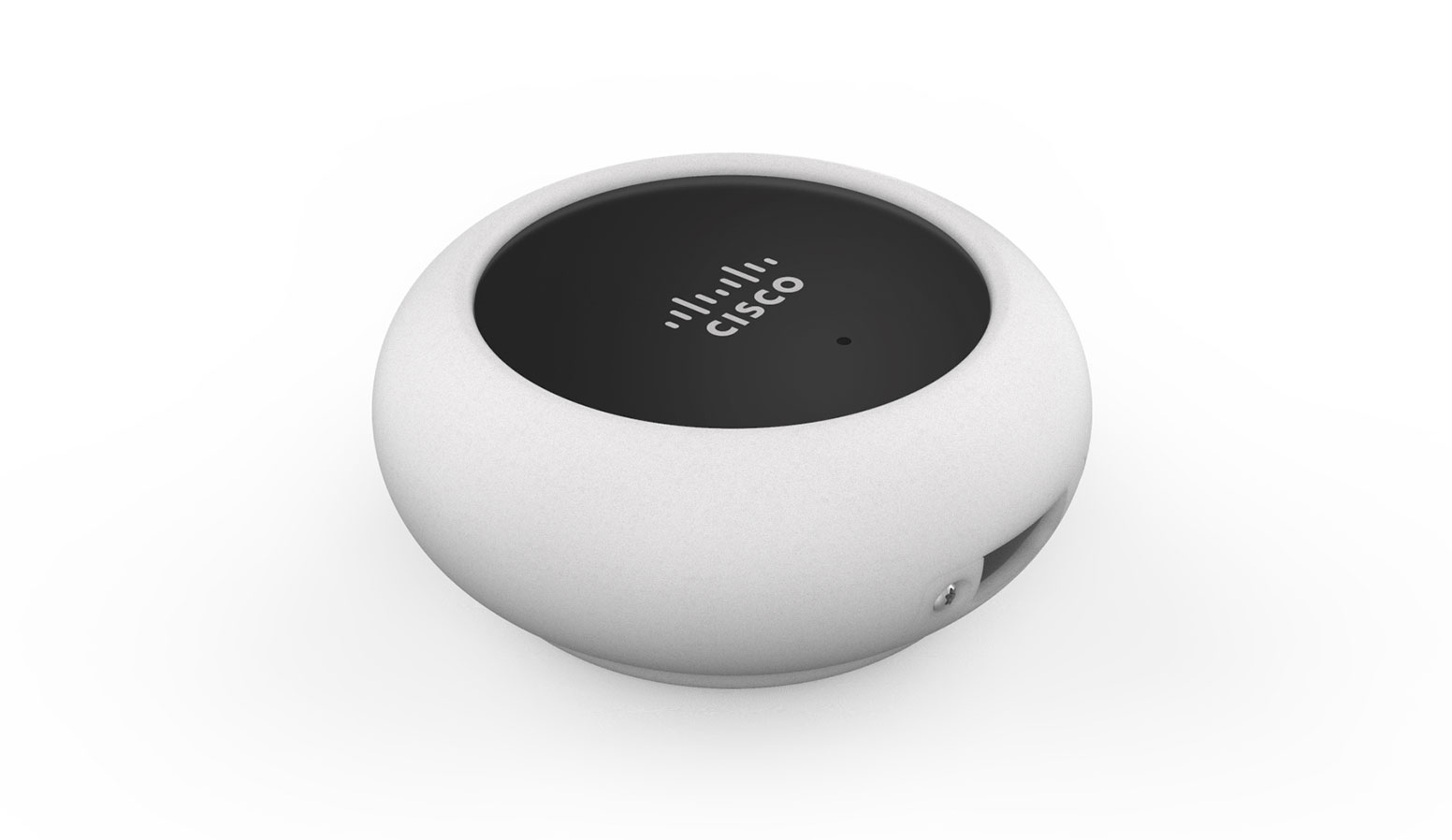

Cisco Meraki MA-PWR-MV-LV PoE adapter 54 V
Roll over image to zoom inClick to Open expanded view
Print
Model: MA-PWR-MV-LV

Cisco Meraki MA-PWR-MV-LV PoE adapter 54 V

Manufacturer:
Cisco
Cisco Meraki MA-PWR-MV-LV, Black, White, CSA / CB / UL / TUV (electrical safety), CAN / CSA-C22.2 No. 60950-1-07), ANSI / UL Std. No...., EN 55035, EN 55024, EN 300 386 (Europe) FCC (USA) ICES-330 (Canada) CISPR 32 (Australia / New..., 54 V, 24/12 V, 2.2/
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MA-PWR-MV-LV. Product colour: Black, White, Safety: CSA / CB / UL / TUV (electrical safety), CAN / CSA-C22.2 No. 60950-1-07), ANSI / UL Std. No...., Certification: EN 55035, EN 55024, EN 300 386 (Europe) FCC (USA) ICES-330 (Canada) CISPR 32 (Australia / New.... Power over Ethernet (PoE) voltage: 54 V, Input voltage: 24/12 V, Input current: 2.2/2.75 A. Weight: 190 g, Dimensions (WxDxH): 82 x 82 x 35.5 mm. Number of products included: 1 pc(s)

Product Properties

  • Model
  • MA-PWR-MV-LV
  • Features
  • Certification
  • EN 55035, EN 55024, EN 300 386 (Europe) FCC (USA) ICES-330 (Canada) CISPR 32 (Australia / New Zealand) VCCI (Japan)
  • Easy to install
  • Yes
  • LED indicators
  • Yes
  • Product colour
  • Black, White
  • Safety
  • CSA / CB / UL / TUV (electrical safety), CAN / CSA-C22.2 No. 60950-1-07), ANSI / UL Std. No. 60950-1, IEC / EN 60950-1, CB, RCM, UL 2043
  • Wall mountable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85044095
  • Network
  • Power over Ethernet (PoE)
  • Yes
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 45 °C
    32 - 113 °F
  • Packaging content
  • Number of products included
  • 1 pc(s)
  • Quick installation guide
  • Yes
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 1
  • Power
  • Input current
  • 2.2/2.75 A
  • Input voltage
  • 24/12 V
  • Output current
  • 0.43 A
  • Power over Ethernet (PoE) voltage
  • 54 V
  • Weight & dimensions
  • Dimensions (WxDxH)
  • 82 x 82 x 35.5 mm
  • Weight
  • 190 g
