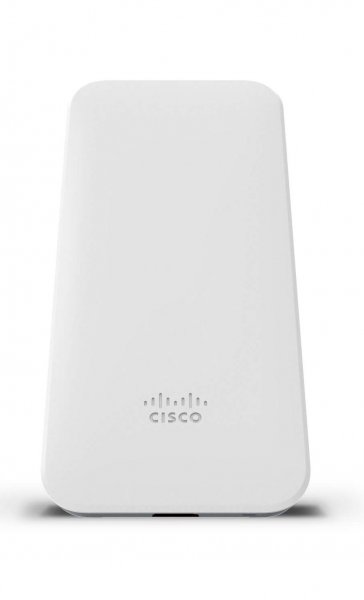

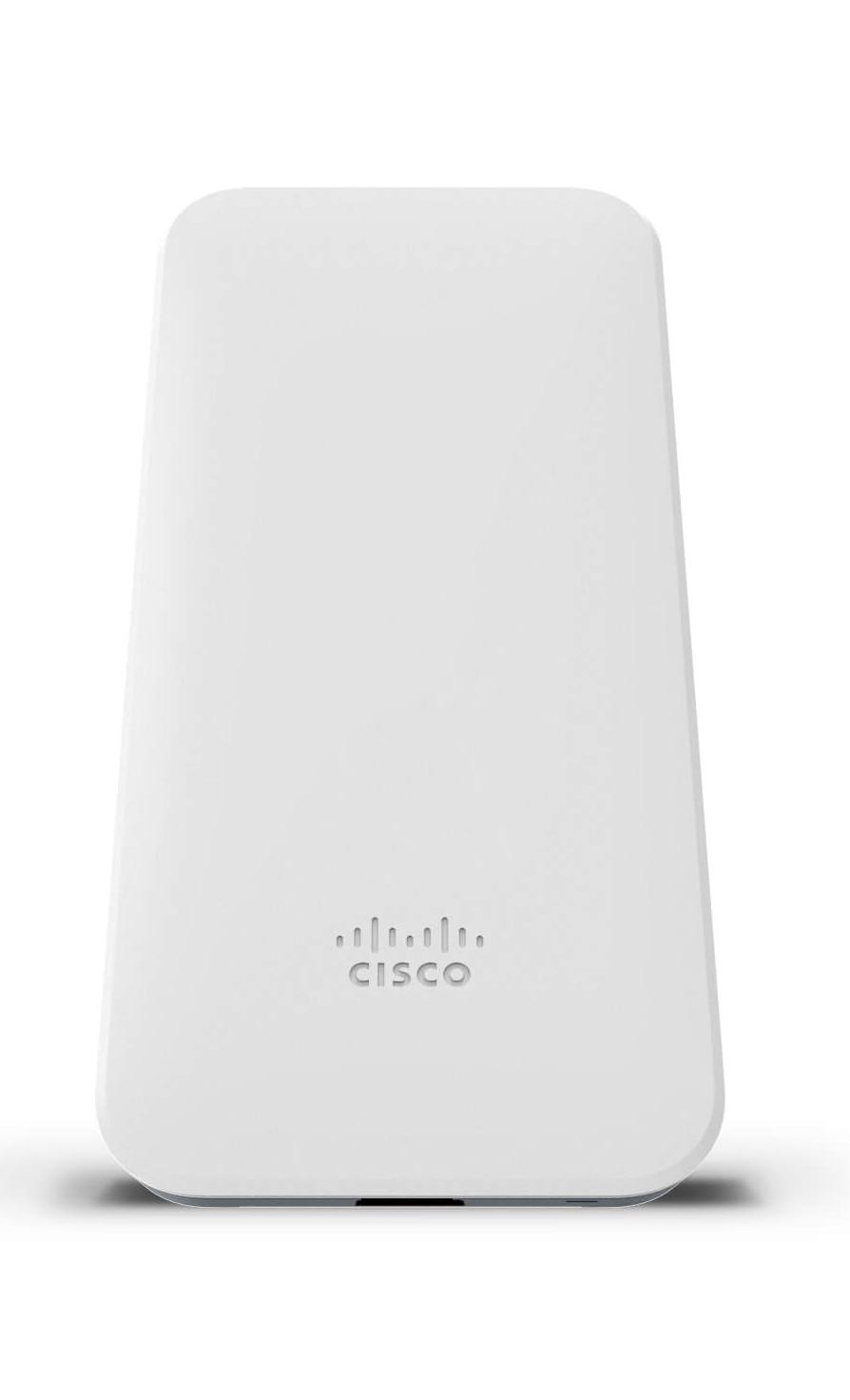

Cisco Meraki MR 70 1300 Mbit/s White Power over Ethernet (PoE)
Roll over image to zoom inClick to Open expanded view
Print
Model: MR70-HW

Cisco Meraki MR 70 1300 Mbit/s White Power over Ethernet (PoE)

Manufacturer:
Cisco
Cisco Meraki MR 70, 1300 Mbit/s, 54 Mbit/s, 100,1000 Mbit/s, 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.3af, 2 channels
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MR 70. Maximum data transfer rate: 1300 Mbit/s, Wi-Fi data rate (max): 54 Mbit/s, Ethernet LAN data rates: 100,1000 Mbit/s. Security algorithms: WEP, WPA, WPA2-Enterprise, WPA2-PSK. Power consumption (max): 11 W. Placement: Floor, Table, Wall, Product colour: White, International Protection (IP) code: IP67. Antenna features: Integrated antenna, Antenna gain level (max): 4.7 dBi

Product Properties

  • Model
  • MR70-HW
  • Antenna
  • Antenna features
  • Integrated antenna
  • Antenna gain level (max)
  • 4.7 dBi
  • Antennas quantity
  • 2
  • Design
  • Certification
  • UL, IEC, FCC, RoHS
  • Internal
  • No
  • International Protection (IP) code
  • IP67
  • LED indicators
  • Power
  • Placement
  • Floor, Table, Wall
  • Product colour
  • White
  • Features
  • 2.4 GHz
  • Yes
  • 5 GHz
  • Yes
  • Bandwidth
  • 5 GHz
  • Channel bandwidth
  • 40 MHz
  • Channels quantity
  • 2 channels
  • Ethernet LAN data rates
  • 100,1000 Mbit/s
  • Maximal-Ratio Combining (MRC)
  • Yes
  • Maximum data transfer rate
  • 1300 Mbit/s
  • MIMO
  • Yes
  • MIMO type
  • Multi User MIMO
  • Modulation
  • 256-QAM
  • Networking standards
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.3af
  • Virtual LAN features
  • Tagged VLAN
  • Wi-Fi data rate (max)
  • 54 Mbit/s
  • Wi-Fi Multimedia (WMM)/(WME)
  • Yes
  • Wi-Fi roaming
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Operational conditions
  • Operating relative humidity (H-H)
  • -20 - 55%
  • Packaging content
  • Mounting kit
  • Yes
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 1
  • Power
  • Power consumption (max)
  • 11 W
  • Power over Ethernet (PoE)
  • Yes
  • Security
  • Security algorithms
  • WEP, WPA, WPA2-Enterprise, WPA2-PSK
  • Wireless Intrusion Detection System (WIDS)
  • Yes
  • Weight & dimensions
  • Depth
  • 30 mm
  • Height
  • 245 mm
  • Weight
  • 450 g
  • Width
  • 115 mm
