Description

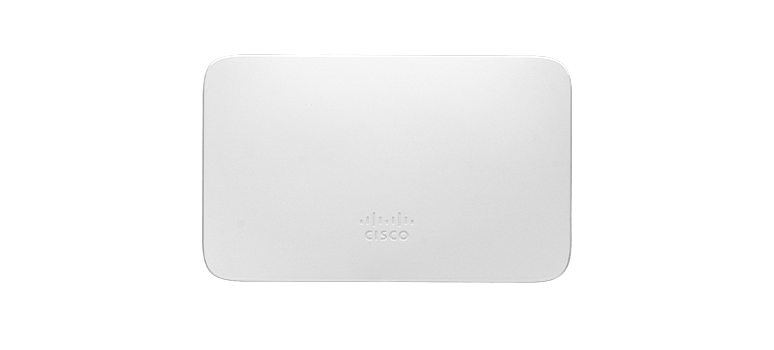

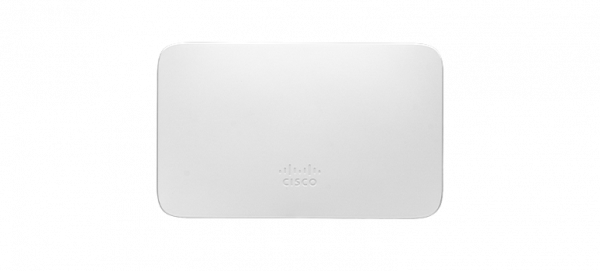

Cisco Meraki MR28. Maximum data transfer rate: 1.5 Mbit/s, Ethernet LAN data rates: 10,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE.... Security algorithms: AES, EAP-SIM, EAP-TLS, EAP-TTLS, TKIP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-Enterprise. AC input voltage: 37 - 57 V, DC voltage range: 12 V, Power consumption (typical): 15 W. Product colour: White, LED indicators: Power, Yes. Antenna type: Internal, Antenna gain level (max): 6 dBi

2x2:2 MU-MIMO 802.11ax
1.5 Gbps dual-radio aggregate frame rate
Enhanced transmit power and receive sensitivity
Integrated enterprise security and guest access
Application-aware traffic shaping
Optimized for voice and video
Self-configuring, plug-and-play deployment

Product Properties

Manufacturer
Cisco

Model
MR28-HW

Antenna

Antenna gain level (max)
6 dBi

Antenna type
Internal

Bullet points

Point
1.5 Gbps dual-radio aggregate frame rate

2x2:2 MU-MIMO 802.11ax

Application-aware traffic shaping

Enhanced transmit power and receive sensitivity

Integrated enterprise security and guest access

Optimized for voice and video

Self-configuring, plug-and-play deployment

Design

LED indicators
Power, Yes

Product colour
White

Features

2.4 GHz
Yes

5 GHz
Yes

6 GHz
No

BeamForming
Yes

Bluetooth
Yes

Bluetooth Low Energy (BLE)
Yes

Bluetooth version
5.0

Ethernet LAN data rates
10,1000 Mbit/s

Fast roaming
Yes

Maximal-Ratio Combining (MRC)
Yes

Maximum data transfer rate
1.5 Mbit/s

MIMO
Yes

MIMO type
Multi User MIMO

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u

Quality of Service (QoS) support
Yes

Spread spectrum method
OFDMA

Virtual LAN features
Tagged VLAN

VLAN support
Yes

Wi-Fi Multimedia (WMM)/(WME)
Yes

Wi-Fi roaming
Yes

Wireless isolation
Yes

Management features

Firmware upgradeable
Yes

Operational conditions

Operating altitude
0 - 12192 m

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Packaging content

AC adapter included
Yes

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
1

Power

AC input voltage
37 - 57 V

DC voltage range
12 V

Power consumption (typical)
15 W

Power over Ethernet (PoE)
Yes

Security

Security algorithms
AES, EAP-SIM, EAP-TLS, EAP-TTLS, TKIP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-Enterprise

Sustainability

Sustainability certificates
RoHS

Weight & dimensions

Depth
25.8 mm

Height
202 mm

Weight
272 g

Width
124 mm

Cisco Meraki MR28 1.5 Mbit/s White Power over Ethernet (PoE)
