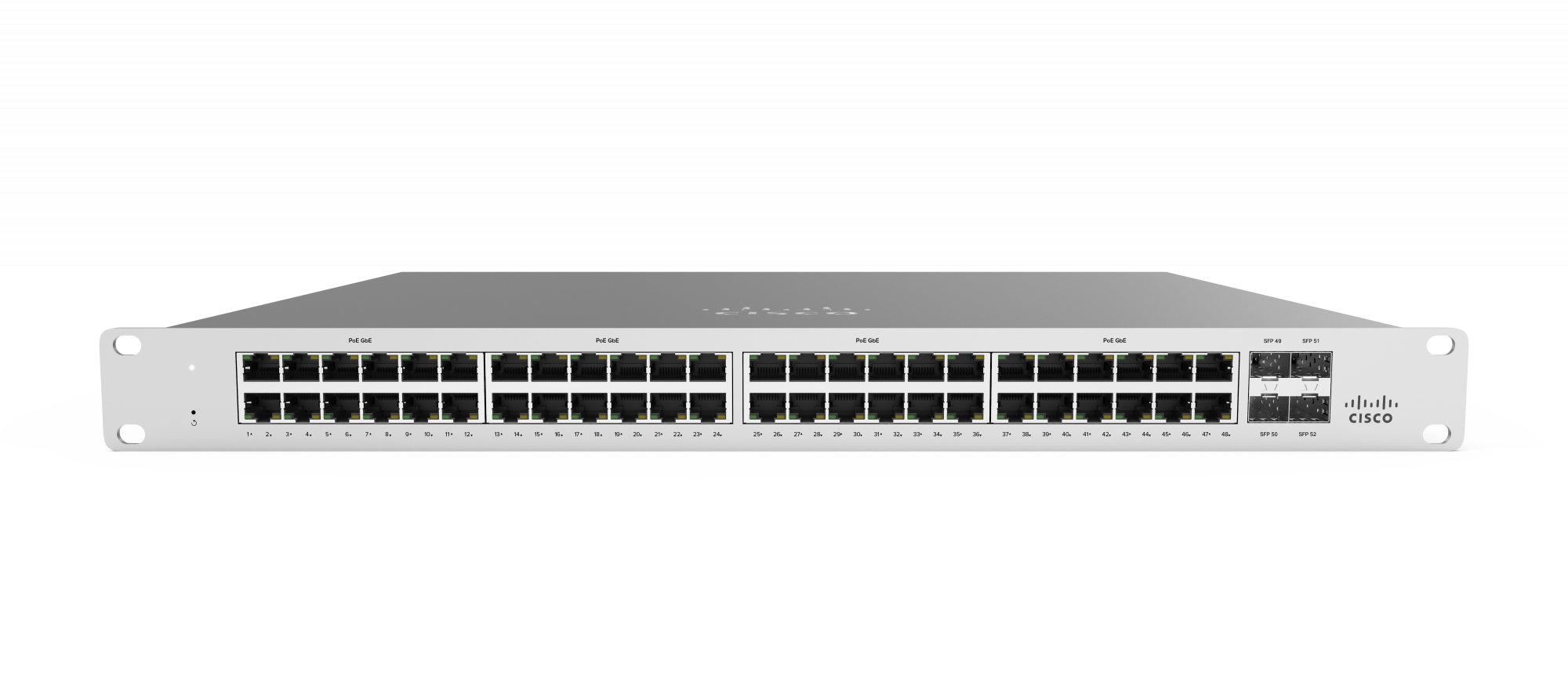

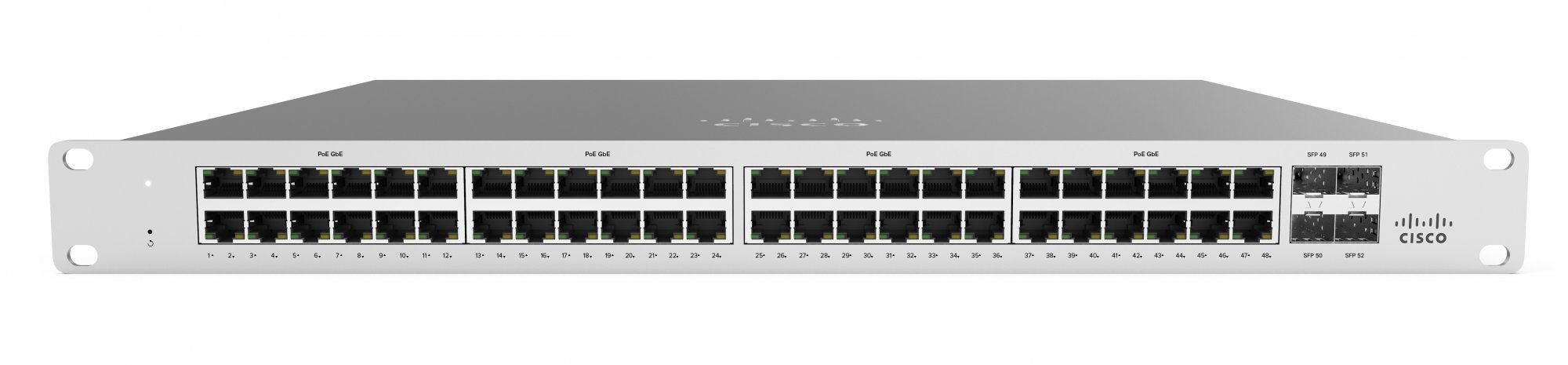

Cisco Meraki MS120-48 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey
Roll over image to zoom inClick to Open expanded view
Cisco Meraki MS120-48 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey
Cisco Meraki MS120-48 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey
Print
Model: MS120-48-HW

Cisco Meraki MS120-48 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey

Manufacturer:
Cisco
Cisco Meraki MS120-48, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MS120-48. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w. Rack mounting, Form factor: 1U

Product Properties

  • Model
  • MS120-48-HW
  • Data transmission
  • Jumbo frames
  • 9578
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Switching capacity
  • 104 Gbit/s
  • Design
  • Form factor
  • 1U
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2
  • Switch type
  • Managed
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Broadcast storm control
  • Yes
  • Networking standards
  • IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w
  • Number of VLANs
  • 4094
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Performance
  • Mean time between failures (MTBF)
  • 692887 h
  • Ports & interfaces
  • Console port
  • RJ-45
  • SFP module slots quantity
  • 4
  • Switch Number of Ports
  • 48
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 47/63 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 882 W
  • Power consumption (typical)
  • 16 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Protocols
  • Management protocols
  • SNMP
  • Switching protocols
  • RSTP, STP, LLDP, CDP
  • Security
  • Access Control List (ACL)
  • Yes
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP server, DHCP snooping, DHCP client
  • IGMP snooping
  • Yes
  • Root protection
  • Yes
  • Weight & dimensions
  • Depth
  • 250 mm
  • Height
  • 44 mm
  • Weight
  • 4.06 kg
  • Width
  • 440 mm
