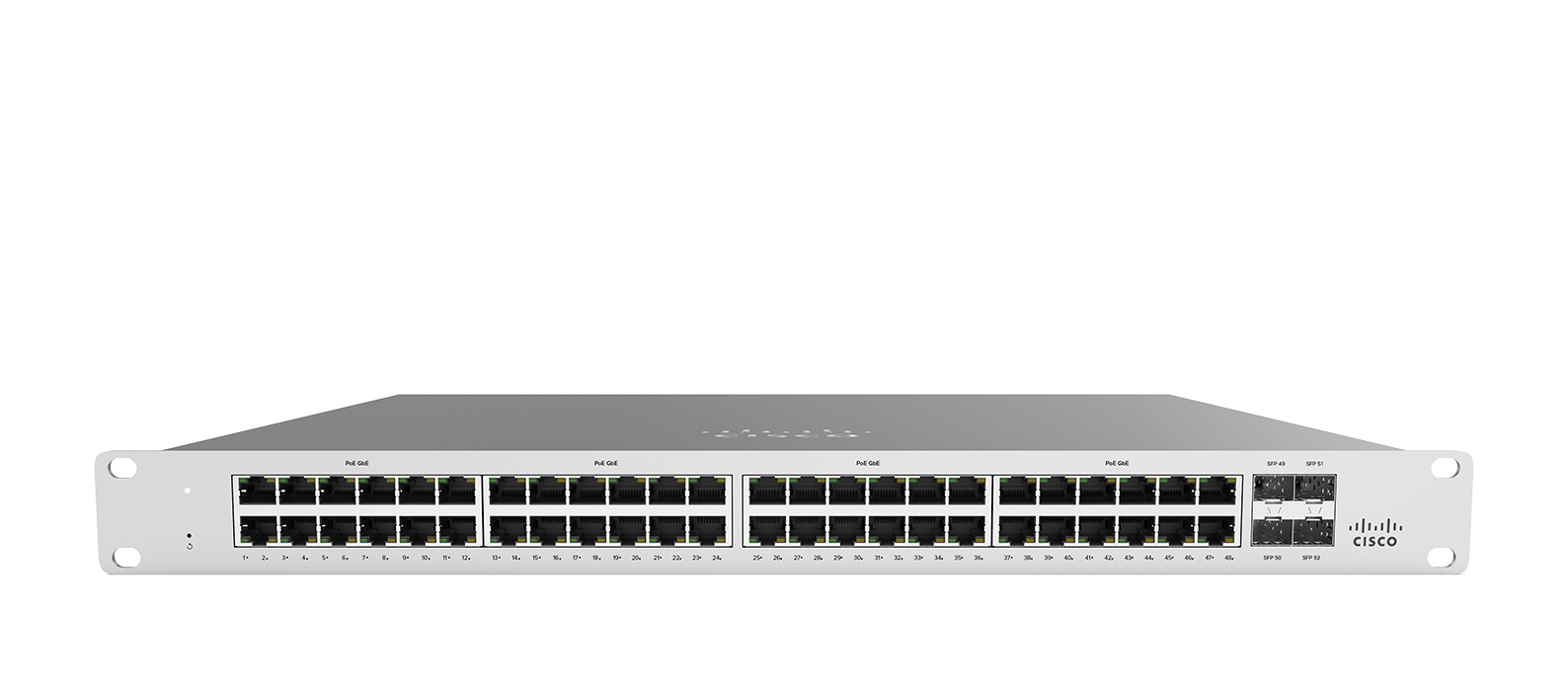

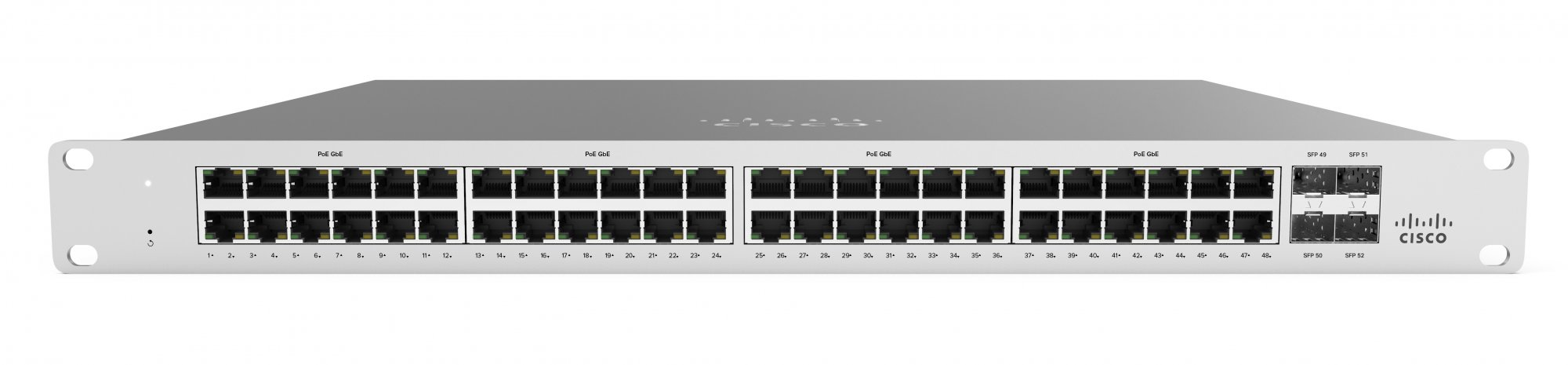

Cisco Meraki MS120-48LP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Roll over image to zoom inClick to Open expanded view
Cisco Meraki MS120-48LP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Cisco Meraki MS120-48LP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Print
Model: MS120-48LP-HW
EAN: 810979013013

Cisco Meraki MS120-48LP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Manufacturer:
Cisco
Cisco Meraki MS120-48LP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MS120-48LP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Product Properties

  • Model
  • MS120-48LP-HW
  • EAN
  • 810979013013
  • Data transmission
  • Forwarding rate
  • 77.38 Mpps
  • Jumbo frames
  • 9600
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Number of queues
  • 8
  • Switching capacity
  • 104 Gbit/s
  • Design
  • Certification
  • CSA-US (US, Canada) FCC (USA) IC (Canada) CE (Europe) RCM (Australia/New Zealand) RoHS
  • Form factor
  • 1U
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2
  • Switch type
  • Managed
  • System event log
  • Yes
  • Web-based management
  • Yes
  • Network
  • 10G support
  • No
  • Broadcast storm control
  • Yes
  • Flow control support
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
  • Number of VLANs
  • 4096
  • Port mirroring
  • Yes
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Packaging data
  • Screws included
  • Yes
  • Performance
  • Firmware upgradeable
  • Yes
  • Mean time between failures (MTBF)
  • 660538 h
  • Ports & interfaces
  • Console port
  • RJ-45
  • SFP module slots quantity
  • 4
  • Switch Number of Ports
  • 48
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 47/63 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 478 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Total Power over Ethernet (PoE) budget
  • 370 W
  • Protocols
  • Management protocols
  • IPv4, IPv6, SNMP
  • Routing protocols
  • CDP
  • Security
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP relay
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • Root protection
  • Yes
  • Security algorithms
  • 802.1x RADIUS, SNMP
  • Weight & dimensions
  • Depth
  • 340 mm
  • Height
  • 44 mm
  • Weight
  • 5.7 kg
  • Width
  • 440 mm
