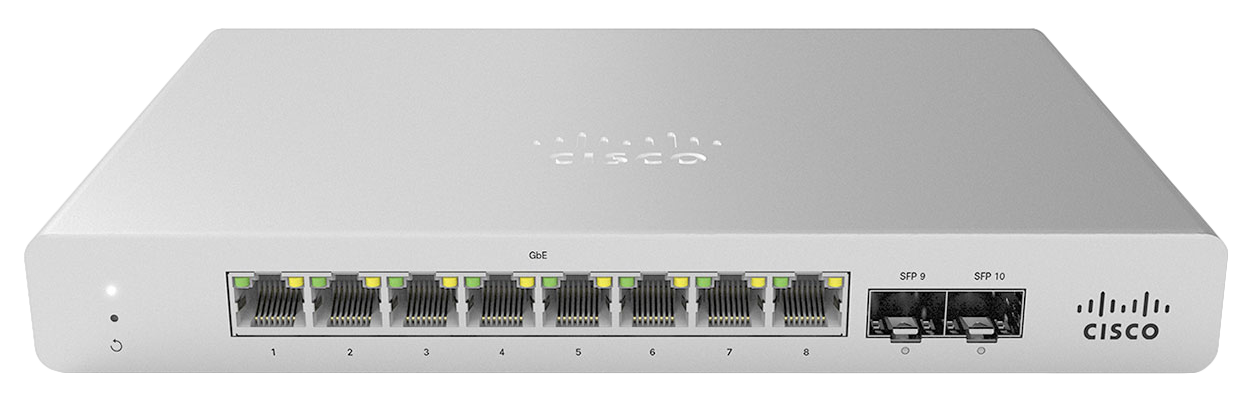

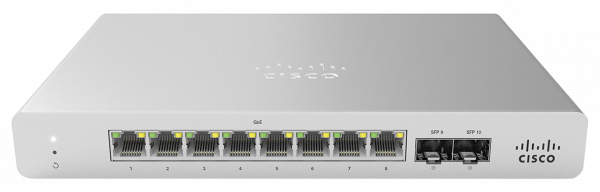

Cisco Meraki MS120-8 Managed L2 Gigabit Ethernet (10/100/1000) Grey
Roll over image to zoom inClick to Open expanded view
Print
Model: MS120-8-HW

Cisco Meraki MS120-8 Managed L2 Gigabit Ethernet (10/100/1000) Grey

Manufacturer:
Cisco
Cisco Meraki MS120-8, Managed, L2, Gigabit Ethernet (10/100/1000), Wall mountable
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MS120-8. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w. DC input voltage: 12 V. Power connector: DC-in jack. Wall mountable

Product Properties

  • Model
  • MS120-8-HW
  • Data transmission
  • Jumbo frames
  • 9600
  • Jumbo frames support
  • Yes
  • MAC address table
  • 16000 entries
  • Switching capacity
  • 20 Gbit/s
  • Design
  • Product colour
  • Grey
  • Rack mounting
  • No
  • Wall mountable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2
  • Switch type
  • Managed
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Broadcast storm control
  • Yes
  • Networking standards
  • IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w
  • Number of VLANs
  • 4094
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Ports & interfaces
  • Console port
  • RJ-45
  • Power connector
  • DC-in jack
  • SFP module slots quantity
  • 2
  • Switch Number of Ports
  • 8
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 47/63 Hz
  • AC input voltage
  • 100 - 240 V
  • DC input voltage
  • 12 V
  • Input current
  • 2.5 A
  • Power consumption (max)
  • 16 W
  • Power consumption (typical)
  • 5 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Protocols
  • Management protocols
  • SNMP
  • Switching protocols
  • RSTP, STP, LLDP, CDP
  • Security
  • Access Control List (ACL)
  • Yes
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP server, DHCP snooping, DHCP client
  • IGMP snooping
  • Yes
  • Root protection
  • Yes
  • Weight & dimensions
  • Depth
  • 150 mm
  • Height
  • 28 mm
  • Weight
  • 1.07 kg
  • Width
  • 222 mm
