Description

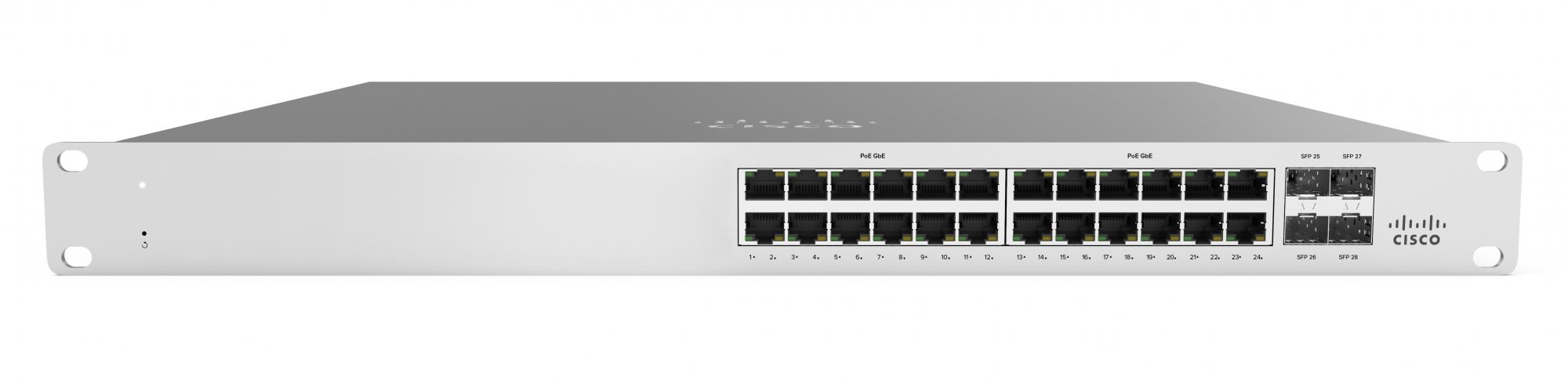

Cisco Meraki MS125-24P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes
Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
Role-based administration
Firmware upgrades and enhancements from the Meraki cloud
Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
Incredible network transparency with application, operating system, client, and hostname visibility
Zero-touch provisioning for rapid deployment across sites

Product Properties

Manufacturer
Cisco

Model
MS125-24P-HW

Bullet points

Point
Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes

Firmware upgrades and enhancements from the Meraki cloud

Incredible network transparency with application, operating system, client, and hostname visibility

Role-based administration

Zero-touch provisioning for rapid deployment across sites

Data transmission

Jumbo frames support
Yes

MAC address table
32000 entries

Switching capacity
128 Gbit/s

Design

Certification
CSA (US), IC (Canada), CE (Europe), C-Tick (Australia/New Zealand), RoHS

Form factor
1U

Product colour
Grey

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

10G support
Yes

Auto MDI/MDI-X
Yes

Broadcast storm control
Yes

Flow control support
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad

Port mirroring
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 45 °C

Performance

Firmware upgradeable
Yes

Mean time between failures (MTBF)
294713 h

Ports & interfaces

Console port
RJ-45

SFP+ module slots quantity
4

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
47/63 Hz

AC input voltage
100 - 240 V

Power consumption (max)
26 W

Power consumption (typical)
10 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet plus (PoE+) ports quantity
24

Total Power over Ethernet (PoE) budget
370 W

Protocols

Management protocols
IPv4, IPv6, SNMP

Switching protocols
RSTP, STP, LLDP, CDP

Security

Access Control List (ACL)
Yes

BPDU filtering/protection
Yes

DHCP features
DHCP client, DHCP server, DHCP snooping

IGMP snooping
Yes

Loop protection
Yes

Security algorithms
802.1x RADIUS, SNMP

Weight & dimensions

Depth
250 mm

Height
44 mm

Weight
4.2 kg

Width
440 mm

Cisco Meraki MS125-24P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
