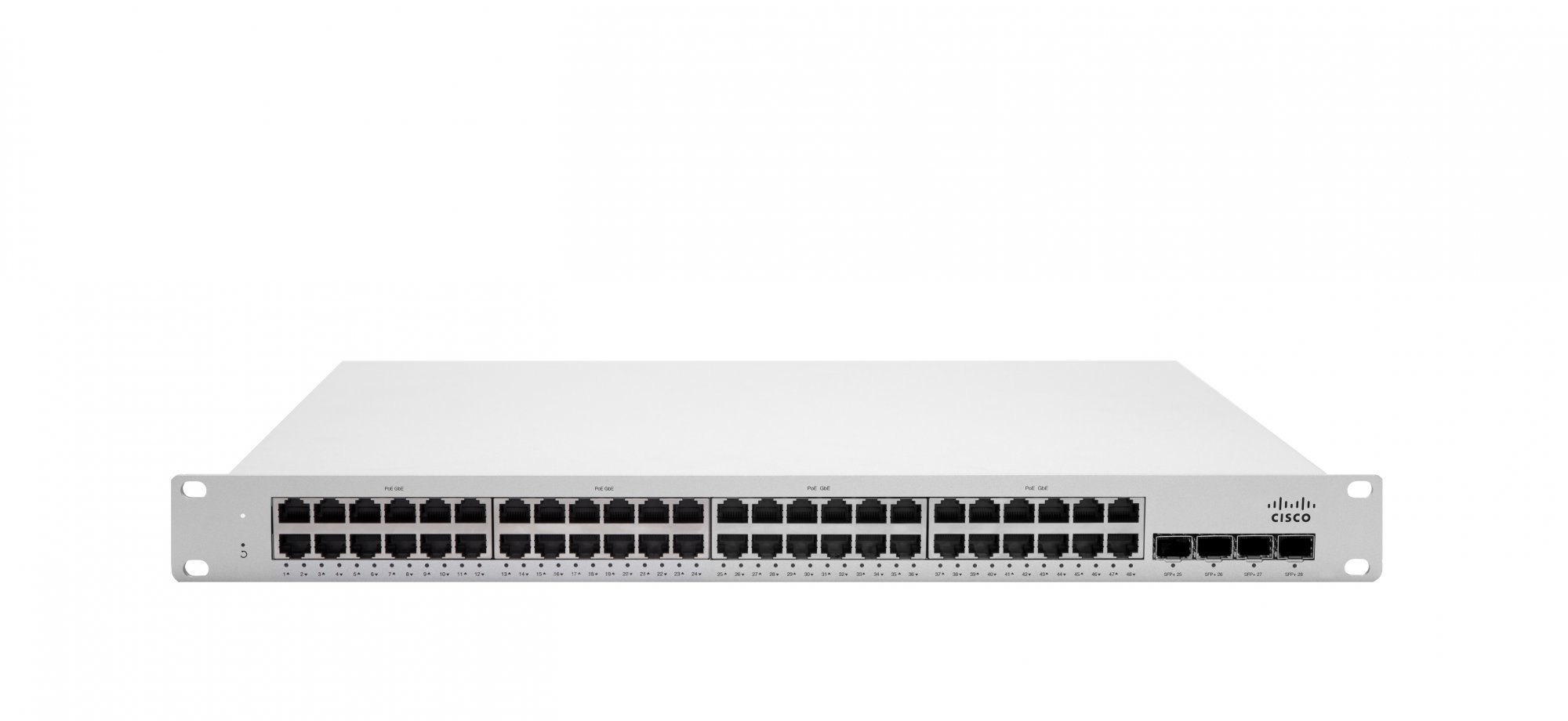

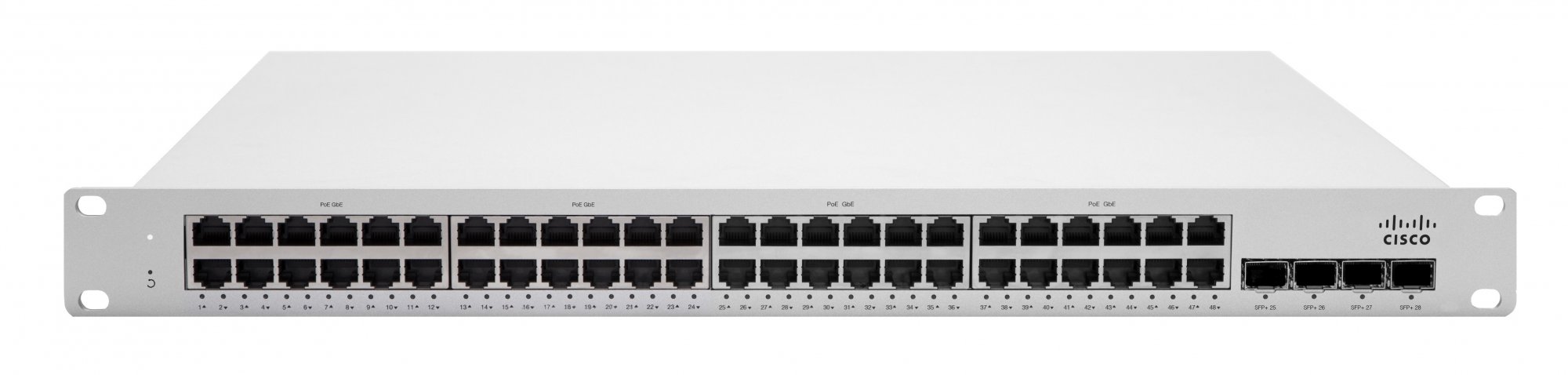

Cisco Meraki MS225-48LP L2 Stck Cld-Mngd 48x GigE 370W PoE Switch
Roll over image to zoom inClick to Open expanded view
Cisco Meraki MS225-48LP L2 Stck Cld-Mngd 48x GigE 370W PoE Switch
Cisco Meraki MS225-48LP L2 Stck Cld-Mngd 48x GigE 370W PoE Switch
Print
Model: MS225-48LP-HW

Cisco Meraki MS225-48LP L2 Stck Cld-Mngd 48x GigE 370W PoE Switch

Manufacturer:
Cisco
Cisco Meraki MS225-48LP L2 Stck Cld-Mngd 48x GigE 370W PoE Switch, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products
Cisco
Network switch accessories
Transceivers

Description

Cisco Meraki MS225-48LP L2 Stck Cld-Mngd 48x GigE 370W PoE Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Product Properties

  • Model
  • MS225-48LP-HW
  • Data transmission
  • MAC address table
  • 32000 entries
  • Number of queues
  • 8
  • Switching capacity
  • 176 Gbit/s
  • Design
  • Form factor
  • 1U
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2
  • Switch type
  • Managed
  • System event log
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • Auto MDI/MDI-X
  • Yes
  • Broadcast storm control
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w
  • Number of VLANs
  • 4095
  • Port mirroring
  • Yes
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Performance
  • Mean time between failures (MTBF)
  • 381015 h
  • Ports & interfaces
  • SFP+ module slots quantity
  • 4
  • Switch Number of Ports
  • 48
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 47/63 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 490 W
  • Power consumption (typical)
  • 53 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Security
  • Access Control List (ACL)
  • Yes
  • DHCP features
  • DHCP server, DHCP client
  • IGMP snooping
  • Yes
  • Weight & dimensions
  • Depth
  • 340 mm
  • Height
  • 43.8 mm
  • Weight
  • 4.37 kg
  • Width
  • 484.6 mm
