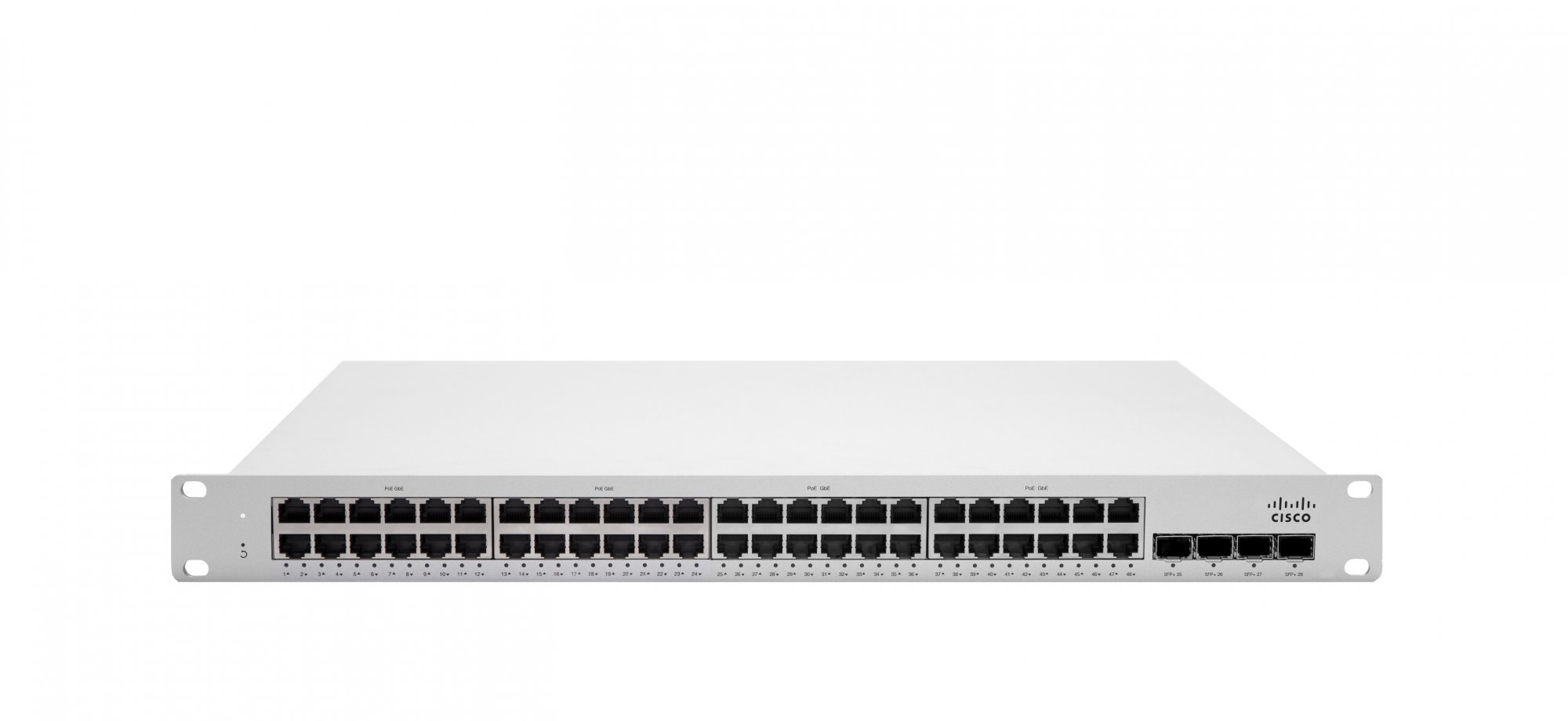

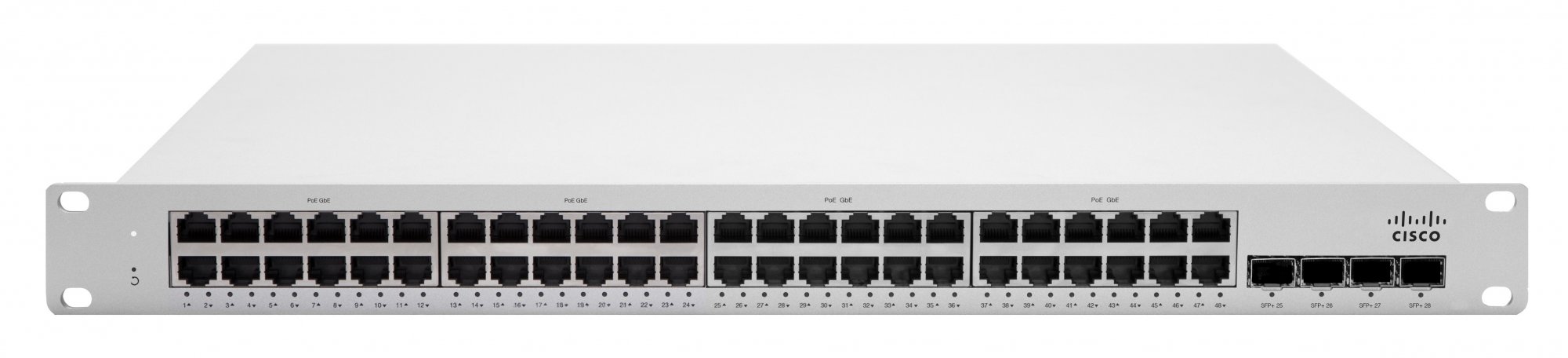

Cisco Meraki MS250-48 L3 Stck Cld-Mngd 48x GigE Switch
Roll over image to zoom inClick to Open expanded view
Cisco Meraki MS250-48 L3 Stck Cld-Mngd 48x GigE Switch
Cisco Meraki MS250-48 L3 Stck Cld-Mngd 48x GigE Switch
Print
Model: MS250-48-HW

Cisco Meraki MS250-48 L3 Stck Cld-Mngd 48x GigE Switch

Manufacturer:
Cisco
Cisco Meraki MS250-48 L3 Stck Cld-Mngd 48x GigE Switch, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products
Cisco
Network switch accessories
Transceivers
All network switches

Description

Cisco Meraki MS250-48 L3 Stck Cld-Mngd 48x GigE Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 172 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w. Rack mounting, Form factor: 1U

Product Properties

  • Model
  • MS250-48-HW
  • Data transmission
  • Jumbo frames
  • 9600
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Number of queues
  • 8
  • Switching capacity
  • 172 Gbit/s
  • Design
  • Form factor
  • 1U
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Stackable
  • No
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • System event log
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • Auto MDI/MDI-X
  • Yes
  • Broadcast storm control
  • Yes
  • Flow control support
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w
  • Number of VLANs
  • 4095
  • Port mirroring
  • Yes
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Ports & interfaces
  • SFP+ module slots quantity
  • 4
  • Switch Number of Ports
  • 48
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 47/63 Hz
  • AC input voltage
  • 100 - 240 V
  • Number of power supply units
  • 1
  • Power consumption (max)
  • 44 W
  • Power consumption (typical)
  • 24 W
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Security
  • Access Control List (ACL)
  • Yes
  • DHCP features
  • DHCP server, DHCP client
  • IGMP snooping
  • Yes
  • Security algorithms
  • 802.1x RADIUS
  • Weight & dimensions
  • Depth
  • 516 mm
  • Height
  • 43.8 mm
  • Weight
  • 5.24 kg
  • Width
  • 484.6 mm
