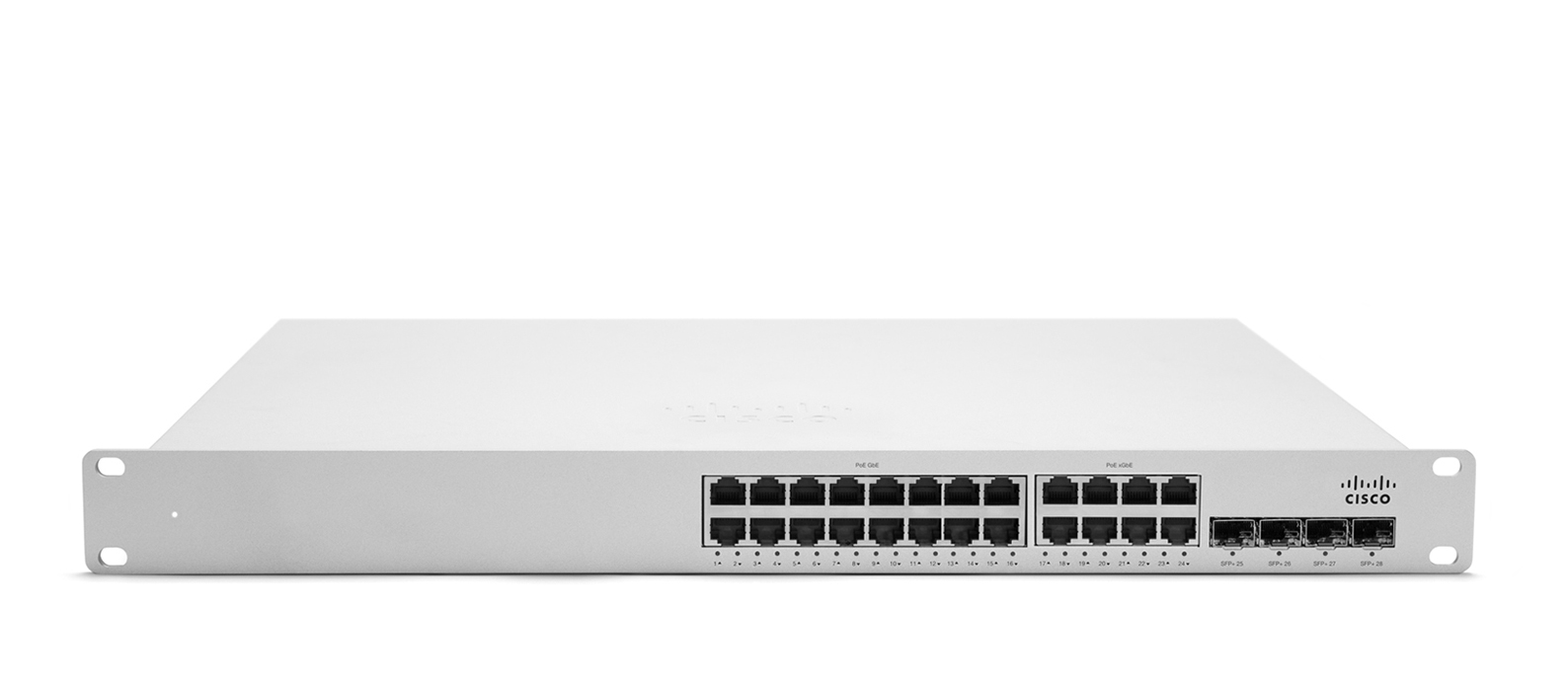

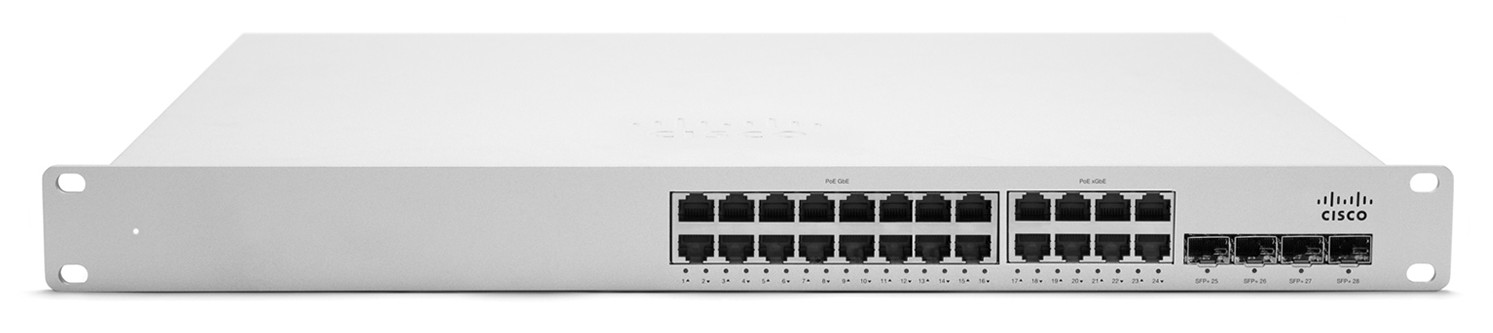

Cisco Meraki MS350-24X Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Roll over image to zoom inClick to Open expanded view
Cisco Meraki MS350-24X Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Cisco Meraki MS350-24X Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Print
Model: MS350-24X-HW

Cisco Meraki MS350-24X Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Manufacturer:
Cisco
Cisco Meraki MS350-24X, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MS350-24X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 512000 entries, Switching capacity: 272 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Product Properties

  • Model
  • MS350-24X-HW
  • Data transmission
  • Forwarding rate
  • 202.38 Mpps
  • Jumbo frames
  • 9600
  • Jumbo frames support
  • Yes
  • MAC address table
  • 512000 entries
  • Switching capacity
  • 272 Gbit/s
  • Design
  • Certification
  • CSA-US, FCC, IC, CE, RCM, RoHS
  • Form factor
  • 1U
  • Product colour
  • White
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • ARP inspection
  • Yes
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • System event log
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Auto MDI/MDI-X
  • Yes
  • Auto-negotiation
  • Yes
  • Broadcast storm control
  • Yes
  • Flow control support
  • Yes
  • Full duplex
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad
  • Number of VLANs
  • 4094
  • Policy-based routing
  • Yes
  • Port mirroring
  • Yes
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • -5 - 50 °C
  • Performance
  • Firmware upgradeable
  • Yes
  • Mean time between failures (MTBF)
  • 321515 h
  • Ports & interfaces
  • Gigabit Ethernet (copper) ports quantity
  • 24
  • SFP+ module slots quantity
  • 4
  • Switch Number of Ports
  • 16
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 47/63 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 867 W
  • Power consumption (typical)
  • 215 W
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) ports quantity
  • 24
  • Power over Ethernet (PoE) power per port
  • 60 W
  • Protocols
  • Routing protocols
  • CDP
  • Switching protocols
  • DSCP-to-CoS, RSTP, STP, CDP, LLDP
  • Security
  • Authentication
  • Port-based authentication
  • Authentication type
  • RADIUS
  • DHCP features
  • DHCP server, DHCP snooping
  • IGMP snooping
  • Yes
  • Persistent MAC Learning (Sticky MAC)
  • Yes
  • Security algorithms
  • 802.1x RADIUS
  • Whitelist
  • Yes
  • Weight & dimensions
  • Depth
  • 594.7 mm
  • Height
  • 44.4 mm
  • Weight
  • 6.6 kg
  • Width
  • 484.6 mm
