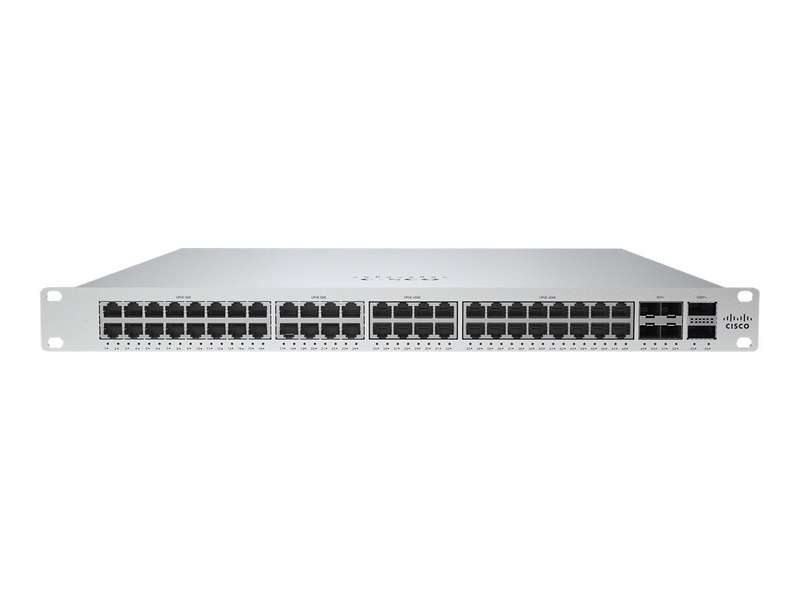

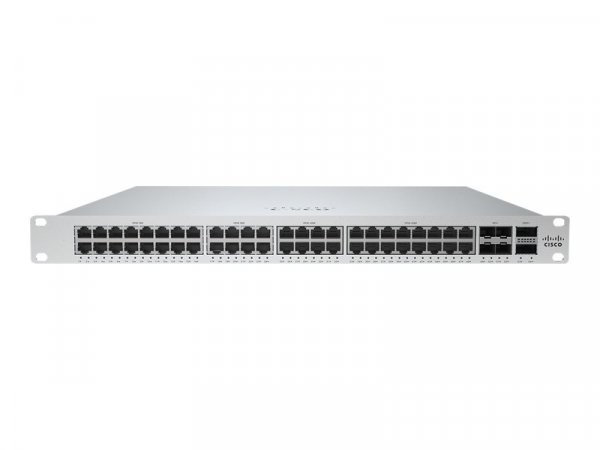

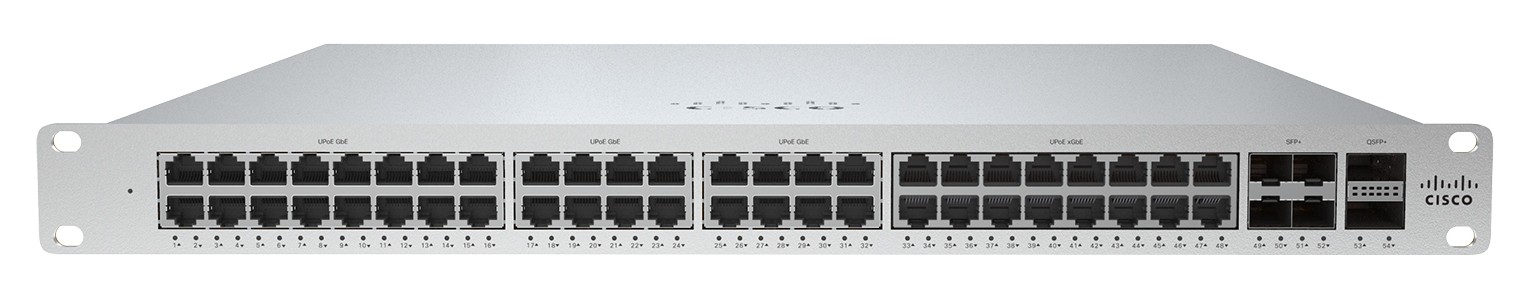

Cisco Meraki MS355-48X-HW network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Silver
Roll over image to zoom inClick to Open expanded view
Cisco Meraki MS355-48X-HW network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Silver
Cisco Meraki MS355-48X-HW network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Silver
Print
Model: MS355-48X-HW

Cisco Meraki MS355-48X-HW network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Silver

Manufacturer:
Cisco
Cisco Meraki MS355-48X-HW, Managed, L3, 10G Ethernet (100/1000/10000), 100 Gigabit Ethernet, Power over Ethernet (PoE), Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MS355-48X-HW. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 16. Switching optical modules type: 100 Gigabit Ethernet. Full duplex. MAC address table: 32000 entries, Switching capacity: 544 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Product Properties

  • Model
  • MS355-48X-HW
  • Data transmission
  • Forwarding rate
  • 405 Mpps
  • Jumbo frames
  • 9600
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Number of queues
  • 8
  • Packet forwarding
  • Yes
  • Static route
  • Yes
  • Switching capacity
  • 544 Gbit/s
  • Design
  • Certification
  • CSA-US, FCC, IC, CE, RCM, RoHS
  • Form factor
  • 1U
  • Number of fans
  • 3 fan(s)
  • Product colour
  • Silver
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • ARP inspection
  • Yes
  • Packet redirection
  • Yes
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • System event log
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • Broadcast storm control
  • Yes
  • Full duplex
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x
  • Number of VLANs
  • 4094
  • Policy-based routing
  • Yes
  • Port mirroring
  • Yes
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • Multicast VLAN, Stacked VLAN, Voice VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Optical fiber
  • Switching optical modules type
  • 100 Gigabit Ethernet
  • Packaging data
  • Cables included
  • AC, LAN (RJ-45)
  • Manual
  • Yes
  • Package type
  • Box
  • User guide
  • Yes
  • Performance
  • Mean time between failures (MTBF)
  • 343.134 h
  • Ports & interfaces
  • Gigabit Ethernet (copper) ports quantity
  • 32
  • QSFP+ module slots quantity
  • 2
  • SFP+ module slots quantity
  • 4
  • Switch Number of Ports
  • 16
  • Switch Port Speed
  • 10G Ethernet (100/1000/10000)
  • Power
  • AC input frequency
  • 47/63 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 1723 W
  • Power consumption (typical)
  • 740 W
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Protocols
  • IPv4 & IPv6 features
  • Dual stack IPv4/IPv6
  • Routing protocols
  • CDP
  • Switching protocols
  • DSCP-to-CoS, RSTP, STP, CDP, LLDP
  • Security
  • Access Control List (ACL)
  • Yes
  • ARP attack prevention
  • No
  • Authentication
  • MAC-based authentication, Port-based authentication, Web-based authentication
  • Authentication type
  • RADIUS
  • BPDU filtering/protection
  • Yes
  • BPDU tunneling
  • Yes
  • DHCP features
  • DHCP snooping, DHCP relay
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • Neighbor discovery snooping
  • Yes
  • Password protection
  • Yes
  • Persistent MAC Learning (Sticky MAC)
  • Yes
  • Root protection
  • Yes
  • Whitelist
  • Yes
  • Weight & dimensions
  • Depth
  • 484.6 mm
  • Height
  • 43.7 mm
  • Weight
  • 5.9 kg
  • Width
  • 516.6 mm
