Description

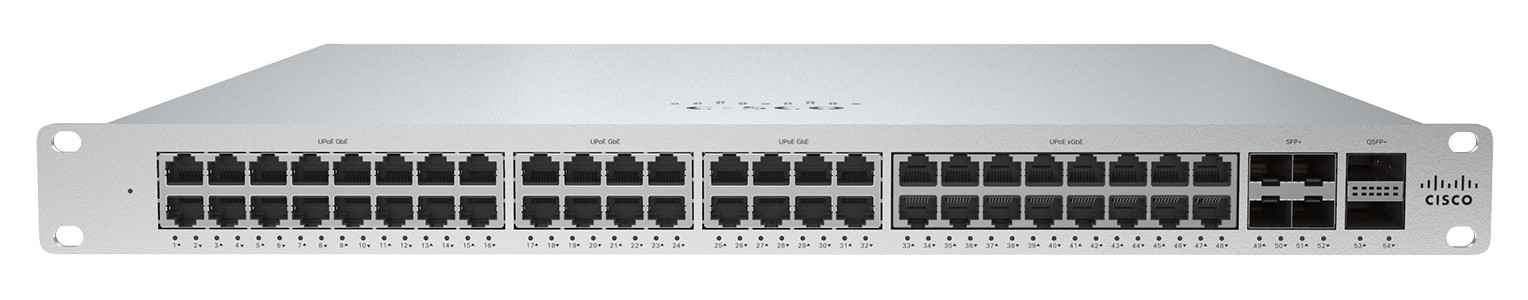

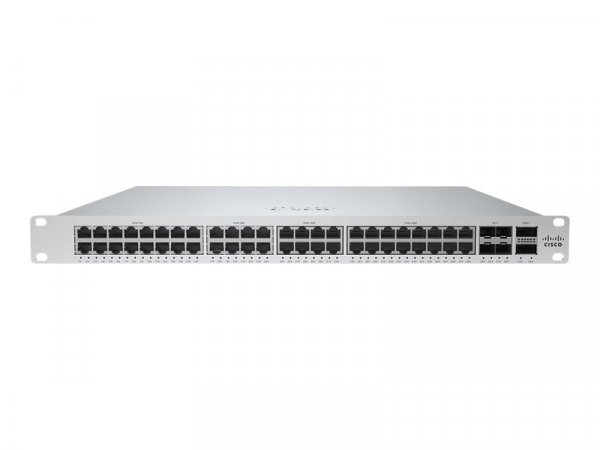

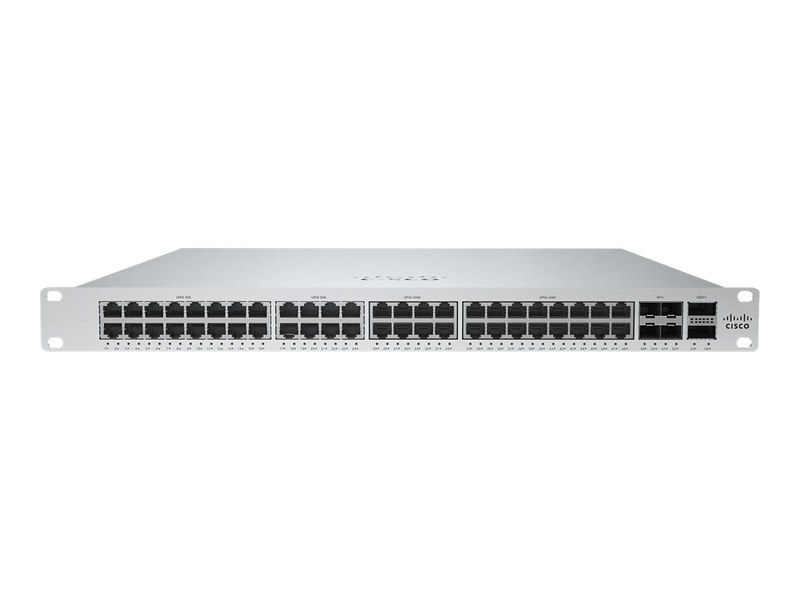

Cisco Meraki MS355-48X2. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24. Switching optical modules type: 100 Gigabit Ethernet. Full duplex. MAC address table: 32000 entries, Switching capacity: 688 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

24 × mGig ports
24 × 1G ports
2 × 40G or 4 × 10G fiber uplinks
Stack up to 8 units
QSFP28 stacking ports

Product Properties

Manufacturer
Cisco

Model
MS355-48X2-HW

Bullet points

Point
2 × 40G or 4 × 10G fiber uplinks

24 × 1G ports

24 × mGig ports

QSFP28 stacking ports

Stack up to 8 units

Data transmission

Forwarding rate
512 Mpps

Jumbo frames
9600

Jumbo frames support
Yes

MAC address table
32000 entries

Number of queues
8

Packet forwarding
Yes

Static route
Yes

Switching capacity
688 Gbit/s

Design

Certification
CSA-US, FCC, IC, CE, RCM, RoHS

Form factor
1U

Number of fans
3 fan(s)

Product colour
Silver

Rack mounting
Yes

Stackable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

ARP inspection
Yes

Packet redirection
Yes

Quality of Service (QoS) support
Yes

Switch layer
L3

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

Broadcast storm control
Yes

Full duplex
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x

Number of VLANs
4094

Policy-based routing
Yes

Port mirroring
Yes

Spanning tree protocol
Yes

Virtual LAN features
Multicast VLAN, Stacked VLAN, Voice VLAN

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 45 °C

Optical fiber

Switching optical modules type
100 Gigabit Ethernet

Packaging data

Cables included
AC, LAN (RJ-45)

Manual
Yes

Package type
Box

User guide
Yes

Performance

Mean time between failures (MTBF)
330.228 h

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
24

QSFP+ module slots quantity
2

SFP+ module slots quantity
4

Switch Number of Ports
24

Switch Port Speed
10G Ethernet (100/1000/10000)

Power

AC input frequency
47/63 Hz

AC input voltage
100 - 240 V

Power consumption (max)
1723 W

Power consumption (typical)
740 W

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Protocols

IPv4 & IPv6 features
Dual stack IPv4/IPv6

Routing protocols
CDP

Switching protocols
DSCP-to-CoS, RSTP, STP, CDP, LLDP

Security

Access Control List (ACL)
Yes

ARP attack prevention
Yes

Authentication
MAC-based authentication, Port-based authentication, Web-based authentication

Authentication type
RADIUS

BPDU filtering/protection
Yes

BPDU tunneling
Yes

DHCP features
DHCP snooping, DHCP relay

IGMP snooping
Yes

Loop protection
Yes

Neighbor discovery snooping
Yes

Password protection
Yes

Persistent MAC Learning (Sticky MAC)
Yes

Root protection
Yes

Whitelist
Yes

Weight & dimensions

Depth
484.6 mm

Height
43.7 mm

Weight
5.96 kg

Width
516.6 mm

Cisco Meraki MS355-48X2 Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Silver
