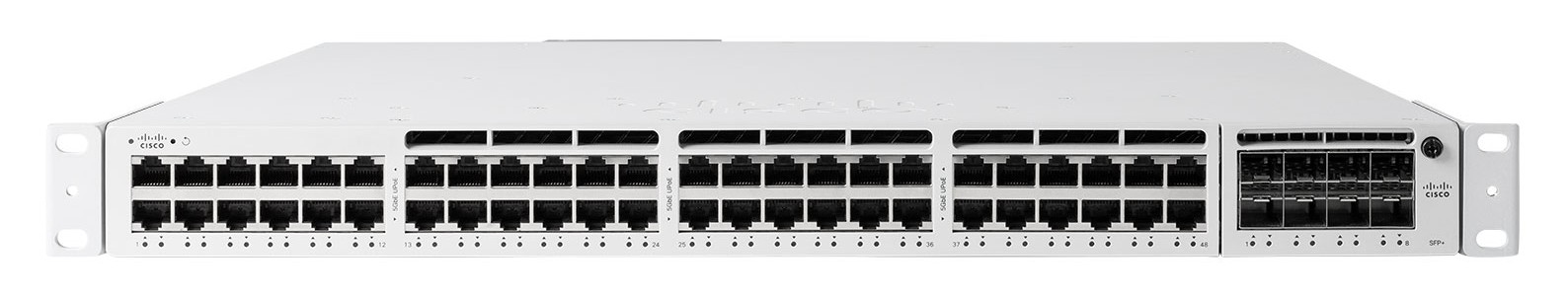

Cisco Meraki MS390-48P-HW network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Roll over image to zoom inClick to Open expanded view
Print
Model: MS390-48P-HW

Cisco Meraki MS390-48P-HW network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Manufacturer:
Cisco
Cisco Meraki MS390-48P-HW, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MS390-48P-HW. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 256 Gbit/s. Networking standards: IEEE 802.11ax, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ad. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Product Properties

  • Model
  • MS390-48P-HW
  • Data transmission
  • Forwarding rate
  • 190.48 Mpps
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Static route
  • Yes
  • Switching capacity
  • 256 Gbit/s
  • Design
  • Certification
  • FCC Part 15 (CFR 47) Class A, ICES-003 Class A, CISPR22 Class A, CNS13438, EN 300 386 V1.6.1, EN 55022 Class A, EN, 61000-3-2, EN61000-3-3, KN 32, TCVN 7189 Class A, EN 55032 , CISPR 32 Class A, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32 Class A, CISPR24, EN 300 386 V1.6.1, EN 55024, KN35, TCVN 7317, CAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, RoHS
  • Form factor
  • 1U
  • Number of fans
  • 3 fan(s)
  • Product colour
  • White
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • System event log
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • Auto-negotiation
  • Yes
  • Broadcast storm control
  • Yes
  • Flow control support
  • Yes
  • IP routing
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.11ax, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ad
  • Number of VLANs
  • 4094
  • Port mirroring
  • Yes
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • -5 - 45 °C
  • Packaging data
  • Quick start guide
  • Yes
  • Rack mount kit
  • Yes
  • Performance
  • Mean time between failures (MTBF)
  • 277770 h
  • Physical stacking (units)
  • 8
  • Ports & interfaces
  • Switch Number of Ports
  • 48
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 555 W
  • Power consumption (typical)
  • 92.6 W
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) type supported
  • PoE+
  • Total Power over Ethernet (PoE) budget
  • 437 W
  • Protocols
  • IPv4 & IPv6 features
  • IPv4/IPv6 access-control list (ACL)
  • Routing protocols
  • VRRP
  • Security
  • Access Control List (ACL)
  • Yes
  • Authentication type
  • RADIUS
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP relay, DHCP server, DHCP snooping
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • Security algorithms
  • 802.1x RADIUS, SNMP
  • Weight & dimensions
  • Depth
  • 449 mm
  • Height
  • 44 mm
  • Weight
  • 7.59 kg
  • Width
  • 445 mm
