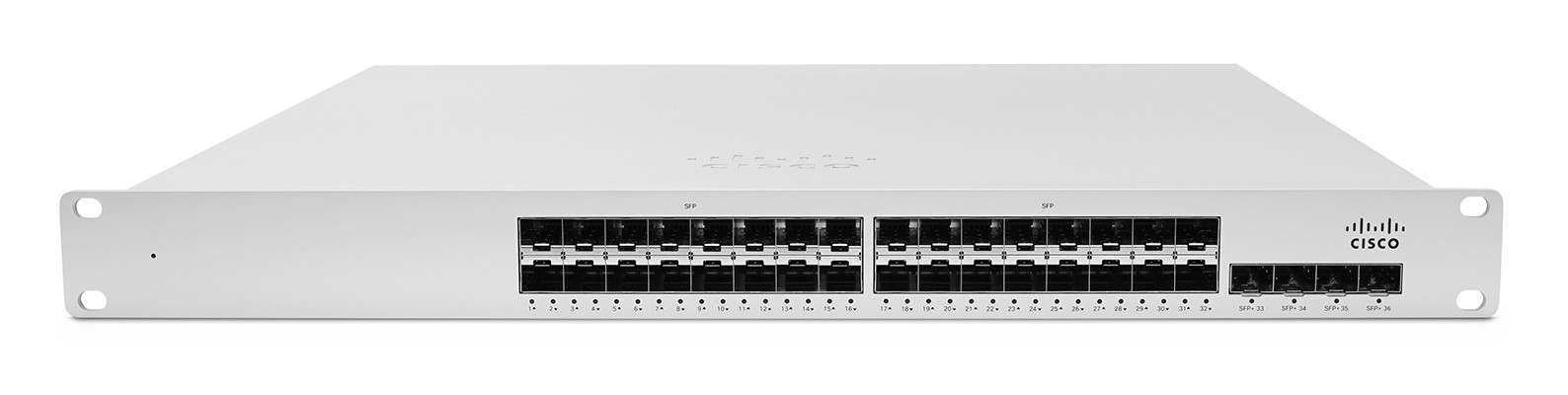

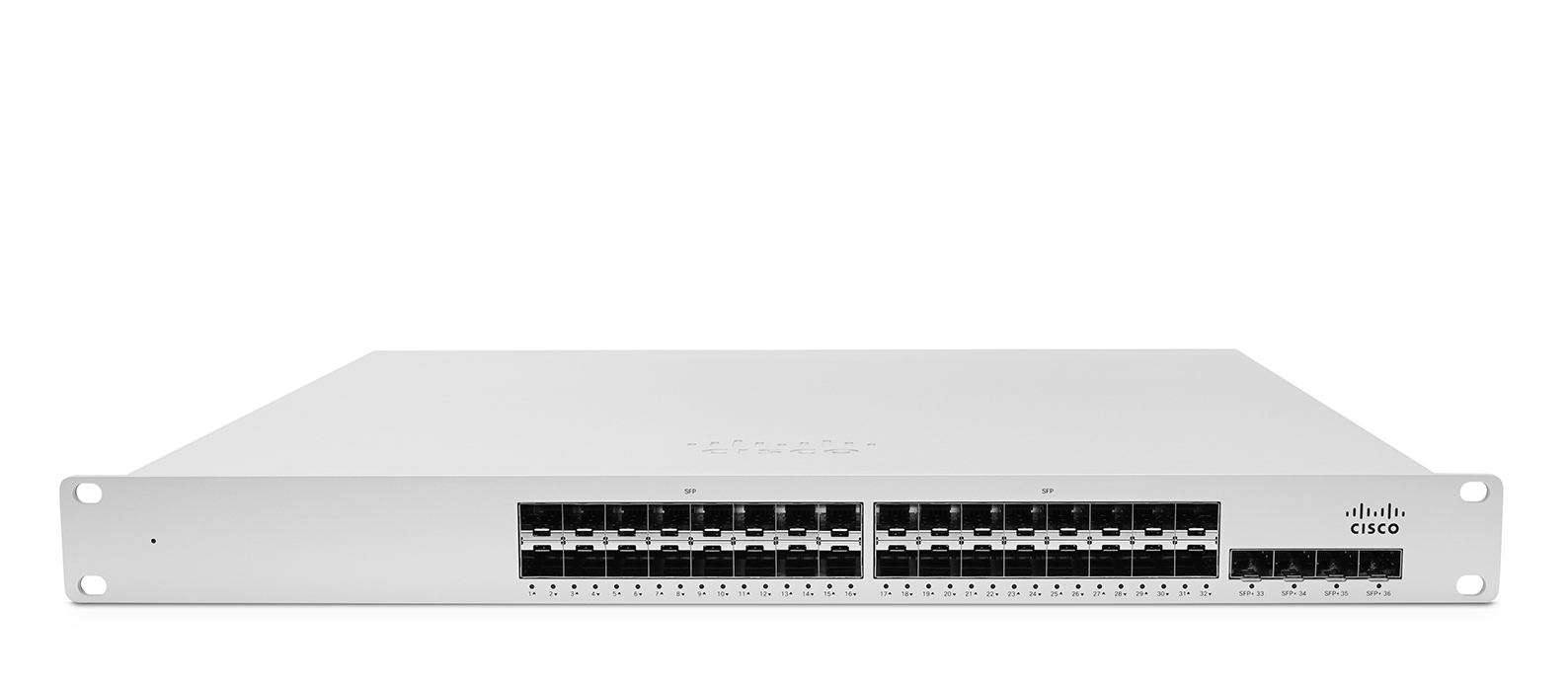

Cisco Meraki MS410-32 Cld-Mngd 32x GigE SFP Switch
Roll over image to zoom inClick to Open expanded view
Cisco Meraki MS410-32 Cld-Mngd 32x GigE SFP Switch
Cisco Meraki MS410-32 Cld-Mngd 32x GigE SFP Switch
Print
Model: MS410-32-HW

Cisco Meraki MS410-32 Cld-Mngd 32x GigE SFP Switch

Manufacturer:
Cisco
Cisco Meraki MS410-32 Cld-Mngd 32x GigE SFP Switch, Managed, L3, Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products
Cisco
Network switch accessories
Transceivers
All Accessories
All network switches

Description

Cisco Meraki MS410-32 Cld-Mngd 32x GigE SFP Switch. Switch type: Managed, Switch layer: L3. Console port: RJ-45. MAC address table: 96000 entries, Switching capacity: 144 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w. Rack mounting, Form factor: 1U

Product Properties

  • Model
  • MS410-32-HW
  • Data transmission
  • MAC address table
  • 96000 entries
  • Switching capacity
  • 144 Gbit/s
  • Design
  • Form factor
  • 1U
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • System event log
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • Broadcast storm control
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w
  • VLAN support
  • Yes
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Performance
  • Mean time between failures (MTBF)
  • 291729 h
  • Ports & interfaces
  • Console port
  • RJ-45
  • SFP+ module slots quantity
  • 36
  • Power
  • AC input frequency
  • 47/63 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 85 W
  • Power consumption (typical)
  • 50 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Protocols
  • Management protocols
  • DHCP, SNMPD
  • Security
  • DHCP features
  • DHCP server, DHCP client
  • Weight & dimensions
  • Depth
  • 516 mm
  • Height
  • 45 mm
  • Weight
  • 5.7 kg
  • Width
  • 485 mm
