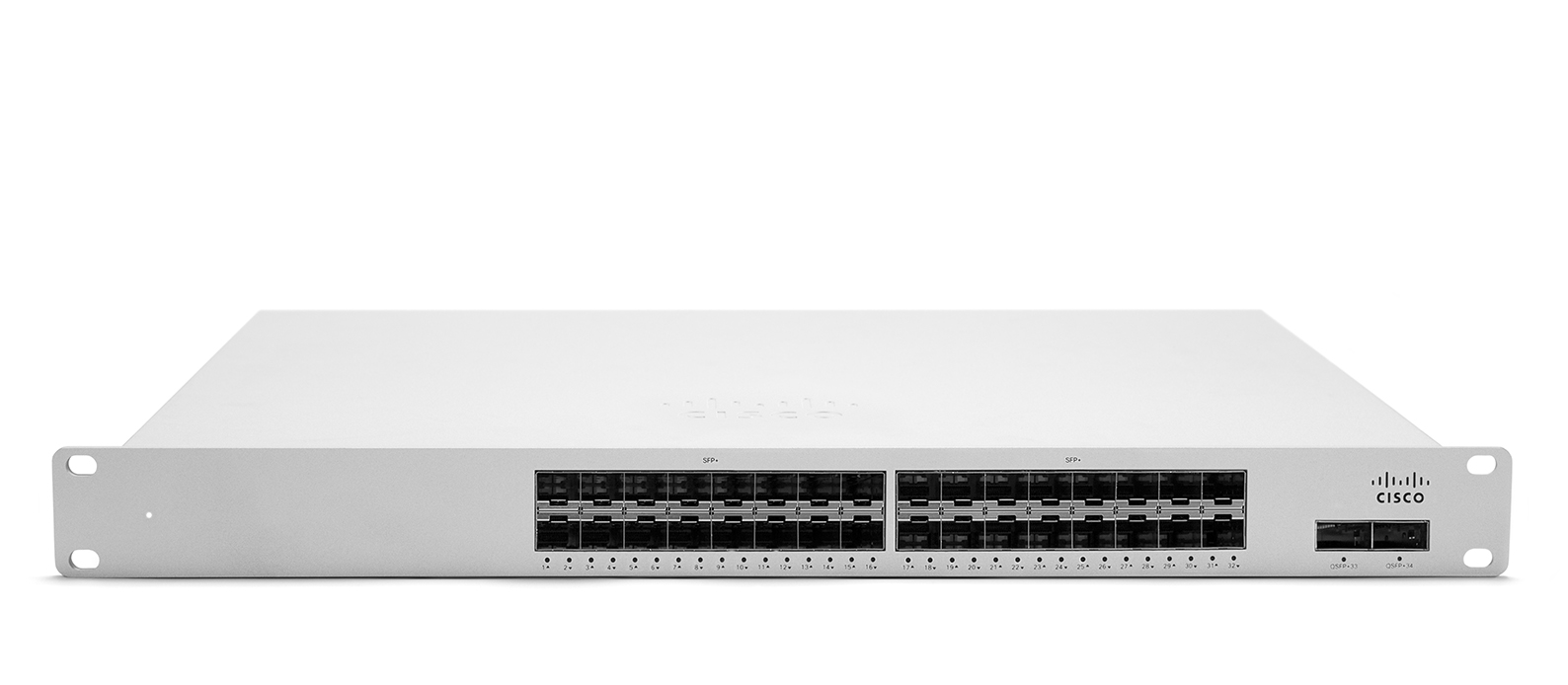

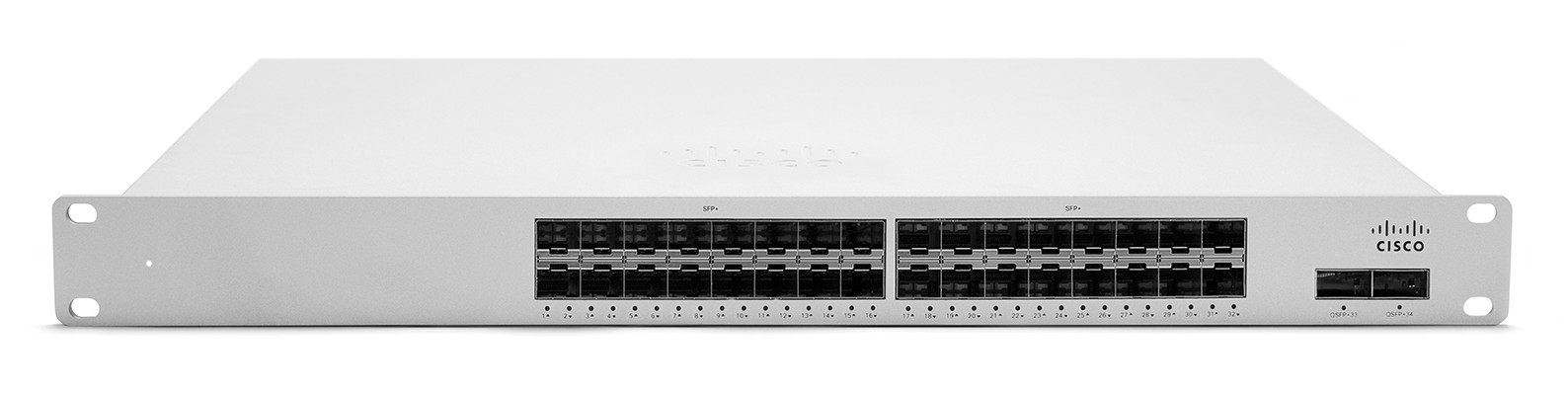

Cisco Meraki MS425-32 Managed L3 White
Roll over image to zoom inClick to Open expanded view
Cisco Meraki MS425-32 Managed L3 White
Cisco Meraki MS425-32 Managed L3 White
Print
Model: MS425-32-HW

Cisco Meraki MS425-32 Managed L3 White

Manufacturer:
Cisco
Cisco Meraki MS425-32, Managed, L3, Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MS425-32. Switch type: Managed, Switch layer: L3. MAC address table: 228000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad. Rack mounting

Product Properties

  • Model
  • MS425-32-HW
  • Data transmission
  • Latency (10 Gbps)
  • 1.2 µs
  • MAC address table
  • 228000 entries
  • Switching capacity
  • 480 Gbit/s
  • Design
  • Certification
  • CSA, IC, CE, C-Tick, RoHS
  • Product colour
  • White
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Network
  • 10G support
  • Yes
  • Broadcast storm control
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad
  • Number of VLANs
  • 4095
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Packaging data
  • Manual
  • Yes
  • Performance
  • Firmware upgradeable
  • Yes
  • Mean time between failures (MTBF)
  • 287587 h
  • Ports & interfaces
  • QSFP+ module slots quantity
  • 2
  • SFP+ module slots quantity
  • 32
  • Power
  • AC input frequency
  • 47/63 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (typical)
  • 85 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Security
  • DHCP features
  • DHCP server, DHCP client
  • IGMP snooping
  • Yes
  • Security algorithms
  • SNMP
  • Weight & dimensions
  • Depth
  • 486.9 mm
  • Height
  • 43.7 mm
  • Width
  • 484.4 mm
