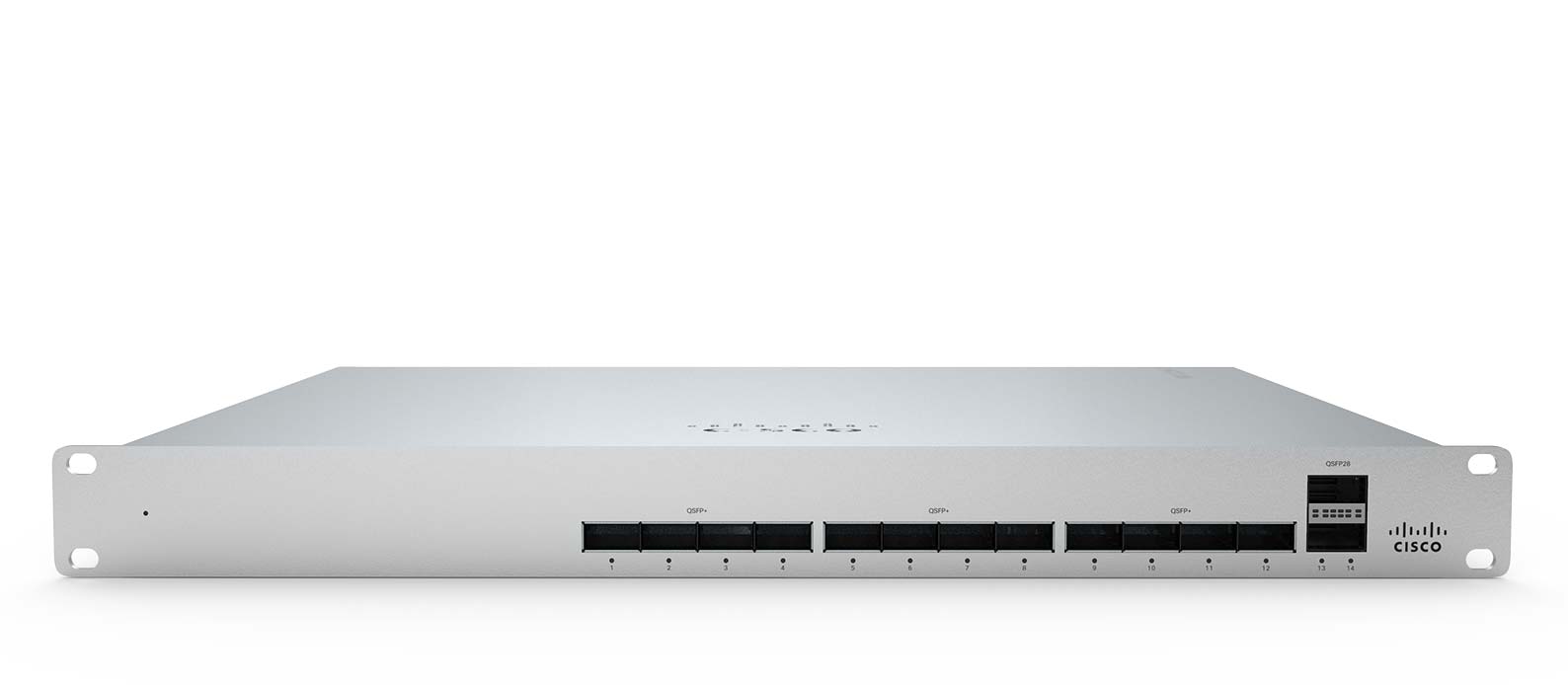

Cisco Meraki MS450-12 network switch Managed L3 1U Grey
Roll over image to zoom inClick to Open expanded view
Print
Model: MS450-12-HW

Cisco Meraki MS450-12 network switch Managed L3 1U Grey

Manufacturer:
Cisco
Cisco Meraki MS450-12, Managed, L3, Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MS450-12. Switch type: Managed, Switch layer: L3. Console port: RJ-45. MAC address table: 64000 entries, Switching capacity: 400 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad. Rack mounting, Form factor: 1U
  • Automatic email alerts from power loss, downtime, or configuration changes
  • Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
  • Role-based administration
  • Firmware upgrades and enhancements from the Meraki cloud
  • Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
  • Incredible network transparency with application, operating system, client, and hostname visibility
  • Zero-touch provisioning for rapid deployment across sites

Product Properties

  • Model
  • MS450-12-HW
  • Bullet points
  • Point
  • Automatic email alerts from power loss, downtime, or configuration changes
    Firmware upgrades and enhancements from the Meraki cloud
    Incredible network transparency with application, operating system, client, and hostname visibility
    Role-based administration
    Zero-touch provisioning for rapid deployment across sites
  • Data transmission
  • Forwarding rate
  • 654.76 Mpps
  • MAC address table
  • 64000 entries
  • Switching capacity
  • 400 Gbit/s
  • Design
  • Certification
  • CSA (US), IC (Canada), CE (Europe), C-Tick (Australia/New Zealand), RoHS
  • Form factor
  • 1U
  • Product colour
  • Grey
  • Rack mounting
  • Y
  • Stackable
  • Y
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Y
  • Switch layer
  • L3
  • Switch type
  • Managed
  • System event log
  • Y
  • Web-based management
  • Y
  • Multicast features
  • Multicast support
  • Y
  • Network
  • Broadcast storm control
  • Y
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad
  • VLAN support
  • Y
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Performance
  • Mean time between failures (MTBF)
  • 436776 h
  • Ports & interfaces
  • Console port
  • RJ-45
  • QSFP+ module slots quantity
  • 12
  • QSFP28 ports quantity
  • 4
  • Power
  • AC input frequency
  • 47/63 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 138 W
  • Power consumption (typical)
  • 57 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • N
  • Protocols
  • Management protocols
  • DHCP, SNMPD
  • Security
  • DHCP features
  • DHCP client, DHCP server
  • IGMP snooping
  • Y
  • Weight & dimensions
  • Depth
  • 478.8 mm
  • Height
  • 43.7 mm
  • Weight
  • 6.26 kg
  • Width
  • 484.6 mm
