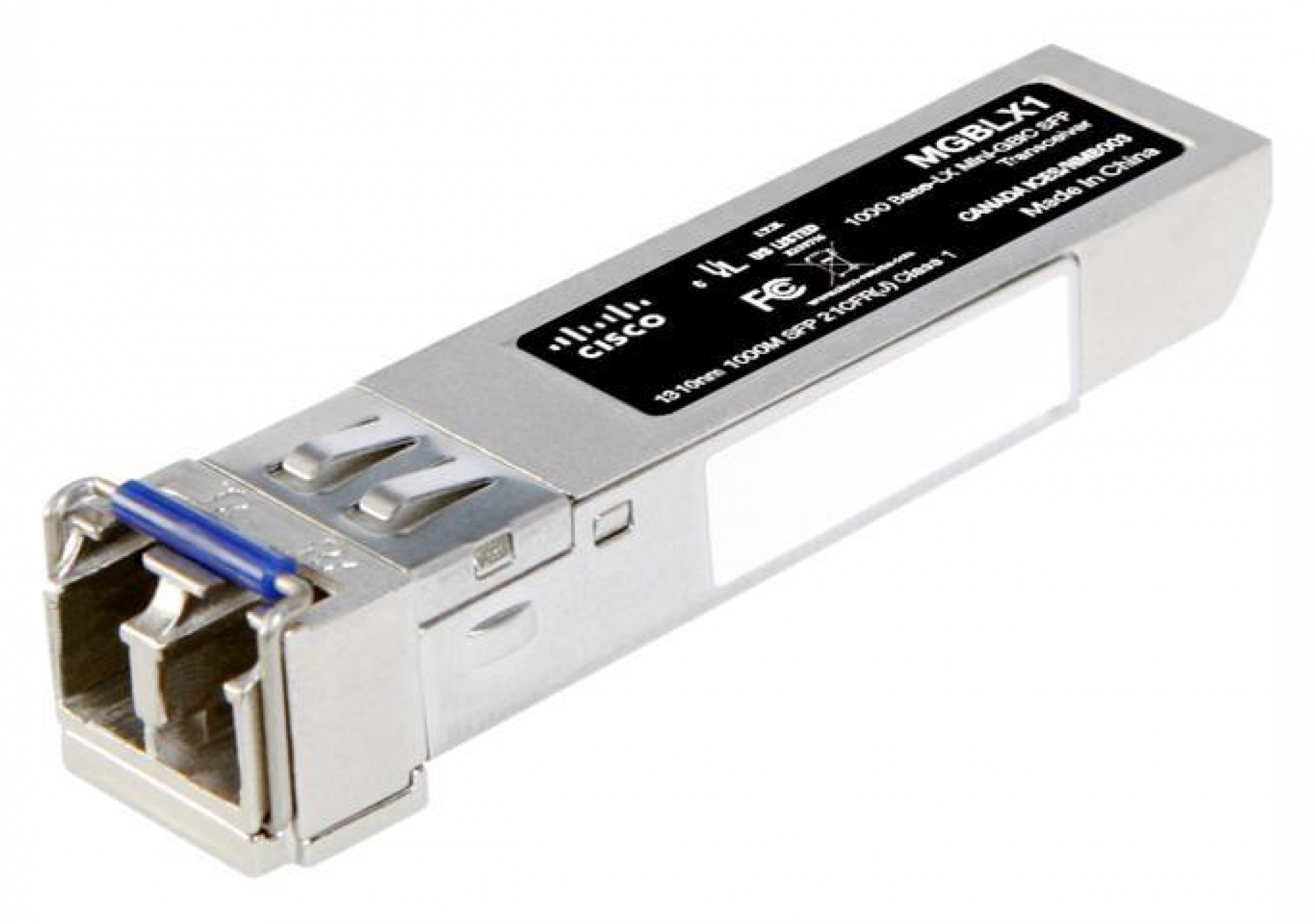

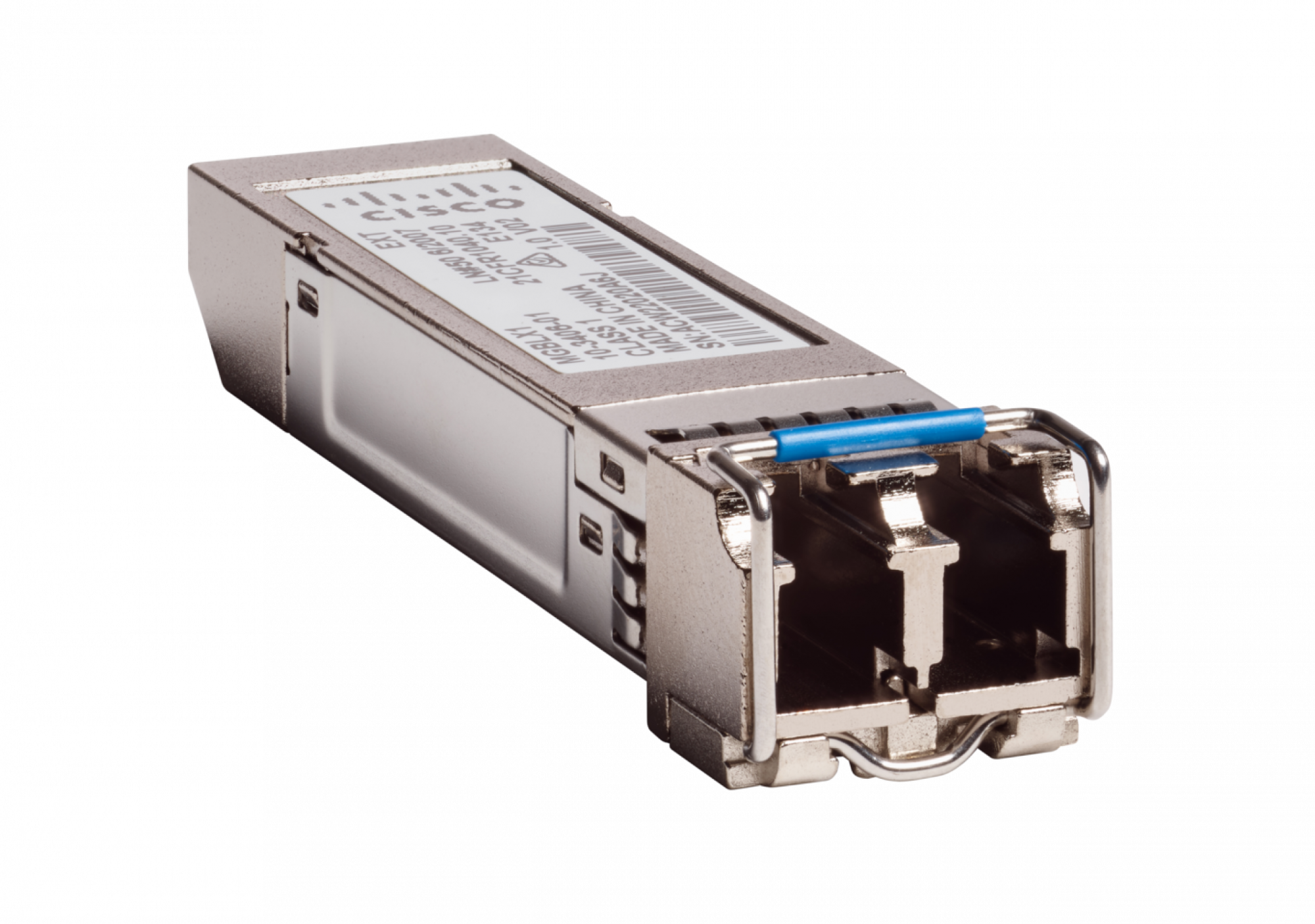

Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1)
Roll over image to zoom inClick to Open expanded view
Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1)
Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1)
Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1)
Print
Model: MGBLX1
EAN: 882658262791

Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1)

Manufacturer:
Cisco
Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1), 1000 Mbit/s, 1000Base-LX, Wired, 10000 m, 1310 nm, China
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1). Maximum data transfer rate: 1000 Mbit/s, Cabling technology: 1000Base-LX. Connectivity technology: Wired. Maximum transfer distance: 10000 m, Wavelength: 1310 nm. Country of origin: China, Safety: FDA 21 CFR 1040.10 & 1040.11, EN60950, EN (IEC) 60825-1,2, Certification: FCC Part 15 Class B, EN55022 Class B (CISPR 22B), VCCI Class B.. Power consumption (typical): 1 W
  • ADDS FIBER: Optic connectivity to Cisco 100 to 500 Series switches
  • CONNECTIVITY: 1000BASE-LX SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 10 km
  • DURABLE AND LOW POWER CONSUMPTION: Less power usage and heat-conducting increases the life of the product
  • EASY TO USE: Easy installation, plug and play, fully hot-swapple
  • PEACE OF MIND: 5-year warranty and one-year technical support

Product Properties

  • Model
  • MGBLX1
  • EAN
  • 882658262791
  • Bullet points
  • Point
  • ADDS FIBER: Optic connectivity to Cisco 100 to 500 Series switches
    CONNECTIVITY
    DURABLE AND LOW POWER CONSUMPTION
    EASY TO USE: Easy installation, plug and play, fully hot-swapple
    PEACE OF MIND: 5-year warranty and one-year technical support
  • Design
  • Certification
  • FCC Part 15 Class B, EN55022 Class B (CISPR 22B), VCCI Class B.
  • Country of origin
  • China
  • Safety
  • FDA 21 CFR 1040.10 & 1040.11, EN60950, EN (IEC) 60825-1,2
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Quantity per pack
  • 1 pc(s)
  • Management features
  • Hot-swap
  • Yes
  • Plug and Play
  • Yes
  • Network
  • Cabling technology
  • 1000Base-LX
  • Maximum data transfer rate
  • 1000 Mbit/s
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 85%
  • Operating temperature (T-T)
  • 0 - 70 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 85 °C
  • Other features
  • Connector(s)
  • LC-LC
  • Dimensions (WxDxH)
  • 13.4 x 55.7 x 8.5 mm
  • Fiber type
  • SMF
  • Full duplex
  • Yes
  • Interface
  • SFP
  • Transmit power range
  • -9.5 - -3 dBmW
  • Packaging data
  • Package depth
  • 127 mm
  • Package height
  • 25.4 mm
  • Package weight
  • 50 g
  • Package width
  • 81.3 mm
  • Performance
  • Maximum transfer distance
  • 10000 m
  • Wavelength
  • 1310 nm
  • Ports & interfaces
  • Connectivity technology
  • Wired
  • Power
  • Power consumption (typical)
  • 1 W
  • Weight & dimensions
  • Depth
  • 13.4 mm
  • Height
  • 8.5 mm
  • Weight
  • 20 g
  • Width
  • 55.7 mm
