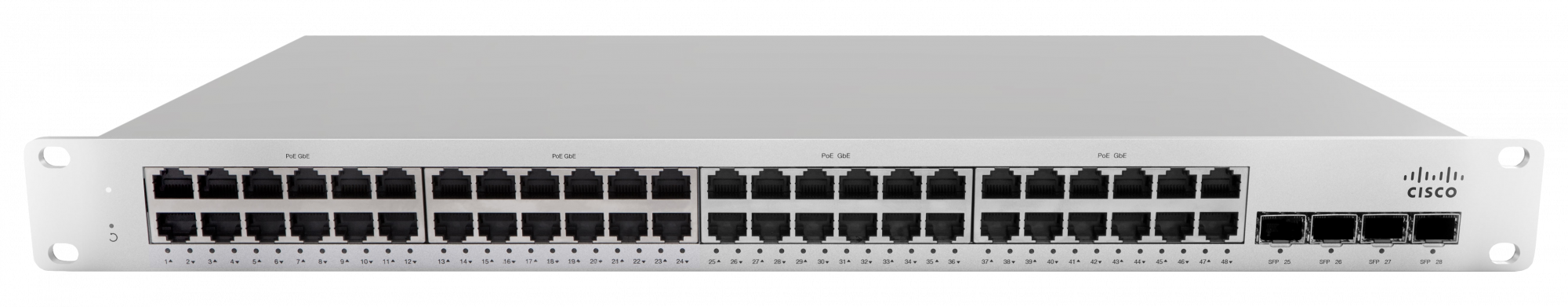

Cisco MS210-48LP-HW network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver
Roll over image to zoom inClick to Open expanded view
Model: MS210-48LP-HW

Cisco MS210-48LP-HW network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Manufacturer:
Cisco
Cisco MS210-48LP-HW, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco MS210-48LP-HW. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Access to 10G uplink by physically stacking with the MS225
  • Gigabit Access switching with 24 and 48 port models and optional PoE+
  • 4 x 1G SFP uplink interfaces on all models
  • Built-in dual stacking interfaces with up to 80G bandwidth
  • Non-blocking switch backplane with up to 176 Gbps bandwidth support
  • Up to 740 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, and other PoE-enabled devices
  • 6 dedicated QoS queues for converged voice, video, and data applications
  • Low power consumption and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
  • Integrated mounting brackets for rack and desk mounting
  • Lifetime hardware warranty and advanced replacement at no additional cost

Product Properties

  • Model
  • MS210-48LP-HW
  • Bullet points
  • Point
  • 4 x 1G SFP uplink interfaces on all models
    6 dedicated QoS queues for converged voice, video, and data applications
    Access to 10G uplink by physically stacking with the MS225
    Built-in dual stacking interfaces with up to 80G bandwidth
    Gigabit Access switching with 24 and 48 port models and optional PoE+
    Integrated mounting brackets for rack and desk mounting
    Lifetime hardware warranty and advanced replacement at no additional cost
    Non-blocking switch backplane with up to 176 Gbps bandwidth support
  • Data transmission
  • Jumbo frames
  • 9578
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Number of queues
  • 8
  • Switching capacity
  • 176 Gbit/s
  • Throughput
  • 77.38 Mpps
  • Design
  • Certification
  • CSA-US, FCC, IC, CE, RCM, RoHS
  • Form factor
  • 1U
  • Product colour
  • Silver
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • System event log
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Auto-negotiation
  • Yes
  • Broadcast storm control
  • Yes
  • Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • Flow control support
  • Yes
  • IP routing
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad
  • Number of VLANs
  • 4094
  • Port mirroring
  • Yes
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Packaging data
  • Screws included
  • Yes
  • Performance
  • Firmware upgradeable
  • Yes
  • Mean time between failures (MTBF)
  • 381015 h
  • Physical stacking (units)
  • 8
  • Ports & interfaces
  • Console port
  • RJ-45
  • SFP module slots quantity
  • 4
  • Switch Number of Ports
  • 48
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 47/63 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 882 W
  • Power consumption (typical)
  • 15 W
  • Redundant power supply (RPS) support
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet plus (PoE+) ports quantity
  • 48
  • Total Power over Ethernet (PoE) budget
  • 370 W
  • Protocols
  • Supported network protocols
  • LLDP, CDP
  • Security
  • Access Control List (ACL)
  • Yes
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP snooping, DHCP relay
  • IGMP snooping
  • Yes
  • Password protection
  • Yes
  • Root protection
  • Yes
  • Security algorithms
  • 802.1x RADIUS, SNMP
  • Weight & dimensions
  • Depth
  • 340 mm
  • Height
  • 43.8 mm
  • Weight
  • 4.37 kg
  • Width
  • 484.6 mm
