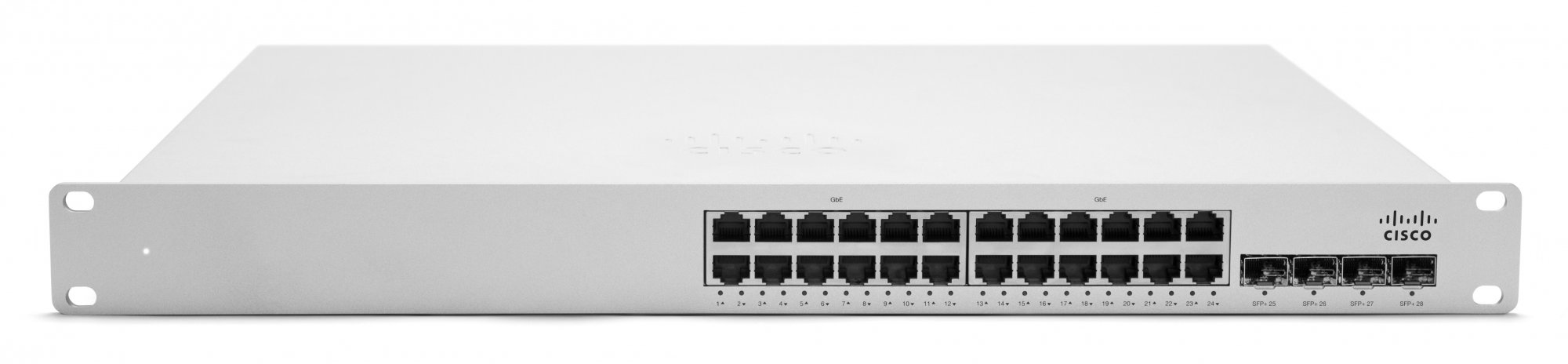

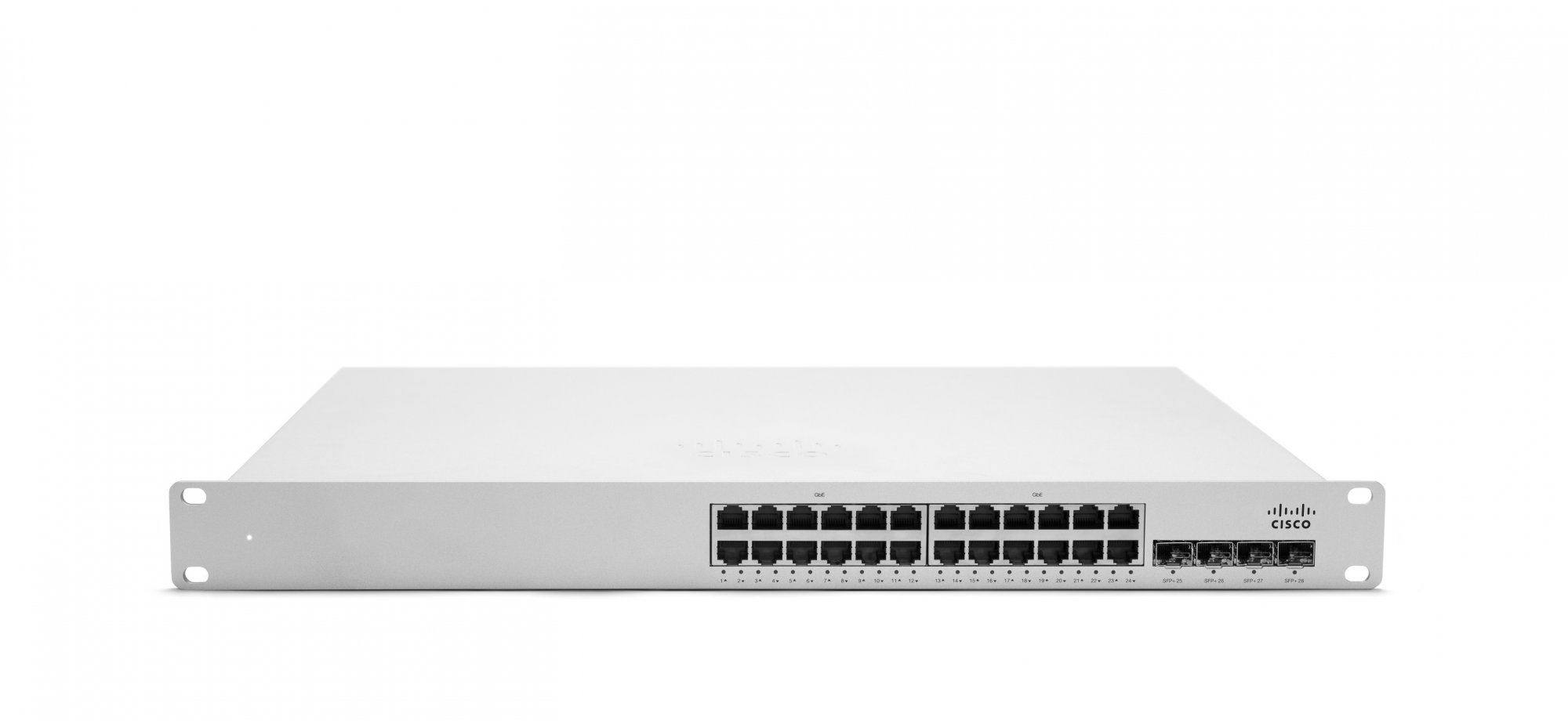

Cisco MS350-24 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Roll over image to zoom inClick to Open expanded view
Cisco MS350-24 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Cisco MS350-24 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Print
Model: MS350-24-HW

Cisco MS350-24 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Manufacturer:
Cisco
Cisco MS350-24, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco MS350-24. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 96000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Product Properties

  • Model
  • MS350-24-HW
  • Data transmission
  • MAC address table
  • 96000 entries
  • Switching capacity
  • 128 Gbit/s
  • Design
  • Form factor
  • 1U
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Auto MDI/MDI-X
  • Yes
  • Auto-negotiation
  • Yes
  • Broadcast storm control
  • Yes
  • Copper ethernet cabling technology
  • 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
  • Number of VLANs
  • 4095
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • Tagged VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Performance
  • Firmware upgradeable
  • Yes
  • Physical stacking (units)
  • 8
  • Ports & interfaces
  • Gigabit Ethernet (copper) ports quantity
  • 24
  • SFP+ module slots quantity
  • 4
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 47/63 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 466 W
  • Power consumption (typical)
  • 58 W
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 25.5 W
  • Total Power over Ethernet (PoE) budget
  • 370 W
  • Protocols
  • Management protocols
  • SNMP v2c
  • Security
  • Authentication
  • Port-based authentication
  • DHCP features
  • DHCP server
  • IGMP snooping
  • Yes
  • Security algorithms
  • 802.1x RADIUS
  • Weight & dimensions
  • Depth
  • 516 mm
  • Height
  • 44 mm
  • Weight
  • 6 kg
  • Width
  • 485 mm
