Description

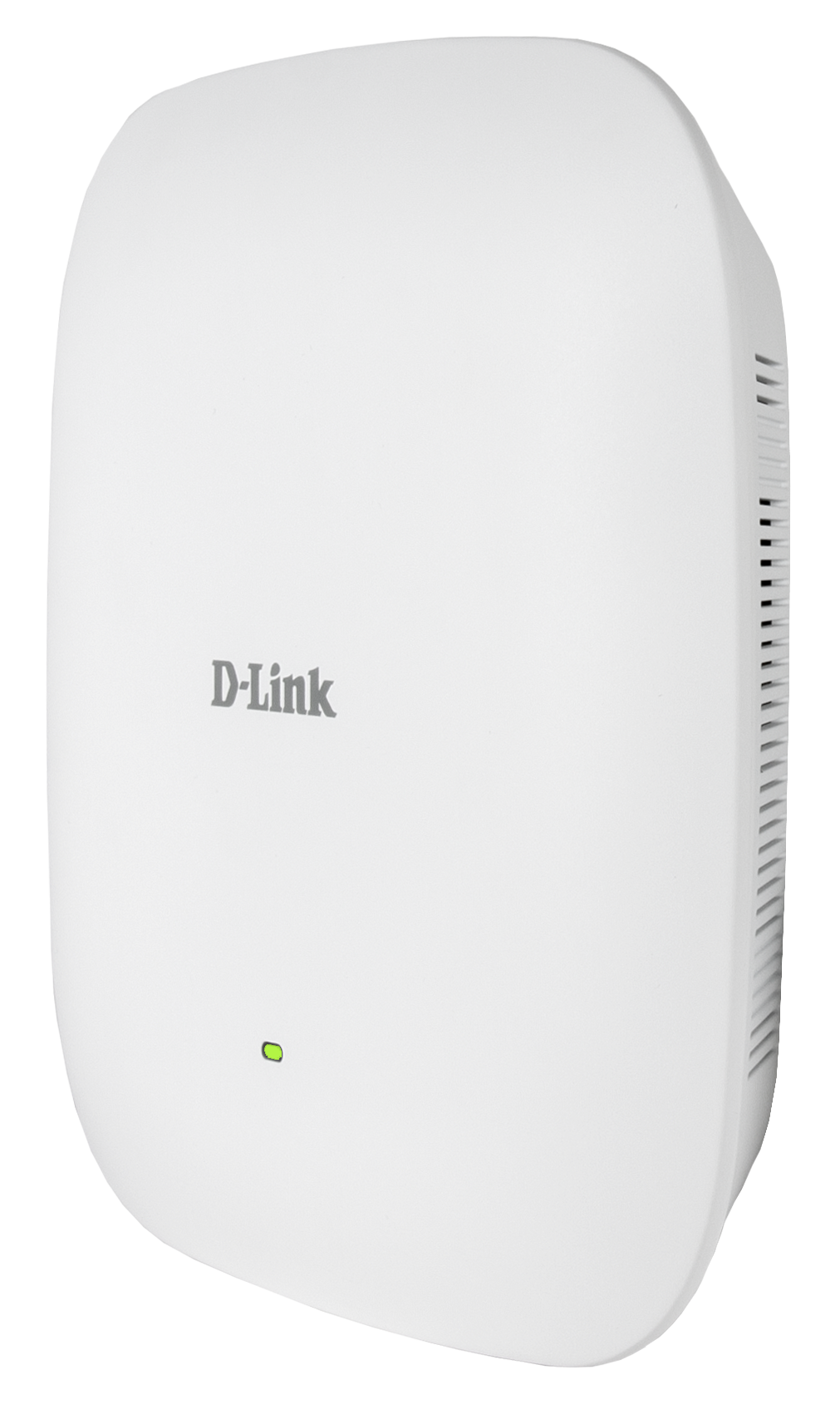

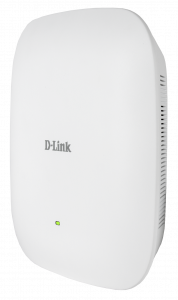

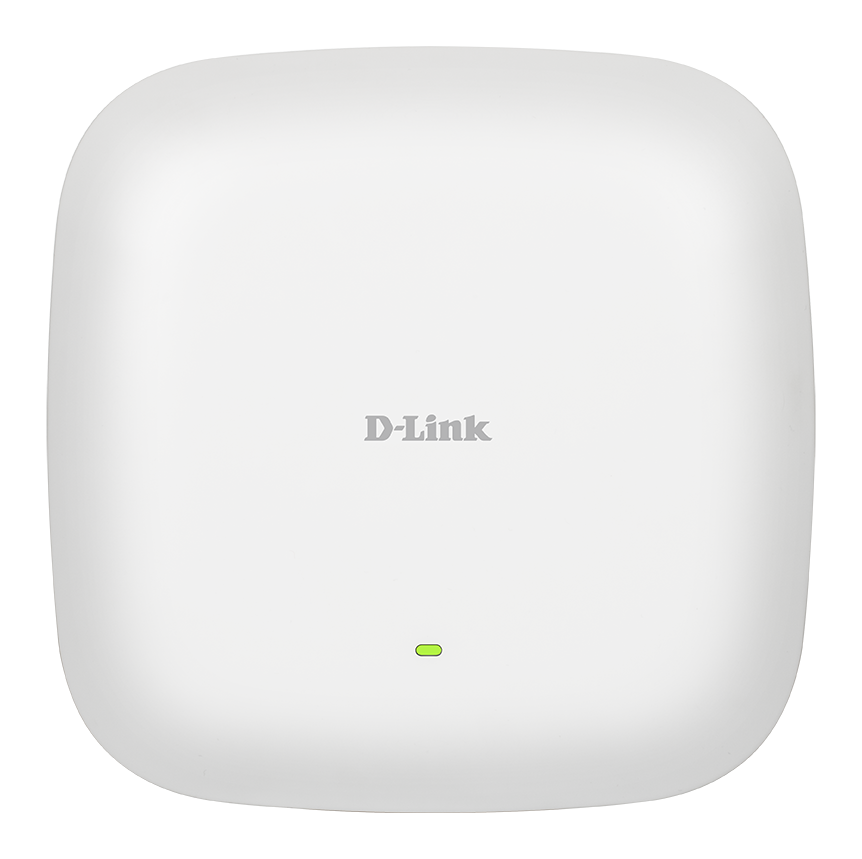

D-Link DAP-X2850 - Nuclias Connect AX3600 Wi‑Fi 6 Dual‑Band PoE Access Point. Maximum data transfer rate: 3600 Mbit/s, Maximum data transfer rate (2.4 GHz): 1147 Mbit/s, Maximum data transfer rate (5 GHz): 2402 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, SSH, SSL/TLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA3,..., Service Set Identifier (SSID) features: SSID broadcast, SSID broadcast on/off. Management protocols: SNMP (v1, v2c, v3), Telnet, SSH, SSL. Output voltage: 12 V, Output current: 2.5 A, Power consumption (max): 19.44 W. Placement: Ceiling, Wall, Product colour: White, Housing material: Plastic

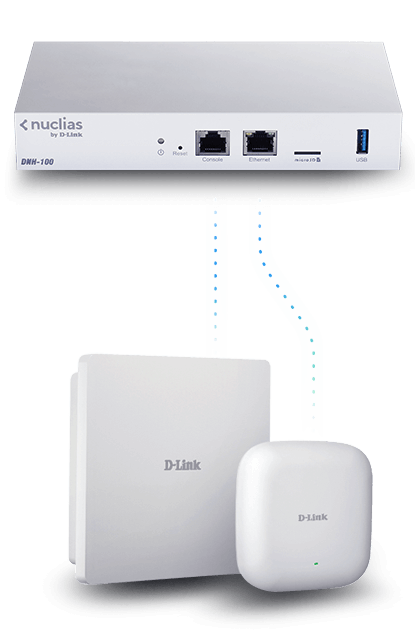

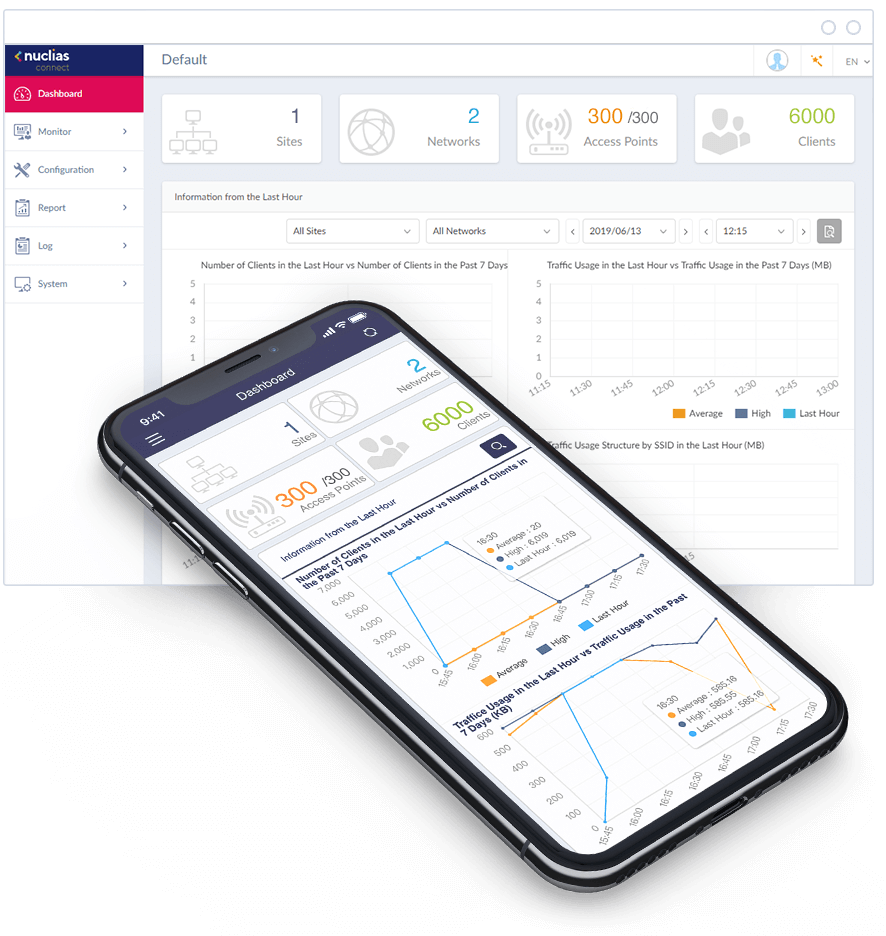

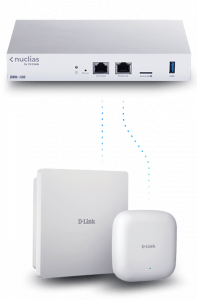

Manage with Nuclias Connect
Next-gen Wi-Fi 6
Dual-band, 4x4 MIMO, band-steering & airtime fairness
2.5 Gigabit Uplink

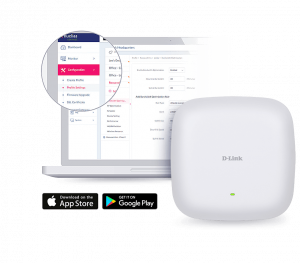

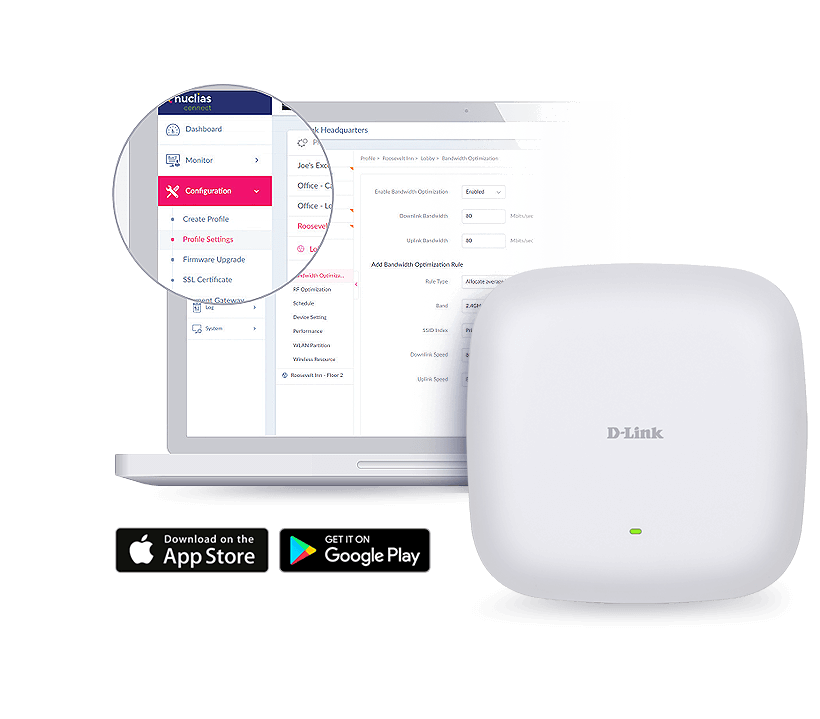

Free-to-download software & app
Flexible installation with PoE
Made for IoT

Product Properties

Manufacturer
D-Link

Model
DAP-X2850

EAN
790069456947

Antenna

Antenna direction type
Omni-directional

Antenna gain level (max)
5.5 dBi

Antenna type
Internal

Antennas quantity
4

Bullet points

Point
2.5 Gigabit Uplink

Dual-band, 4x4 MIMO, band-steering & airtime fairness

Flexible installation with PoE

Free-to-download software & app

Made for IoT

Manage with Nuclias Connect

Next-gen Wi-Fi 6

Design

Certification
FCC

Housing material
Plastic

LED indicators
Power, Status

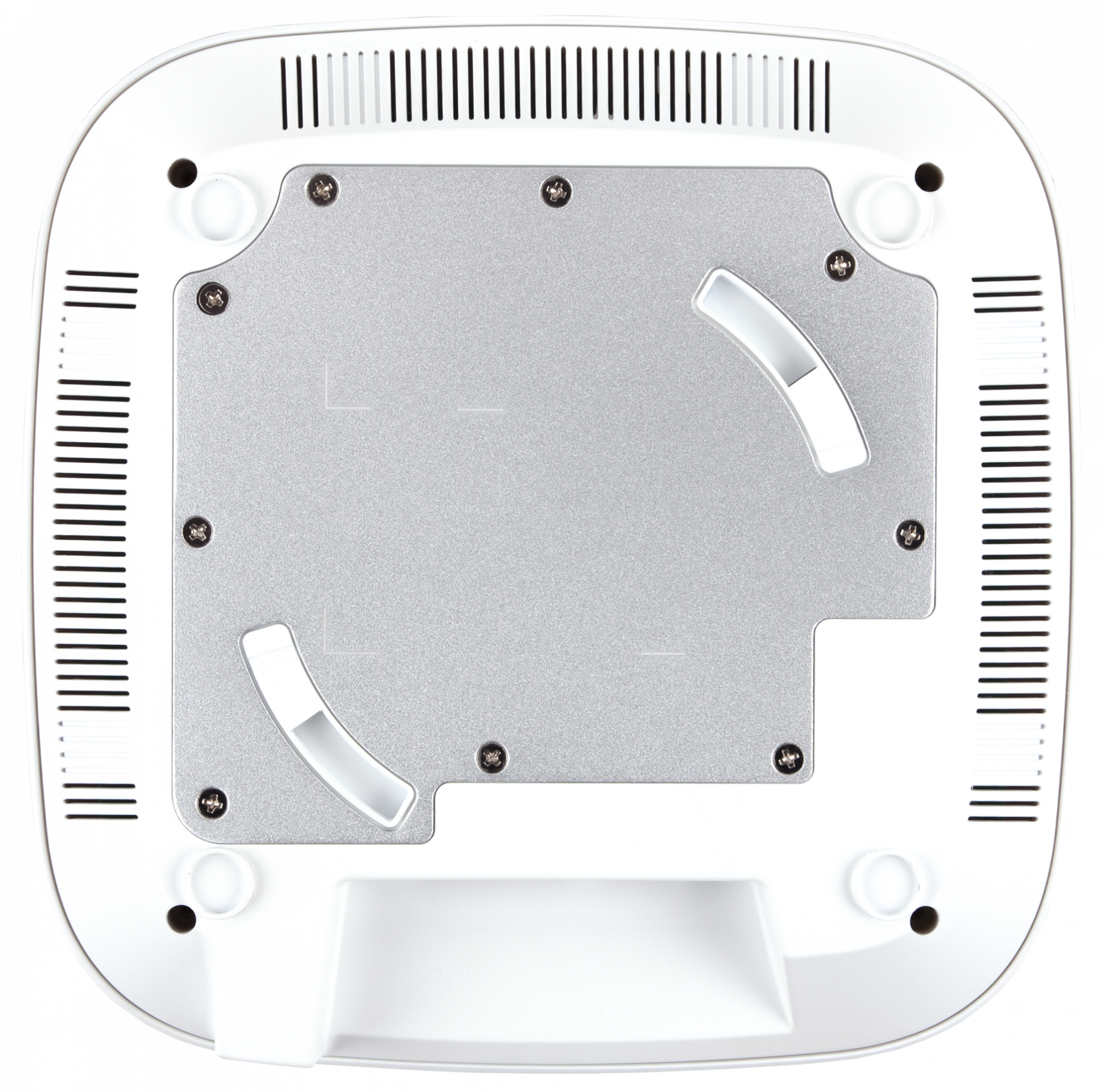

Placement
Ceiling, Wall

Product colour
White

Reset button
Yes

Features

2.4 GHz
Yes

5 GHz
Yes

6 GHz
No

Automatic channel selection
Yes

Ethernet LAN data rates
10,100,1000,2500 Mbit/s

Frequency band
2.4 - 2.483, 5.15 - 5.35, 5.47 - 5.85 GHz

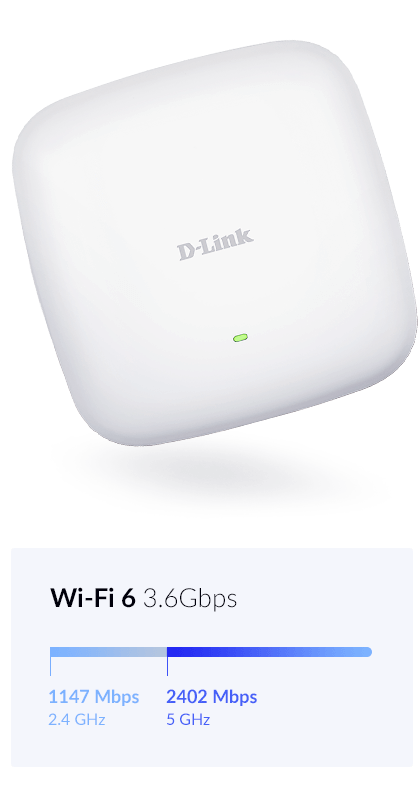

Maximum data transfer rate
3600 Mbit/s

Maximum data transfer rate (2.4 GHz)
1147 Mbit/s

Maximum data transfer rate (5 GHz)
2402 Mbit/s

Mean time between failures (MTBF)
30000 h

MIMO
Yes

MIMO type
Multi User MIMO

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u

Wi-Fi Multimedia (WMM)/(WME)
Yes

Wi-Fi roaming
Yes

Wireless isolation
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Command-line interface (CLI)
Yes

Syslog
Yes

Web-based management
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 65 °C

Packaging content

Number of products included
1 pc(s)

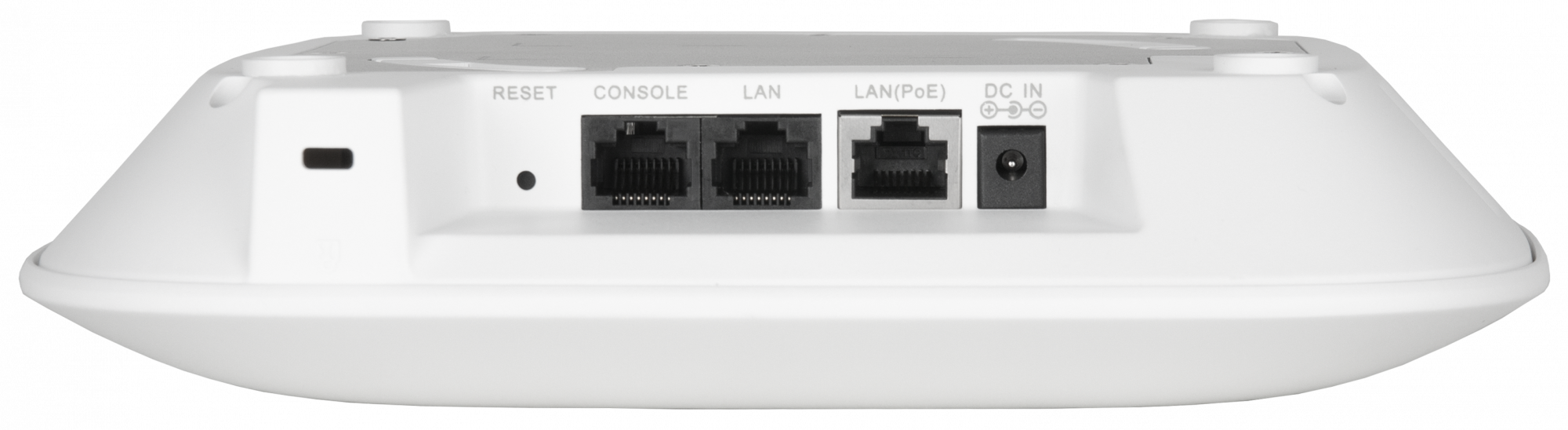

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
3

Power

Output current
2.5 A

Output voltage
12 V

Power consumption (max)
19.44 W

Power over Ethernet (PoE)
Yes

Protocols

DHCP server
Yes

Management protocols
SNMP (v1, v2c, v3), Telnet, SSH, SSL

Security

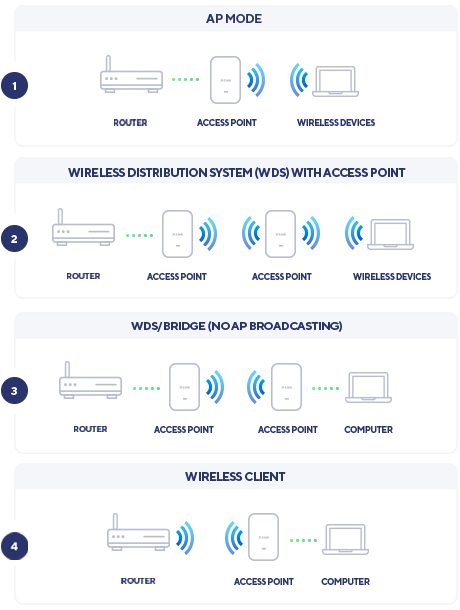

Auto Wireless Distribution System (WDS)
Yes

IGMP snooping
Yes

MAC address filtering
Yes

Number of SSID supported
16

Remote Authentication Dial-In User Service (RADIUS)
Yes

Security algorithms
64-bit WEP, 128-bit WEP, SSH, SSL/TLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise, WPA3-PSK

Service Set Identifier (SSID) features
SSID broadcast, SSID broadcast on/off

Sustainability

Sustainability certificates
CE

Sustainability compliance
Yes

Weight & dimensions

Depth
212.4 mm

Height
46.7 mm

Weight
763.8 g

Width
212.4 mm
