Description

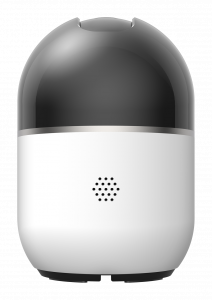

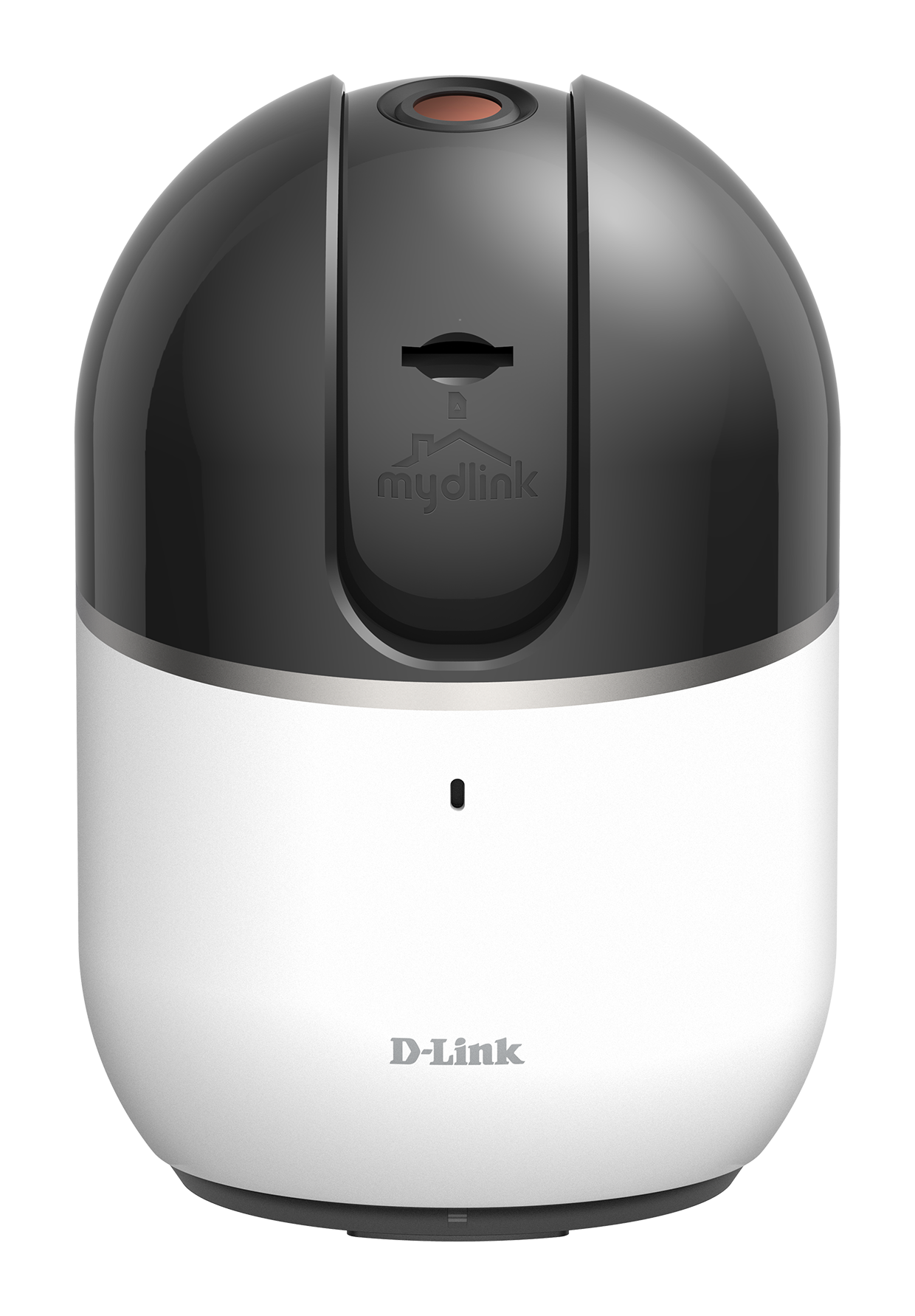

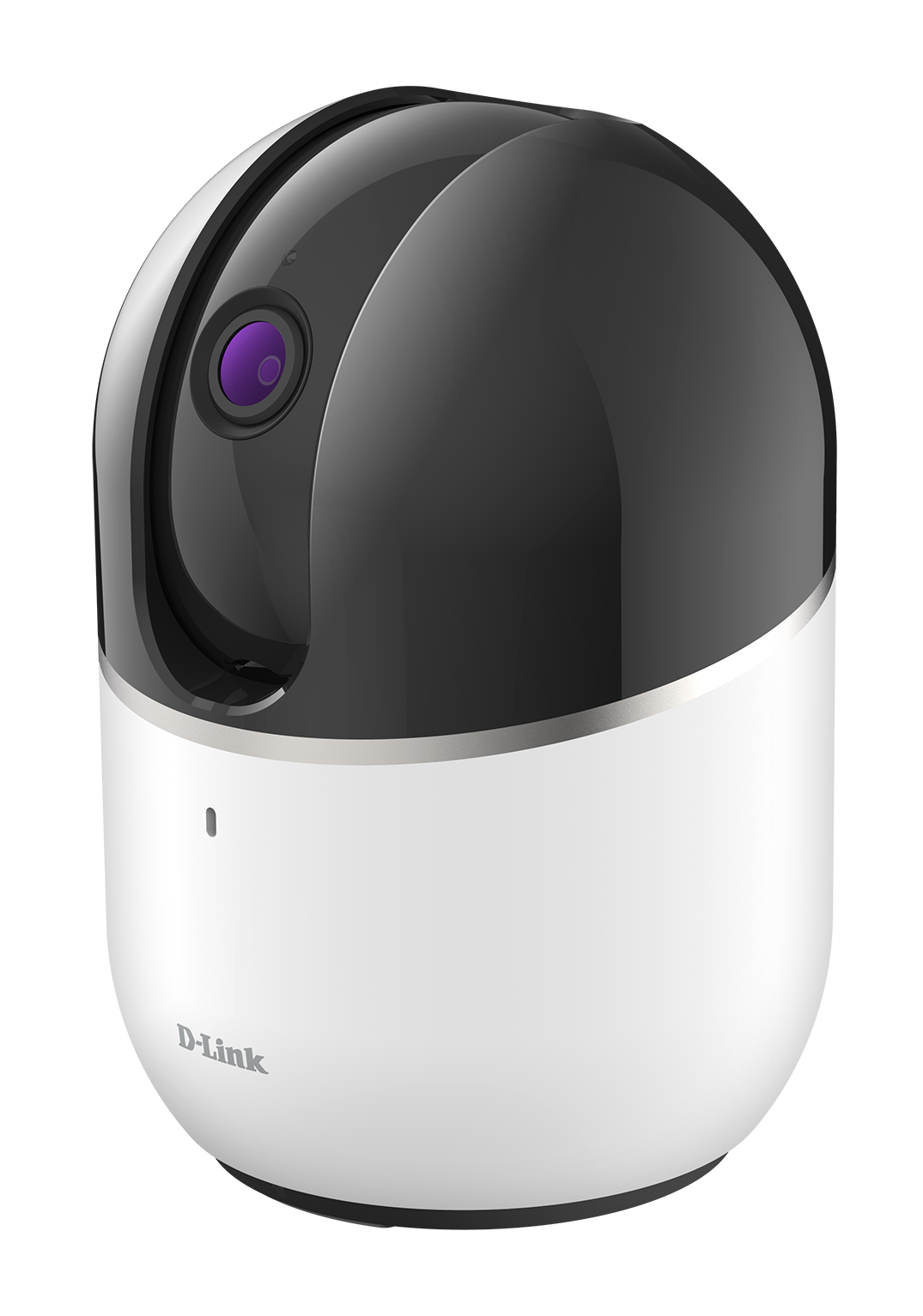

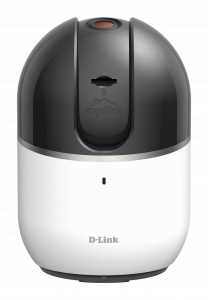

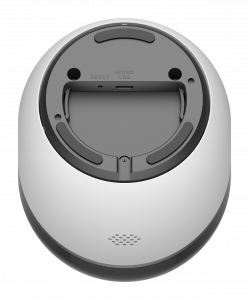

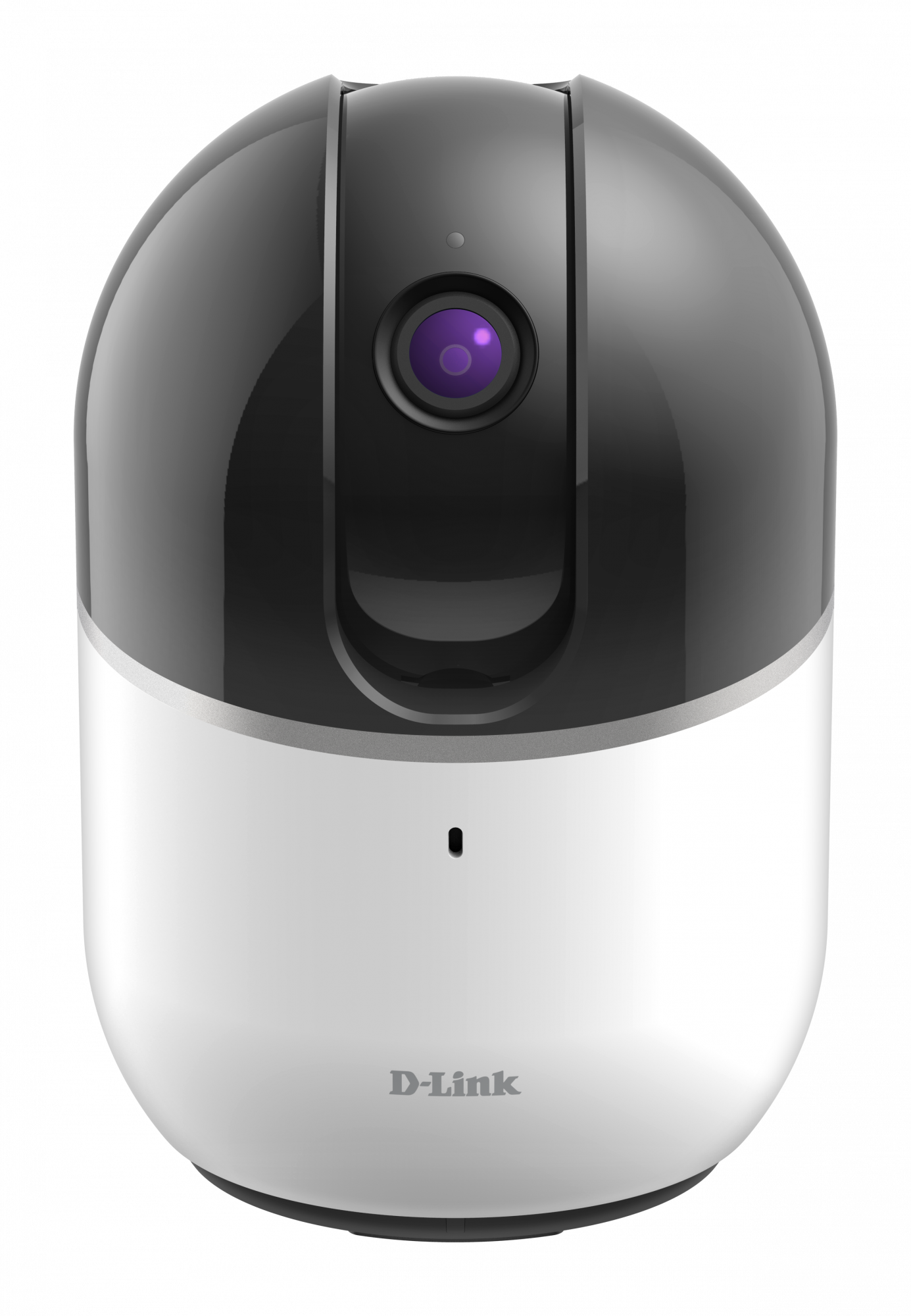

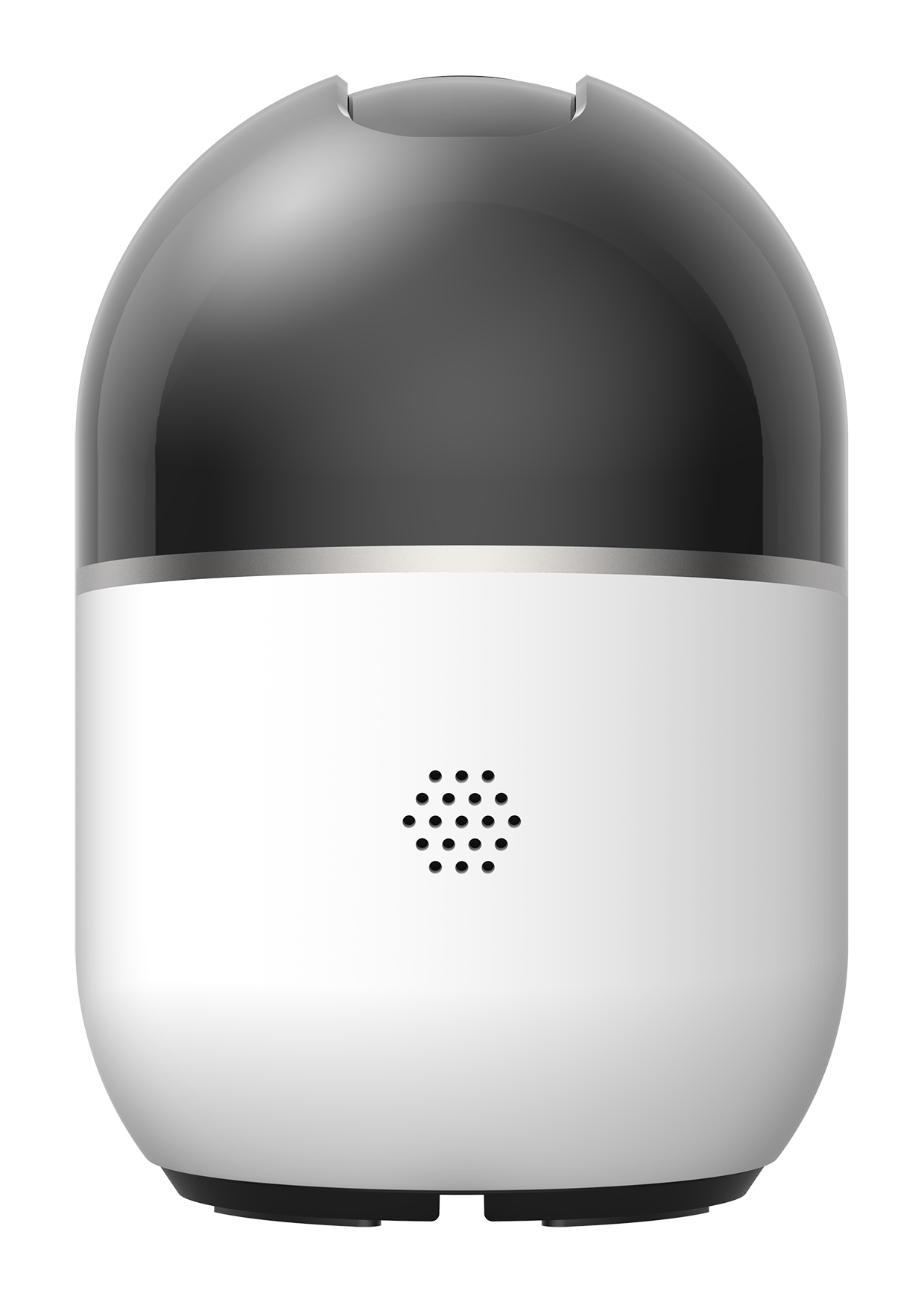

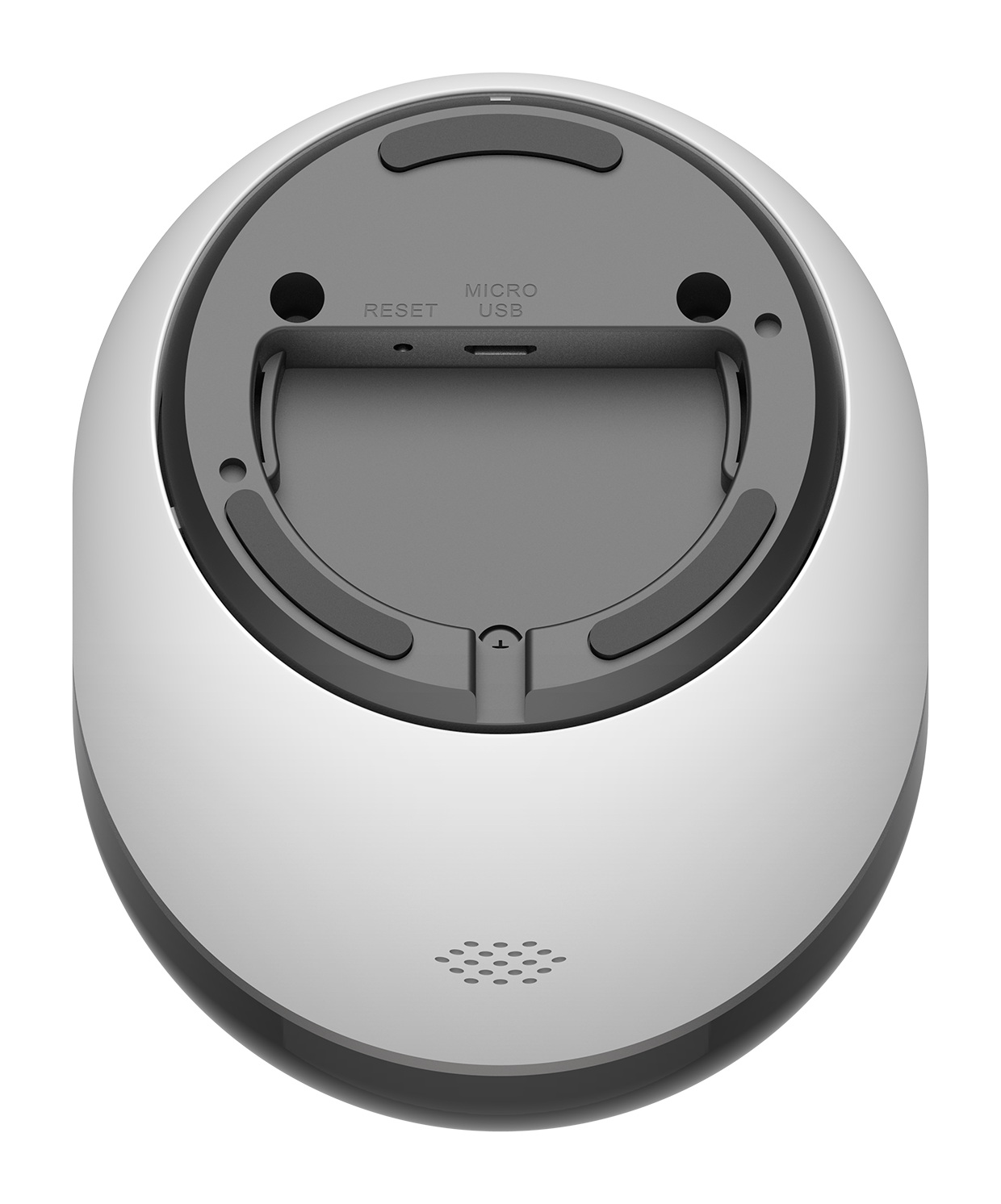

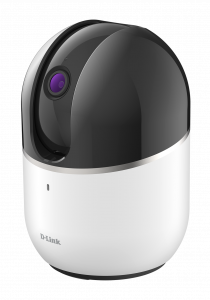

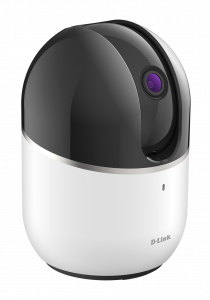

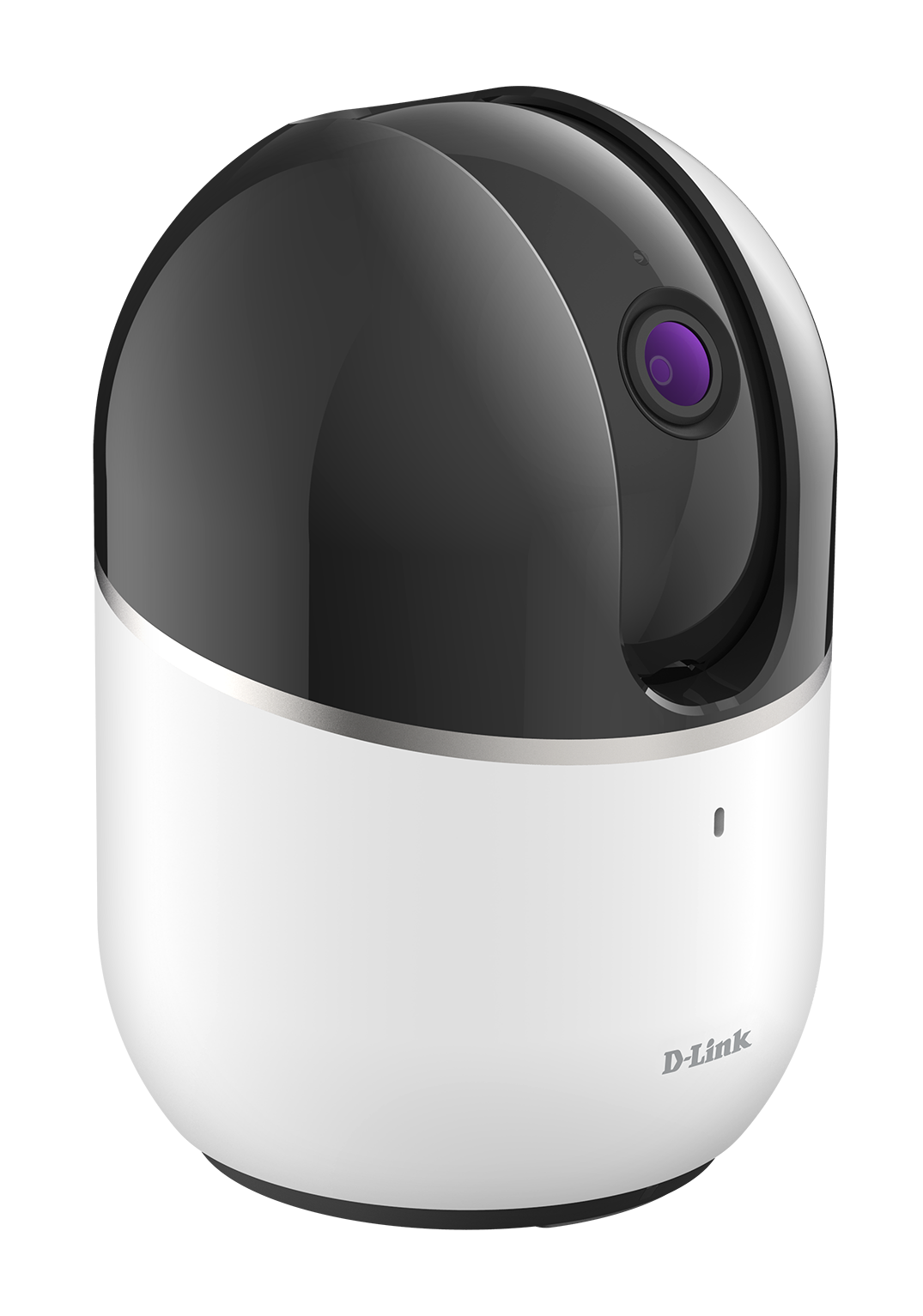

D-Link mydlink HD Pan & Tilt Wi-Fi Camera – DCS-8515LH. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wireless. Mounting type: Desk/Wall, Product colour: Black, White, Form factor: Dome. Lens viewing angle, horizontal: 96°, Lens viewing angle, vertical: 53°, Lens viewing angle, diagonal: 120°. Sensor type: CMOS, Optical sensor size: 25.4 / 4 mm (1 / 4"). Fixed focal length: 2.55 mm

720p HD resolution
Motorised pan & tilt with motion tracking
Night vision, motion and sound detection
1-year free mydlink™ Cloud recording, microSD card slot, or phone storage
Works with mydlink™ devices, Amazon Alexa, Google Assistant
2-way audio
Access via the free mydlink™ app and web portal

Product Properties

Manufacturer
D-Link

Model
DCS-8515LH

EAN
790069441714

Audio

Audio detection
Yes

Built-in microphone
Yes

Built-in speaker(s)
Yes

Bullet points

Point
1-year free mydlink™ Cloud recording, microSD card slot, or phone storage

2-Way Audio

720p HD resolution

Access via the free mydlink™ app and web portal

Motorised pan & tilt with motion tracking

Night vision, motion and sound detection

Works with mydlink™ devices, Amazon Alexa, Google Assistant

Camera

Lens viewing angle, diagonal
120°

Lens viewing angle, horizontal
96°

Lens viewing angle, vertical
53°

Pan range
-170 - 170°

Pan speed
30 °/sec

Tilt angle range
-10 - 95°

Tilt speed
25 °/sec

Design

Form factor
Dome

Mounting type
Desk/Wall

Product colour
Black, White

Image sensor

Number of sensors
1

Optical sensor size
25.4 / 4 mm (1 / 4")

Sensor type
CMOS

Lens system

Fixed focal length
2.55 mm

Maximum aperture number
2.2

Number of lenses
1

Logistics data

Harmonized System (HS) code
85258900

Products per shipping (inner) case
5 pc(s)

Network

Bluetooth
Yes

Ethernet LAN
No

Supported network protocols
IPv6 ARP/ ICMP, IPv4 ARP/ ICMP, TCP/IP, UDP

Wi-Fi
Yes

Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)

Night vision

LED type
IR

Night vision
Yes

Night vision distance
5 m

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-20 - 70 °C

Packaging content

Number of cameras
1

Wall mounting kit
Yes

Performance

Certification
CE, CE LVD, FCC, ICES

Connectivity technology
Wireless

Infrared (IR) cut-off filter
Yes

Placement supported
Indoor

Type
IP security camera

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

DC output current
1.2 A

DC output voltage
5

Power consumption (max)
6 W

Power source type
AC, DC

Security

Light sensor
Yes

Motion sensor
Yes

Security algorithms
WPA, WPA2

Storage

Built-in HDD
No

Card reader integrated
Yes

Compatible memory cards
MicroSD (TransFlash)

System requirements

Mobile operating systems supported
Android, iOS

Technical details

Master (outer) cases per pallet (air)
40 pc(s)

Master (outer) cases per pallet (sea)
60 pc(s)

Pallet gross length
120 cm

Pallet gross weight (air)
210.4 kg

Pallet gross weight (sea)
306.6 kg

Pallet gross width
110 cm

Pallet height (air)
135.5 cm

Pallet height (sea)
196.5 cm

Products per pallet (air)
200 pc(s)

Products per pallet (sea)
300 pc(s)

Shipping (inner) case gross weight
4.81 kg

Shipping (inner) case height
30.5 cm

Shipping (inner) case length
61.6 cm

Shipping (inner) case net weight
4.21 kg

Shipping (inner) case width
18.8 cm

Video

Frame rate
30 fps

Maximum resolution
1280 x 720 pixels

Supported video modes
360p, 720p

Video compression formats
H.264

Weight & dimensions

Depth
88 mm

Height
128.5 mm

Package depth
274 mm

Package height
118 mm

Package weight
842 g

Package width
172 mm

Weight
340 g

Width
88 mm
