Description

DELL C Series 24 Inch Video Conferencing Monitor - C2423H. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

60.5cm (23.8") Full HD 1920 x 1080 LED IPS
8ms, 16:9, 250cd/m², 1000:1
USB, HDMI, DisplayPort

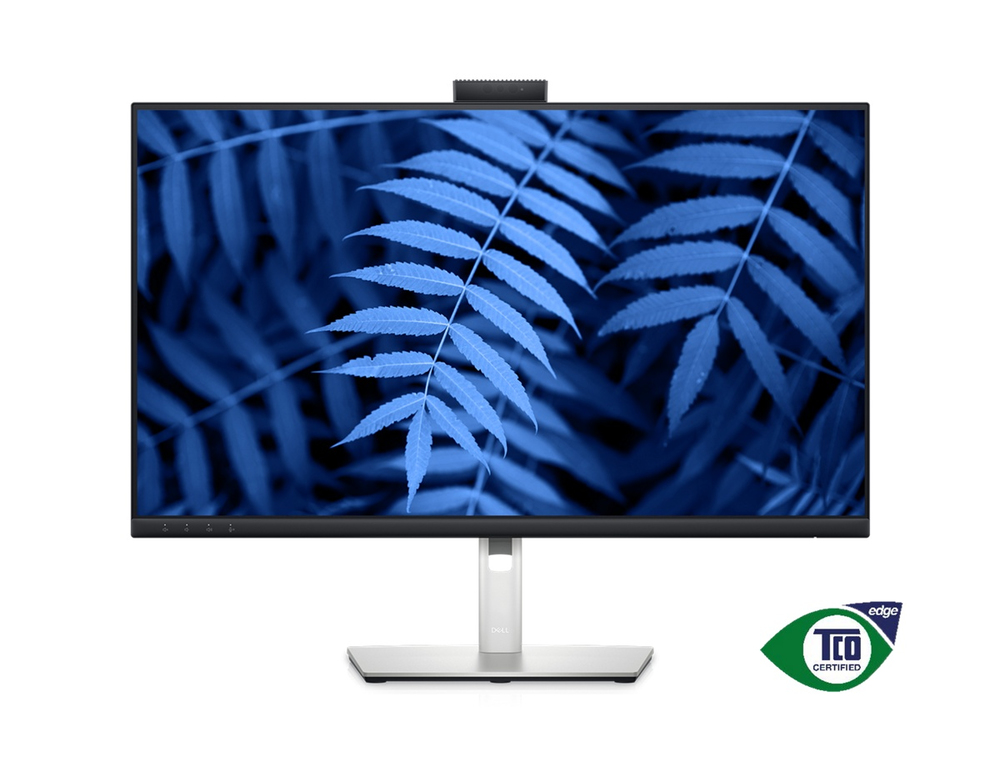

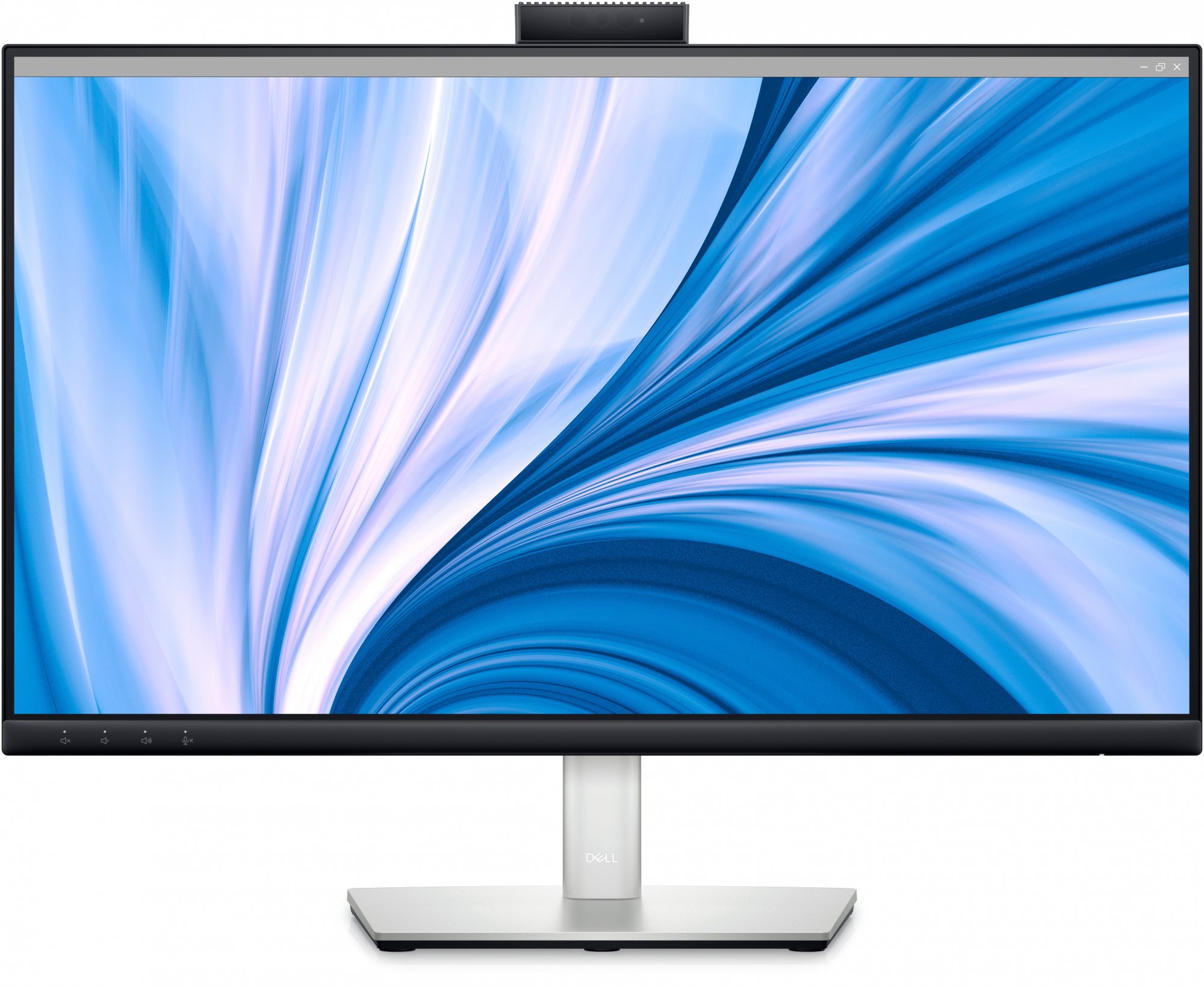

Convenient pop-up webcam

High quality collaboration:
FHD conferencing webcam delivers seamless video and screen clarity.

Seamless privacy:
Pop-up webcam smartly hides the camera when you push it down.

View from the best angles:
IPS technology delivers superior picture quality and consistent color with wide-view angles ideal for video conferencing.

Simplified conferencing audio

Clear communication:
Built-in echo cancelling microphone and dual 5W speakers.

Enhanced privacy:

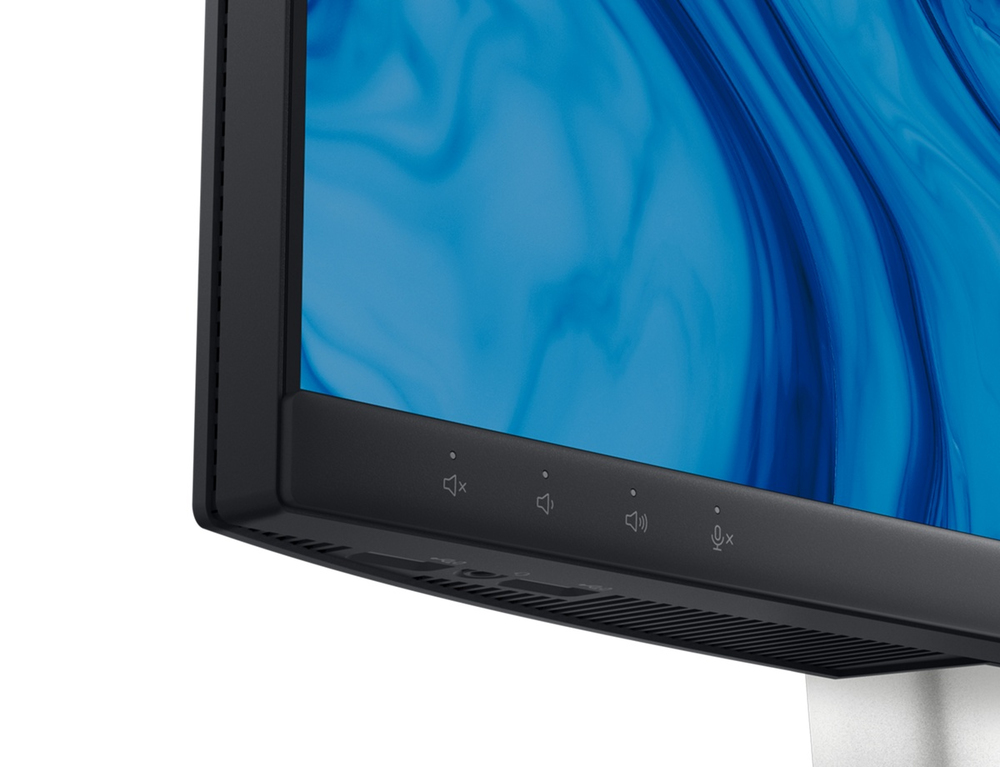

Convenient mute button delivers quick security and protection.

Intuitive desktop experience

Password-free login with secure facial recognition from Windows Hello.

Hands-free commands via Cortana™.

Designed for comfort and efficiency

Designed with wellness in mind:
Comfort View Plus—an always-on, built-in low blue light screen—reduces potentially harmful blue light emissions without compromising color.

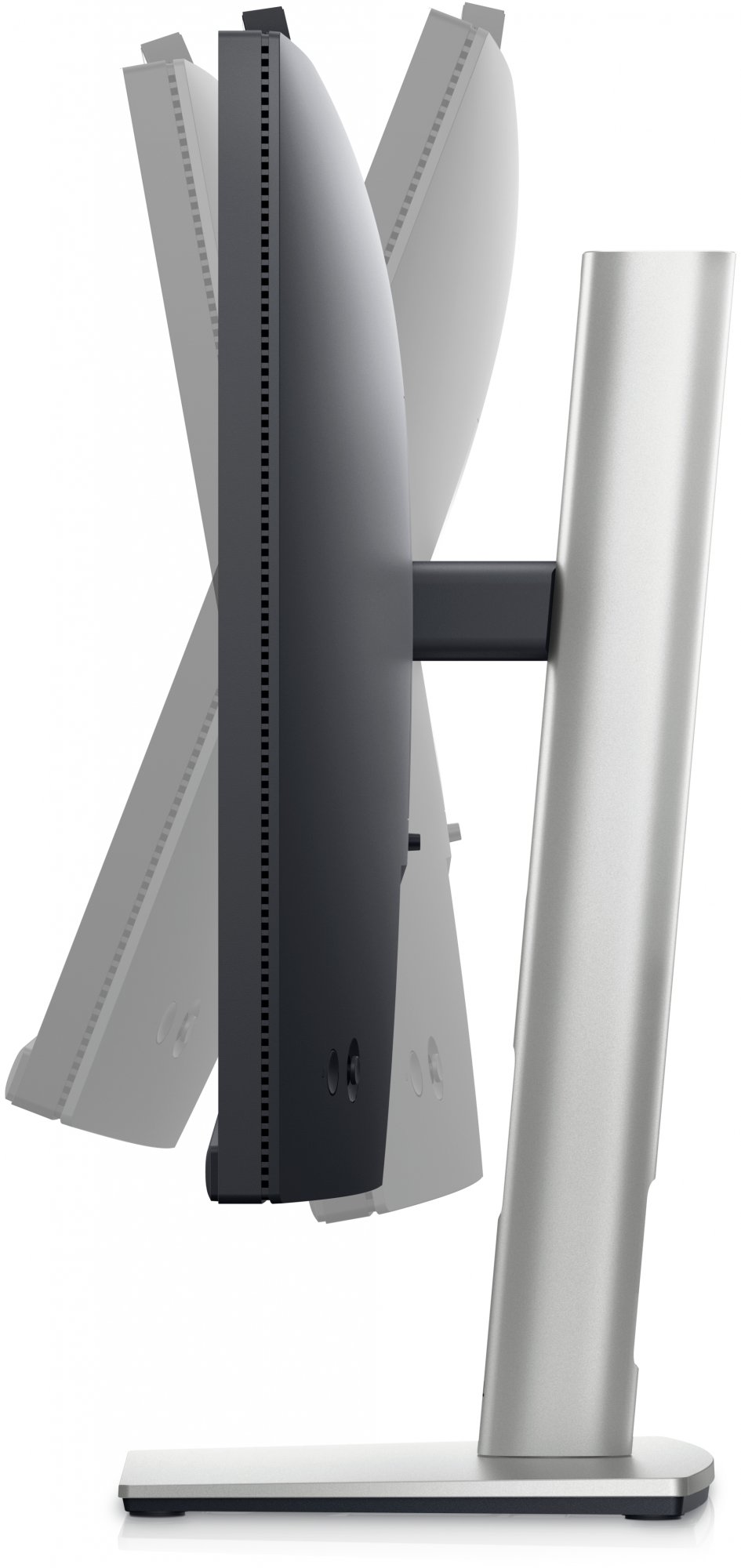

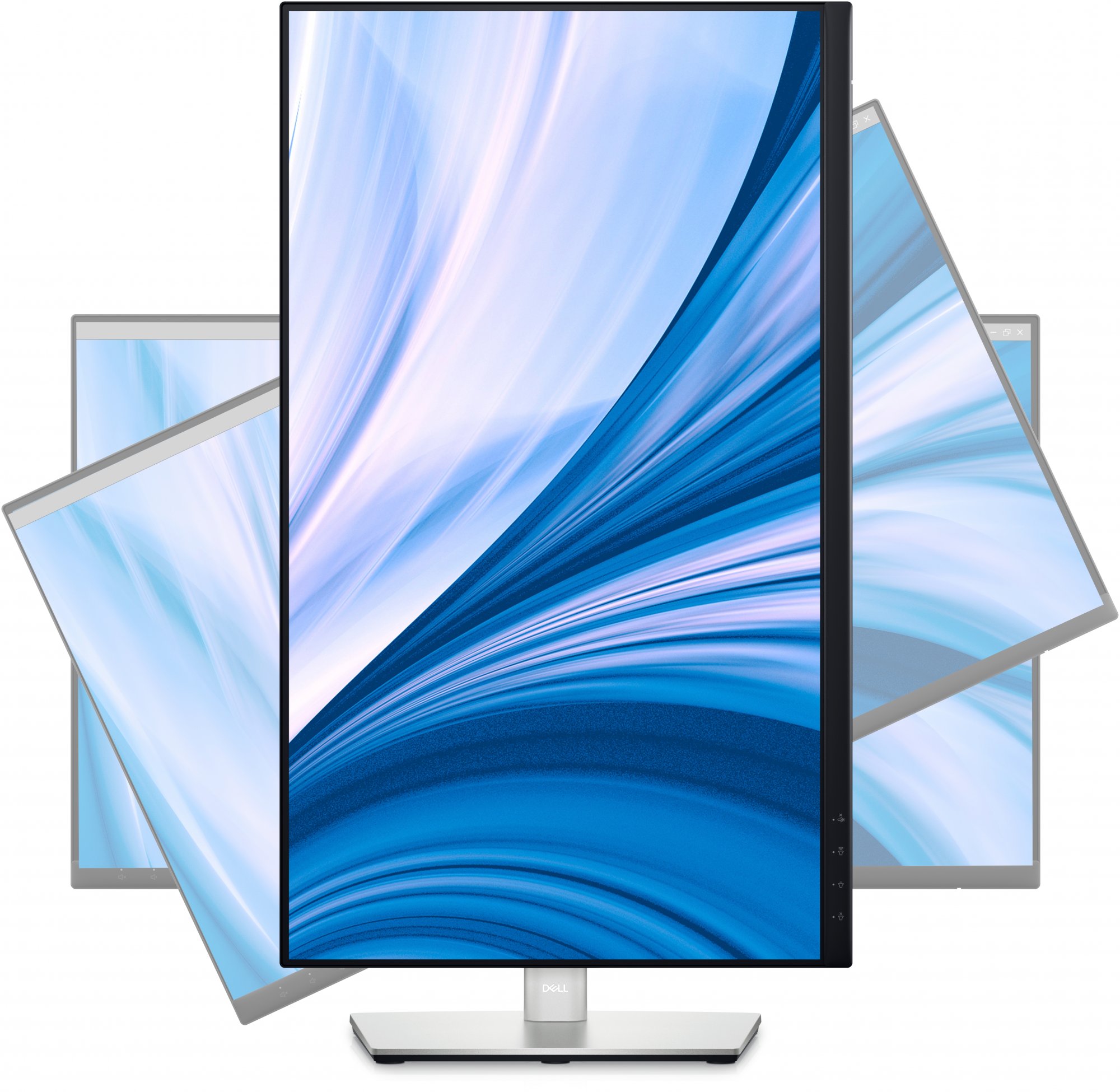

Convenient adjustability:

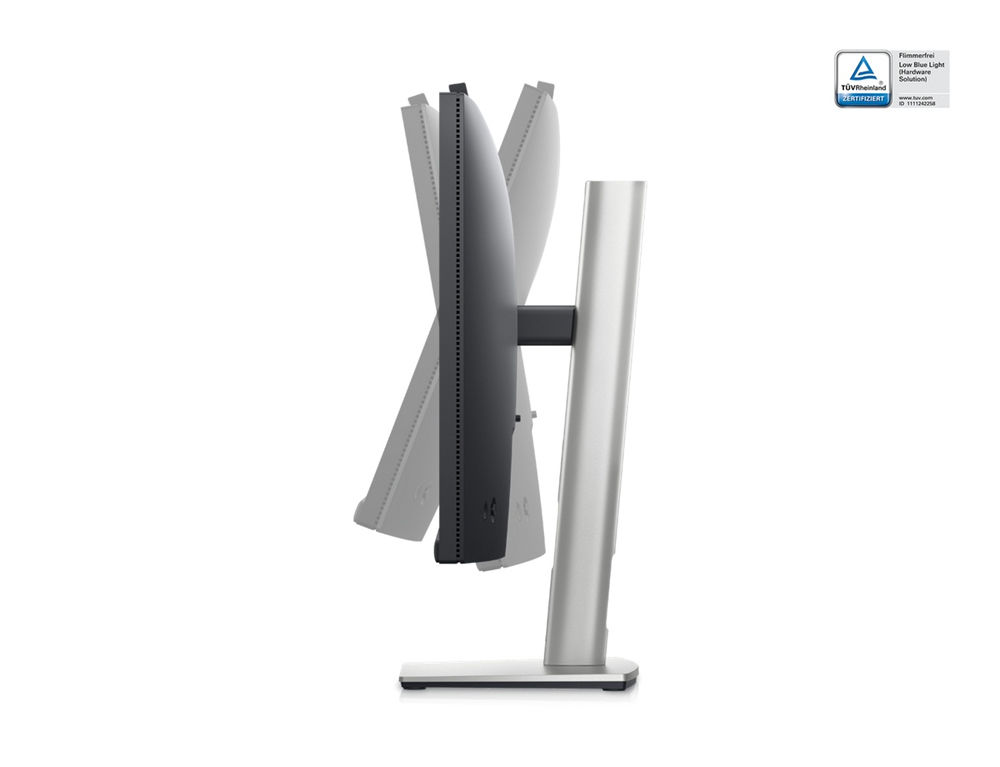

Experience made-for-you comfort by tilting, swiveling, pivoting and adjusting the height of your monitor (150 mm max) for optimal viewing comfort.

Expand your productivity:
Experience uncompromised picture quality by daisy chaining two monitors with a single DP cable. As a bonus, you can boost productivity by up to 21% with a dual monitor setup.

Dell Display Manager

Productive at every level:

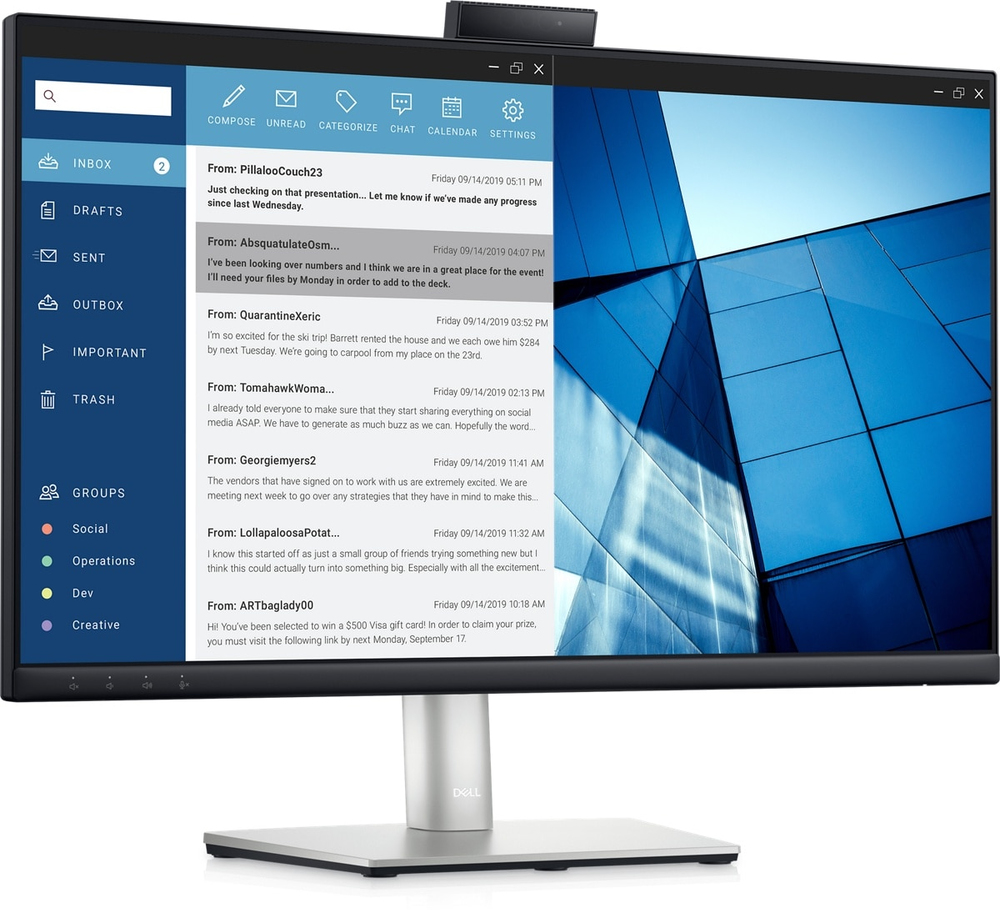

Easy Arrange allows you to easily tile multiple applications across one or more screens with 38 pre-set window partitions and the ability to personalize up to five windows, giving you improved multitasking abilities.

Seamless transitions:
The auto-restore feature remembers where you left off, so applications will go back to where you left them, even after you’ve unplugged.

The key to convenience:
Shortcut keys can save you even more time, letting you easily configure your display management settings so you can get to work faster.

More ways to manage:
Asset management reports allow IT managers to quickly capture and track monitor information as well as configure multiple monitors at once through a single setup.

Green thinking for today and tomorrow

Environmental standards
This monitor uses 85% PCR (Post-consumer Recyclable) plastic in the design and meets the latest environmental standards such as EnergyStar®, and TCO Certified Edge, and is EPEAT® Gold registered.

Eco-conscious packaging
Designed with the environment in mind, Dell commercial monitors come in 100% recyclable cardboard packaging.

Energy conservation
Save energy with PowerNap, a feature that dims or puts your monitor to sleep when your monitor is not in use.

Product Properties

Manufacturer
Dell

Model
DELL-C2423H

EAN
5397184567777

Bullet points

Point
60.5cm (23.8") Full HD 1920 x 1080 LED IPS

8ms, 16:9, 250cd/m², 1000:1

USB, HDMI, DisplayPort

Carbon footprint

Carbon emissions (End-of-Life)
5 kg of CO2e

Carbon emissions (Logistics)
74 kg of CO2e

Carbon emissions (Manufacturing)
367 kg of CO2e

Carbon emissions (Use)
125 kg of CO2e

PAIA version
1.3.0

Total carbon emissions (Standard deviation)
117 kg of CO2e

Total carbon emissions (w/o Use phase)
445 kg of CO2e

Total carbon footprint
570 kg of CO2e

Design

Detachable stand
Yes

Feet colour
Silver

Front bezel colour
Black

Heavy metals free
Hg (mercury)

Market positioning
Home

Product colour
Black

Display

Anti-glare screen
Yes

Backlight type
LED

Contrast ratio (typical)
1000:1

Display brightness (typical)
250 cd/m²

Display number of colours
16.7 million colours

HD type
Full HD

High Dynamic Range (HDR) supported
No

Horizontal scan range
30 - 83 kHz

Max Refresh Rate
60 Hz

Native aspect ratio
16:9

Panel type
IPS

Pixel density
92.53 ppi

Pixel pitch
0.2745 x 0.2745 mm

Response time
8 ms

Response time (fast)
5 ms

Screen Resolution
1920 x 1080 pixels

Screen shape
Flat

Screen Size
60.5 cm (23.8")

Screen Type
LCD

Screen Type
60.47 cm

sRGB coverage (typical)
99%

Supported graphics resolutions
1920 x 1080 (HD 1080)

Supported video modes
480p, 576p, 720p, 1080i, 1080p

Touchscreen
No

Vertical scan range
56 - 76 Hz

Viewable size diagonal
60.5 cm

Viewable size, horizontal
52.7 cm

Viewable size, vertical
29.6 cm

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Ergonomics

Cable lock slot
Yes

Height adjustment
15 cm

Yes

On Screen Display (OSD)
Yes

Panel mounting interface
100 x 100 mm

Pivot
Yes

Pivot angle
-90 - 90°

Plug and Play
Yes

Swivel angle range
-45 - 45°

Swivelling
Yes

Tilt adjustment
Yes

Tilt angle range
-5 - 21°

VESA mounting
Yes

Logistics data

Harmonized System (HS) code
85285210

Multimedia

Built-in camera
Yes

Built-in microphone
Yes

Built-in speaker(s)
Yes

Megapixel (approx.)
5 MP

Number of speakers
2

RMS rated power
10 W

Network

Wi-Fi
No

Operational conditions

Non-operating altitude
5000 - 12192 m

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-20 - 60 °C

Packaging content

Cables included
AC, DisplayPort, HDMI, USB Type-A

DisplayPort cable length
1.8 m

HDMI cable length
1.8 m

Power cable length
1.8 m

Quick start guide
Yes

Stand included
Yes

Packaging data

Package depth
139.6 mm

Package height
437.9 mm

Package weight
8.33 kg

Package width
719.8 mm

Performance

AMD FreeSync
No

NVIDIA G-SYNC
No

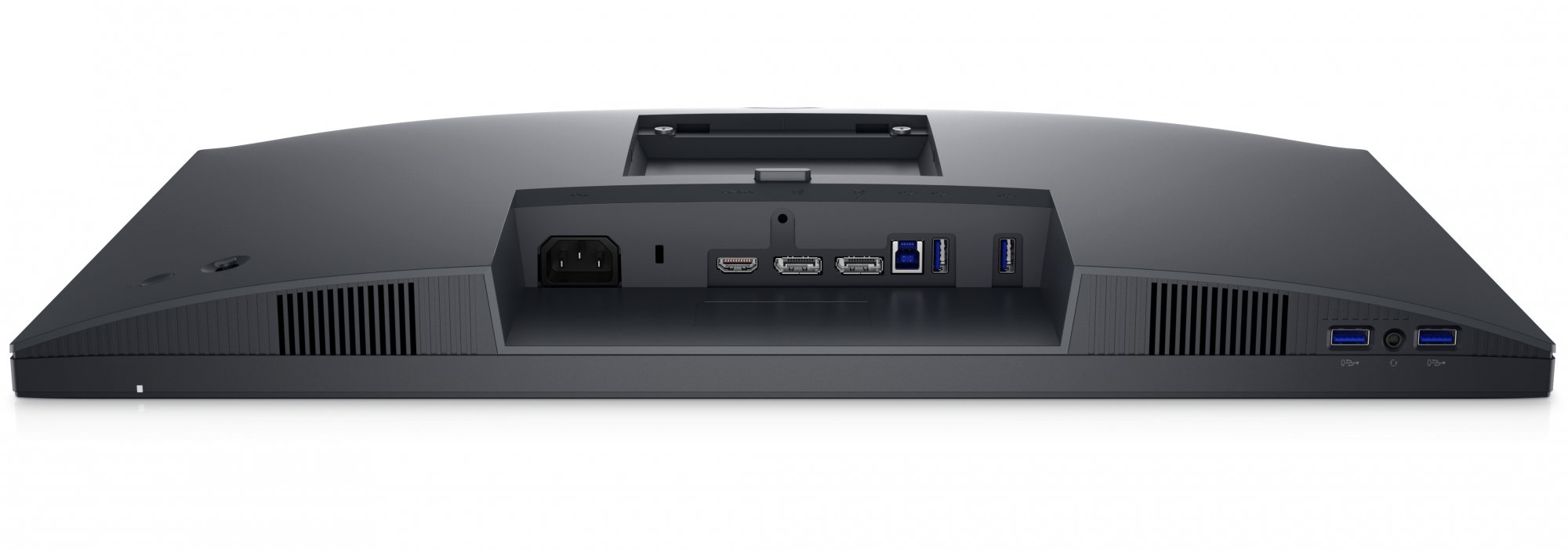

Ports & interfaces

Built-in USB hub
Yes

DisplayPort version
1.2

DisplayPorts quantity
2

HDCP
Yes

HDMI
Yes

HDMI ports
1

HDMI version
1.4

Headphone connectivity
3.5 mm

Headphone out
Yes

Headphone outputs
1

Number of upstream ports
1

USB hub version
3.2 Gen 1 (3.1 Gen 1)

USB Type-A downstream ports quantity
4

USB upstream port type
USB Type-B

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Energy consumption (SDR) per 1000 hours
13 kWh

Energy efficiency class (HDR)
Not available

Energy efficiency class (SDR)
D

Energy efficiency scale
A to G

Input current
1.5 A

Power consumption (max)
82 W

Power consumption (off)
0.3 W

Power consumption (standby)
0.3 W

Power consumption (typical)
11.51 W

Power supply type
Internal

Sustainability

Doesn't contain
PVC/BFR

Sustainability certificates
ENERGY STAR, RoHS, TCO

Weight & dimensions

Bezel width (bottom)
1.71 cm

Bezel width (side)
5.38 mm

Bezel width (top)
5.37 mm

Depth (with stand)
179.6 mm

Depth (without stand)
57.9 mm

Height (with stand)
496.1 mm

Height (without stand)
318.9 mm

Weight (with stand)
5.59 kg

Weight (without stand)
3.83 kg

Width (with stand)
537.8 mm

Width (without stand)
537.8 mm
