Description

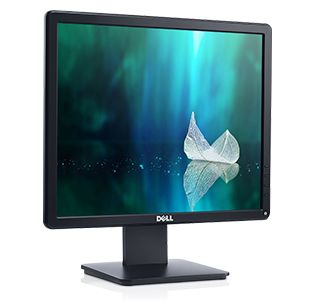

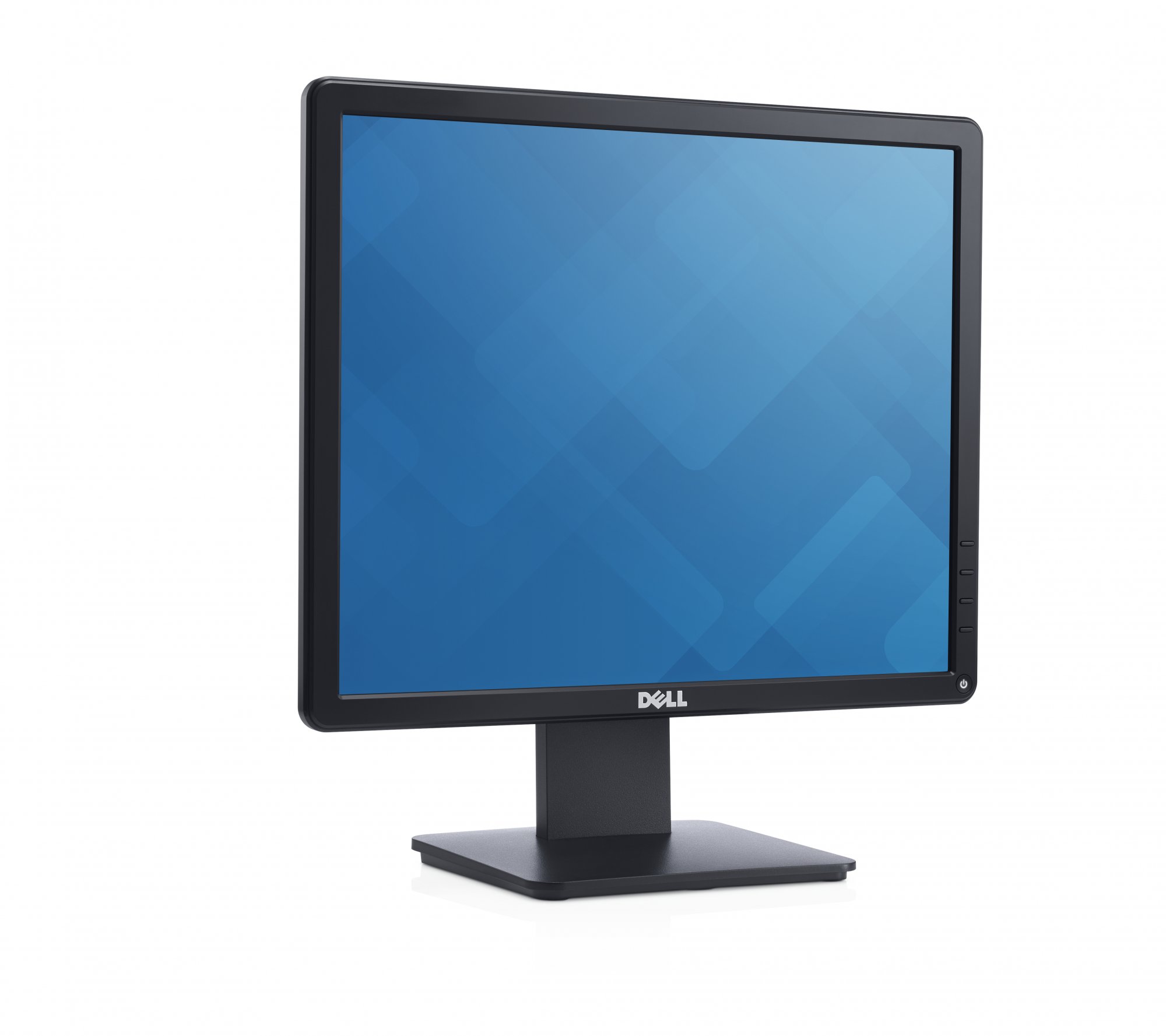

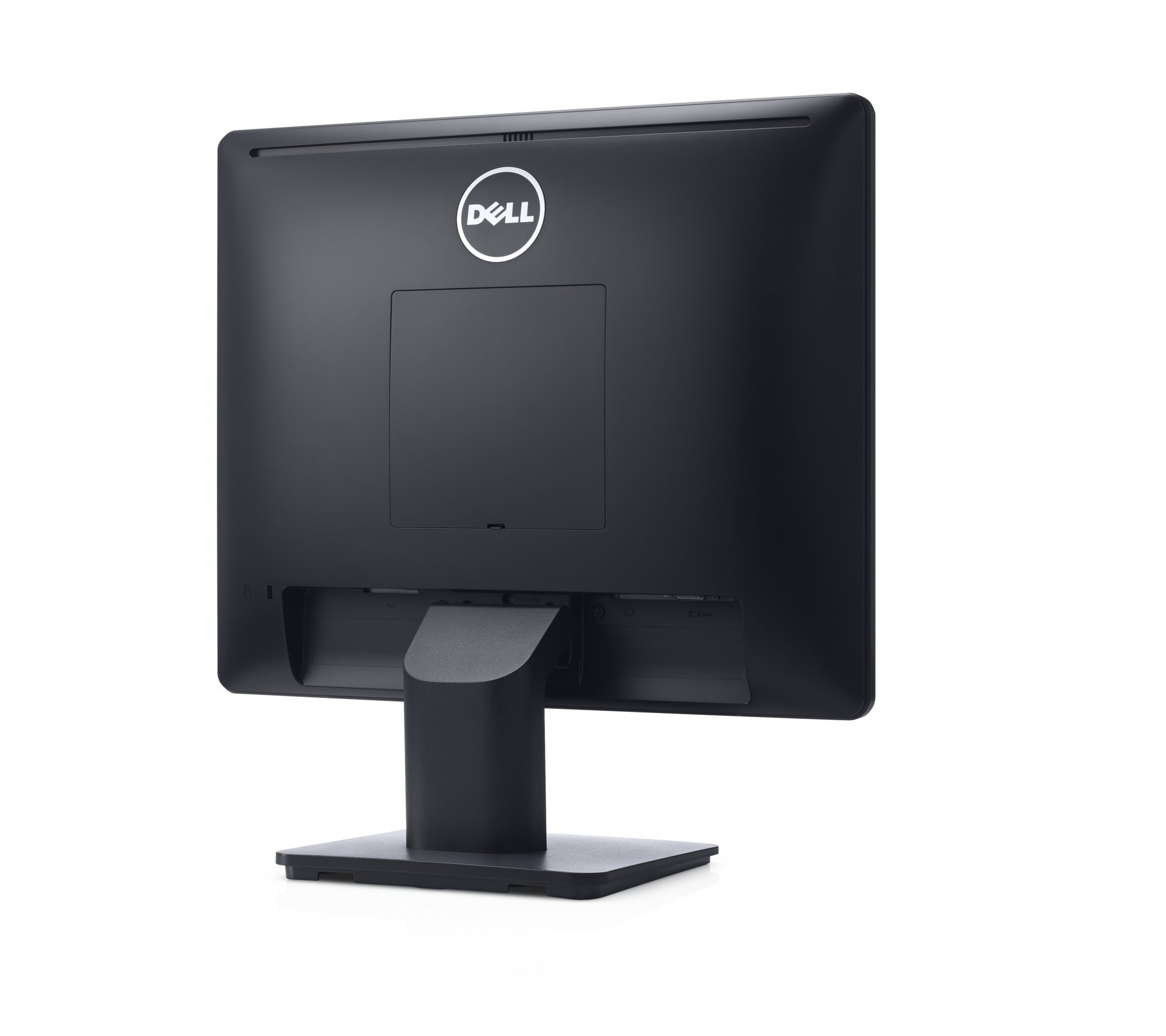

DELL E Series E1715S. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. VESA mounting. Product colour: Black

43.2cm (17") SXGA 1280 x 1024 LED TN
5ms, 5:4, 250cd/m², 1000:1
VGA, DisplayPort

Essential features for everyday business

Add the Dell 17 Monitor – E1715S to your workplace for a great viewing experience in just about any setting.
- A great fit: This compact, 5:4 aspect ratio monitor can fit into smaller spaces while still maintaining compatibility with software requiring a 5:4 display ratio.
- Excellent clarity: Whether used as a point-of-sale display or as a desktop monitor, the Dell 17 Monitor – E1715S is a pleasure to view with 1280 x 1024 HD resolution, a fast 5 ms response time and 85% colour gamut.

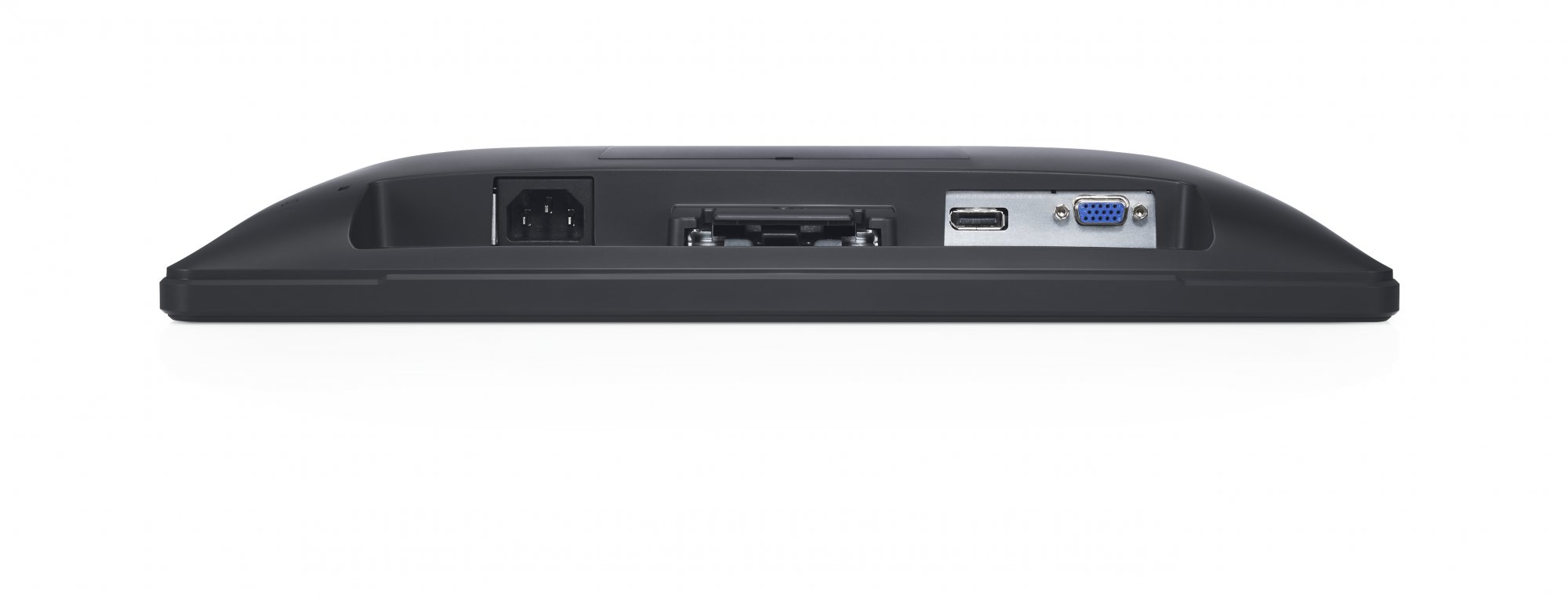

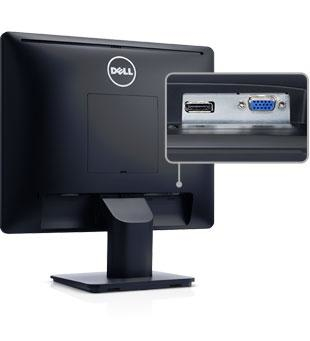

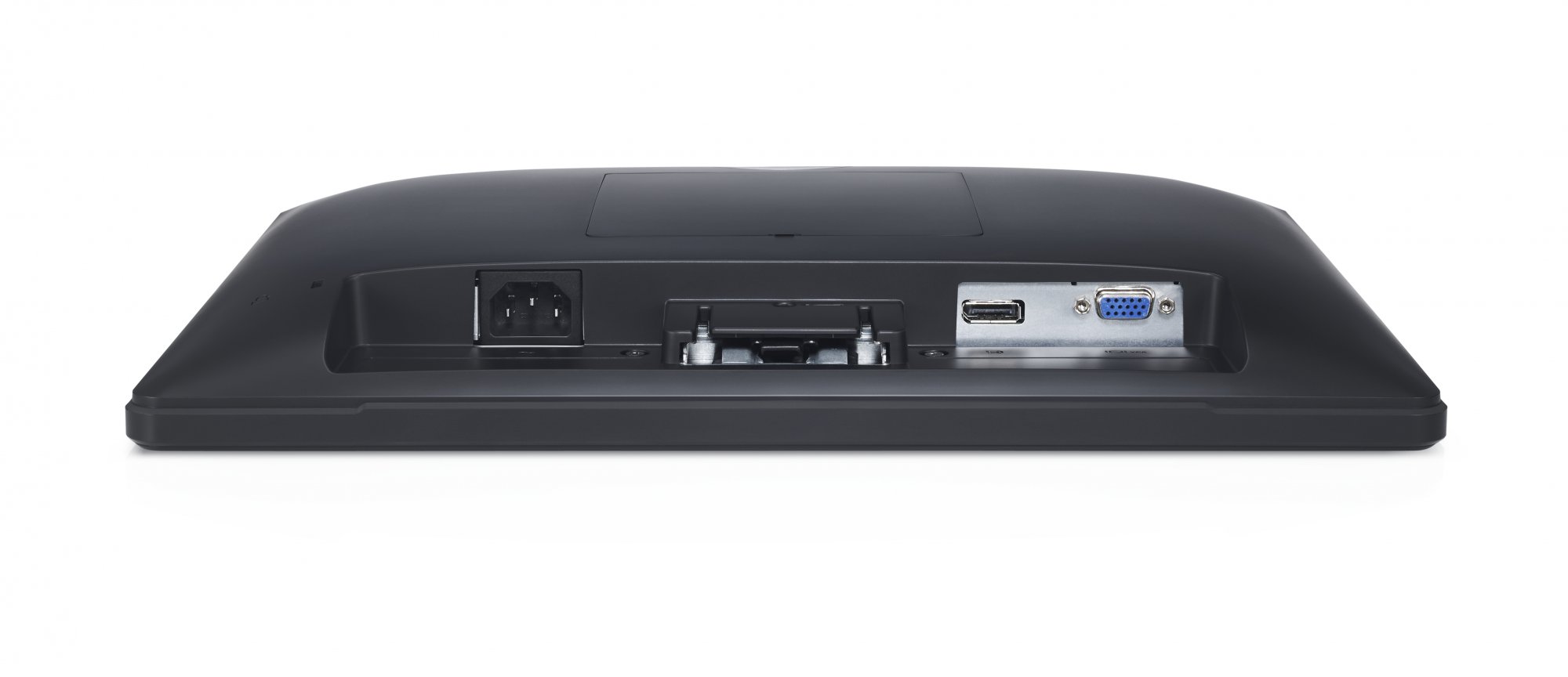

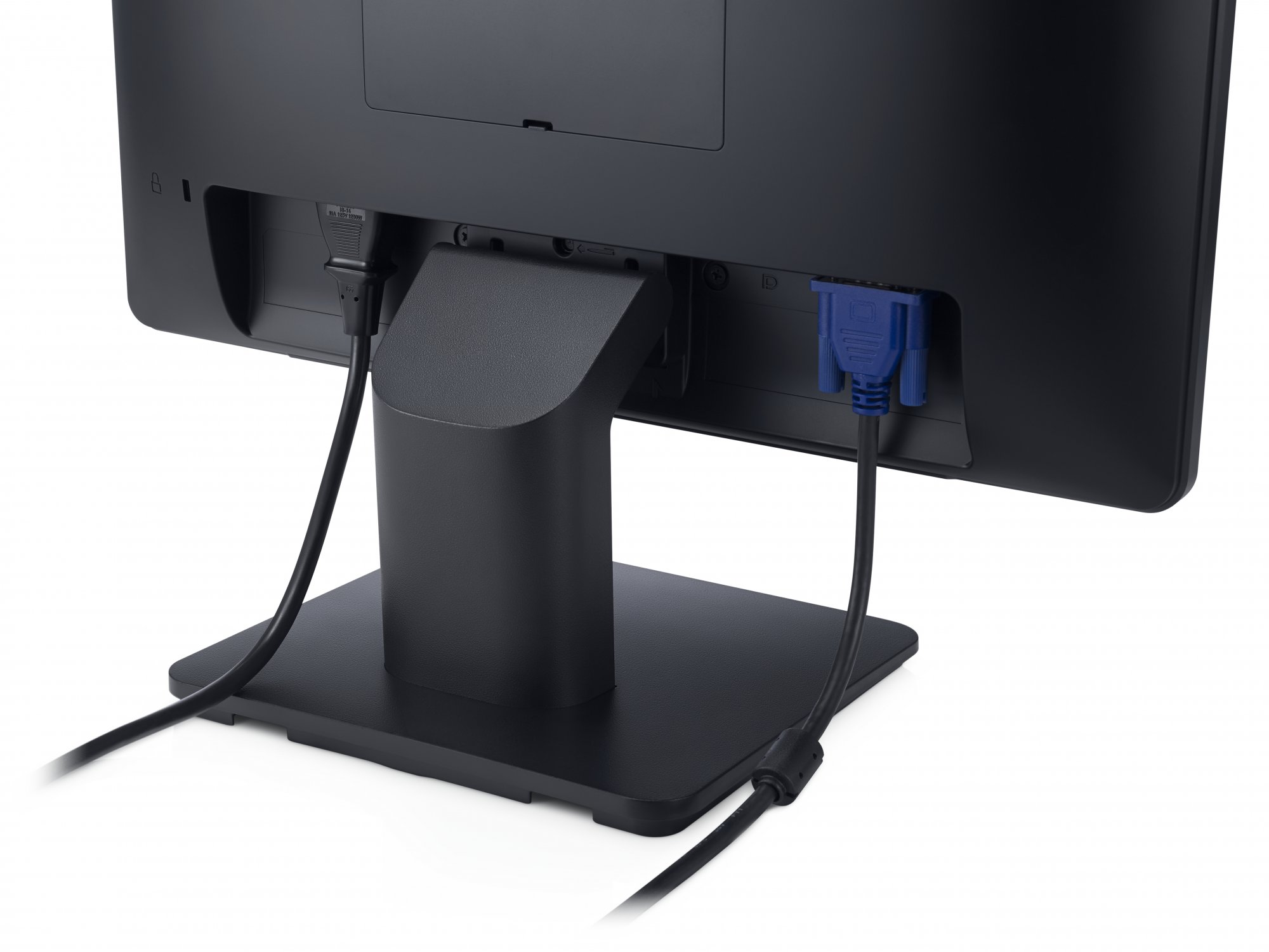

- Simple connections: simplify connections to laptop and desktop PCs with VGA and DisplayPort connectors.

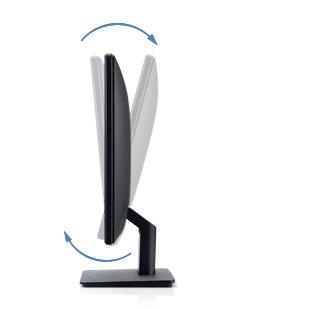

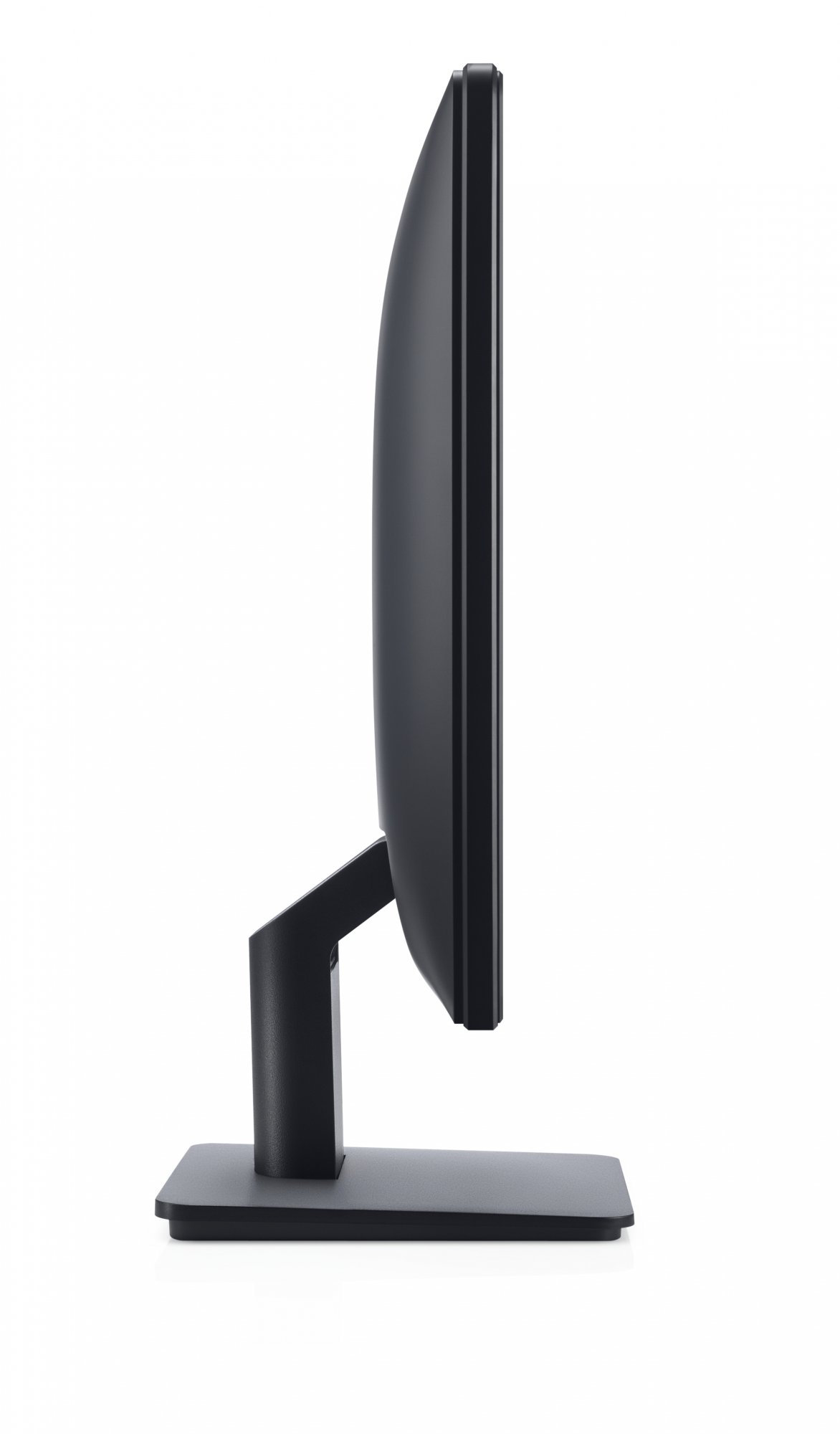

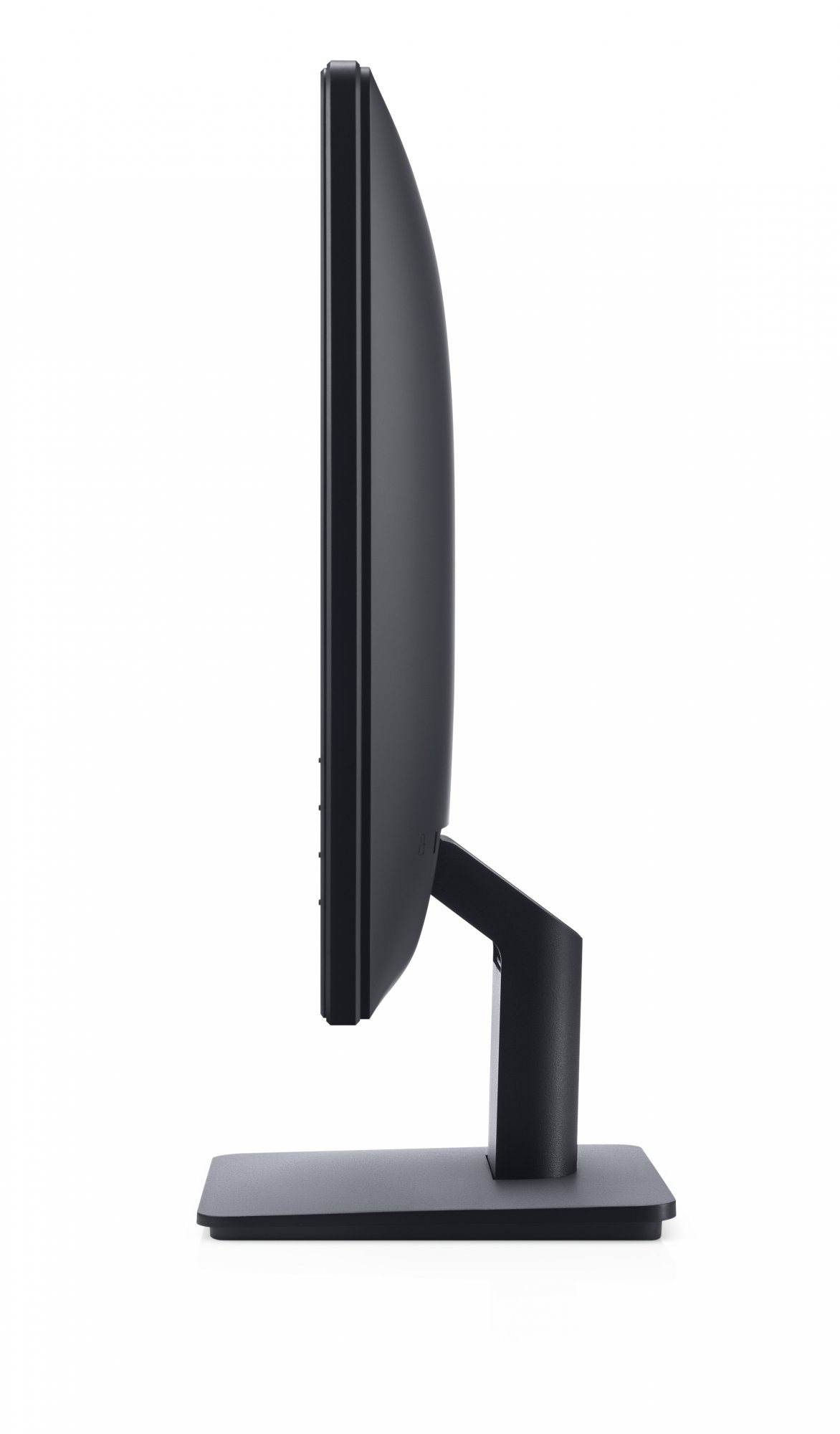

- Tilt adjustment: Tilt the screen up to 5.5° forward or 22° backward for optimal viewing comfort.

Built to be reliable

Count on dependable performance with a monitor that adheres to stringent quality standards.
- Should you need it, the E1715S is covered by a Dell 3-Year Limited Hardware Warranty and Advanced Exchange Service.
- Rigorous development processes help ensure consistent, reliable performance in busy POS and office environments.

Designed to be efficient

To help you keep energy costs down, the Dell 17 Monitor – E1715S comes with energy-saving features and top industry ratings.

- LED backlighting provides greater efficiency than older fluorescent backlights.
- PowerNap automatically puts your monitor into sleep mode when it’s not in use.
- The E1715S draws less than 0.5 W of current in standby mode. Low power consumption of 11 watts in typical operational mode.

Product Properties

Manufacturer
Dell

Model
E1715SE

EAN
5397184200537

Brand-specific features

Dell Display Manager (DDM) compatibility
Yes

Bullet points

Point
43.2cm (17") SXGA 1280 x 1024 LED TN

5ms, 5:4, 250cd/m², 1000:1

VGA, DisplayPort

Carbon footprint

Carbon emissions (End-of-Life)
2 kg of CO2e

Carbon emissions (Logistics)
33 kg of CO2e

Carbon emissions (Manufacturing)
304 kg of CO2e

Carbon emissions (Use)
124 kg of CO2e

PAIA version
9/5/2018

Total carbon emissions (Standard deviation)
87 kg of CO2e

Total carbon emissions (w/o Use phase)
339 kg of CO2e

Total carbon footprint
464 kg of CO2e

Design

Certification
CEL, TCO, VESA EDID

Feet colour
Black

Market positioning
Business

Product colour
Black

Display

Aspect ratio
5:4

Backlight type
LED

Colour gamut
85%

Contrast ratio (typical)
1000:1

DDC/CI
Yes

Display brightness (typical)
250 cd/m²

Display number of colours
16.78 million colours

HD type
SXGA

High Dynamic Range (HDR) supported
No

Horizontal scan range
30 - 81 kHz

Max Refresh Rate
60 Hz

Native aspect ratio
5:4

Panel type
TN

Pixel pitch
0.264 x 0.264 mm

Response time
5 ms

Screen Resolution
1280 x 1024 pixels

Screen shape
Flat

Screen Size
43.2 cm (17")

Screen Type
LCD

Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA)

Touchscreen
No

Vertical scan range
56 - 76 Hz

Viewable size diagonal
43.2 cm

Viewable size, horizontal
33.8 cm

Viewable size, vertical
27 cm

Viewing angle, horizontal
170°

Viewing angle, vertical
160°

Ergonomics

Cable lock slot
Yes

Cable lock slot type
Kensington

Height adjustment
No

On Screen Display (OSD)
Yes

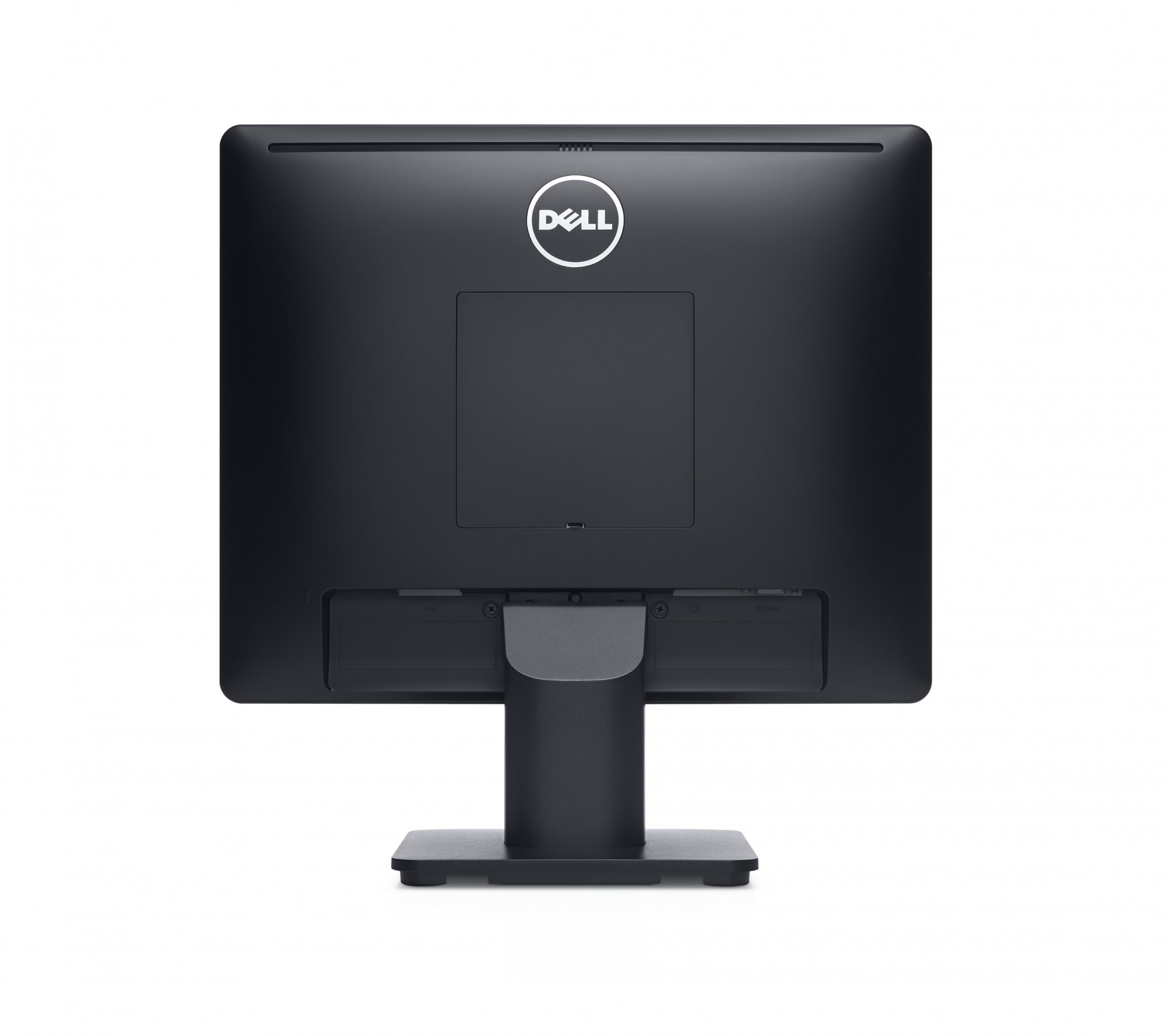

Panel mounting interface
100 x 100 mm

Pivot
No

Plug and Play
Yes

Swivelling
No

Tilt adjustment
Yes

Tilt angle range
-5.5 - 22°

VESA mounting
Yes

Logistics data

Harmonized System (HS) code
85285210

Multimedia

Built-in camera
No

Built-in speaker(s)
No

Operational conditions

Non-operating altitude
0 - 12192 m

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-20 - 60 °C

Other features

Dell E-Value Code
E1715S

On/off switch
Yes

TV tuner integrated
No

Packaging content

Cables included
AC, VGA

Manual
Yes

Quick start guide
Yes

Stand included
Yes

Packaging data

Package depth
446 mm

Package height
382 mm

Package type
Box

Package weight
3.69 kg

Package width
139.9 mm

Performance

AMD FreeSync
No

NVIDIA G-SYNC
No

Ports & interfaces

AC (power) in
Yes

Audio input
No

Built-in USB hub
No

DisplayPorts quantity
1

DVI port
No

HDMI
No

Headphone out
No

VGA (D-Sub) ports quantity
1

Power

AC input frequency
50 - 60 Hz

AC input voltage
120 - 230 V

Energy consumption (SDR) per 1000 hours
9 kWh

Energy efficiency class (HDR)
Not available

Energy efficiency class (SDR)
D

Energy efficiency scale
A to G

Input current
1.5 A

Power consumption (max)
14 W

Power consumption (off)
0.2 W

Power consumption (standby)
0.2 W

Power consumption (typical)
9 W

Power supply type
Internal

Sustainability

Sustainability certificates
RoHS, EPEAT Gold, ENERGY STAR

Thin Client

Thin client installed
No

Weight & dimensions

Depth (with stand)
165.5 mm

Depth (without stand)
46.5 mm

Height (with stand)
389.5 mm

Height (without stand)
306.9 mm

Weight (with stand)
2.42 kg

Weight (without stand)
2.08 kg

Width (with stand)
374.5 mm

Width (without stand)
374.5 mm

DELL E Series E1715S LED display 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Black
