Description

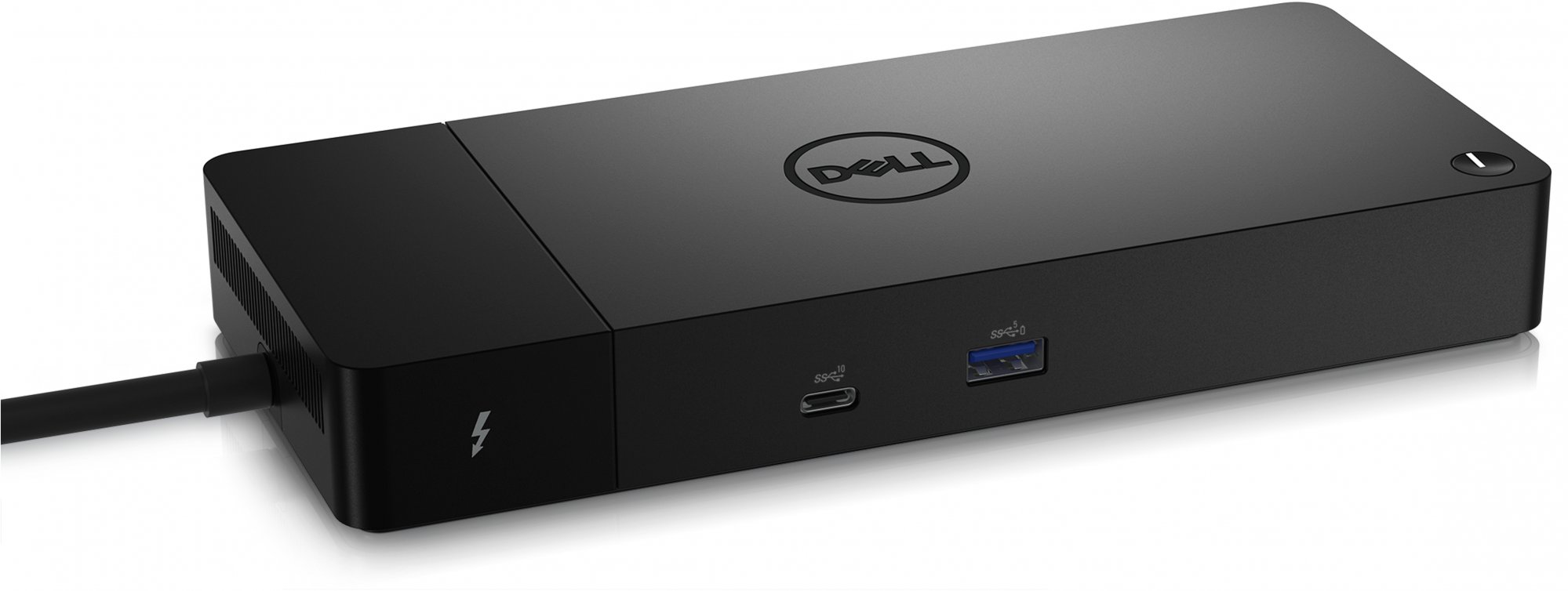

DELL Thunderbolt™ Dock – WD22TB4. Connectivity technology: Docking, Host interface: Thunderbolt. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Maximum digital resolution: 5120 x 2880 pixels. Power source type: DC, AC input voltage: 120 - 230 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10, Windows 11, Linux operating systems supported: Ubuntu 20.04 LTS

ExpressCharge technology

You'll experience power delivery of up to 130W on Dell devices with ExpressCharge technology that enables:

- 80% charge in one hour
- 35% charge in just 20 minutes

Future-made design

Swappable module lets you upgrade with ease to meet the needs of your IT environment.
Upgrade to get the latest in connectivity with not one but two Thunderbolt™ 4 ports for even more flexibility.

Multiply productivity

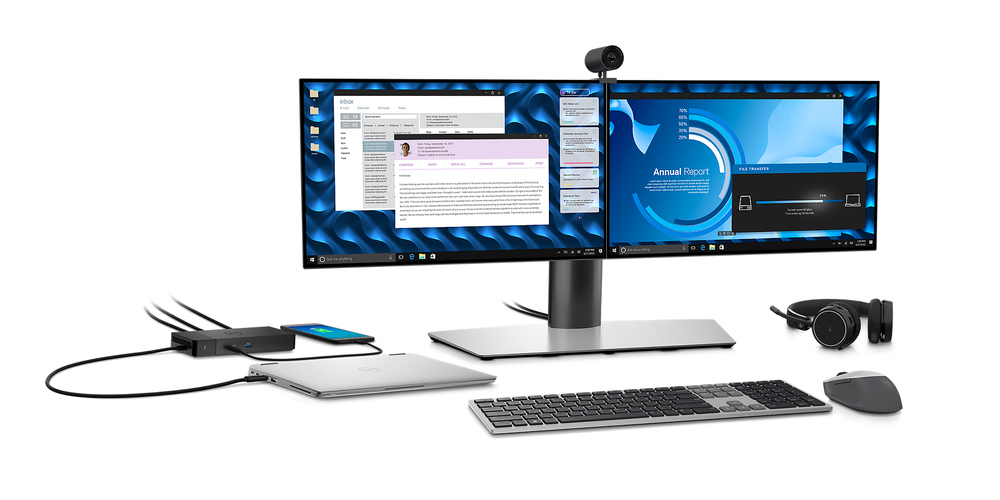

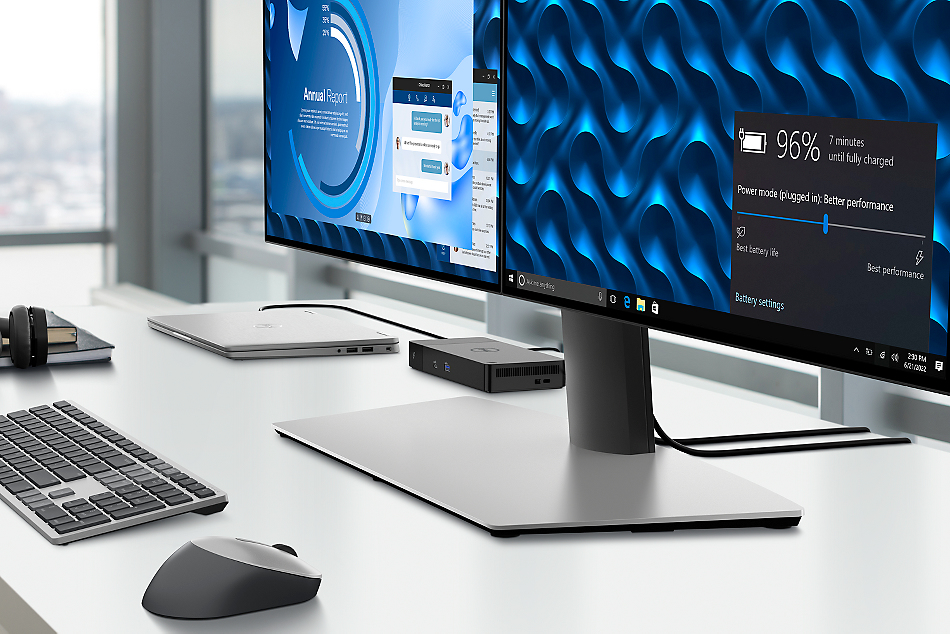

Connect displays and peripherals to your system with a single cable for ultimate productivity.
Thunderbolt™ 4 dock with the highest number of ports connects multiple 4K displays and Thunderbolt peripherals allowing you to not compromise with your work setup. Get the maximum from your peripherals with data transfer of 40 GB/s.

Intelligent and simple management

Work without disruption: Firmware updates can be completed in five to seven minutes without needing to reboot the system.

Easier for IT: Dell Client Command Suite and Microsoft System Center Configuration Manager offers a smoother firmware update experience. You can also streamline deployment and management with a single firmware.

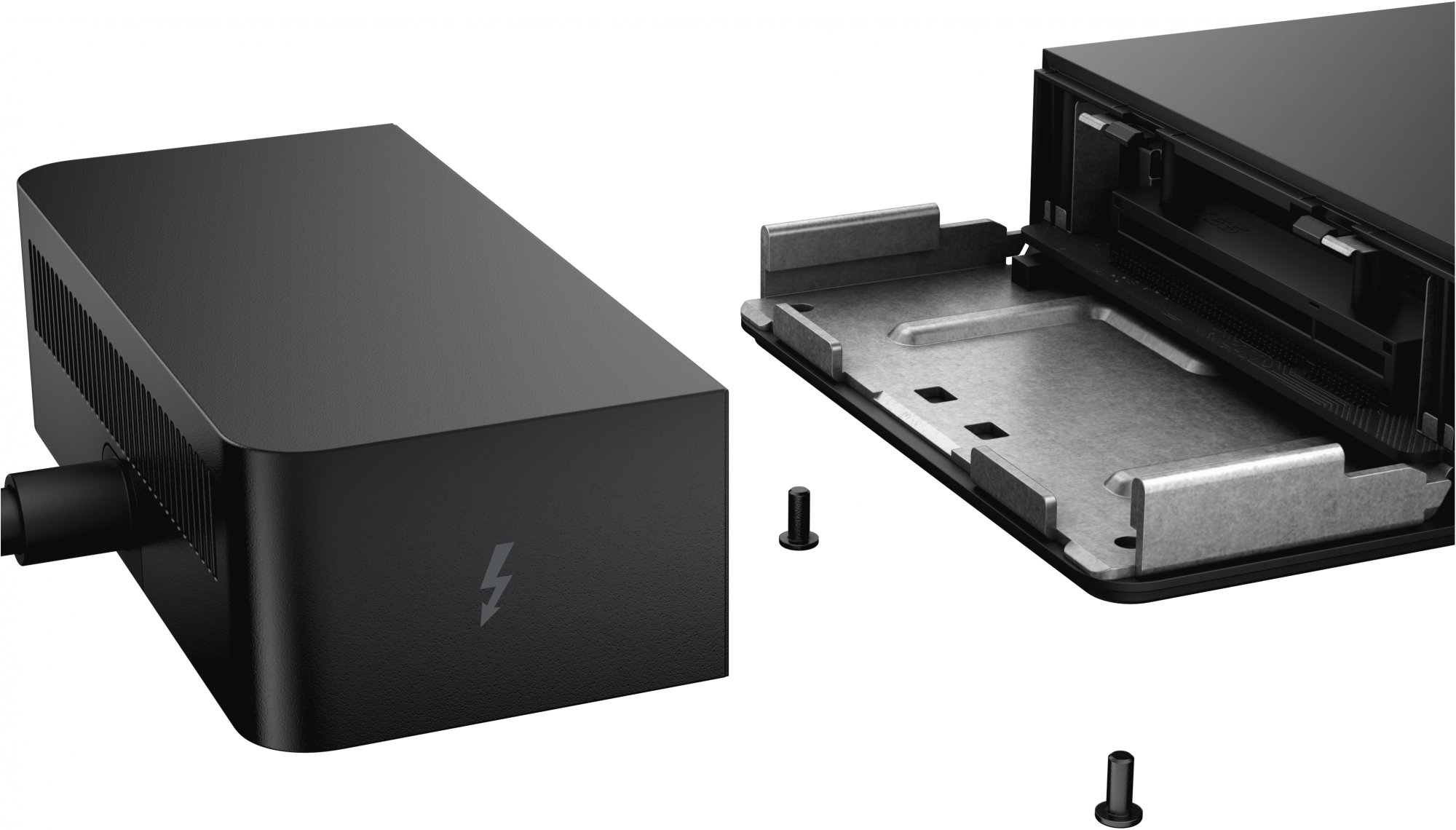

Easier upgrades: Modularity allows for simple field replacement of the power cable or connectivity module.

Better support: Inventory management got easier since each has its own service tag, allowing IT to push firmware updates only to certain dock.

Secure manageability: Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN, and more, it’s easier than ever to stay productive while managing your dock.

Industry standard compatibility

Dell Thunderbolt™ Dock – WD22TB4 offers wide compatibility across Dell Commercial laptops. It is is also compatible with notebooks from other manufacturers which support industry standards for Thunderbolt™ docking.

Product Properties

Manufacturer
Dell

Model
DELL-WD22TB4

EAN
5397184635629

Logistics data

Harmonized System (HS) code
84733020

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Packaging content

Quick start guide
Yes

Performance

Card reader integrated
No

LED indicators
Yes

Maximum digital resolution
5120 x 2880 pixels

Product colour
Black

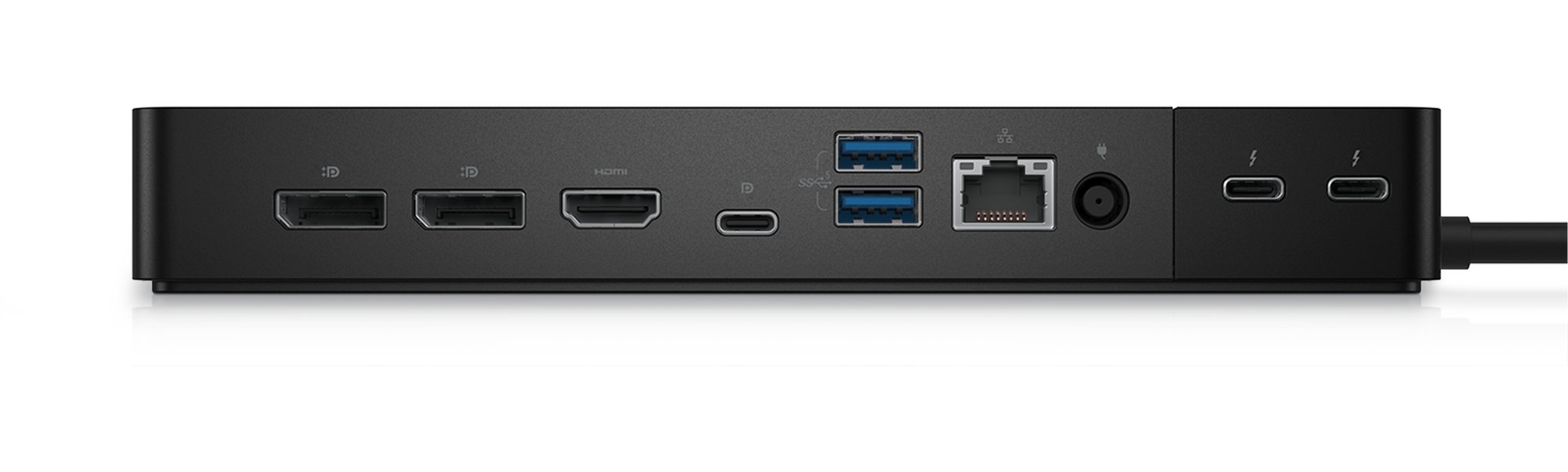

Ports & interfaces

Connectivity technology
Docking

DC-in jack
Yes

DisplayPort version
1.4

DisplayPorts quantity
2

HDMI ports
1

HDMI version
2.0

Host interface
Thunderbolt

Microphone in
No

Number of USB ports with PowerShare support
1

PowerShare
Yes

Thunderbolt 4 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

USB Type-C DisplayPort Alternate Mode
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
120 - 230 V

Power source type
DC

Power supply
180 W

Software

Linux operating systems supported
Ubuntu 20.04 LTS

Windows operating systems supported
Windows 10, Windows 11

Weight & dimensions

Depth
90 mm

Height
29 mm

Weight
650 g

Width
205 mm
