Description

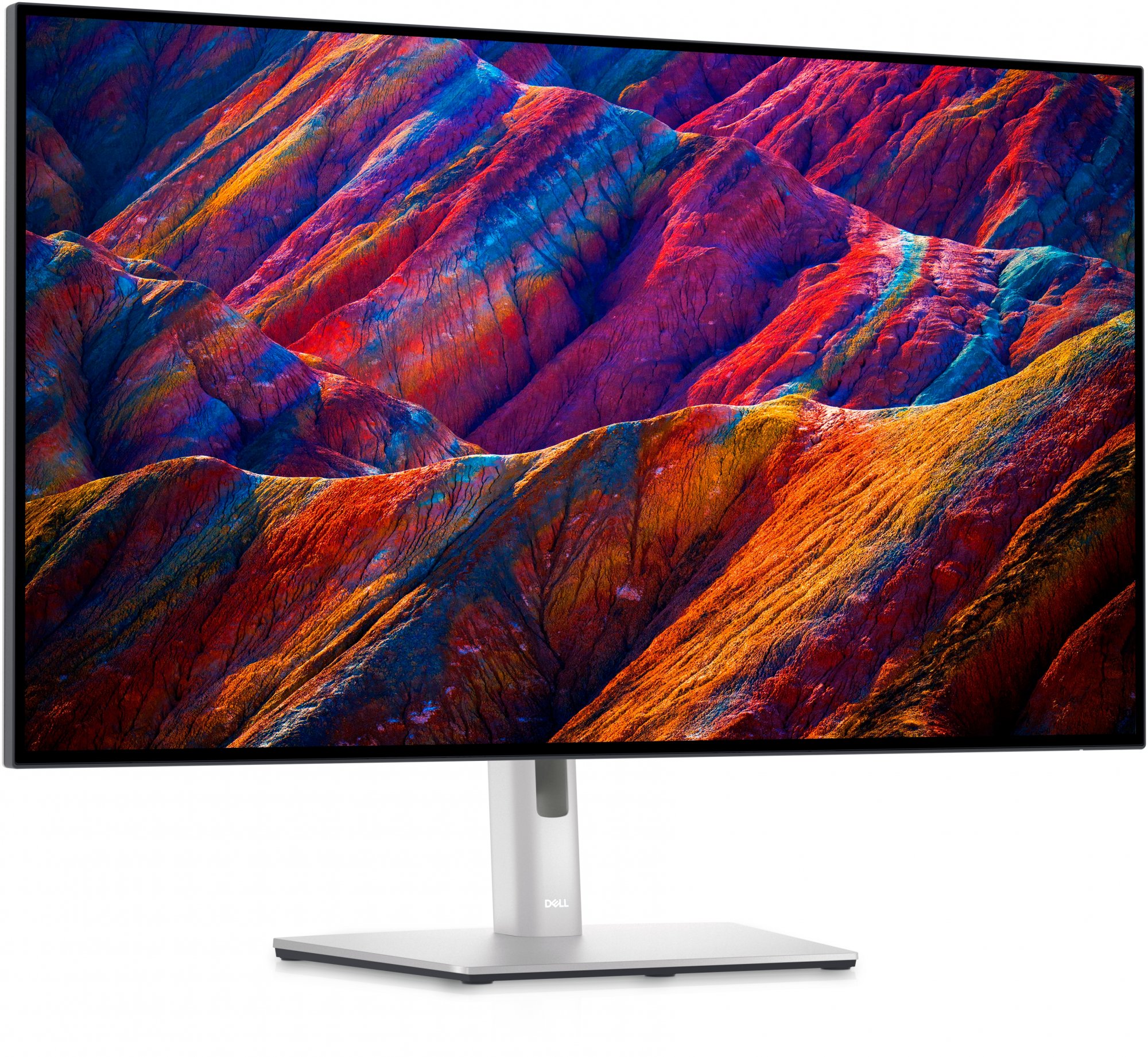

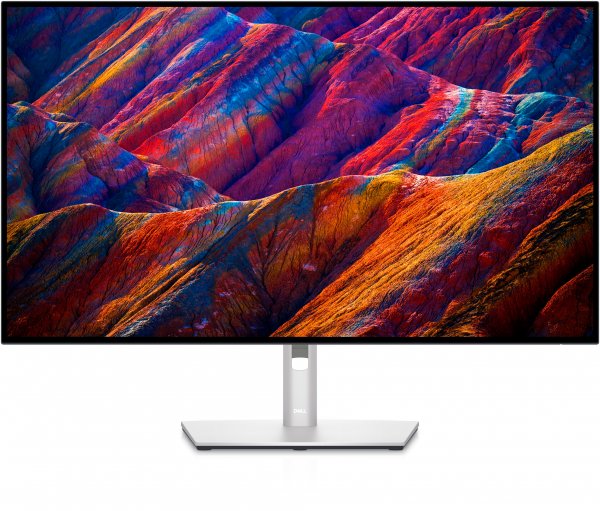

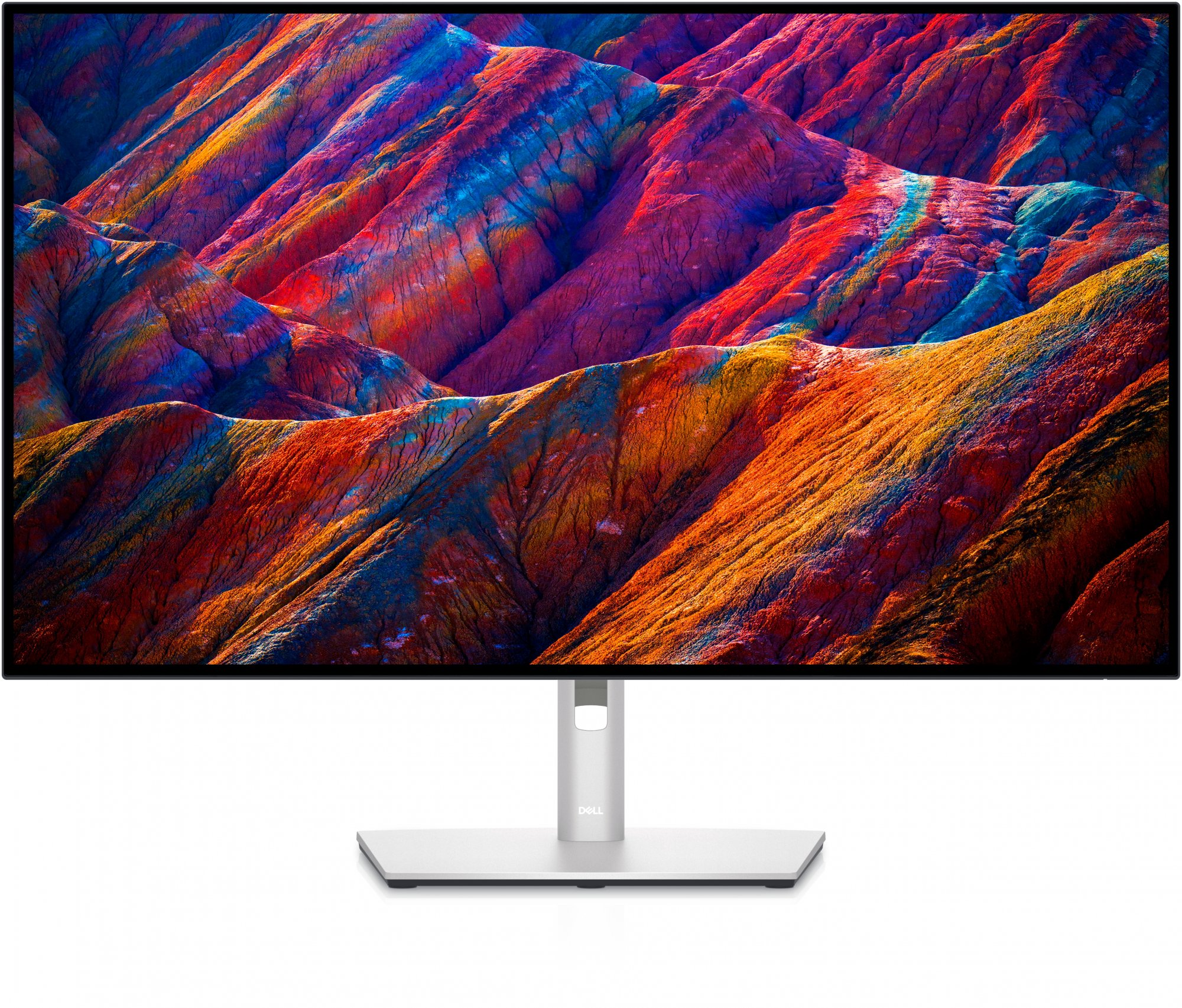

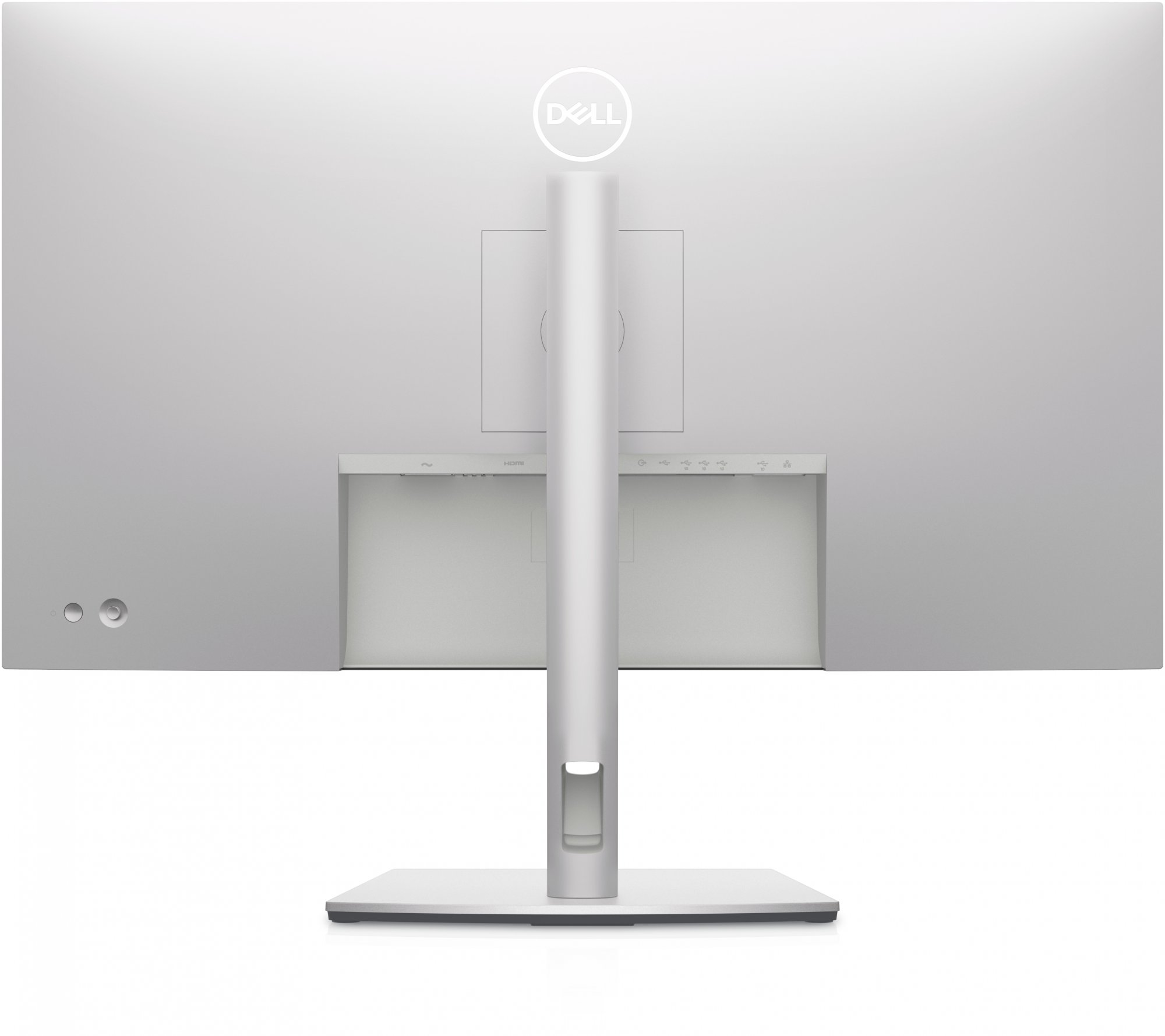

DELL UltraSharp 32 4K USB-C Hub Monitor - U3223QE. Display diagonal: 80 cm (31.5"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 2 (3.1 Gen 2). VESA mounting, Height adjustment. Product colour: Silver

80.0cm (31.5") 4K Ultra HD 3840 x 2160 LED IPS
8ms, 16:9, 400cd/m², 2000:1
USB, HDMI, DisplayPort

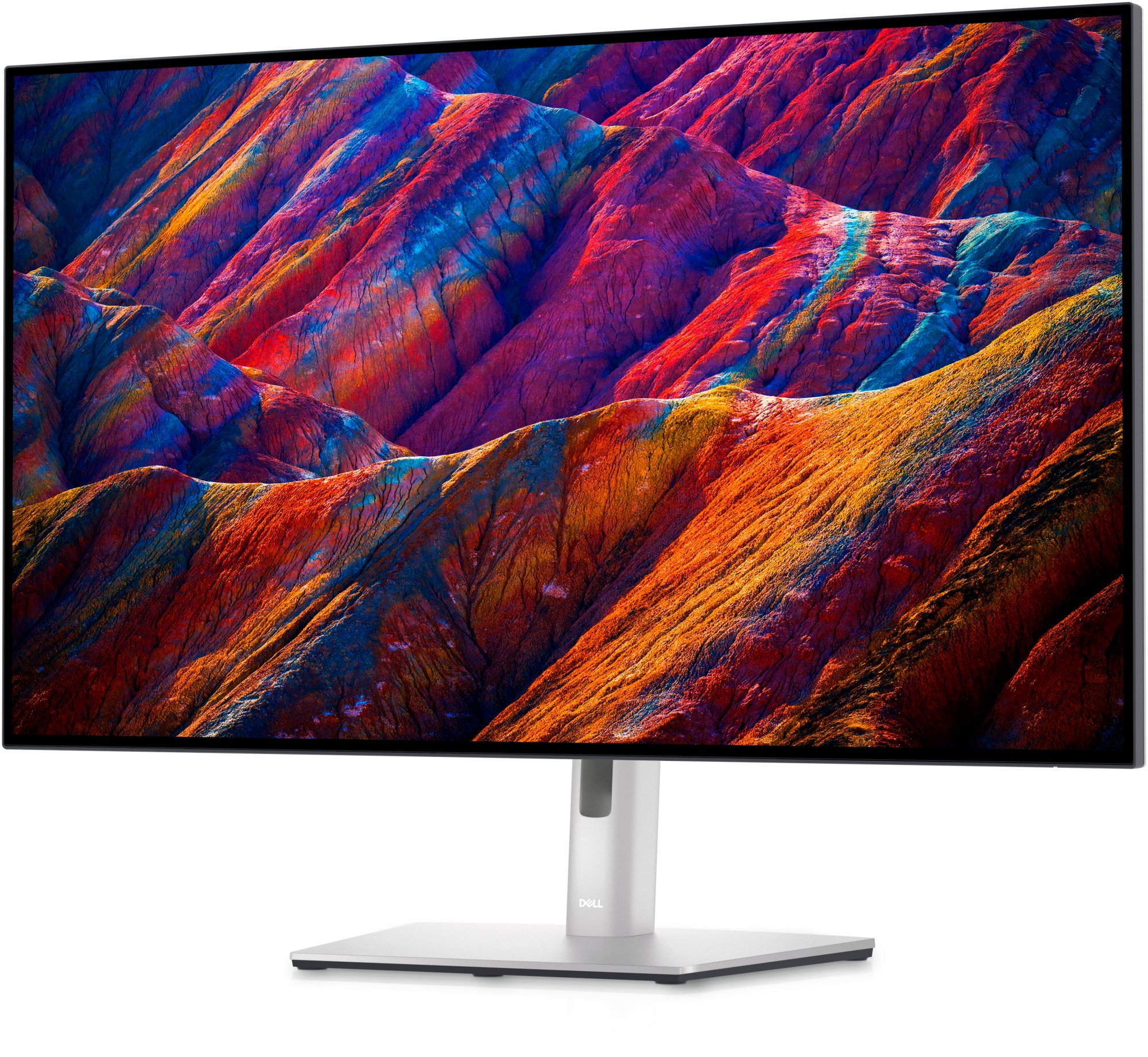

Brilliant visuals

Exceptional contrast:
Experience incredible color and superior black performance with a contrast ratio of 2000:1 on Dell’s first 31.5" 4K monitor with IPS Black technology.

Enhanced eye comfort

ComfortView Plus—an always-on, built-in low blue light screen—reduces potentially harmful blue light emissions without compromising color.

True brilliance

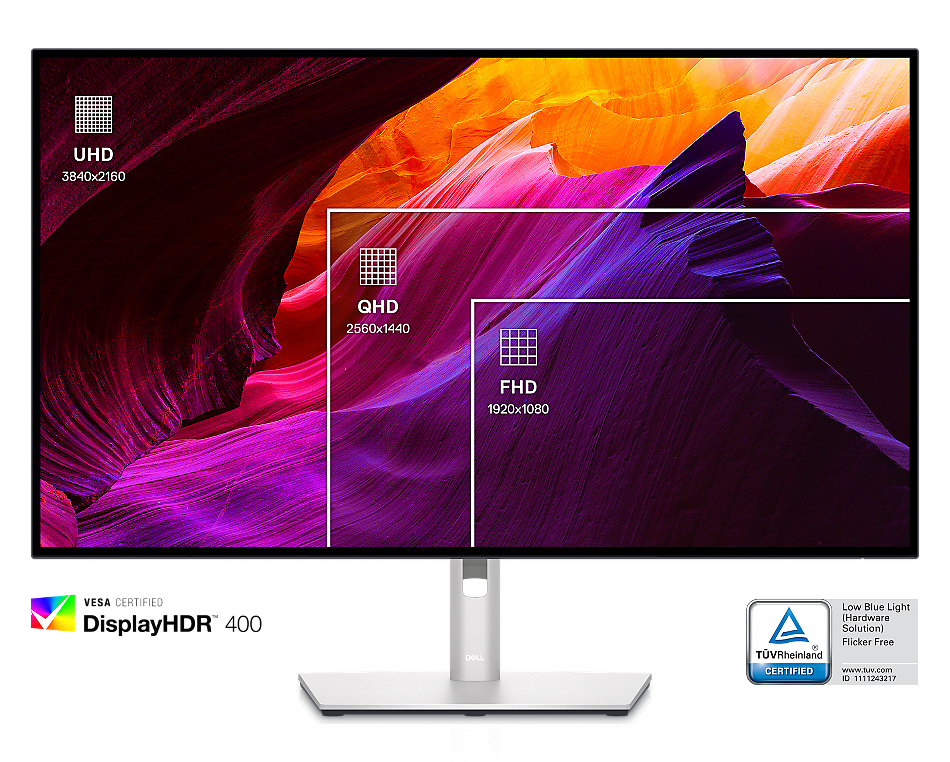

See fine details on this 4K monitor and enjoy truer-to-life color with 98% DCI-P3 and VESA DisplayHDR™ 400.

Your hub for connectivity

Jumpstart productivity:
Wake up and power your laptop with a Power Sync feature.

Enhanced connectivity:

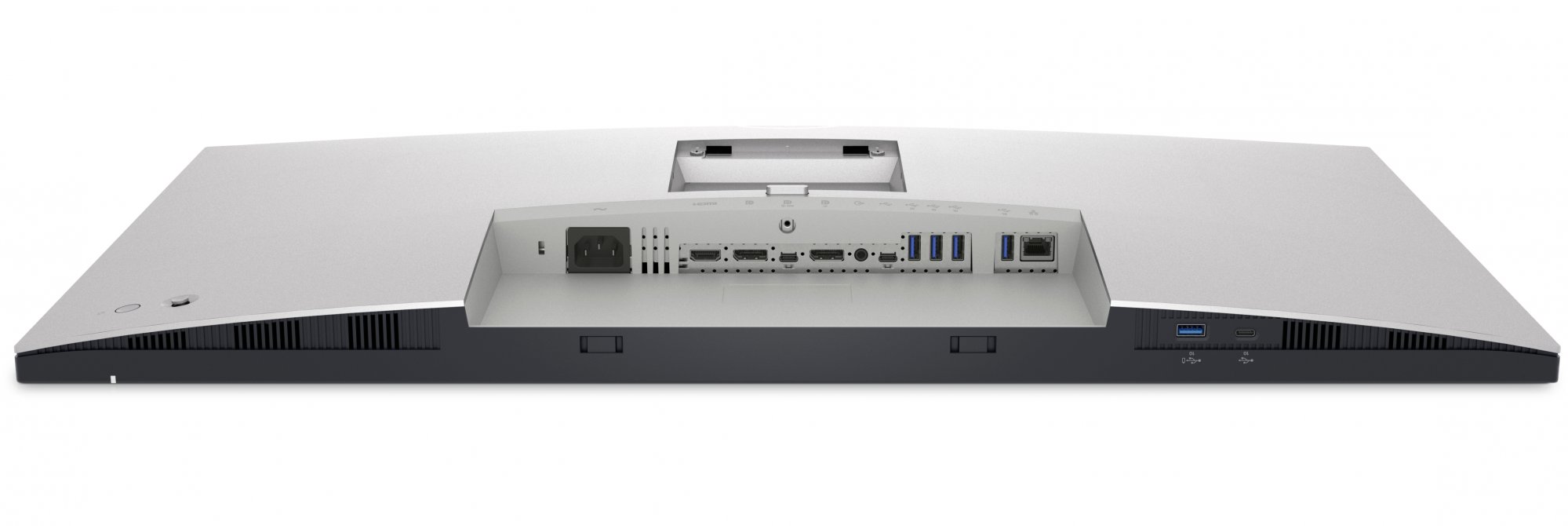

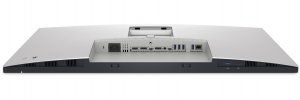

Streamline your workspace with extensive connectivity ports including USB-C (up to 90W power delivery), RJ45 (Ethernet), DP1.4, and HDMI. Quick Access USB-C (up to 15W of power charging) and super speed USB 10Gbps ports enable easy connections and fast data transfers.

A more organized workspace:
Single cable USB-C connectivity offers the flexibility of connecting to multi-vendor USB-C systems, reducing cable clutter and enabling quick transitions from the desk.

Network ready:
Get enhanced manageability with MAC Address pass-through, PXE Boot, and Wake-on-LAN conveniently built in.

Productivity unlocked

Multitask better:
Connect to two PC sources and Auto KVM will seamlessly switch controls over to the second connected PC. Use KVM (keyboard, video and mouse) feature to control both PCs with a single keyboard and mouse.

See more on one screen:

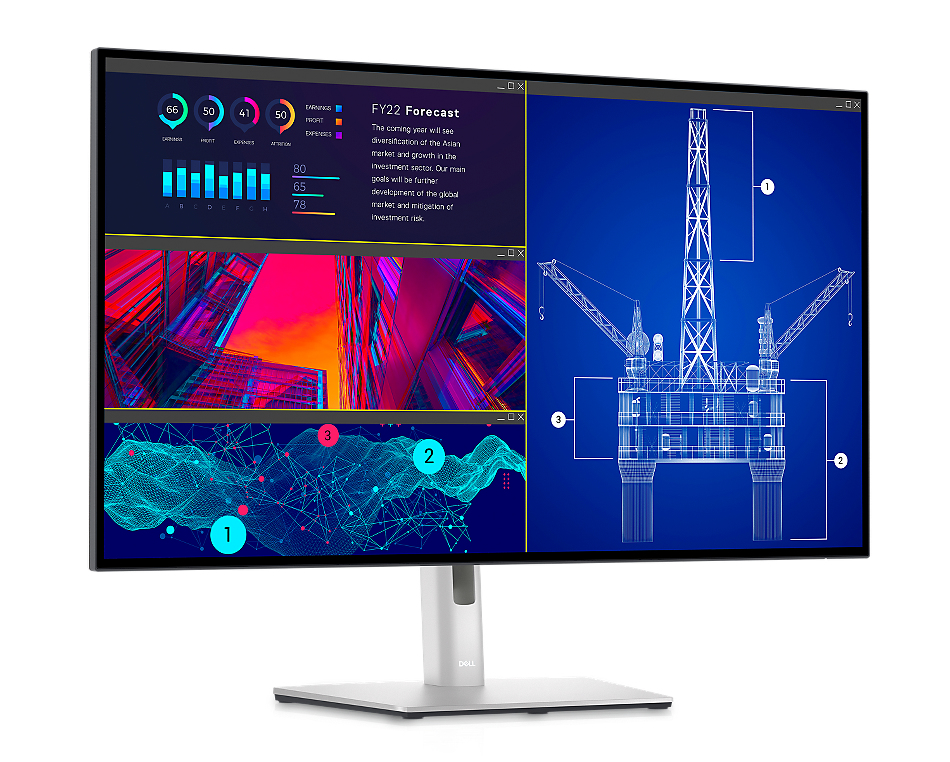

View content from two PC sources with Picture-in-Picture (PiP) and Picture-by-Picture (PbP).

Expand your productivity:

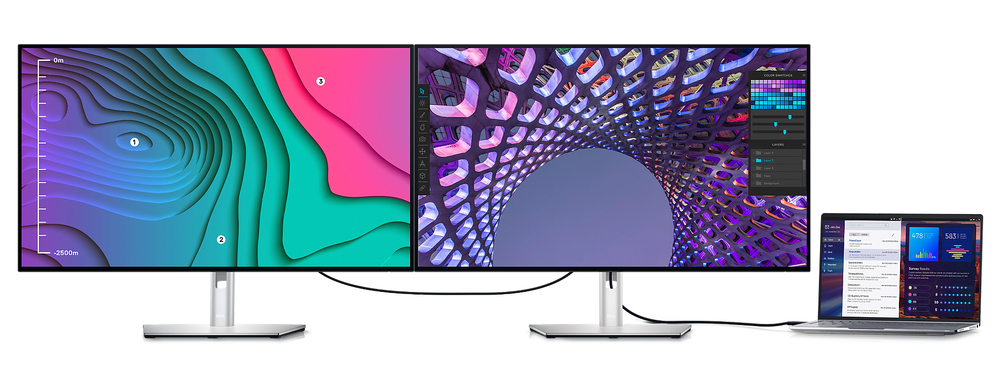

Experience uncompromised picture quality by daisy chaining two 4K monitors. U3223QE is the world’s first 31.5" 4K monitor which allows daisy chaining of an additional 4K monitor at full resolution via USB-C—enabled by Display Stream Compression (DSC).

Skillfully Crafted

Designed with purpose:

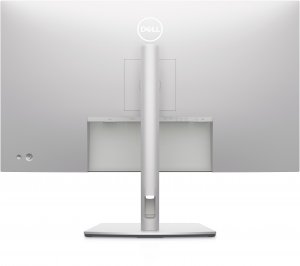

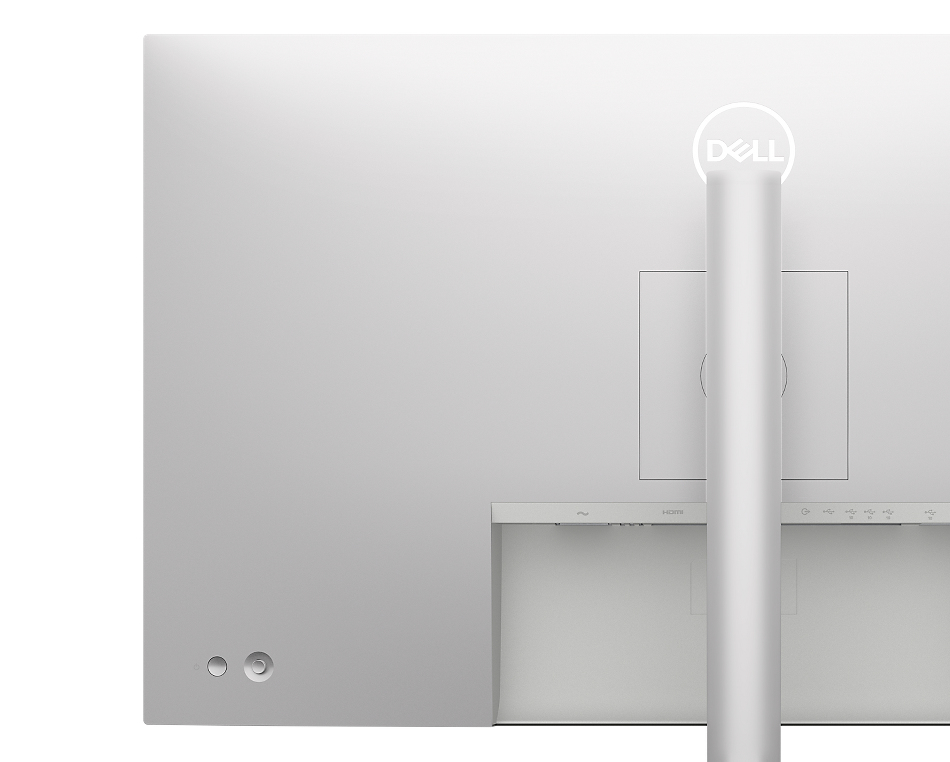

With a premium platinum silver finish and an elegant cable management system made to reduce clutter, it’s the monitor built to match any workspace.

Easy to use:
Navigate the menu and adjust screen settings with a convenient joystick control.

Built for comfort

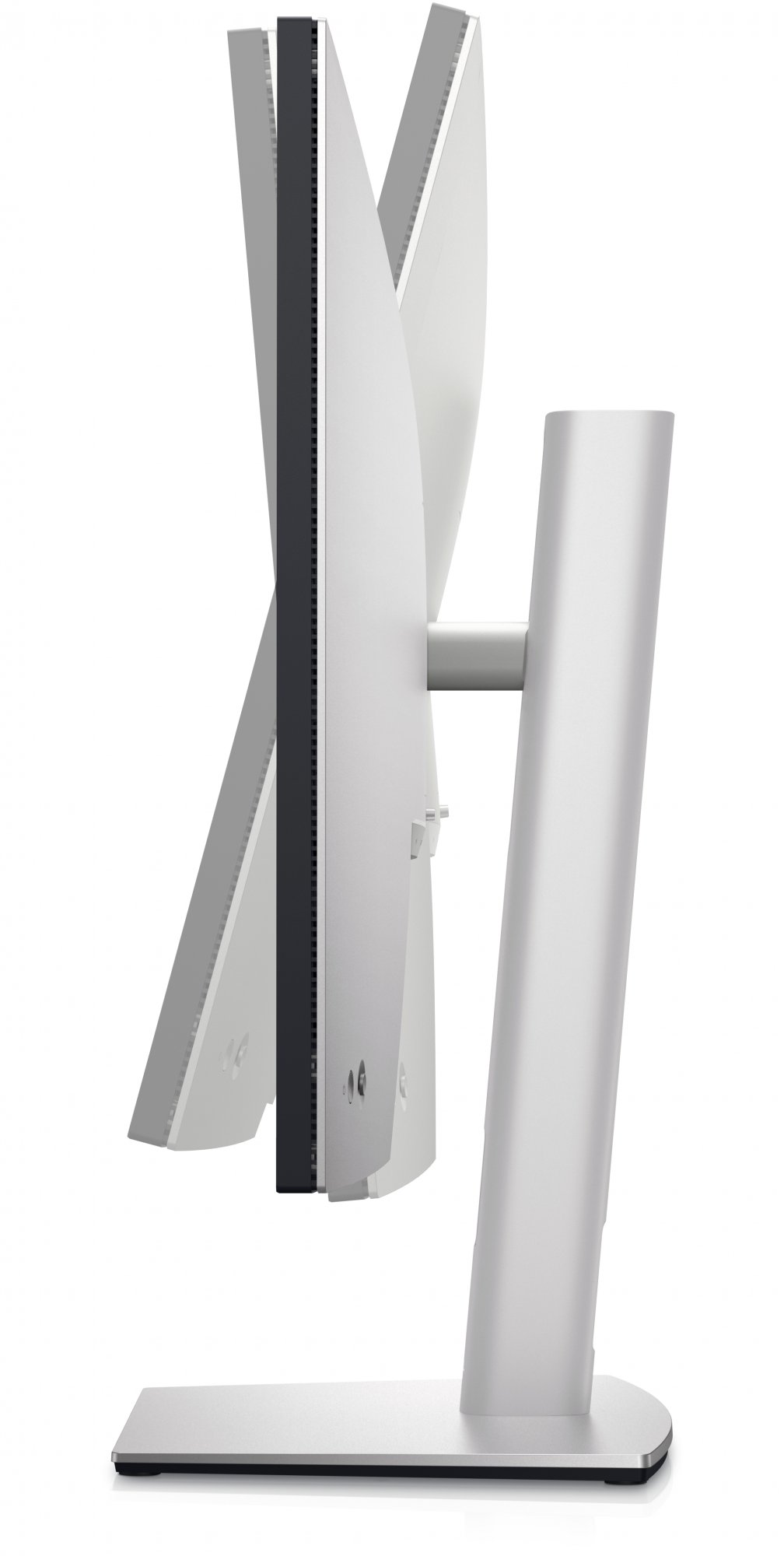

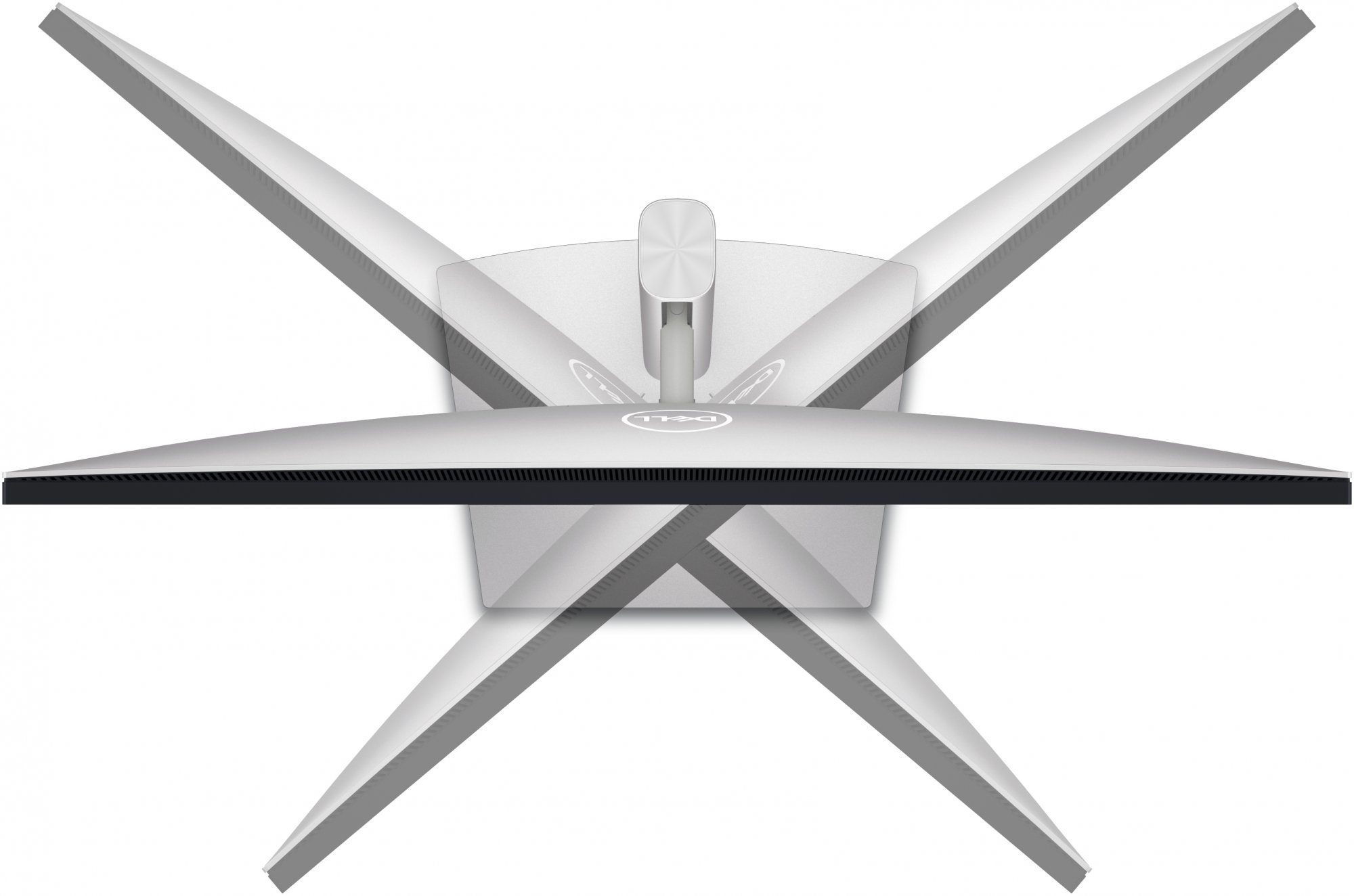

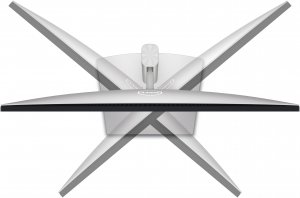

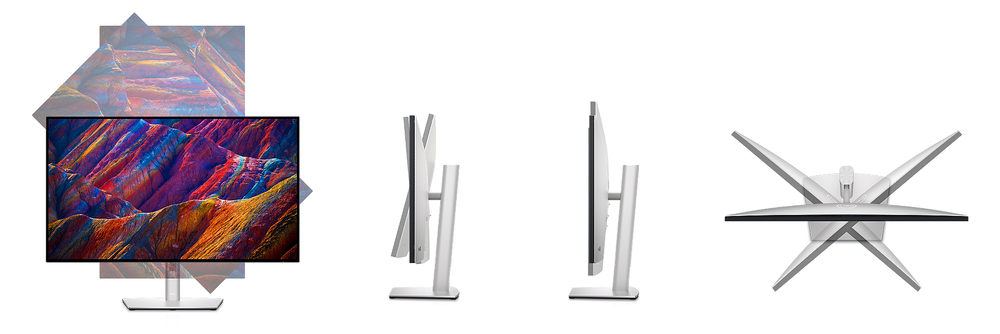

Tilt, swivel, pivot and adjust the height of your monitor so you can work however you’re most comfortable.

Dell Display Manager

Productive at every level:
Easy Arrange allows you to easily tile multiple applications across one or more screens with 38 pre-set window partitions and the ability to personalize up to five windows, giving you improved multitasking abilities.

Seamless transitions:
The auto-restore feature remembers where you left off, so applications will go back to where you left them, even after you’ve unplugged.

The key to convenience:
Shortcut keys can save you even more time, letting you easily configure your display management settings so you can get to work faster.

More ways to manage:
Asset management reports allow IT managers to quickly capture and track monitor information as well as configure multiple monitors at once through a single setup.

Expanded compatibility:
With support for multiple operating systems, Dell Display Manager helps you can stay productive however you work.

Green thinking for today and tomorrow

Environmental standards:

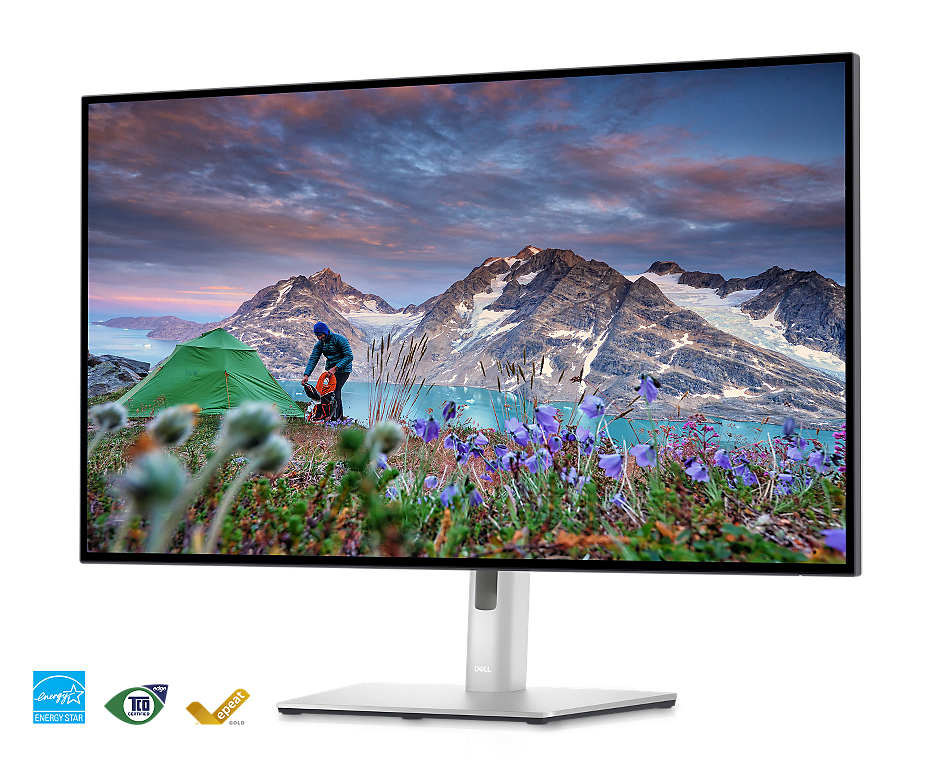

This monitor uses 85% PCR (Post-consumer Recyclable) plastic in the design and meets the latest environmental standards such as EnergyStar® and TCO Certified Edge, and is registered EPEAT® Gold.

Eco-conscious packaging:
Designed with the environment in mind, Dell commercial monitors come in 100% recyclable cardboard packaging.

Energy conservation:
Save energy with PowerNap, a feature that dims or puts your monitor to sleep when it’s not in use.

Product Properties

Manufacturer
Dell

Model
DELL-U3223QE

EAN
5397184567739

Bullet points

Point
80.0cm (31.5") 4K Ultra HD 3840 x 2160 LED IPS

8ms, 16:9, 400cd/m², 2000:1

USB, HDMI, DisplayPort

Carbon footprint

Carbon emissions (End-of-Life)
8 kg of CO2e

Carbon emissions (Logistics)
120 kg of CO2e

Carbon emissions (Manufacturing)
433 kg of CO2e

Carbon emissions (Use)
320 kg of CO2e

PAIA version
1.3.0

Total carbon emissions (Standard deviation)
210 kg of CO2e

Total carbon emissions (w/o Use phase)
560 kg of CO2e

Total carbon footprint
880 kg of CO2e

Design

Compliance industry standards
ENERGY STAR certified Monitor. EPEAT registered where applicable. TCO Certified & TCO Certified Edge. RoHS Compliant. BFR/PVC Free monitor Meets NFPA 99 leakage current requirements. Arsenic-Free glass and Mercury-Free for the panel only.

Feet colour
Silver

Front bezel colour
Black

Heavy metals free
Hg (mercury)

Market positioning
Graphics design

Product colour
Silver

Display

Anti-glare screen
Yes

Backlight type
LED

Contrast ratio (typical)
2000:1

DDC/CI
Yes

Display brightness (typical)
400 cd/m²

Display number of colours
1.07 billion colours

HD type
4K Ultra HD

Heat dissipation
98.27 BTU/h

High Dynamic Range (HDR) supported
No

Horizontal scan range
15 - 140 kHz

Max Refresh Rate
60 Hz

Native aspect ratio
16:9

Panel type
IPS

Pixel density
137.68 ppi

Pixel pitch
0.18159 x 0.18159 mm

Response time
8 ms

Response time (fast)
5 ms

RGB colour space
sRGB

Screen Resolution
3840 x 2160 pixels

Screen shape
Flat

Screen Size
80 cm (31.5")

Screen Type
80.01 cm

Screen Type
LCD

sRGB coverage (typical)
100%

Supported video modes
1080i, 1080p, 480p, 720p, 576p

Surface hardness
3H

Touchscreen
No

Vertical scan range
23 - 86 Hz

Viewable size, horizontal
69.7 cm

Viewable size, vertical
39.2 cm

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Ergonomics

Cable lock slot
Yes

Height adjustment
Yes

On Screen Display (OSD)
Yes

Panel mounting interface
100 x 100 mm

Pivot
No

Plug and Play
Yes

Swivel angle range
-30 - 30°

Swivelling
Yes

Tilt adjustment
Yes

Tilt angle range
-5 - 21°

VESA mounting
Yes

Logistics data

Harmonized System (HS) code
85285210

Multimedia

Built-in camera
No

Built-in speaker(s)
No

Network

Wi-Fi
No

Operational conditions

Non-operating altitude
0 - 12192 m

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-20 - 60 °C

Other features

DCI-P3 coverage
98%

Maximum resolution
3840 x 2160 pixels

Picture-by-Picture (PbP)
Yes

Power management
Yes

RJ-45 ports quantity
1

Packaging content

Cables included
AC, DisplayPort, USB Type-C to USB Type-A, USB Type-C to USB Type-C

Quick start guide
Yes

Stand included
Yes

Packaging data

Package weight
14.5 kg

Performance

AMD FreeSync
No

Flicker-free technology
Yes

Low Blue Light technology
Yes

NVIDIA G-SYNC
No

Ports & interfaces

Audio output
Yes

Built-in USB hub
Yes

DisplayPorts quantity
2

HDCP
Yes

HDMI
Yes

HDMI ports
1

HDMI version
2.0

Headphone connectivity
3.5 mm

Headphone out
Yes

Headphone outputs
1

Number of upstream ports
2

Number of USB Type-C upstream ports quantity
1

USB hub version
3.2 Gen 2 (3.1 Gen 2)

USB Power Delivery
Yes

USB Power Delivery up to
90 W

USB Type-A downstream ports quantity
5

USB upstream port type
USB Type-C

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Energy consumption (HDR) per 1000 hours
26 kWh

Energy consumption (SDR) per 1000 hours
29 kWh

Energy efficiency class (HDR)
E

Energy efficiency class (SDR)
F

Energy efficiency scale
A to G

Input current
2.7 A

Power consumption (max)
220 W

Power consumption (off)
0.2 W

Power consumption (standby)
0.3 W

Power consumption (typical)
29.4 W

Power supply type
Internal

Sustainability

Doesn't contain
PVC/BFR, Arsenic

Sustainability certificates
RoHS, TCO, ENERGY STAR, EPEAT Gold

Weight & dimensions

Bezel width (bottom)
1.01 cm

Bezel width (side)
7.65 mm

Bezel width (top)
7.65 mm

Depth (with stand)
233.2 mm

Depth (without stand)
55.8 mm

Height (with stand)
469.3 mm

Height (without stand)
410 mm

Weight (with stand)
9.98 kg

Weight (without stand)
5.65 kg

Width (with stand)
712.6 mm

Width (without stand)
712.6 mm
