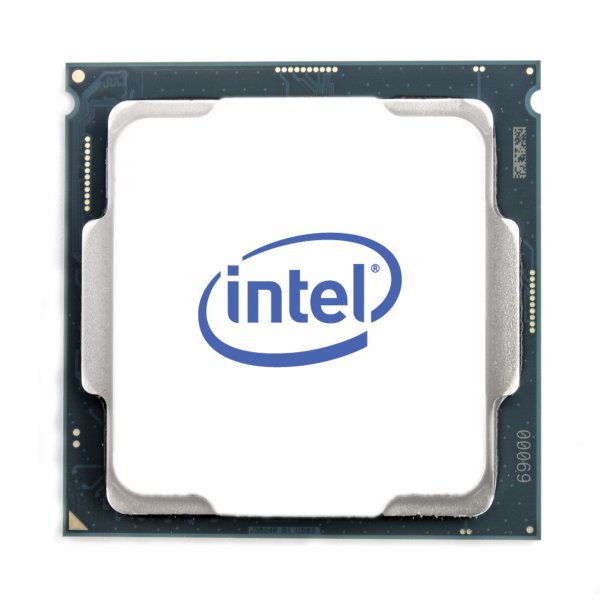

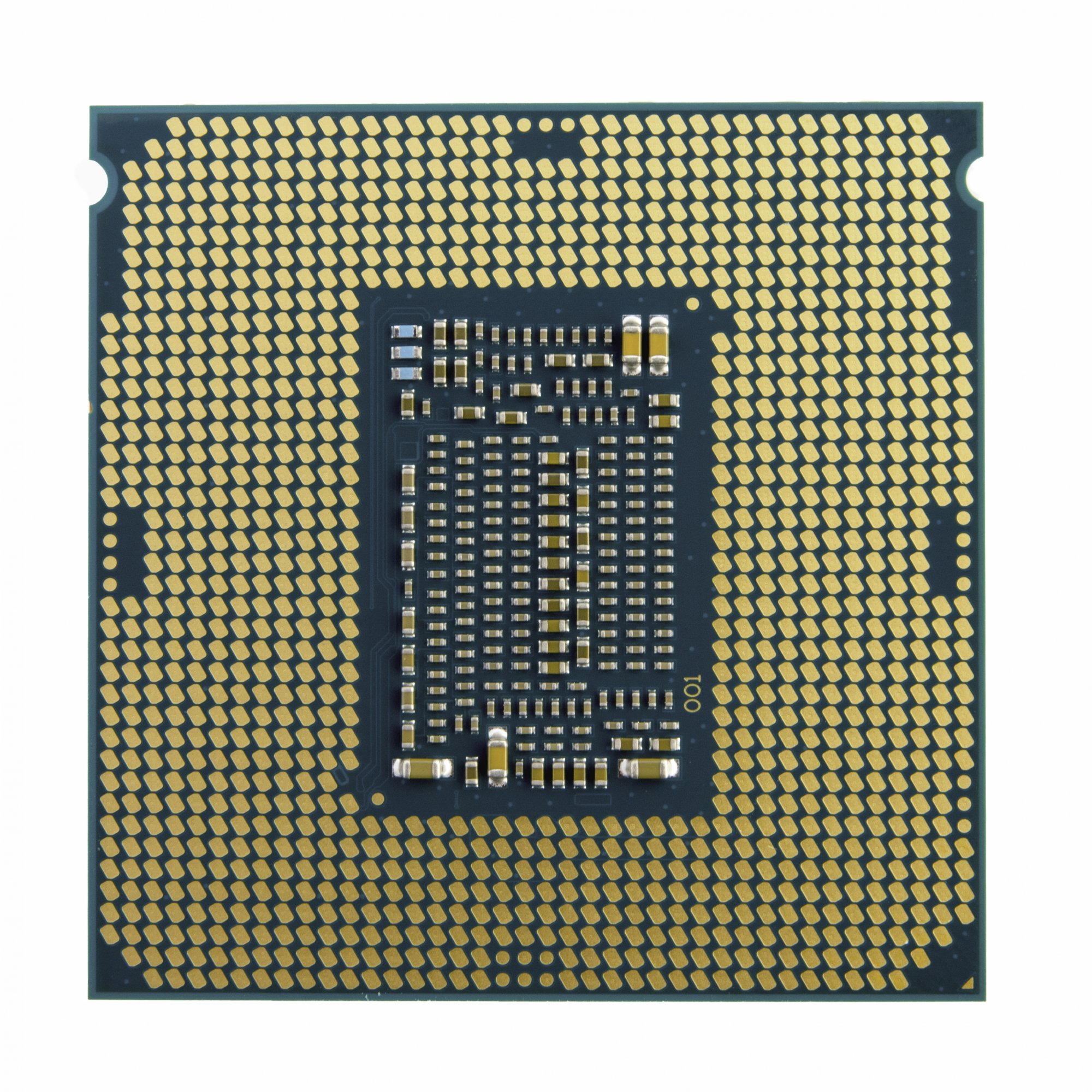

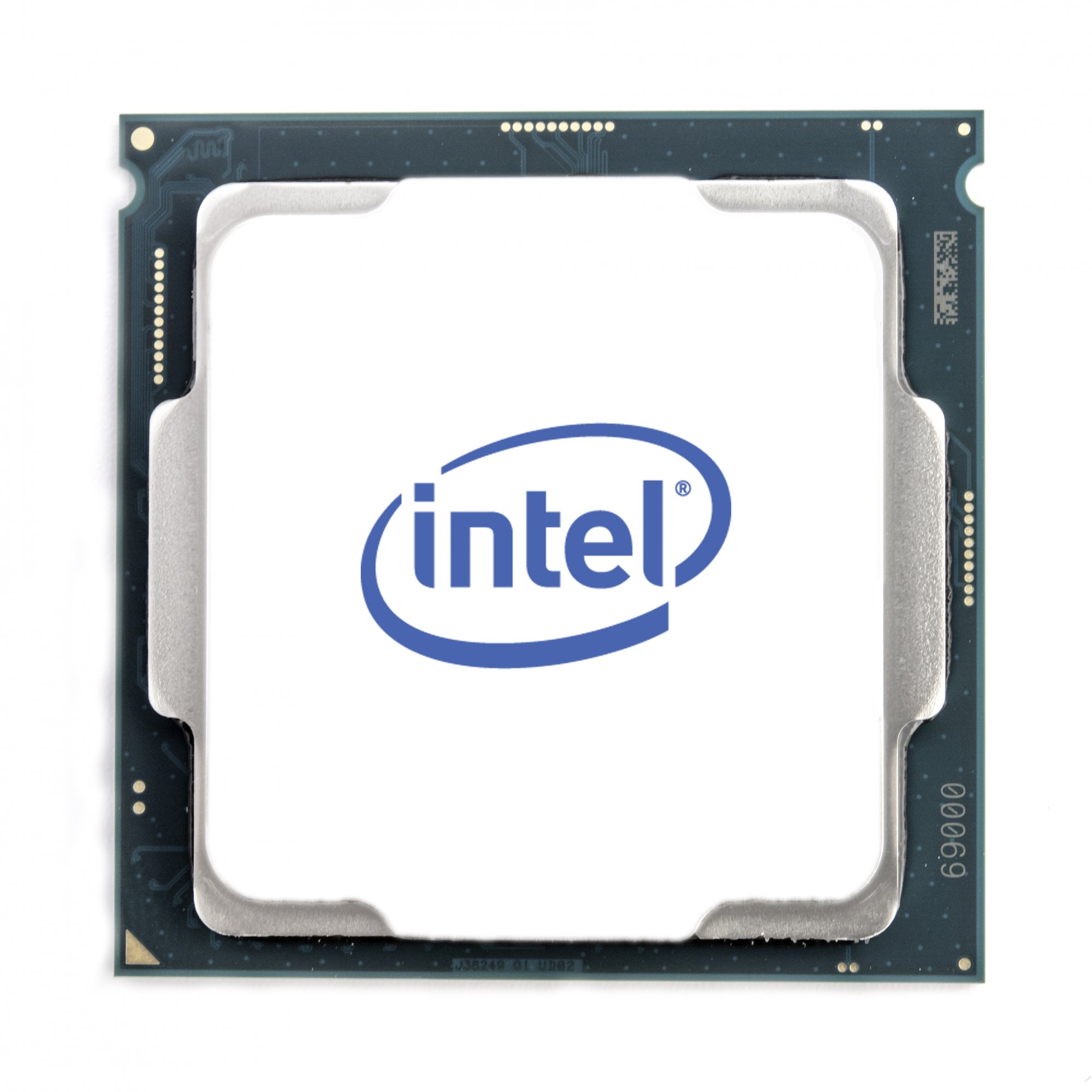

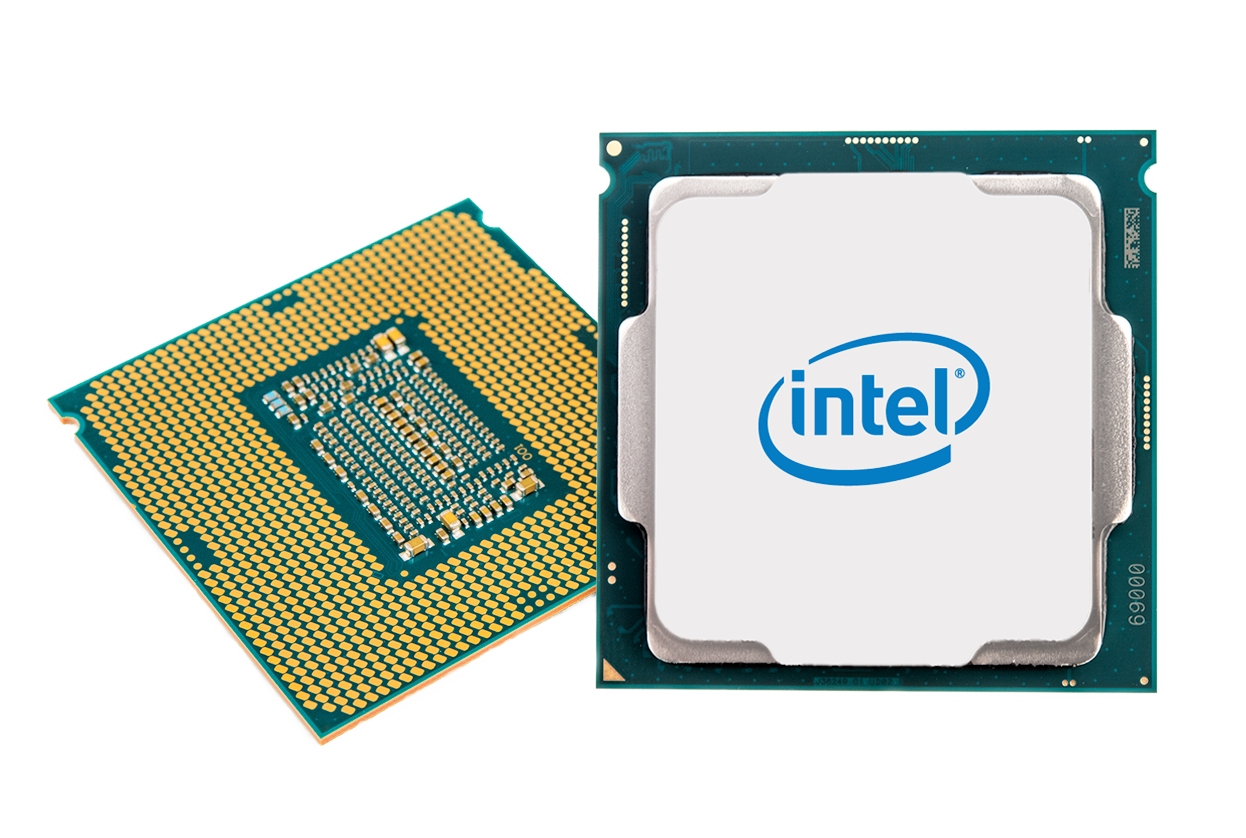

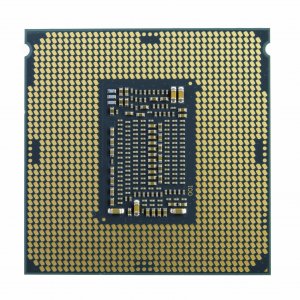

DELL Xeon Gold 5318Y processor 2.1 GHz 36 MB
Roll over image to zoom inClick to Open expanded view
DELL Xeon Gold 5318Y processor 2.1 GHz 36 MB
DELL Xeon Gold 5318Y processor 2.1 GHz 36 MB
DELL Xeon Gold 5318Y processor 2.1 GHz 36 MB
Print
Model: 338-CBXV
EAN: 5397184660263

DELL Xeon Gold 5318Y processor 2.1 GHz 36 MB

Manufacturer:
Dell
DELL Xeon Gold 5318Y, Intel® Xeon® Gold, LGA 4189, 10 nm, Intel, 5318Y, 2.1 GHz
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

DELL Xeon Gold 5318Y. Processor family: Intel® Xeon® Gold, Processor socket: LGA 4189, Processor lithography: 10 nm. Memory channels: Octa-channel, Maximum internal memory supported by processor: 6 TB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, Supported instruction sets: SSE4.2, AVX, AVX 2.0, AVX-512, Scalability: 2S. Maximum Enclave Size Support for Intel® SGX: 64 GB. Processor package size: 77.5 x 56.5 mm

Product Properties

  • Model
  • 338-CBXV
  • EAN
  • 5397184660263
  • Features
  • Commodity Classification Automated Tracking System (CCATS)
  • G178966
  • Embedded options available
  • Yes
  • Execute Disable Bit
  • Yes
  • Export Control Classification Number (ECCN)
  • 5A992CN3
  • Market segment
  • Server
  • Maximum number of PCI Express lanes
  • 64
  • PCI Express slots version
  • 4.0
  • Scalability
  • 2S
  • Supported instruction sets
  • SSE4.2, AVX, AVX 2.0, AVX-512
  • Graphics
  • Discrete graphics card
  • No
  • Discrete graphics card model
  • Not available
  • On-board graphics card
  • No
  • On-board graphics card model
  • Not available
  • Logistics data
  • Harmonized System (HS) code
  • 85423119
  • Memory
  • ECC
  • Yes
  • Maximum internal memory supported by processor
  • 6 TB
  • Memory channels
  • Octa-channel
  • Memory clock speeds supported by processor
  • 2933 MHz
  • Memory types supported by processor
  • DDR4-SDRAM
  • Operational conditions
  • Tcase
  • 87 °C
  • Other features
  • Maximum internal memory
  • 6 TB
  • Processor
  • Box
  • No
  • Component for
  • Server/workstation
  • Cooler included
  • No
  • Number of Cores
  • 24
  • Processor
  • 5318Y
  • Processor base frequency
  • 2.1 GHz
  • Processor boost frequency
  • 3.4 GHz
  • Processor cache
  • 36 MB
  • Processor codename
  • Ice Lake
  • Processor family
  • Intel® Xeon® Gold
  • Processor generation
  • 3rd Generation Intel® Xeon® Scalable
  • Processor lithography
  • 10 nm
  • Processor manufacturer
  • Intel
  • Processor operating modes
  • 64-bit
  • Processor series
  • Intel Xeon Gold 5000 Series
  • Processor socket
  • LGA 4189
  • Processor threads
  • 48
  • System bus rate
  • 11.2 GT/s
  • Thermal Design Power (TDP)
  • 165 W
  • Processor special features
  • AVX-512 Fused Multiply-Add (FMA) units
  • 2
  • Intel 64
  • Yes
  • Intel Software Guard Extensions (Intel SGX)
  • Yes
  • Intel Trusted Execution Technology
  • Yes
  • Intel Virtualization Technology (VT-x)
  • Yes
  • Intel Virtualization Technology for Directed I/O (VT-d)
  • Yes
  • Intel VT-x with Extended Page Tables (EPT)
  • Yes
  • Intel® AES New Instructions (Intel® AES-NI)
  • Yes
  • Intel® Crypto Acceleration
  • Yes
  • Intel® Deep Learning Boost (Intel® DL Boost)
  • Yes
  • Intel® Hyper Threading Technology (Intel® HT Technology)
  • Yes
  • Intel® Optane™ DC Persistent Memory Supported
  • Yes
  • Intel® Platform Firmware Resilience Support
  • Yes
  • Intel® Resource Director Technology (Intel® RDT)
  • Yes
  • Intel® Run Sure Technology
  • Yes
  • Intel® Speed Select technology - Performance Profile (Intel® SST-PP)
  • Yes
  • Intel® Speed Shift Technology
  • Yes
  • Intel® Total Memory Encryption
  • Yes
  • Intel® Transactional Synchronization Extensions
  • Yes
  • Intel® Turbo Boost Technology
  • 2.0
  • Intel® Volume Management Device (VMD)
  • Yes
  • Maximum Enclave Size Support for Intel® SGX
  • 64 GB
  • Mode-based Execute Control (MBE)
  • Yes
  • Technical details
  • Launch date
  • Q2'21
  • Memory speed (max)
  • 2933 MHz
  • Number of UPI links
  • 3
  • Status
  • Launched
  • Supported memory types
  • DDR4-SDRAM
  • Weight & dimensions
  • Processor package size
  • 77.5 x 56.5 mm
