Description

Dynabook USB-C Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Compatible memory cards: SD, SDHC, SDXC, HD type: 4K Ultra HD. Power source type: DC, Power supply: 100 W, Output voltage: 20 V. Width: 84.4 mm, Depth: 234 mm, Height: 30 mm

1x USB Type-C™
Single display - up to 3.840 x 2160 @30Hz via DP or HDMI Dual display - up to 1.920 x 1.080 @60Hz Triple display - up to 1.920 x 1.080 @30Hz

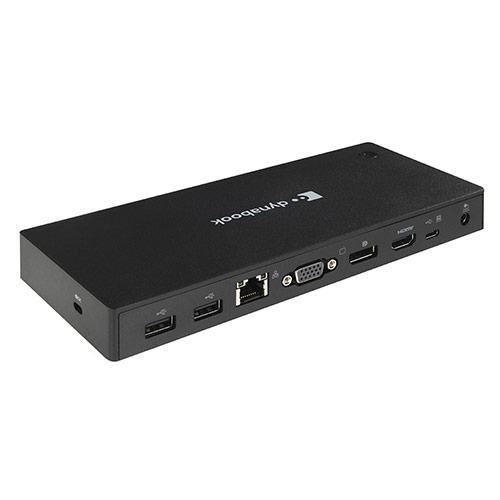

1x HDMI™, 1x DisplayPort™, 1x VGA
1x headphone/microphone combo jack

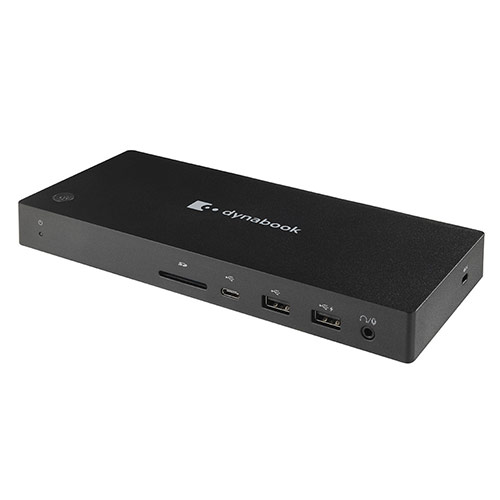

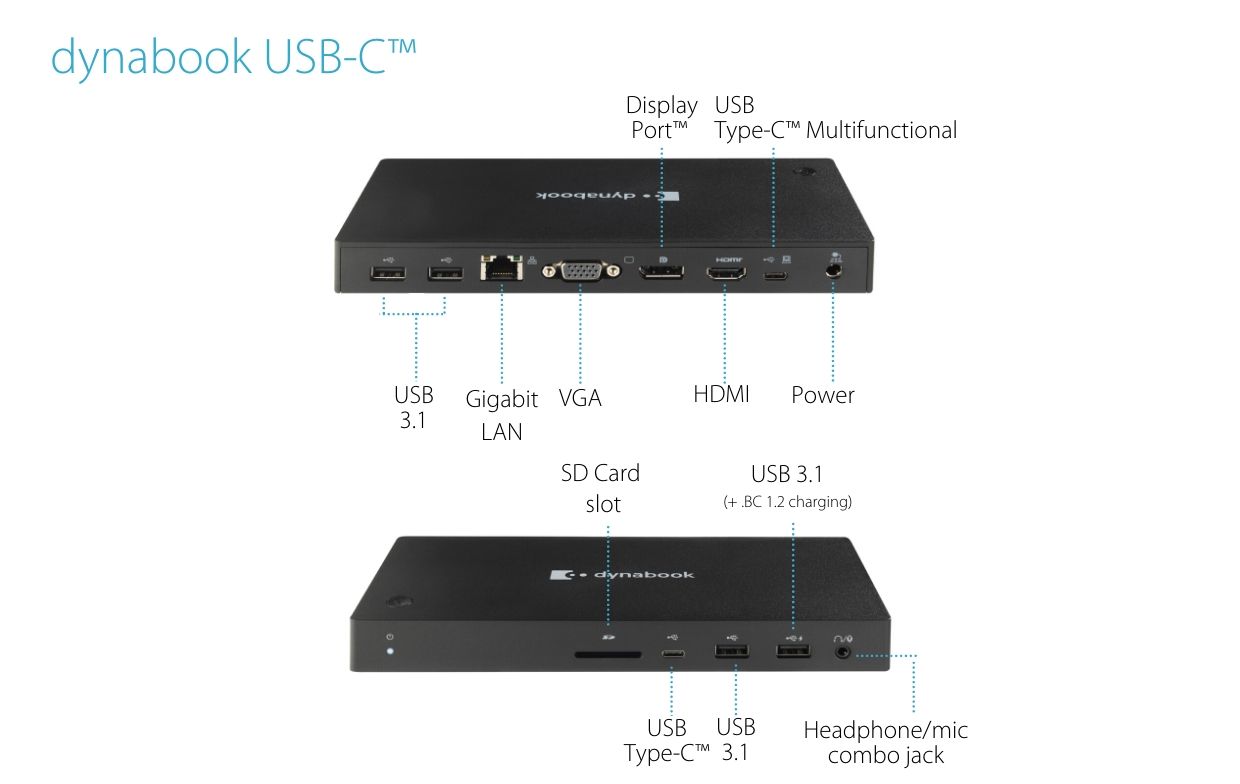

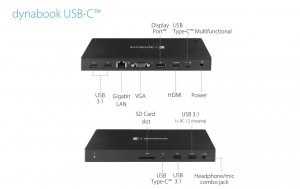

2x USB Type-C™ ports (one for PC connection), 4x USB 3.0 ports (2x USB 3.1 Gen2 on the front, supporting BC 1.2 charging; 2x USB 3.1 Gen1 on the back), 1x SD Card slot, 1x DC-IN jack
Gigabit LAN (10/100/1000 BASE-TX Ethernet)
Power button, security lock slot, supports DisplayPort++
PC screen only, Duplicate Mode, Extend Mode, Second screen only
100W (20V DC, 5A)

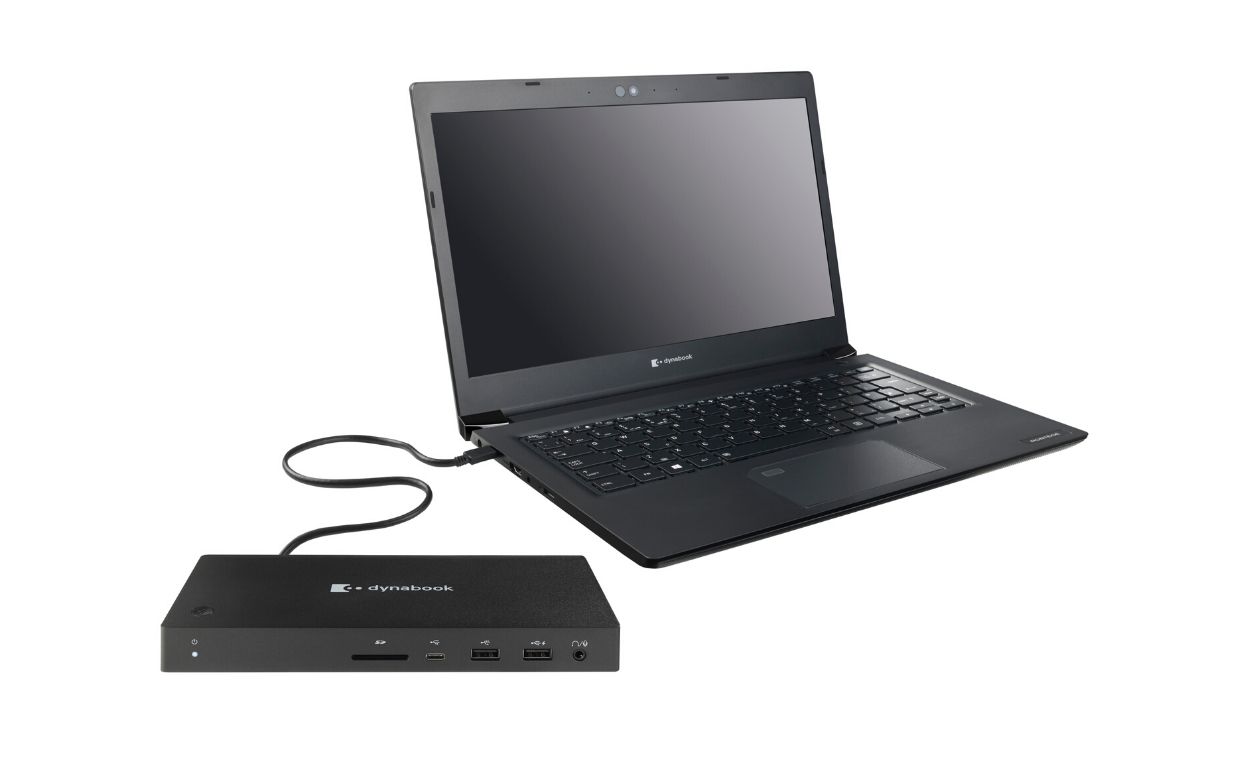

A computer with an USB Type-C™ port which supports video output and power delivery

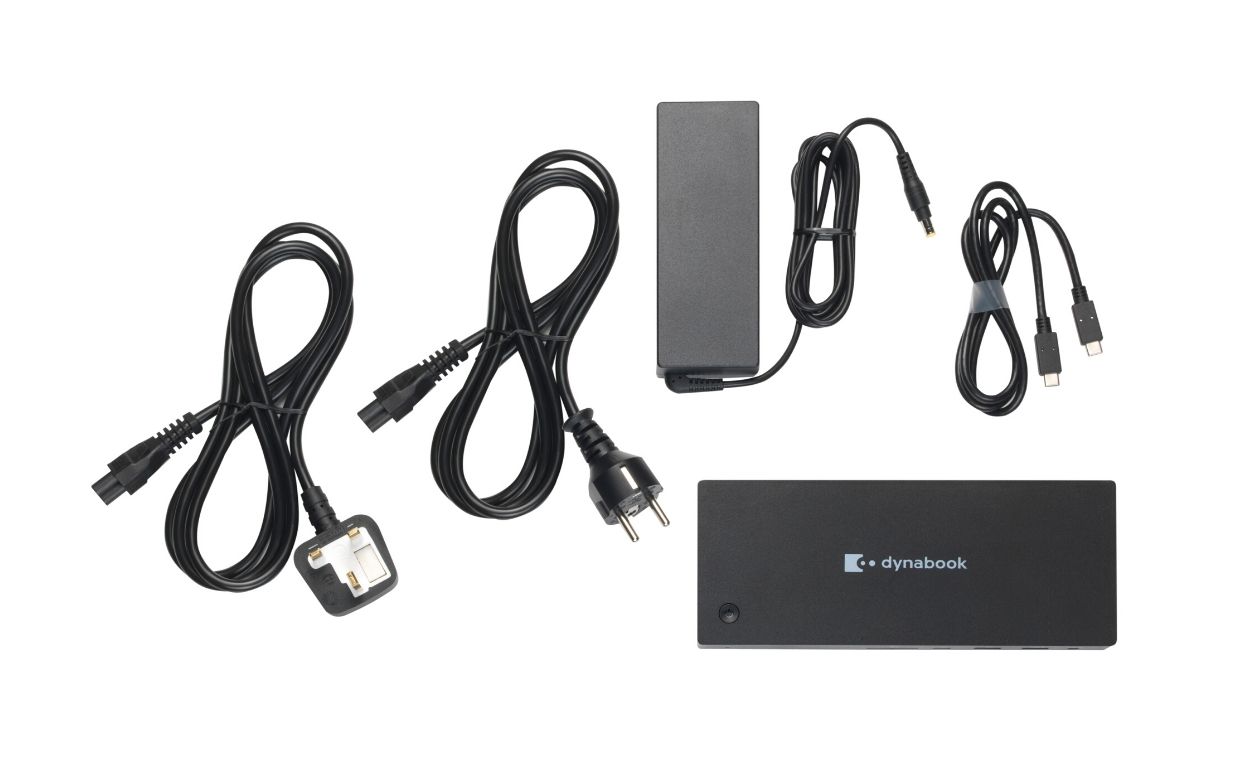

Dynabook USB-C™ Dock USB Type-C™ cable (1m) AC adaptor and power cord (EU/UK) Quick Start Guide Warranty Leaflet
234 (L) x 84.4 (W) x 30 (H) mm
black

One cable - every possibility

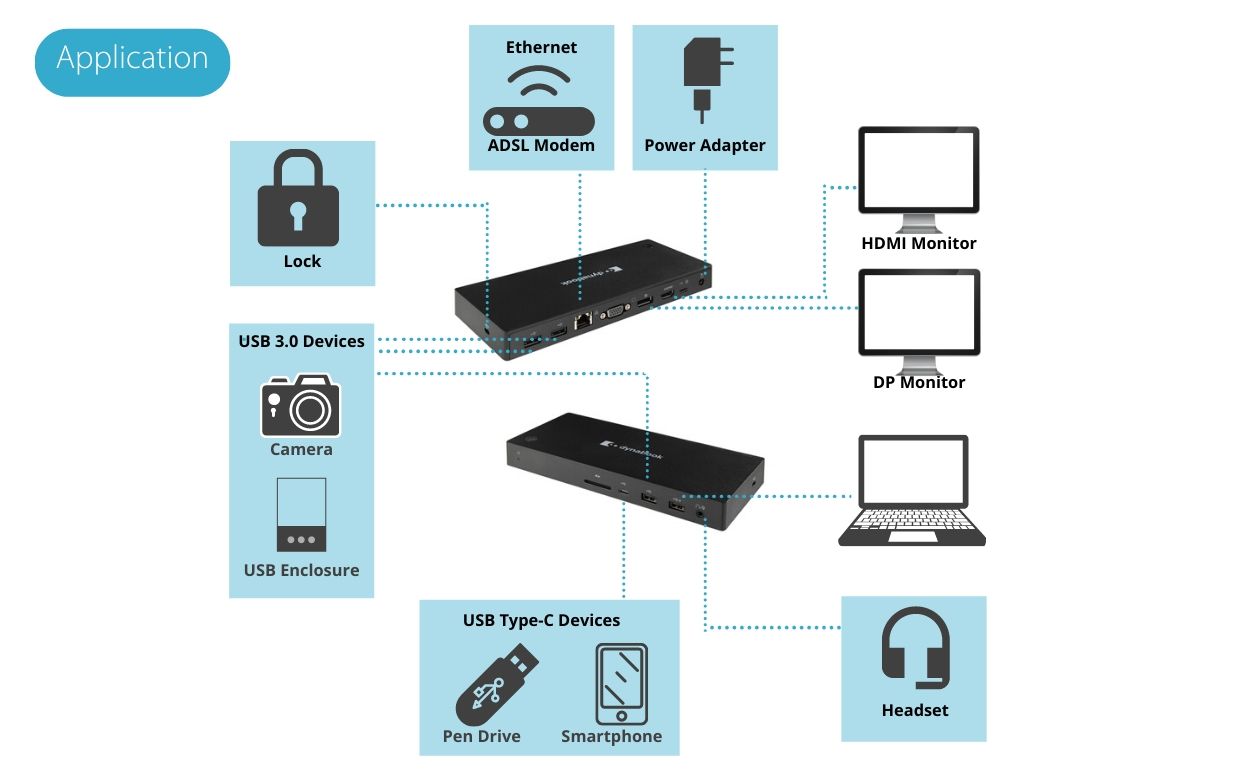

The Dynabook laptop docking station is an excellent choice for your home or office setup. Supporting up to three displays and four USB 3.0 devices simultaneously – you can connect, share and create with ease.With minimal cable clutter and maximum convenience, the USB-C™ Dock helps you power through every task.The dock also acts as a charger, so when you need to work on the move, simply unplug your laptop safe in the knowledge that your device is fully powered.

Product Properties

Manufacturer
Dynabook

Model
PA5356E-1PRP

EAN
4062507013705

Bullet points

Point
100W (20V DC, 5A)

1x HDMI™, 1x DisplayPort™, 1x VGA

1x headphone/microphone combo jack

1x USB Type-C™

234 (L) x 84.4 (W) x 30 (H) mm

A computer with an USB Type-C™ port which supports video output and power delivery

Black

Gigabit LAN (10/100/1000 BASE-TX Ethernet)

PC screen only, Duplicate Mode, Extend Mode, Second screen only

Power button, security lock slot, supports DisplayPort++

Logistics data

Harmonized System (HS) code
84733020

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Other features

Minimum system requirements
A computer with an USB Type-C™ port which supports video output and power delivery

Packaging content

AC adapter included
Yes

Cables included
AC, USB Type-C

User guide
Yes

Warranty card
Yes

Packaging data

Quantity per pack
1 pc(s)

Performance

Cable lock slot
Yes

Card reader integrated
Yes

Compatible memory cards
SD, SDHC, SDXC

Display modes
Duplicate, Extended, PC screen only, Second screen only

HD type
4K Ultra HD

Hot-Plug support
Yes

Maximum digital resolution
3840 x 2160 pixels

Number of displays supported
3

On/off switch
Yes

Plug and Play
Yes

Product colour
Black

Ports & interfaces

Combo headphone/mic port
Yes

Connectivity technology
Wired

DC-in jack
Yes

DisplayPorts quantity
1

HDMI ports
1

Headphone outputs
1

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Microphone in
Yes

PowerShare
Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

VGA (D-Sub) ports quantity
1

Power

Output current
5 A

Output voltage
20 V

Power source type
DC

Power supply
100 W

Weight & dimensions

Depth
234 mm

Height
30 mm

Width
84.4 mm
