Description

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point. Maximum data transfer rate: 867 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Maximum data transfer rate (5 GHz): 867 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA,.... WAN connection: Ethernet (RJ-45). Power over Ethernet (PoE) type supported: Active PoE, Passive PoE, Power consumption (typical): 24.4 W. Placement: Wall, Product colour: White, LED indicators: LAN, Power, Status, WAN, WLAN

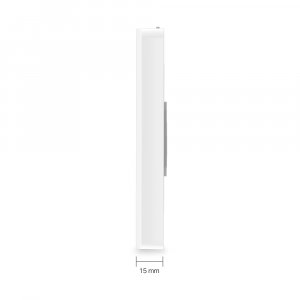

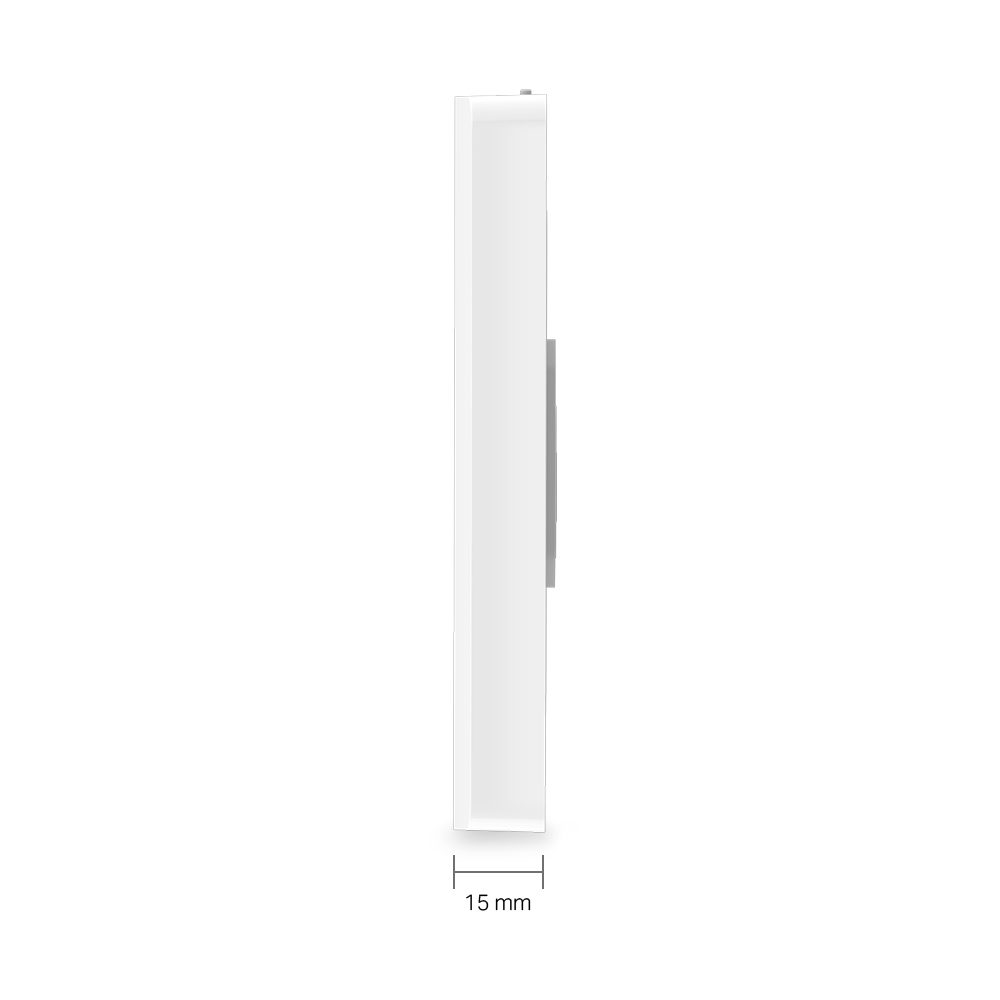

Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospital, offices, dormitories and any other environments
Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment

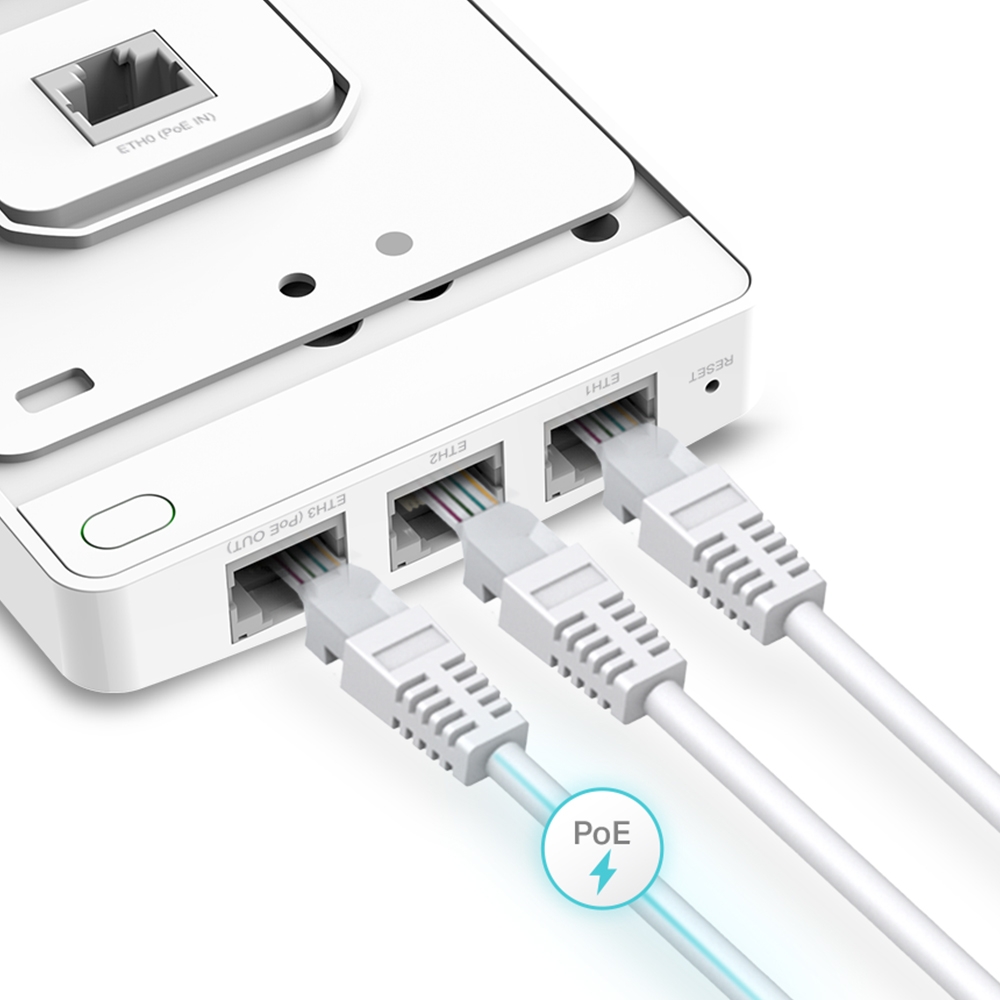

Interface: 4 Gigabit Ethernet ports for bridging (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device
High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
Cloud management and Omada app supported for ultra-convenience and easy management
Enterprise class Wi-Fi security helps to decrease network security threats
Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology

Product Properties

Manufacturer
TP-LINK

Model
EAP235-WALL

EAN
6935364006341

Antenna

Antenna gain level (max)
4 dBi

Antenna type
Internal

Antennas quantity
2

Bullet points

Point
Cloud management and Omada app supported for ultra-convenience and easy management

Easy Installation and PoE-enabled

Elegant Appearance

Enterprise class Wi-Fi security helps to decrease network security threats

High Capacity

Interface

Design

LED indicators
LAN, Power, Status, WAN, WLAN

Placement
Wall

Product colour
White

Reset button
Y

Features

2.4 GHz
Y

5 GHz
Y

6 GHz
N

Automatic channel scanning
Y

Automatic channel selection
Y

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN data rates
10,100,1000 Mbit/s

Frequency band
2.4 - 5 GHz

Maximum data transfer rate
867 Mbit/s

Maximum data transfer rate (2.4 GHz)
300 Mbit/s

Maximum data transfer rate (5 GHz)
867 Mbit/s

MIMO
Y

MIMO type
Multi User MIMO

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Quality of Service (QoS) support
Y

Rate limiting
Y

VLAN support
Y

Wi-Fi Multimedia (WMM)/(WME)
Y

Wireless isolation
Y

Logistics data

Harmonized System (HS) code
85176990

Management features

Syslog
Y

Web-based management
Y

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Mounting kit
Y

Number of products included
1 pc(s)

Quick start guide
Y

Packaging data

Package type
Box

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

WAN connection
Ethernet (RJ-45)

Power

Power consumption (typical)
24.4 W

Power over Ethernet (PoE)
Y

Power over Ethernet (PoE) type supported
Active PoE, Passive PoE

Protocols

Universal Plug and Play (UPnP)
Y

Security

Access Control List (ACL)
Y

MAC address filtering
Y

Number of SSID supported
16

Remote Authentication Dial-In User Service (RADIUS)
Y

Security algorithms
64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK

Weight & dimensions

Depth
86 mm

Height
20 mm

Width
143 mm
