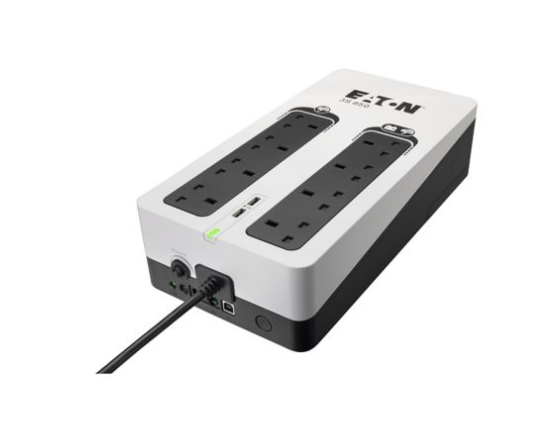

Eaton 3S850B uninterruptible power supply (UPS) Standby (Offline) 0.85 kVA 510 W 8 AC outlet(s)
Roll over image to zoom inClick to Open expanded view
Print
Model: 3S850B
EAN: 3553340705045

Eaton 3S850B uninterruptible power supply (UPS) Standby (Offline) 0.85 kVA 510 W 8 AC outlet(s)

Manufacturer:
Eaton
Eaton 3S850B, Standby (Offline), 0.85 kVA, 510 W, 184 V, 264 V, 46/70 Hz
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Eaton 3S850B. UPS topology: Standby (Offline), Output power capacity: 0.85 kVA, Output power: 510 W. AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, White, Cable length: 1.5 m. Width: 335 mm, Depth: 85 mm, Height: 170 mm

Product Properties

  • Model
  • 3S850B
  • EAN
  • 3553340705045
  • Battery
  • Automatic battery test
  • Yes
  • Battery capacity
  • 9 Ah
  • Battery technology
  • Sealed Lead Acid (VRLA)
  • Battery voltage
  • 12 V
  • Cold start
  • Yes
  • Hot-swap battery
  • No
  • Design
  • Cable length
  • 1.5 m
  • Certification
  • IEC/EN 62040-1, EAC, IEC/EN 62040-2, IEC/EN 62040-2 CE
  • Form factor
  • Tower
  • LED indicators
  • Yes
  • Product colour
  • Black, White
  • Safety
  • IEC/EN 62040-1, IEC/EN 62040-2
  • Features
  • Efficiency
  • 98%
  • Input frequency
  • 46/70 Hz
  • Input operation voltage (max)
  • 264 V
  • Input operation voltage (min)
  • 184 V
  • Noise level
  • 25 dB
  • Number of input phases
  • 1
  • Number of output phases
  • 1
  • Output frequency
  • 50/60 Hz
  • Output operation voltage (max)
  • 230 V
  • Output operation voltage (min)
  • 220 V
  • Output power
  • 510 W
  • Output power capacity
  • 0.85 kVA
  • Power protection features
  • Overdischarge
  • Surge protection
  • Yes
  • UPS topology
  • Standby (Offline)
  • Operational conditions
  • Operating altitude
  • 0 - 2000 m
  • Operating relative humidity (H-H)
  • 0 - 85%
  • Packaging data
  • Cables included
  • USB cable
  • Rack mount kit
  • No
  • Ports & interfaces
  • AC outlets quantity
  • 8 AC outlet(s)
  • USB 2.0 ports quantity
  • 2
  • USB port
  • Yes
  • Technical details
  • Sustainability certificates
  • CE, EAC
  • Weight & dimensions
  • Depth
  • 85 mm
  • Height
  • 170 mm
  • Weight
  • 4.3 kg
  • Width
  • 335 mm
