Model: 5P650I
EAN: 3553340620096

Eaton 5P 650i Line-Interactive 0.65 kVA 420 W 4 AC outlet(s)

Manufacturer:
Eaton
Eaton 5P 650i, Line-Interactive, 0.65 kVA, 420 W, Pure sine, 150 V, 294 V
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Eaton 5P 650i. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 420 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9 min. Form factor: Tower, Product colour: Black, Display type: LCD. Width: 150 mm, Depth: 345 mm, Height: 230 mm

Product Properties

  • Model
  • 5P650I
  • EAN
  • 3553340620096
  • Battery
  • Automatic battery test
  • Y
  • Battery technology
  • Sealed Lead Acid (VRLA)

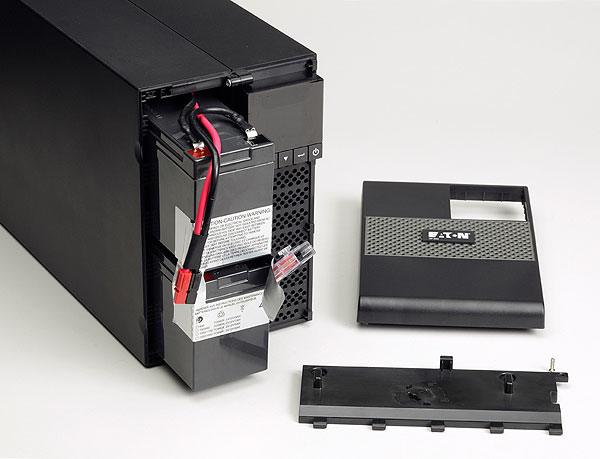

  • Hot-swap battery
  • Y
  • Typical backup time at half load
  • 9 min
  • Design
  • Certification
  • IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2 , IEC/EN 62040-3 (Performance), CE, CB report (TUV)

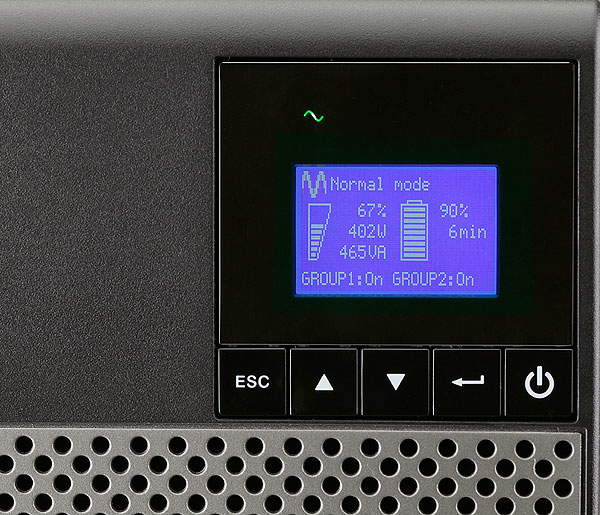

  • Display type
  • LCD
  • Form factor
  • Tower
  • Product colour
  • Black
  • Safety
  • EN 62040-1, UL 1778
  • Features
  • ECO mode
  • N
  • Efficiency
  • 98%
  • Input frequency
  • 40/70 Hz
  • Input operation voltage (max)
  • 294 V
  • Input operation voltage (min)
  • 150 V
  • Noise level
  • 40 dB
  • Number of input phases
  • 1
  • Number of output phases
  • 1
  • Output frequency
  • 50/60 Hz
  • Output operation voltage (max)
  • 240 V
  • Output operation voltage (min)
  • 200 V
  • Output power
  • 420 W
  • Output power capacity
  • 0.65 kVA
  • UPS topology
  • Line-Interactive
  • Waveform
  • Pure sine
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 35 °C
  • Other features
  • Input connection type
  • IEC C14
  • Mac compatibility
  • N
  • Nominal input voltage
  • 230 V
  • Nominal output voltage
  • 230 V
  • Packaging data
  • Bundled software
  • Intelligent Power Software suite
  • Management card included
  • N

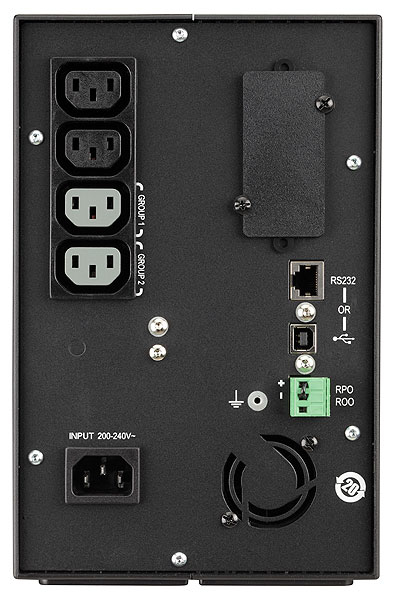

  • Ports & interfaces
  • AC outlet types
  • C13 coupler
  • AC outlets quantity
  • 4 AC outlet(s)
  • Power plug
  • C14 coupler
  • RS-232 ports
  • 1
  • USB 2.0 ports quantity
  • 1
  • USB port
  • Y
  • Weight & dimensions
  • Depth
  • 345 mm
  • Height
  • 230 mm
  • Weight
  • 7.8 kg
  • Width
  • 150 mm
