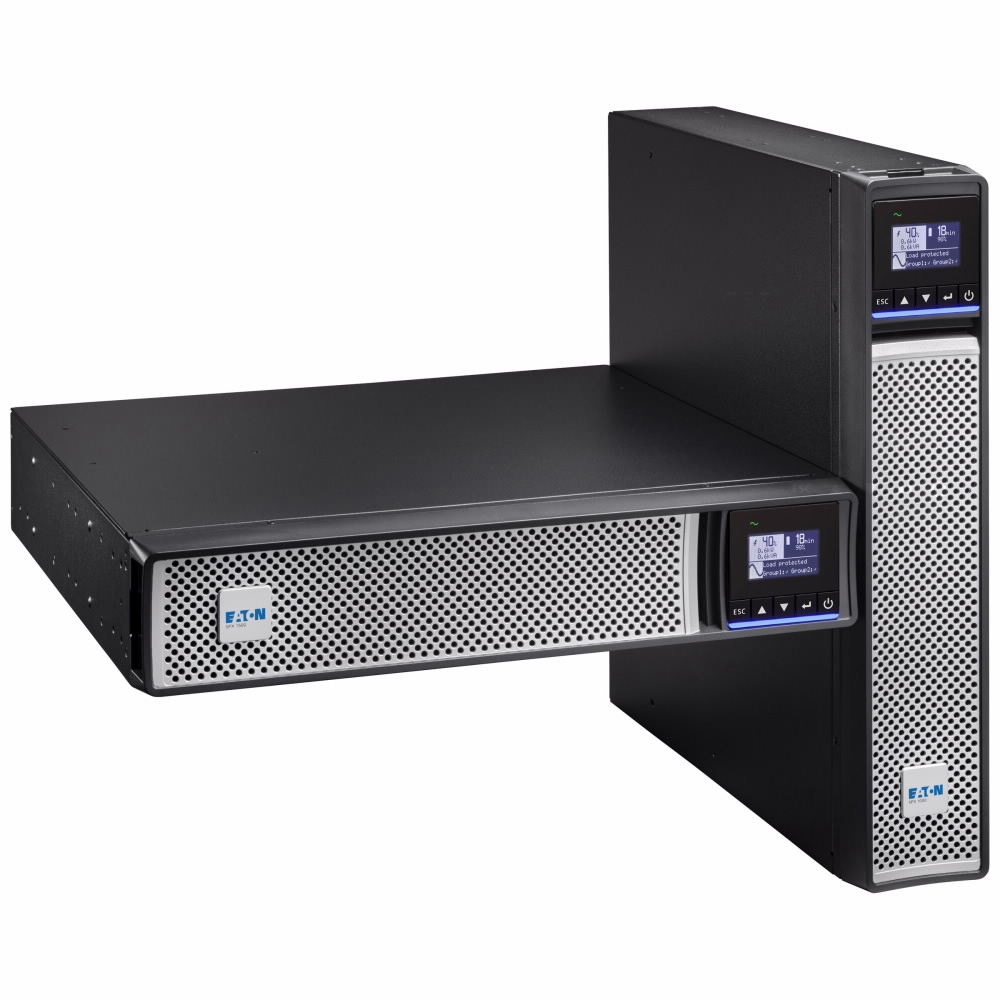

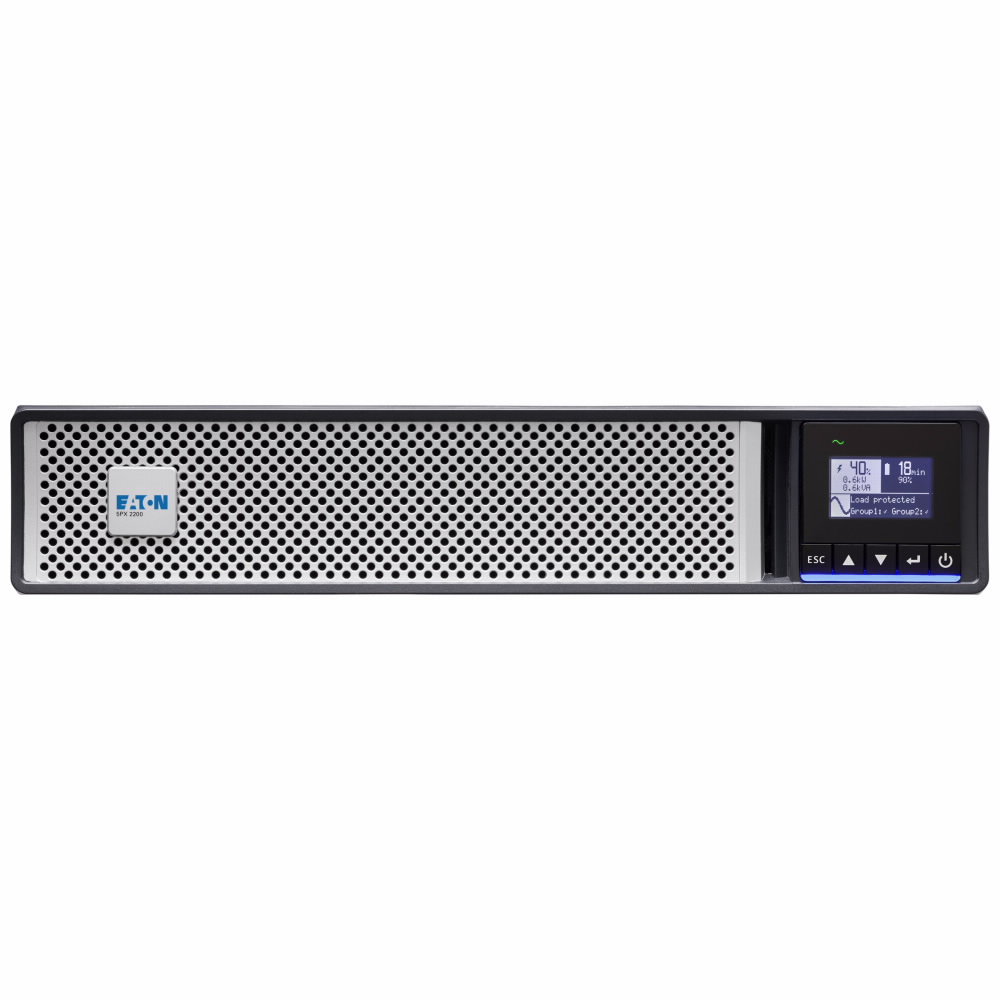

Eaton 5PX2200IRTNG2BS uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W 10 AC outlet(s)
Roll over image to zoom inClick to Open expanded view
Eaton 5PX2200IRTNG2BS uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W 10 AC outlet(s)
Eaton 5PX2200IRTNG2BS uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W 10 AC outlet(s)
Print
Model: 5PX2200IRTNG2BS
EAN: 3553340620928

Eaton 5PX2200IRTNG2BS uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W 10 AC outlet(s)

Manufacturer:
Eaton
Eaton 5PX2200IRTNG2BS, Line-Interactive, 2.2 kVA, 2200 W, Sine, 150 V, 294 V
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Eaton 5PX2200IRTNG2BS. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Silver, Cable length: 1.8 m. Width: 588 mm, Depth: 770 mm, Height: 240 mm

Product Properties

  • Model
  • 5PX2200IRTNG2BS
  • EAN
  • 3553340620928
  • Battery
  • Automatic battery test
  • Yes
  • Battery capacity
  • 7 Ah
  • Battery technology
  • Sealed Lead Acid (VRLA)
  • Battery voltage
  • 12 V
  • Number of batteries supported
  • 6
  • Design
  • Cable length
  • 1.8 m
  • Certification
  • IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA 22.2 cTUVus EAC Cm UKCA Ukr KCC
  • Display type
  • LCD
  • Form factor
  • Rackmount/Tower
  • Product colour
  • Black, Silver
  • Features
  • Automatic Voltage Regulation (AVR)
  • Yes
  • Input frequency
  • 47/70 Hz
  • Input operation voltage (max)
  • 294 V
  • Input operation voltage (min)
  • 150 V
  • Noise level
  • 40 dB
  • Number of input phases
  • 1
  • Number of output phases
  • 1
  • Output frequency
  • 50/60 Hz
  • Output operation voltage (max)
  • 240 V
  • Output operation voltage (min)
  • 200 V
  • Output power
  • 2200 W
  • Output power capacity
  • 2.2 kVA
  • Output power factor
  • 1
  • Power factor
  • 1
  • Power protection features
  • Overdischarge
  • UPS topology
  • Line-Interactive
  • Waveform
  • Sine
  • Operational conditions
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 0 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Packaging data
  • Cables included
  • Input power cable, Serial, USB cable
  • Quick installation guide
  • Yes
  • Rack mount kit
  • Yes
  • Ports & interfaces
  • AC outlet types
  • C13 coupler, C19 coupler
  • AC outlets quantity
  • 10 AC outlet(s)
  • Power plug
  • C20 coupler
  • Serial interface
  • Yes
  • Serial interface type
  • RS-232
  • Serial ports quantity
  • 1
  • USB 2.0 ports quantity
  • 1
  • USB port
  • Yes
  • USB port type
  • USB Type-B
  • Technical details
  • Sustainability certificates
  • CE, ENERGY STAR, REACH, RoHS
  • Sustainability compliance
  • Yes
  • Weight & dimensions
  • Depth
  • 770 mm
  • Height
  • 240 mm
  • Weight
  • 28.7 kg
  • Width
  • 588 mm
