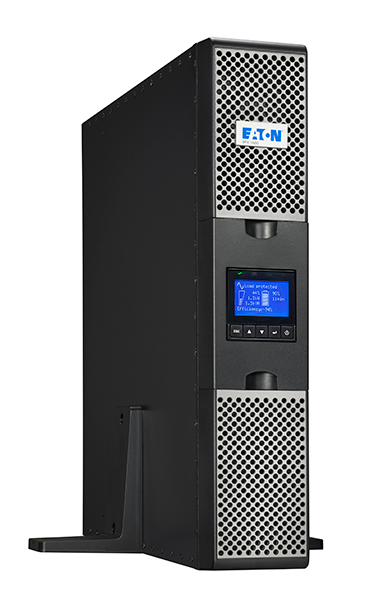

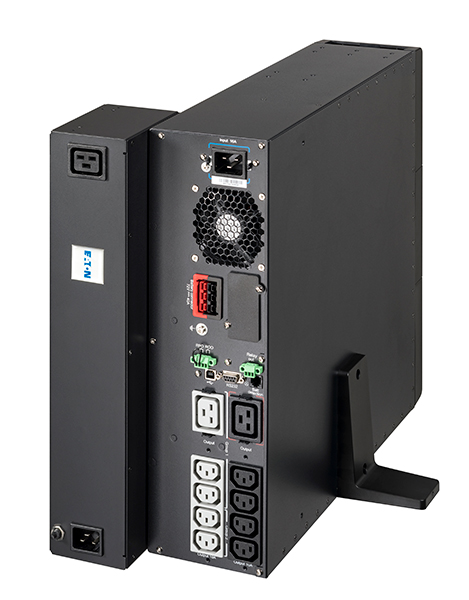

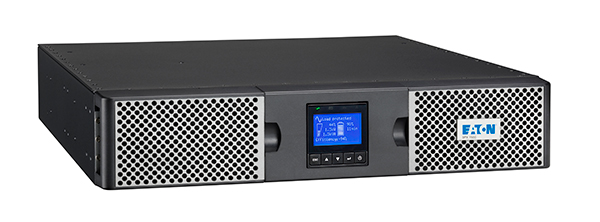

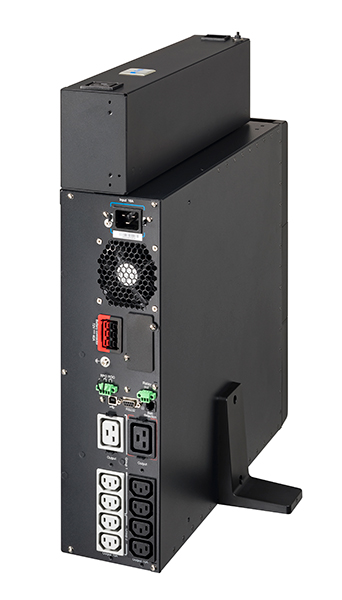

Eaton 9PX1500IRTM uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Roll over image to zoom inClick to Open expanded view
Eaton 9PX1500IRTM uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Eaton 9PX1500IRTM uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Eaton 9PX1500IRTM uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Eaton 9PX1500IRTM uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Eaton 9PX1500IRTM uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Print
Model: 9PX1500IRTM
EAN: 743172081230

Eaton 9PX1500IRTM uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)

Manufacturer:
Eaton
Eaton 9PX1500IRTM, Double-conversion (Online), 1.5 kVA, 1500 W, Pure sine, 176 V, 276 V
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Eaton 9PX1500IRTM. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 14 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 450 mm, Height: 86.5 mm

Product Properties

  • Model
  • 9PX1500IRTM
  • EAN
  • 743172081230
  • Battery
  • Automatic battery test
  • Yes
  • Battery technology
  • Sealed Lead Acid (VRLA)
  • Hot-swap battery
  • Yes
  • Typical backup time at half load
  • 14 min
  • Design
  • Certification
  • IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
  • Display type
  • LCD
  • Form factor
  • Rackmount/Tower
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Rack capacity
  • 2U
  • Safety
  • IEC/EN 62040-1, UL 1778, CSA 22.2
  • Features
  • Efficiency
  • 92.5%
  • Input frequency
  • 40/70 Hz
  • Input operation voltage (max)
  • 276 V
  • Input operation voltage (min)
  • 176 V
  • Noise level
  • 35 dB
  • Number of input phases
  • 1
  • Output frequency
  • 50/60 Hz
  • Output operation voltage (max)
  • 240 V
  • Output operation voltage (min)
  • 200 V
  • Output power
  • 1500 W
  • Output power capacity
  • 1.5 kVA
  • Power factor
  • 1
  • UPS topology
  • Double-conversion (Online)
  • Waveform
  • Pure sine
  • Logistics data
  • Harmonized System (HS) code
  • 85078000
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Other features
  • Nominal input voltage
  • 230 V
  • Nominal output voltage
  • 230 V
  • Packaging data
  • Bundled software
  • Intelligent Power Software suite
  • Management card included
  • No

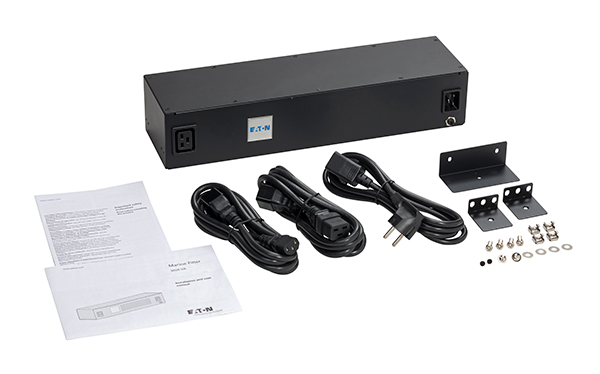

  • Rack mount kit
  • Yes
  • Ports & interfaces
  • AC outlet types
  • C13 coupler
  • AC outlets quantity
  • 8 AC outlet(s)
  • Power plug
  • C14 coupler
  • RS-232 ports
  • 1
  • Serial interface
  • Yes
  • Serial interface type
  • RS-232
  • USB 2.0 ports quantity
  • 1
  • USB port
  • Yes
  • Technical details
  • Sustainability certificates
  • ENERGY STAR
  • Weight & dimensions
  • Depth
  • 450 mm
  • Height
  • 86.5 mm
  • Weight
  • 18.9 kg
  • Width
  • 440 mm
