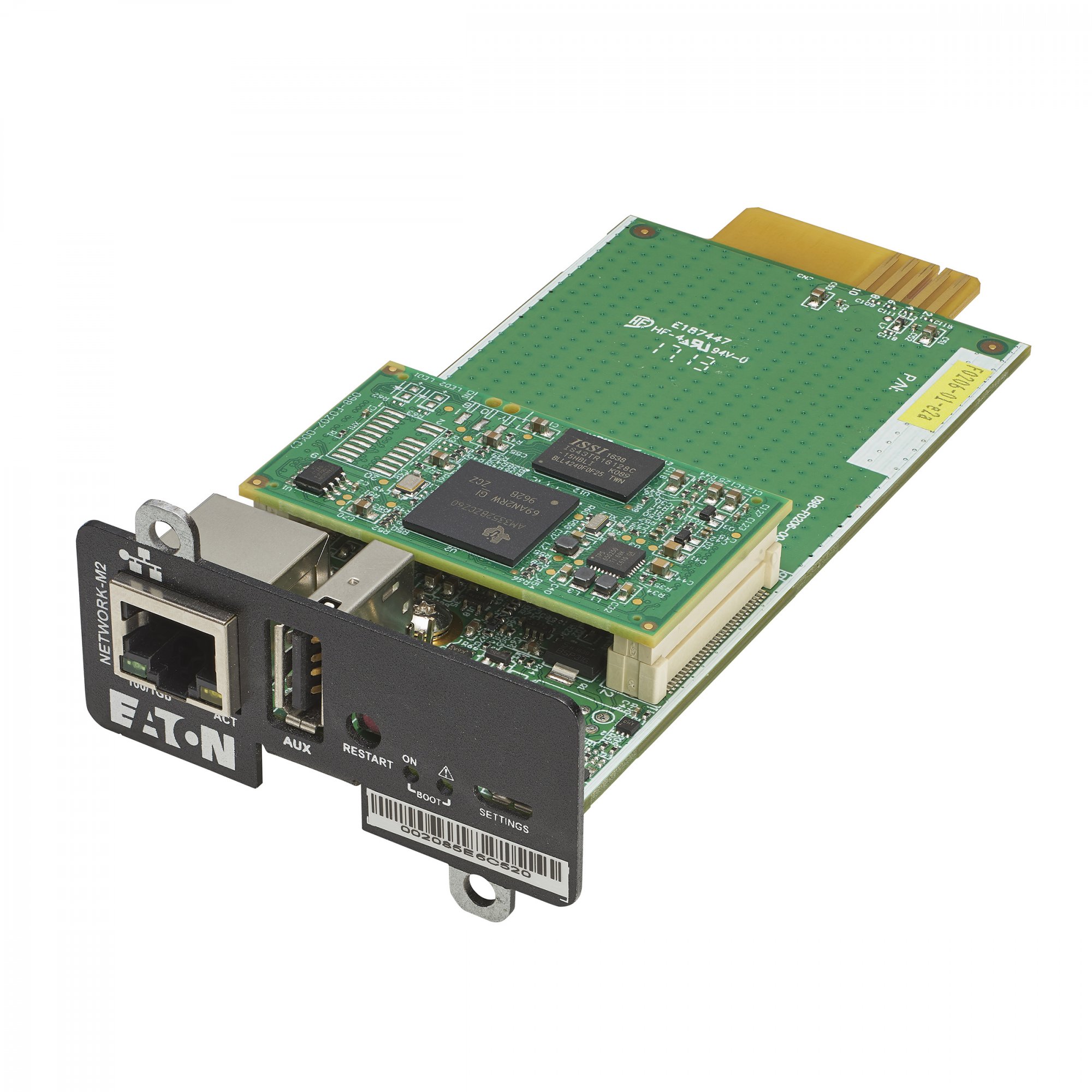

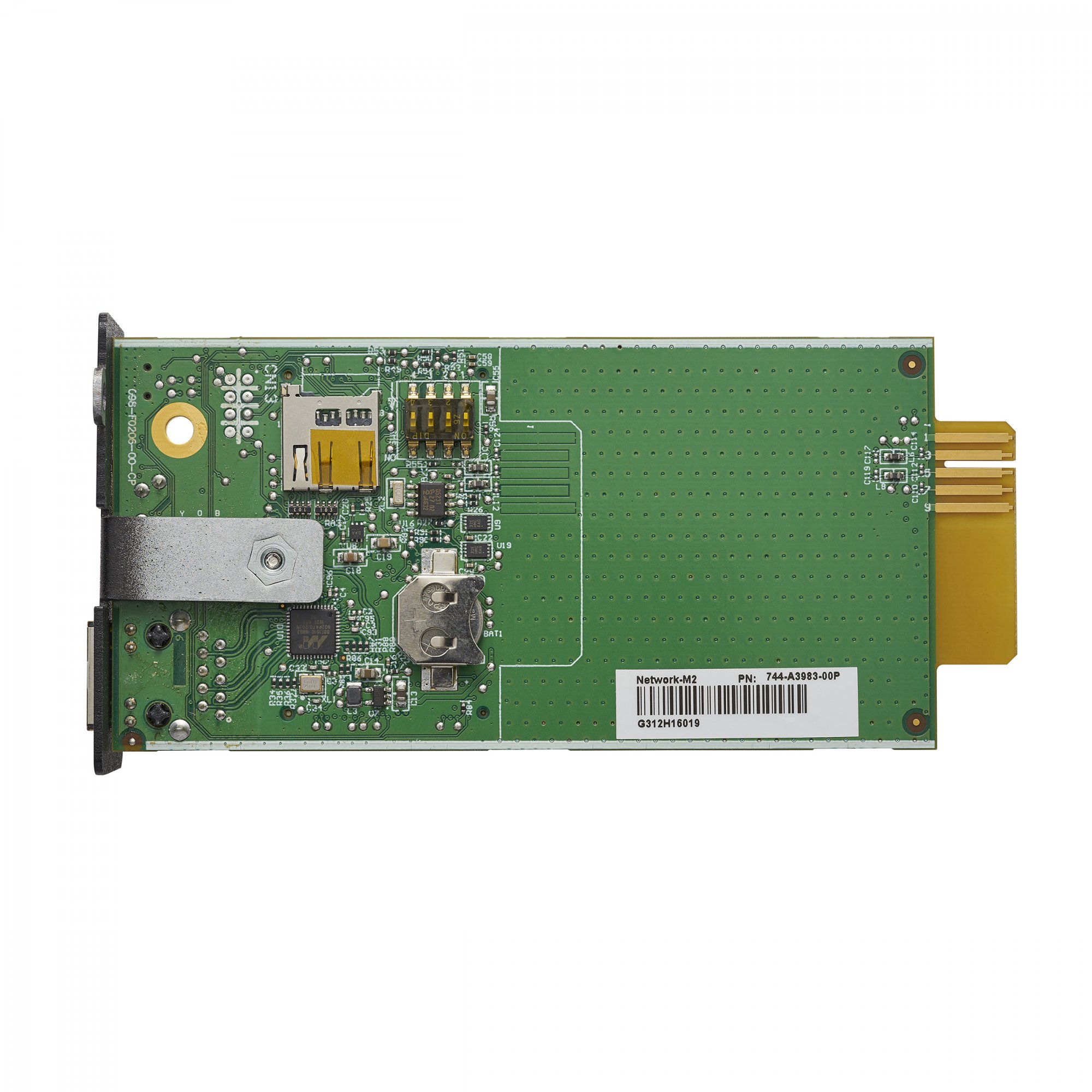

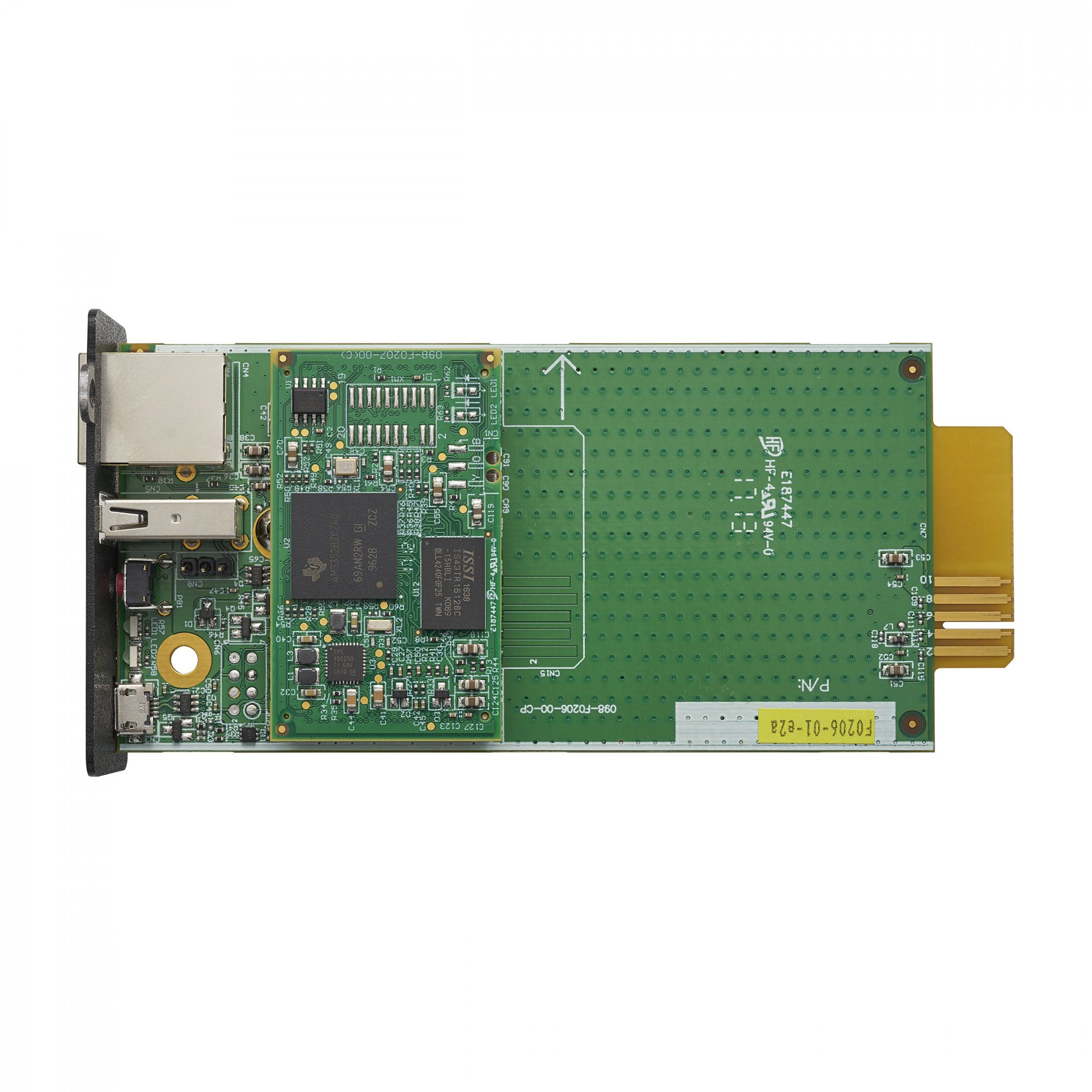

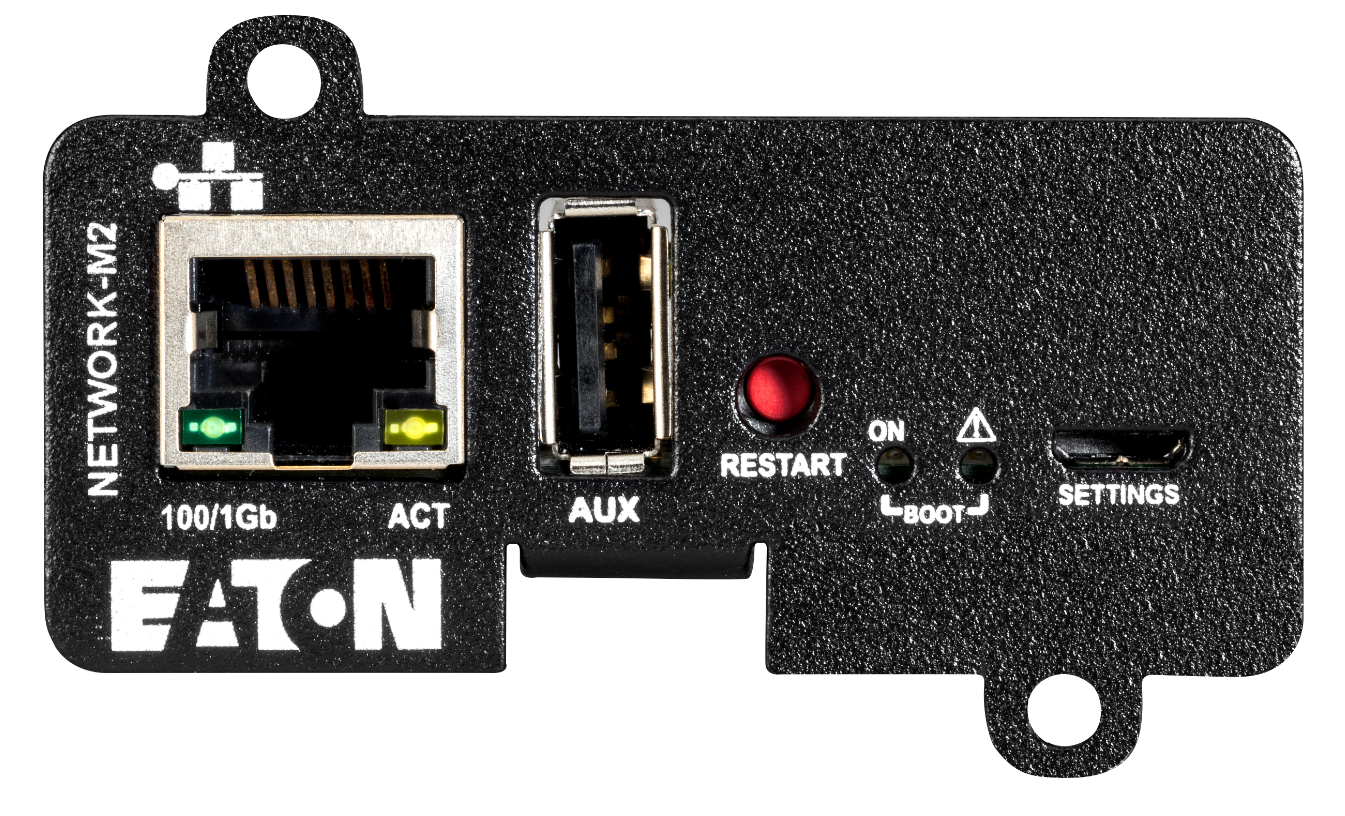

Eaton NETWORK-M2 network card Internal Ethernet 1000 Mbit/s
Roll over image to zoom inClick to Open expanded view
Eaton NETWORK-M2 network card Internal Ethernet 1000 Mbit/s
Eaton NETWORK-M2 network card Internal Ethernet 1000 Mbit/s
Eaton NETWORK-M2 network card Internal Ethernet 1000 Mbit/s
Eaton NETWORK-M2 network card Internal Ethernet 1000 Mbit/s
Eaton NETWORK-M2 network card Internal Ethernet 1000 Mbit/s
Print
Model: NETWORK-M2
EAN: 786689016890

Eaton NETWORK-M2 network card Internal Ethernet 1000 Mbit/s

Manufacturer:
Eaton
Eaton NETWORK-M2, Internal, Wired, Ethernet, 1000 Mbit/s, Multicolour
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Eaton NETWORK-M2. Internal. Connectivity technology: Wired, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. Product colour: Multicolour
  • Gigabit speed: compatible with better performing, cost effective and widely deployed gigabit network switches
  • Compliance with Gigabit only data center networks
  • Cybersecurity enhancements for UL 2900-1 and IEC 62443-4-2 certifications, including stronger encryption, configurable password policy and usage of CA and PKI signed certificates
  • Real-time clock with battery backup and linkage to NTP (Network Time Protocol) server
  • Increased memory for improved operation and larger data storage
  • Modern user experiencewith latest web technology
  • Secure SMTP for email alerts

Product Properties

  • Model
  • NETWORK-M2
  • EAN
  • 786689016890
  • Bullet points
  • Point
  • Compliance with Gigabit only data center networks
    Gigabit speed
    Increased memory for improved operation and larger data storage
    Modern user experiencewith latest web technology
    Real-time clock with battery backup and linkage to NTP (Network Time Protocol) server
    Secure SMTP for email alerts
  • Design
  • Internal
  • Yes
  • Product colour
  • Multicolour
  • Reset button
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Network
  • Ethernet interface type
  • Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Maximum data transfer rate
  • 1000 Mbit/s
  • Security algorithms
  • HTTPS, SNMP, SNMPv3, SSH, SSL/TLS
  • Supported network protocols
  • HTTP, HTTPS 1.1, TLS 1.2, SNMP V1, SNMP V3, NTP, SMTP, SMTPS BOOTP/DHCP, CLI, SSH, ARP, Syslog, Radius, LDAP, ActiveDirectory
  • Wi-Fi
  • No
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Other features
  • Compatibility

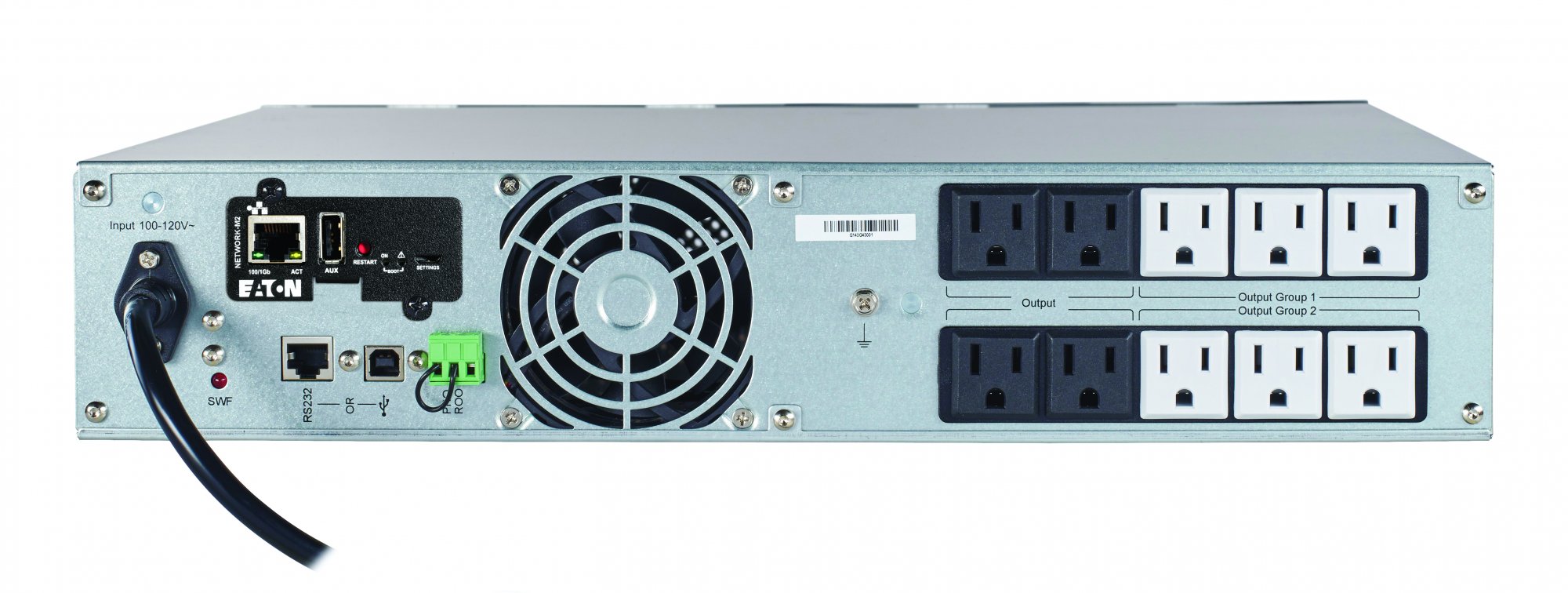

  • Eaton 5P, 5PX, 9SX, 9PX, 9E, 93PM, 93PS, 91PS, 93PS Marine
  • Maximum operating temperature
  • 40 °C
  • Networking features
  • Fast Ethernet
  • Ports quantity
  • 1
  • Wireless connection
  • No
  • Packaging content
  • Manual
  • Yes
  • Ports & interfaces
  • Connectivity technology
  • Wired
  • Ethernet LAN (RJ-45) ports
  • 1
  • Interface
  • Ethernet
  • Weight & dimensions
  • Depth
  • 132 mm
  • Height
  • 132 mm
  • Weight
  • 70 g
  • Width
  • 66 mm
