Description

Epson EB-1485Fi. Projector brightness: 5000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Fixed focal length: 3.9 cm, Aperture range (F-F): 1.5 - 1.5. Supported graphics resolutions: 1920 x 1080 (HD 1080), Supported video modes: 1080p, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C, HDMI connector type: Full-size

Flexible display options and sizes: Cater for user needs in any working environment

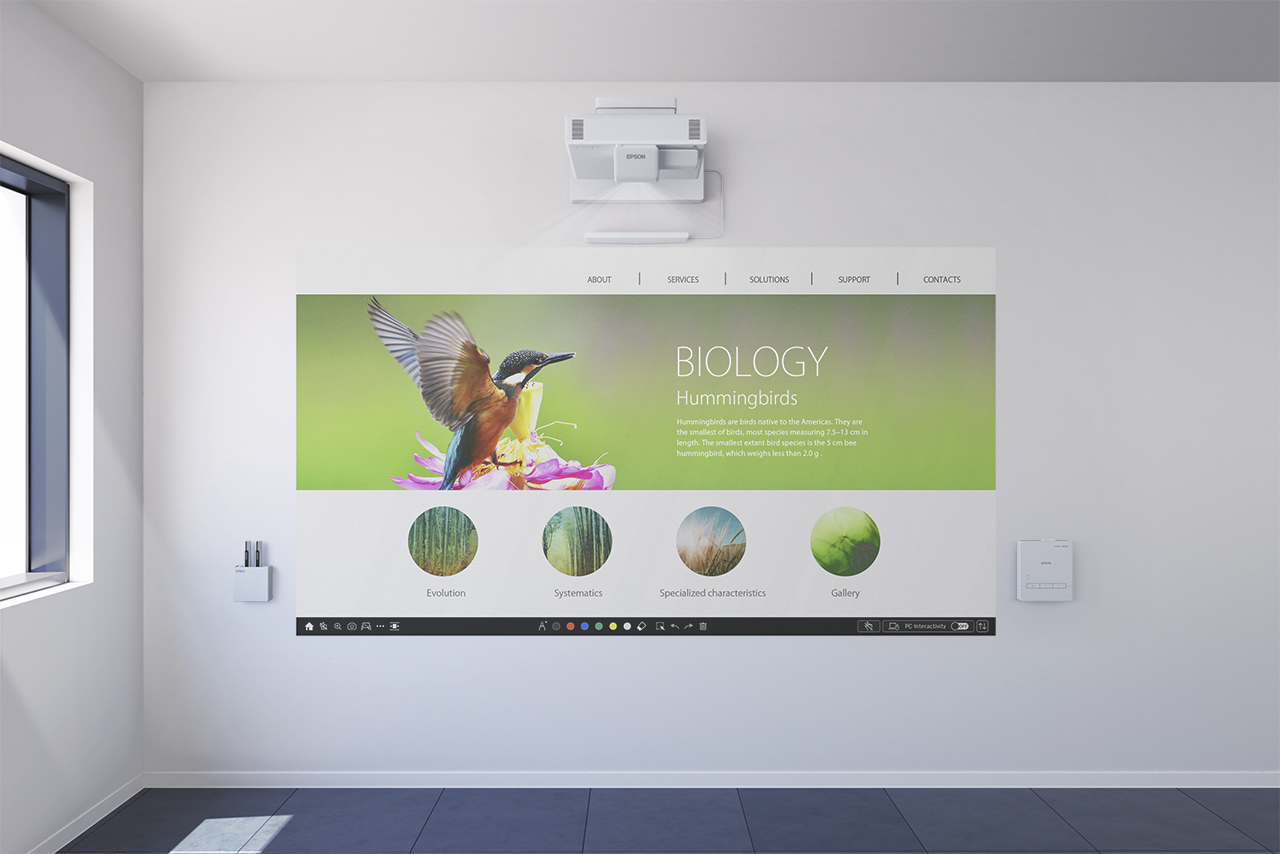

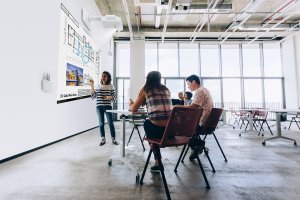

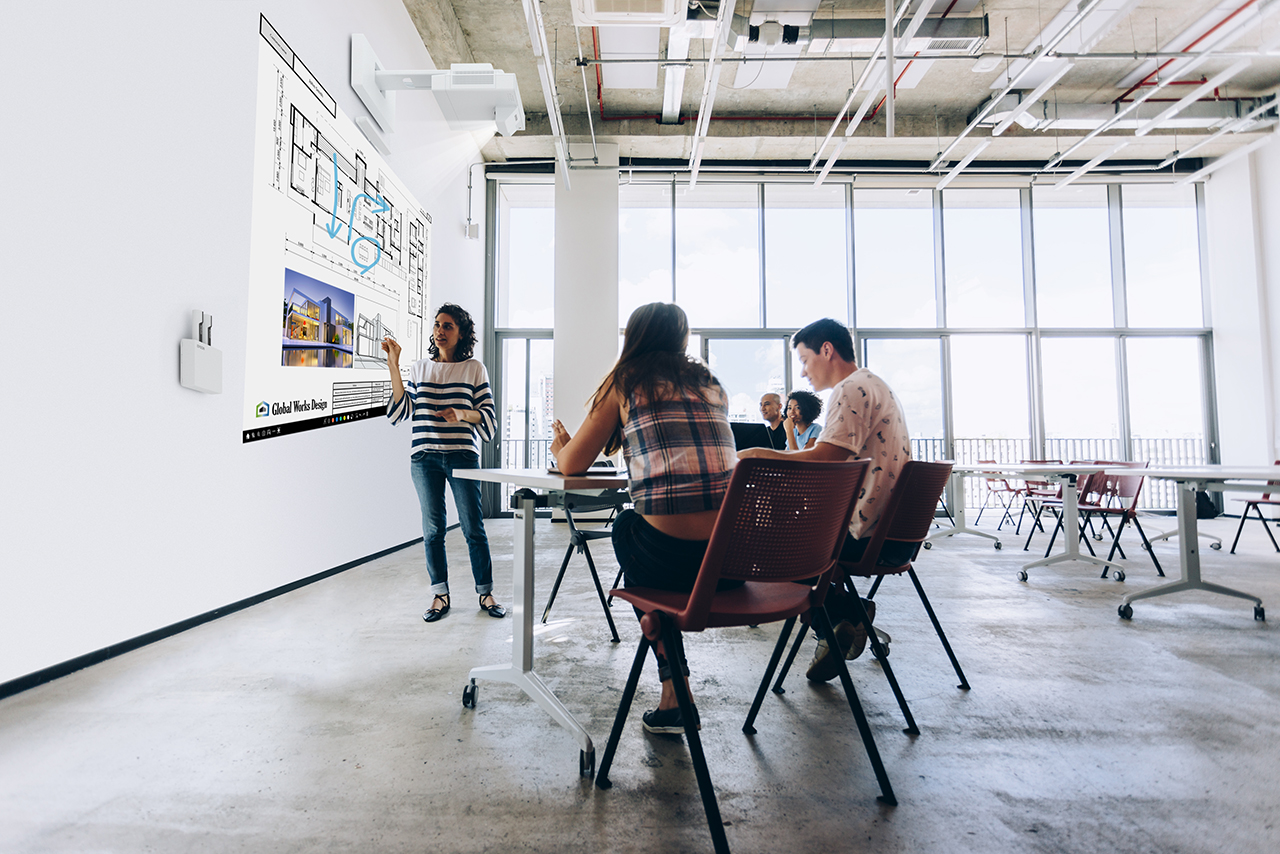

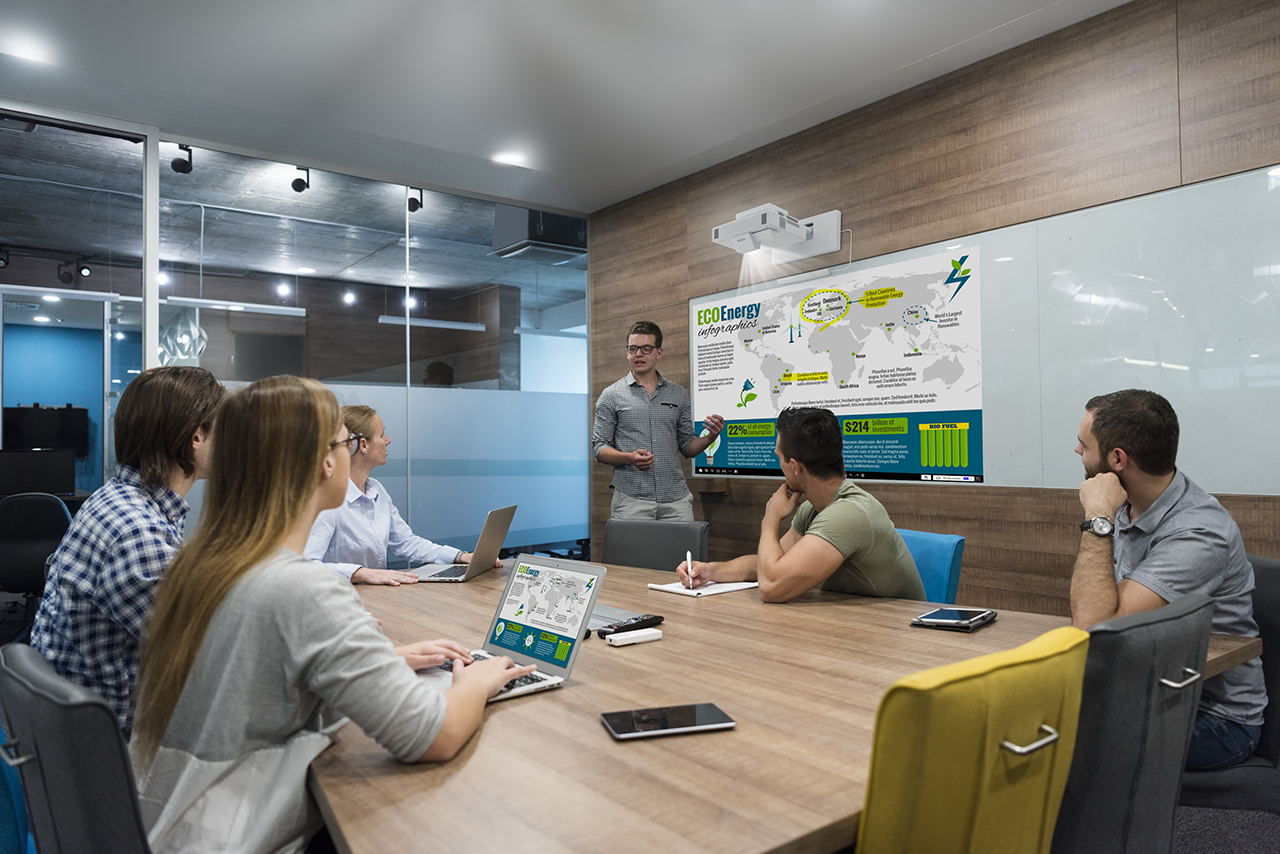

All-in-one interactive meeting display: Combines multiple resources in one interactive collaboration device

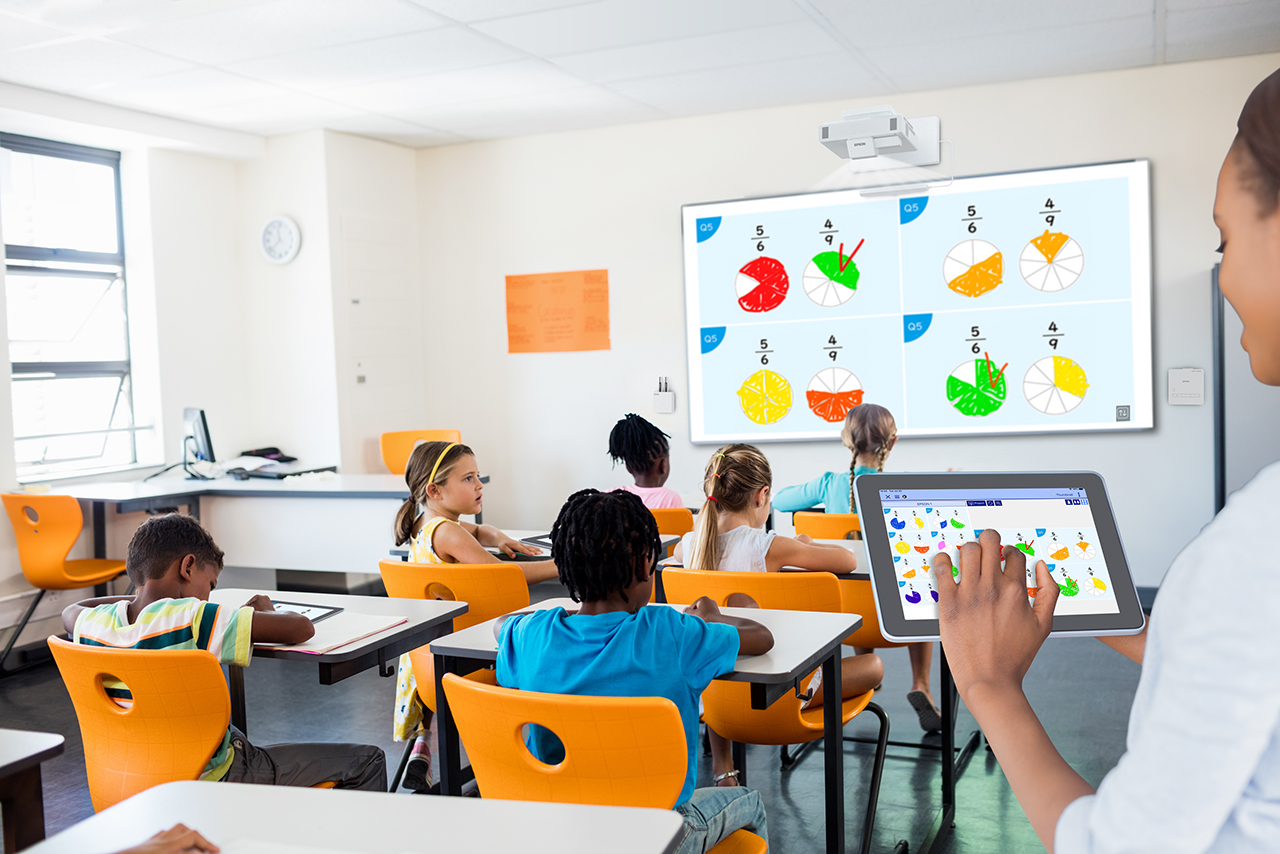

Increase productivity & agile working: Share and display content from a range of devices simultaneously
Sliding split screen: Up to four displays in one image - project images from different sources
Easy installation: Quick set-up with auto-adjusting calibration function

Product Properties

Manufacturer
Epson

Model
V11H919041

EAN
8715946673752

Bullet points

Point
All-in-one interactive meeting display

Easy installation: Quick set-up with auto-adjusting calibration function

Flexible display options and sizes: Cater for user needs in any working environment

Increase productivity & agile working

Sliding split screen: Up to four displays in one image - project images from different sources

Design

Cable lock slot
Y

Cable lock slot type
Kensington

Market positioning
Presentation

Placement
Wall

Product colour
White

Product type

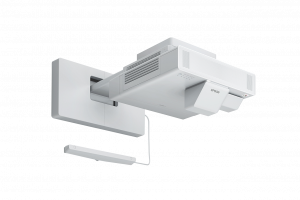

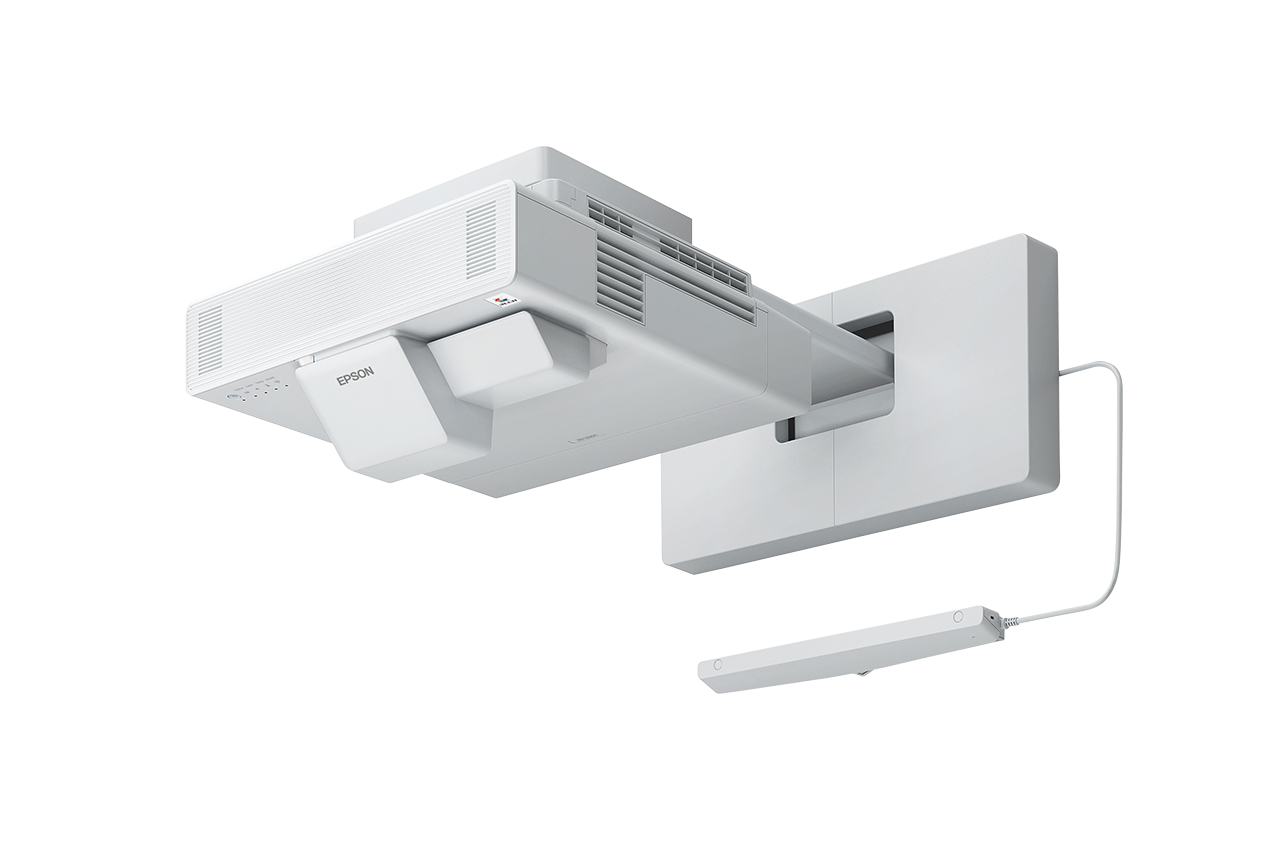

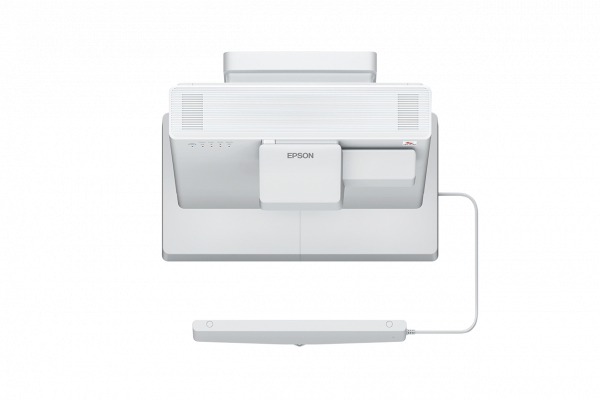

Ultra short throw projector

Display

Built-in display
N

Features

Air filter
Y

Compatible operating systems
Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04

Composite sync
Y

Country of origin
China

Noise level
37 dB

Noise level (economic mode)
28 dB

On Screen Display (OSD)
Y

Password protection
Y

Screen mirroring
Y

Lens system

Aperture range (F-F)
1.5 - 1.5

Fixed focal length
3.9 cm

Focus
Manual

Zoom capability
Y

Zoom ratio
1.35:1

Zoom type
Auto

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Y

RMS rated power
16 W

Network

Ethernet LAN
Y

Ethernet LAN (RJ-45) ports
1

Miracast
Y

Smart TV
N

Wi-Fi
Y

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Storage temperature (T-T)
-10 - 60 °C

Packaging content

Manual
Y

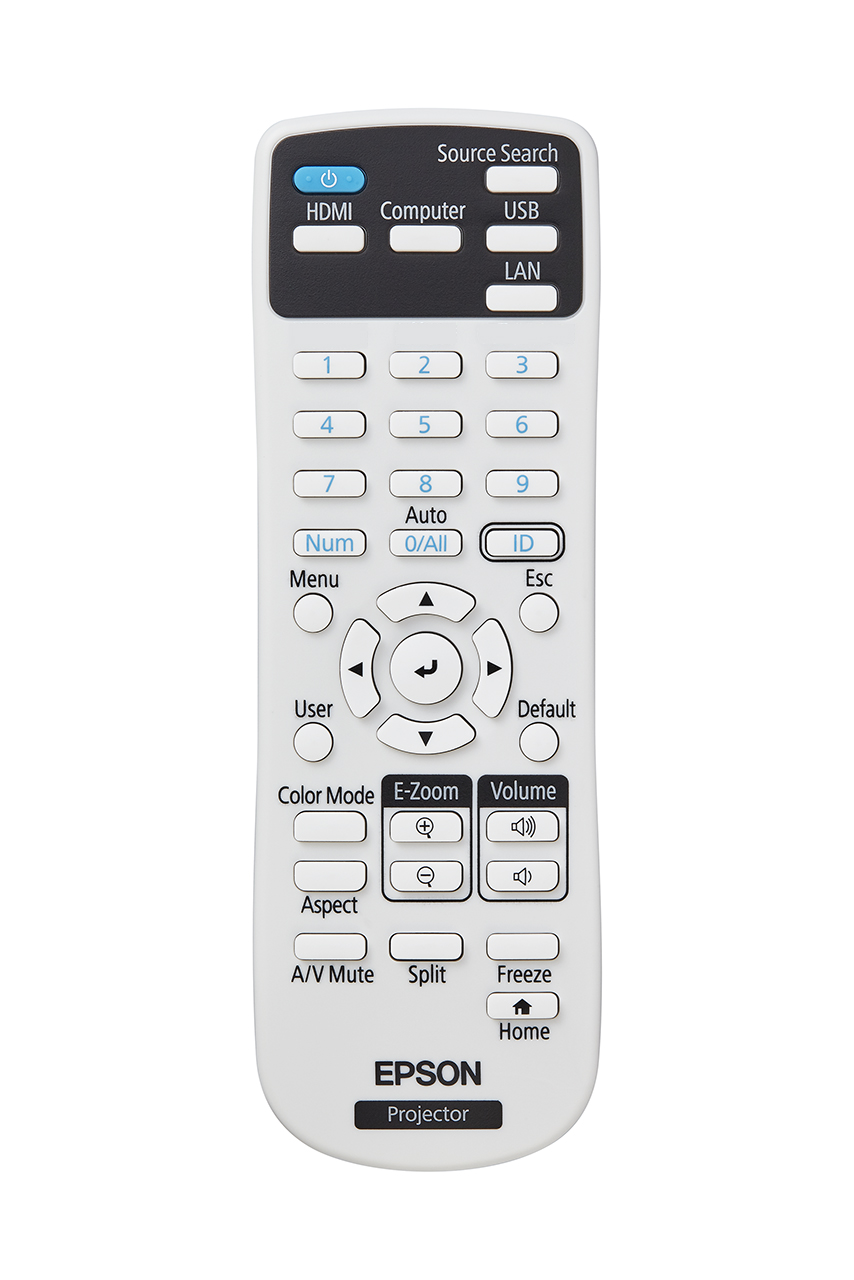

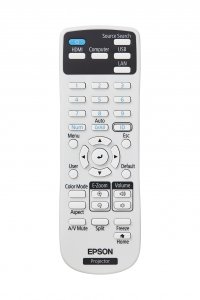

Remote control included
Y

Ports & interfaces

Component video (YPbPr/YCbCr) in
1

DC-in jack
Y

DVI port
N

HDBaseT port
Y

HDMI connector type
Full-size

HDMI ports
3

Microphone in
Y

PC Audio in
Y

PC Audio out
Y

Serial interface type
RS-232C

USB 2.0 ports quantity
2

USB 2.0 Type-B ports quantity
2

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
220 - 240 V

Power consumption (economy mode)
262 W

Power consumption (standby)
0.5 W

Power consumption (typical)
366 W

Power source
AC

Projector

Contrast ratio (typical)
2500000:1

Heat dissipation
1244 BTU/h

Keystone correction, horizontal
-3 - 3°

Keystone correction, vertical
-3 - 3°

Native aspect ratio
16:9

Number of colours
1.073 billion colours

Projection distance
0.4 - 0.4 m

Projection distance (wide)
0.6 - 0.6 m

Projection technology
3LCD

Projector brightness
5000 ANSI lumens

Projector brightness (economic mode)
3500 ANSI lumens

Projector native resolution
1080p (1920x1080)

Screen size compatibility
1651 - 3048 mm (65 - 120")

Storage

Card reader integrated
N

Video

Adjustable colour temperature
Y

Full HD
Y

Supported graphics resolutions
1920 x 1080 (HD 1080)

Supported video modes
1080p

Video colour modes
Blackboard, Cinema, Dynamic, Presentation, sRGB

Weight & dimensions

Depth
210 mm

Height
375 mm

Package depth
590 mm

Package height
640 mm

Package weight
27.7 kg

Package width
472 mm

Weight
9.3 kg

Width
458 mm

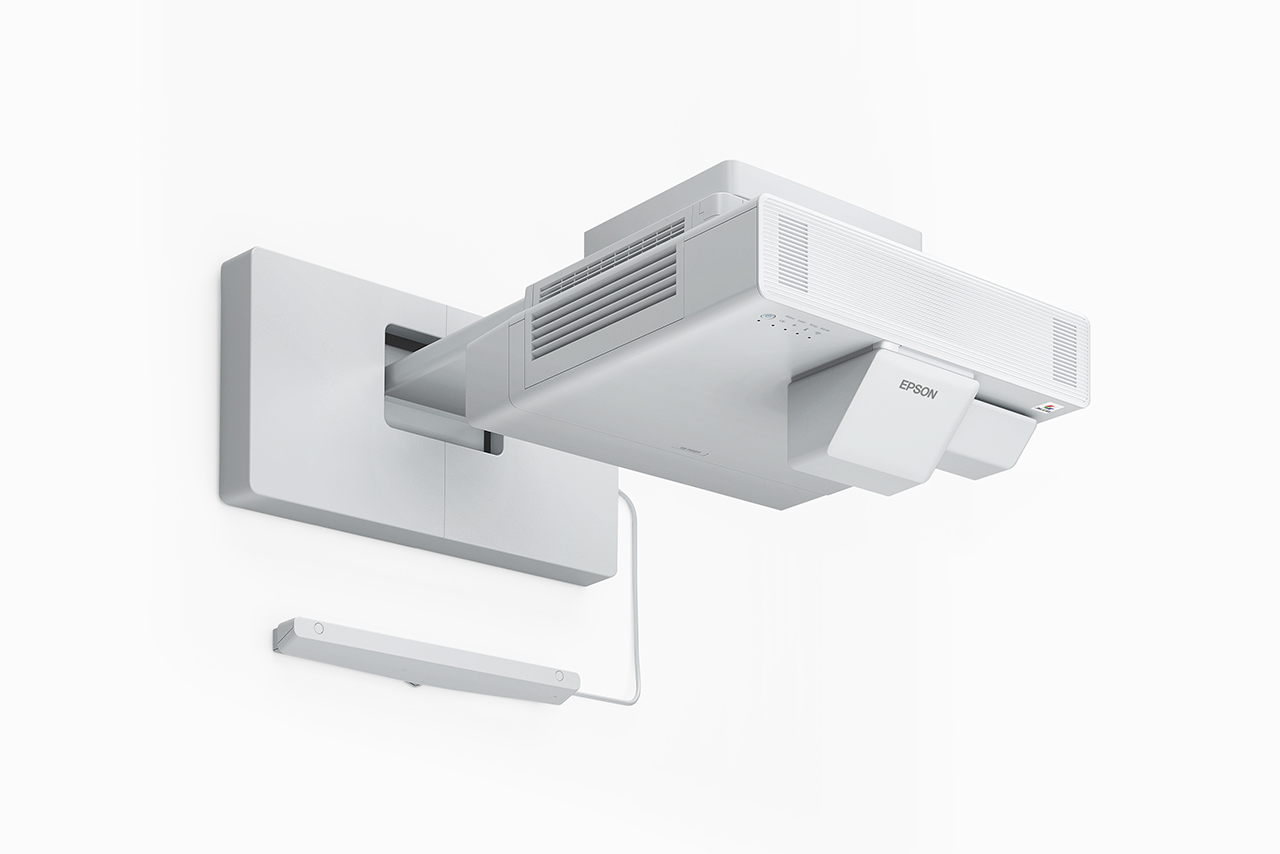

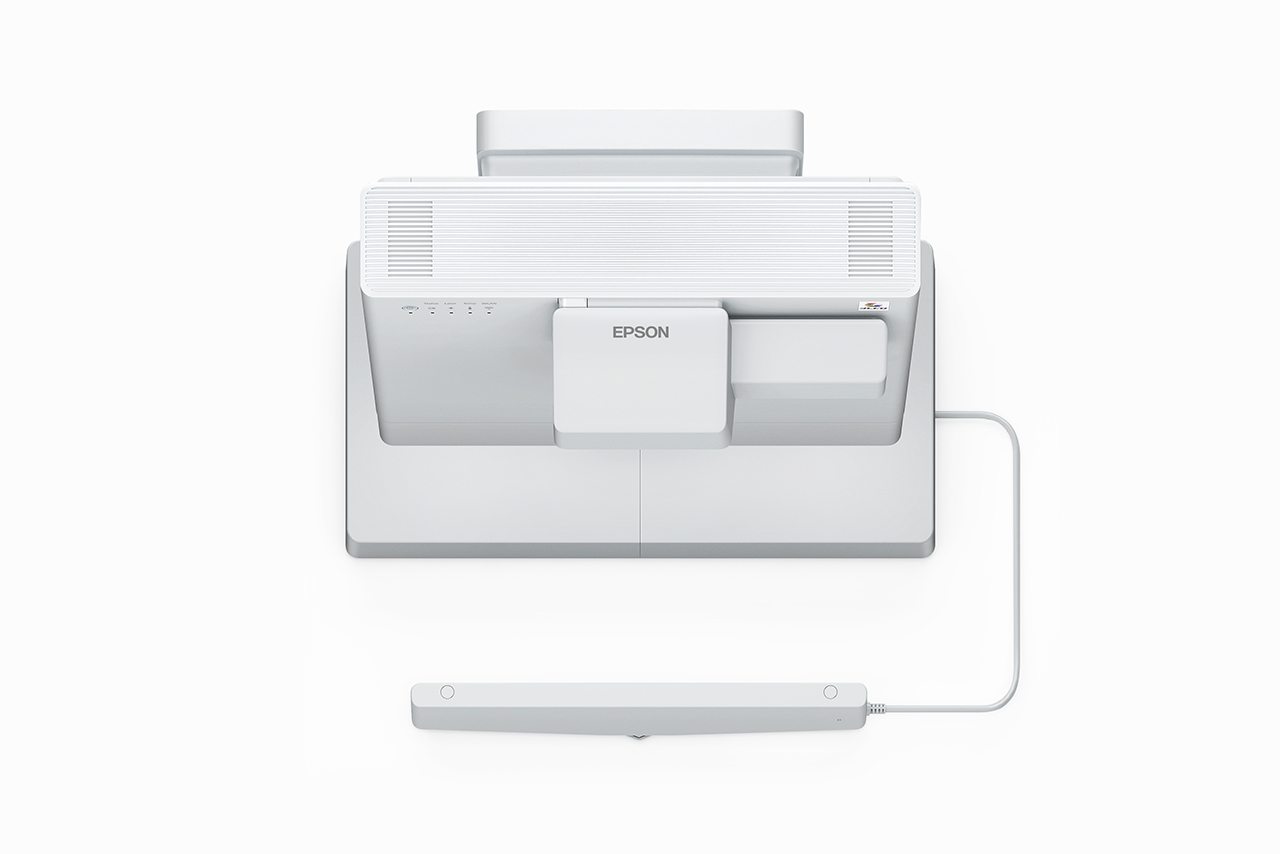

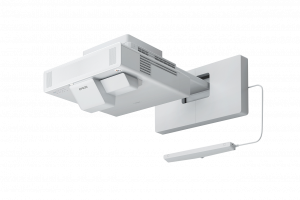

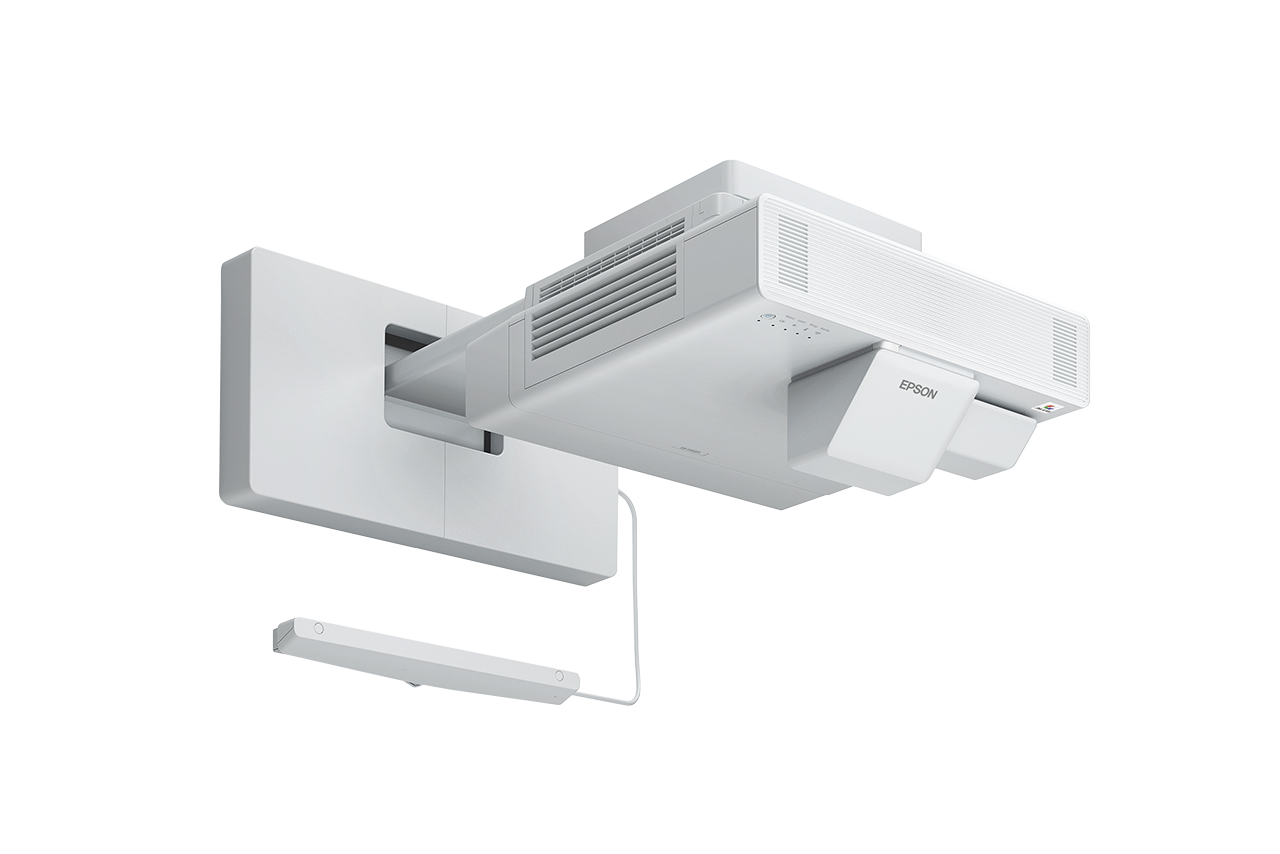

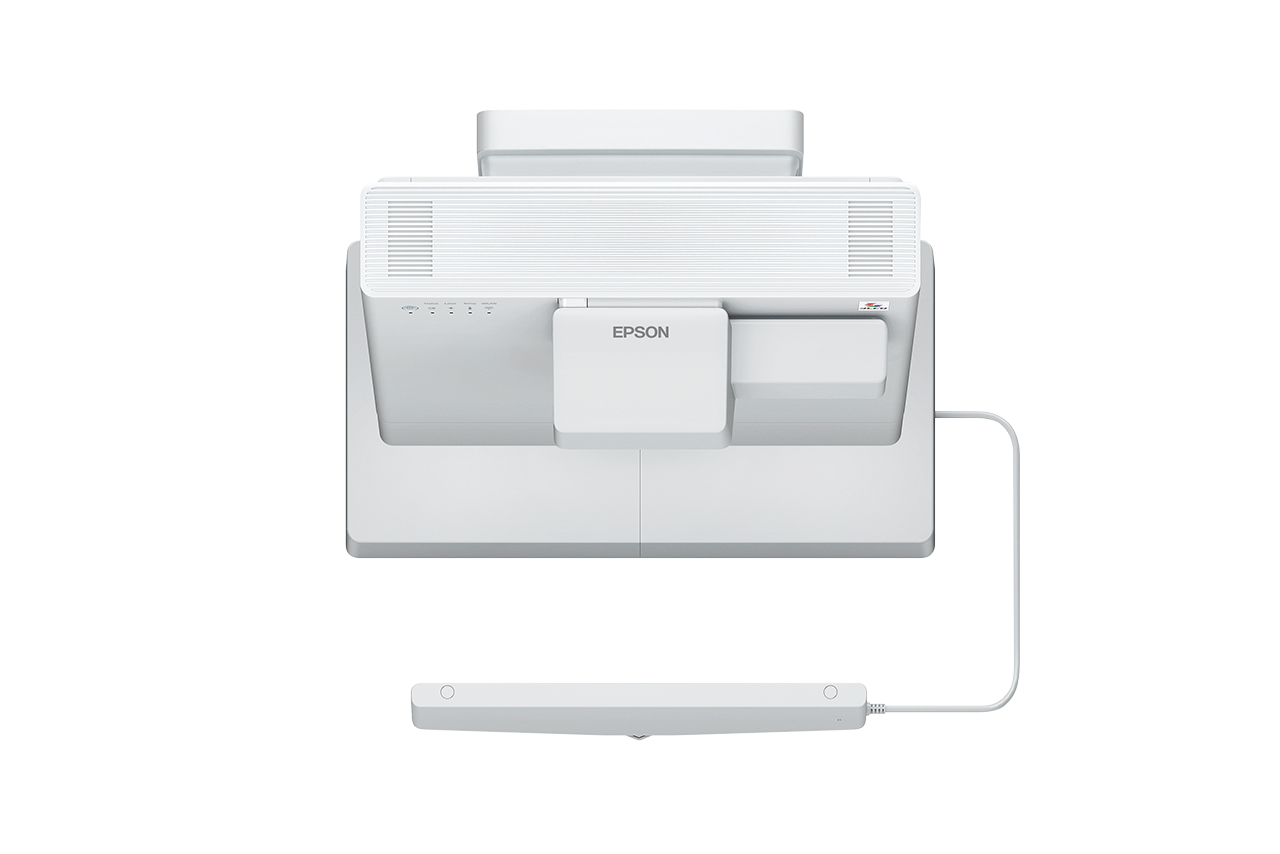

Epson EB-1485Fi data projector Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White
