Description

Epson EB-E20. Projector brightness: 3400 ANSI lumens, Projection technology: 3LCD, Projector native resolution: XGA (1024x768). Light source type: Lamp, Service life of light source: 6000 h, Service life of light source (economic mode): 12000 h. Focus: Manual, Fixed focal length: 1.67 cm, Zoom ratio: 1.35:1. Serial interface type: RS-232C, HDMI connector type: Full-size. Noise level: 37 dB, Noise level (economic mode): 28 dB, Preset modes: Blackboard, Dynamic, Presentation, Theatre, sRGB

High-quality bright images: 3LCD technology and equally high White and Colour Light Output
Portable: Small and light enough to be moved easily and used in multiple rooms
High quality sound: Built-in 5W speaker for crisp, clear sound
Low total cost of ownership: Lamp life up to 12,000 hours in Eco mode
Versatile and flexible control: Project from many sources with HDMI

Product Properties

Manufacturer
Epson

Model
V11H981040

EAN
8715946680743

Bullet points

Point
High quality sound: Built-in 5W speaker for crisp, clear sound

High-quality bright images: 3LCD technology and equally high white and colour light output

Low total cost of ownership: Lamp life up to 12,000 hours in Eco mode

Portable: Small and light enough to be moved easily and used in multiple rooms

Versatile and flexible control: Project from many sources with HDMI

Design

Cable lock slot
Y

Cable lock slot type
Kensington

Market positioning
Portable

Placement
Desktop, Ceiling

Product colour
White

Product type
Standard throw projector

Display

Built-in display
N

Features

Noise level
37 dB

Noise level (economic mode)
28 dB

On Screen Display (OSD)
Y

Password protection
Y

Preset modes
Blackboard, Dynamic, Presentation, Theatre, sRGB

Lens system

Fixed focal length
1.67 cm

Focus
Manual

Throw ratio
1.44 - 1.95:1

Zoom capability
Y

Zoom ratio
1.35:1

Light source

Lamp power
210 W

Lamp type
UHE

Light source type
Lamp

Service life of light source
6000 h

Service life of light source (economic mode)
12000 h

Logistics data

Harmonized System (HS) code
85286200

Multimedia

Built-in speaker(s)
Y

Number of built-in speakers
1

RMS rated power
5 W

Network

Ethernet LAN
N

Smart TV
N

Wi-Fi
N

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 40 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Packaging content

Batteries included
Y

Cables included
AC, VGA

Remote control included
Y

Ports & interfaces

AC (power) in
Y

Composite video in
1

DVI port
N

HDMI connector type
Full-size

HDMI ports
1

PC Audio in
Y

PC Audio out
Y

PC in (D-Sub)
Y

Serial interface type
RS-232C

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
3

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (economy mode)
225 W

Power consumption (typical)
327 W

Power source
AC

Projector

Contrast ratio (typical)
15000:1

Keystone correction, horizontal
-30 - 30°

Keystone correction, vertical
-30 - 30°

Matrix size
1.4 cm (0.55")

Native aspect ratio
4:3

Number of colours
1.073 billion colours

Projection technology
3LCD

Projector brightness
3400 ANSI lumens

Projector native resolution
XGA (1024x768)

Screen size compatibility
762 - 8890 mm (30 - 350")

Supported aspect ratios
4:3

Vertical scan range
100 - 120 Hz

Storage

Card reader integrated
N

Video

Full HD
N

Weight & dimensions

Depth
282 mm

Height
87 mm

Weight
2.7 kg

Width
309 mm

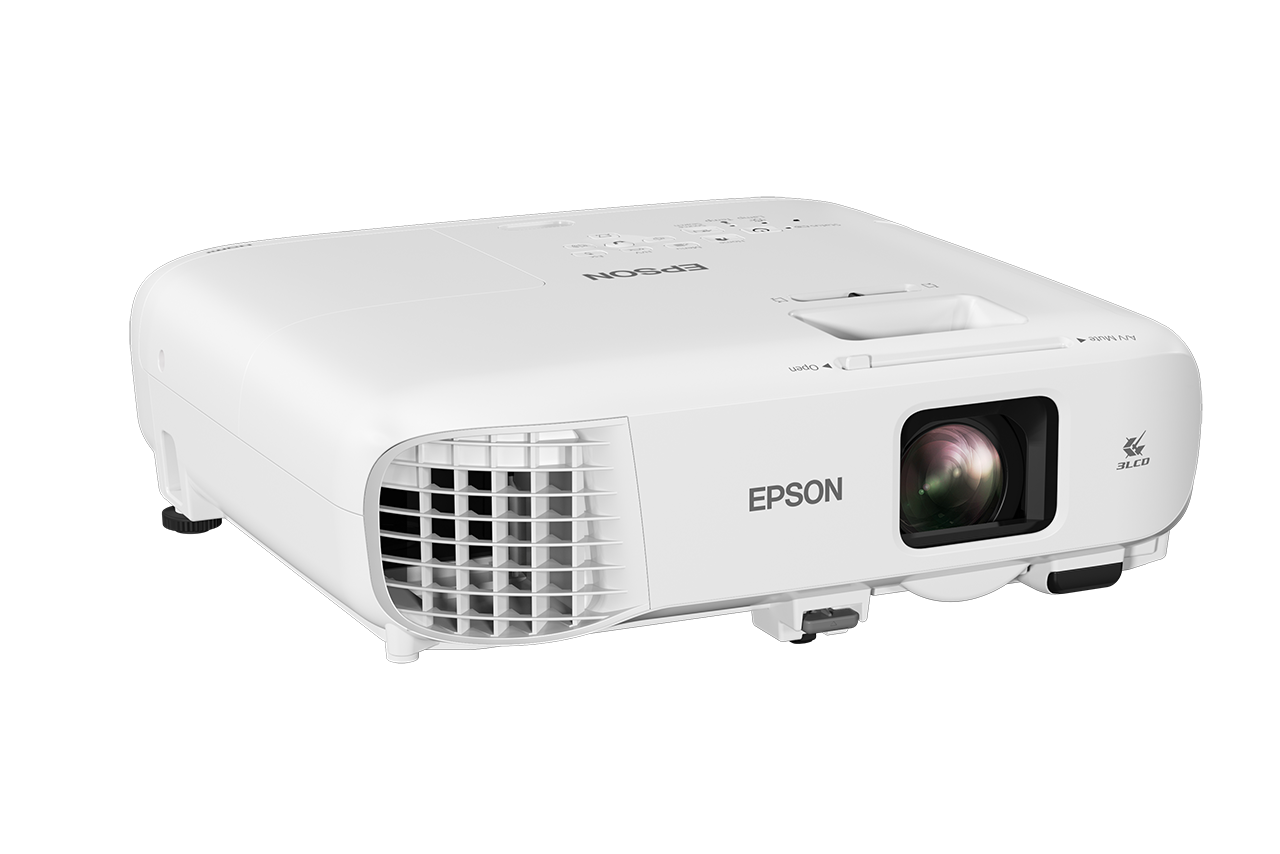

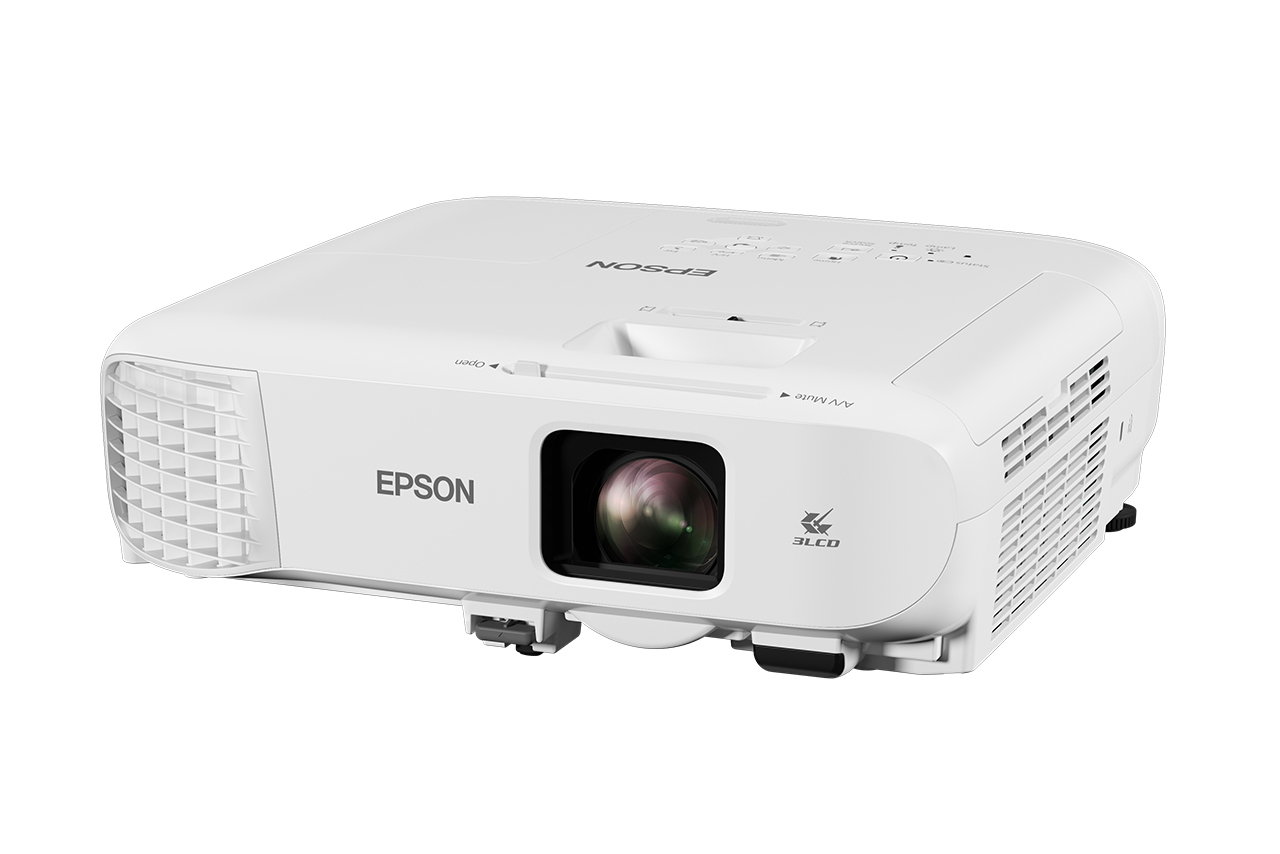

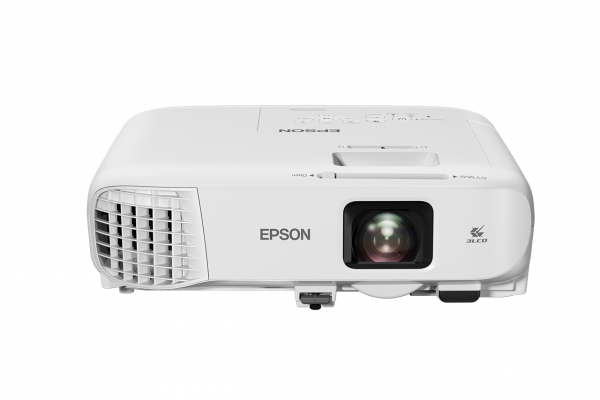

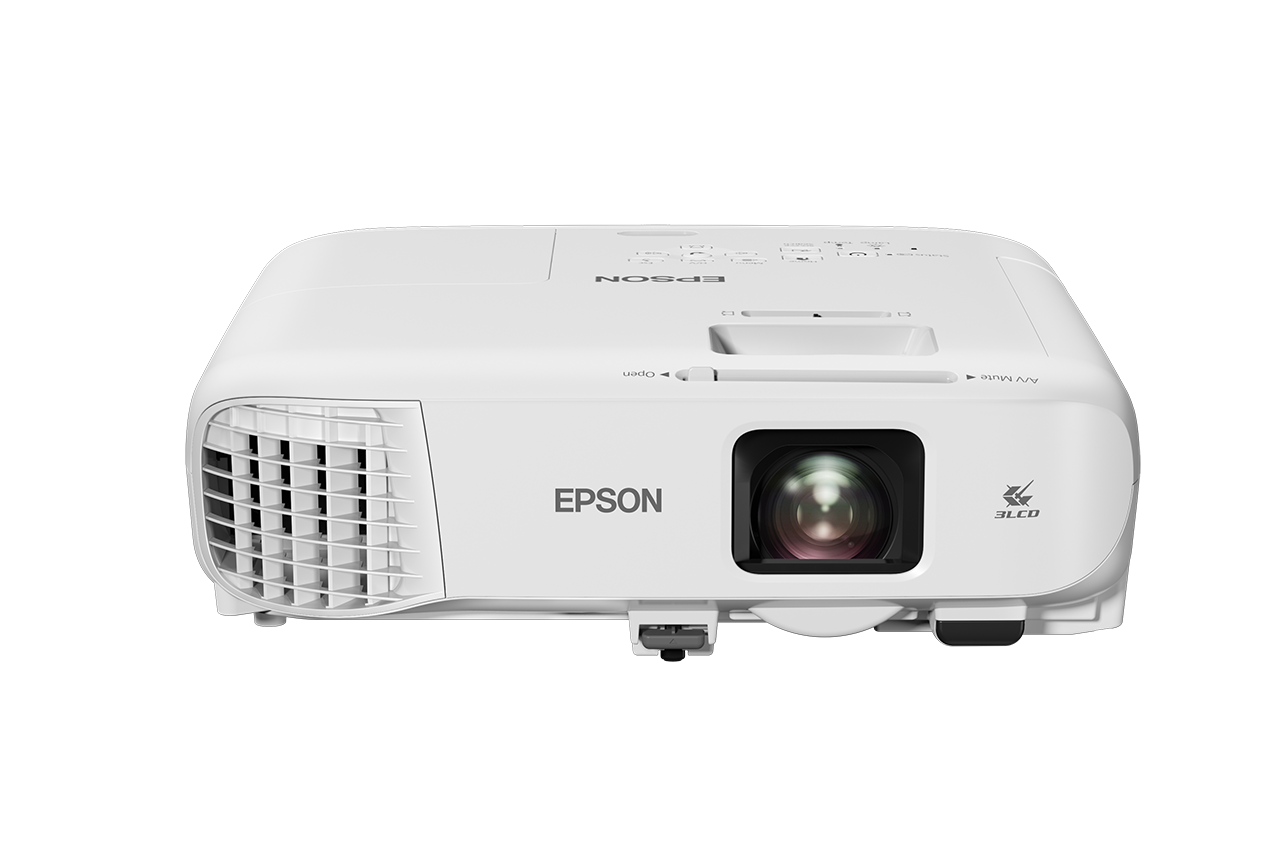

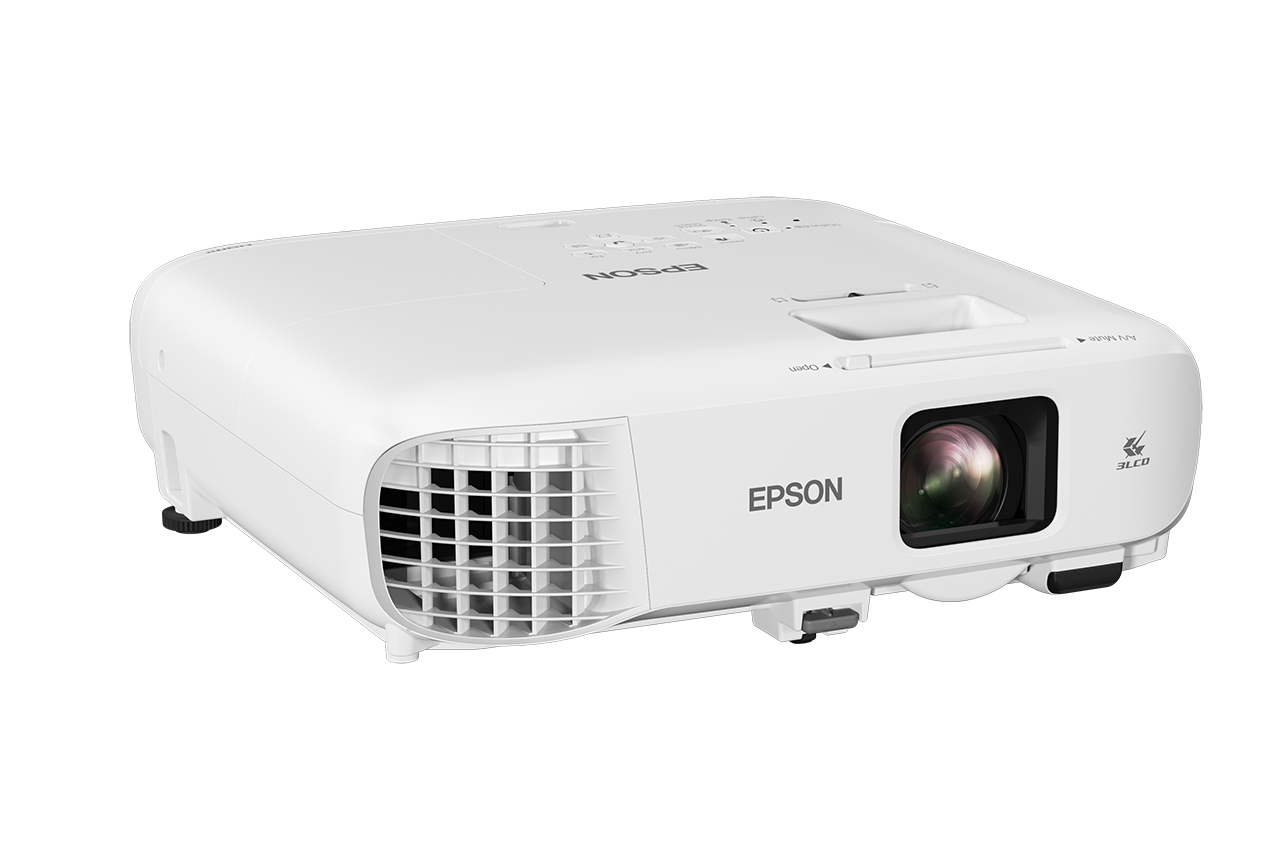

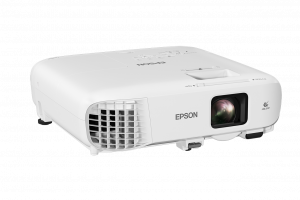

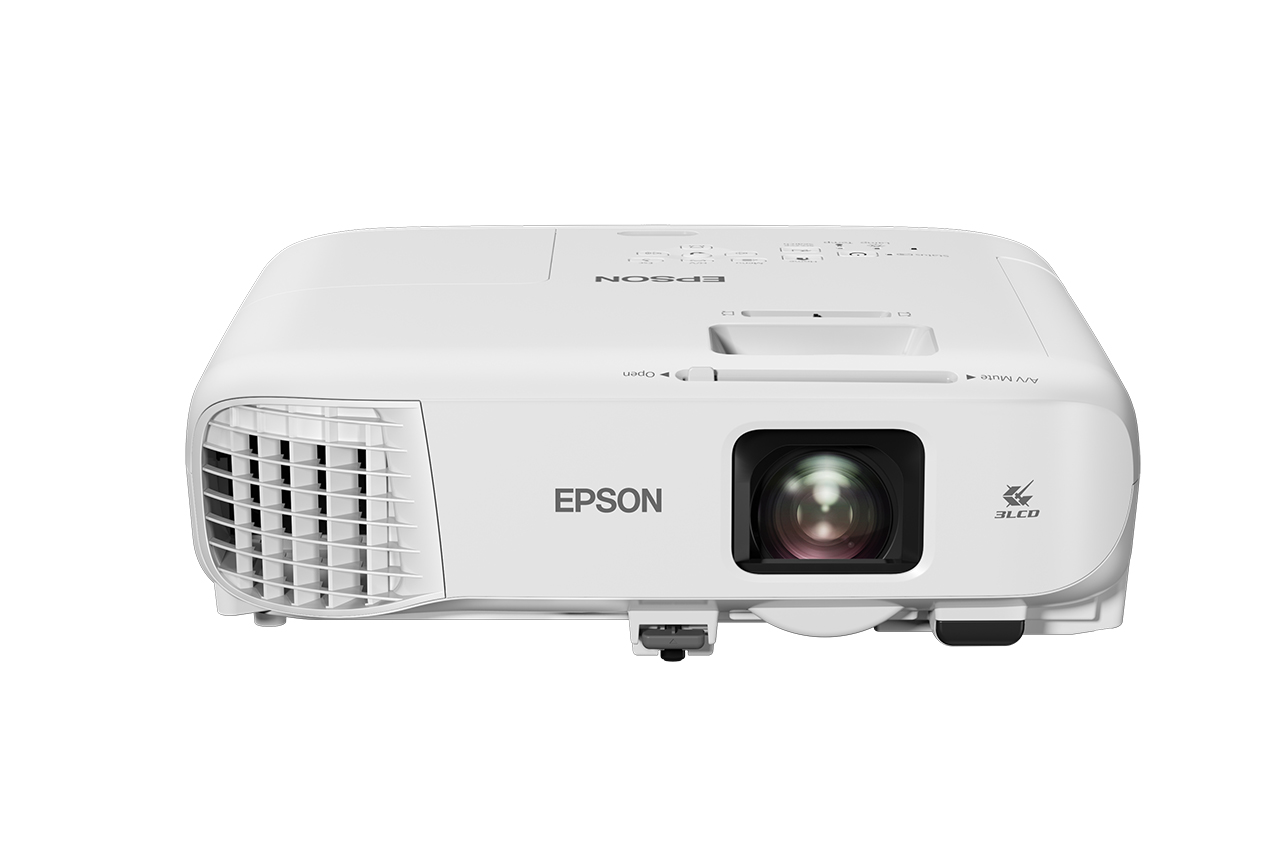

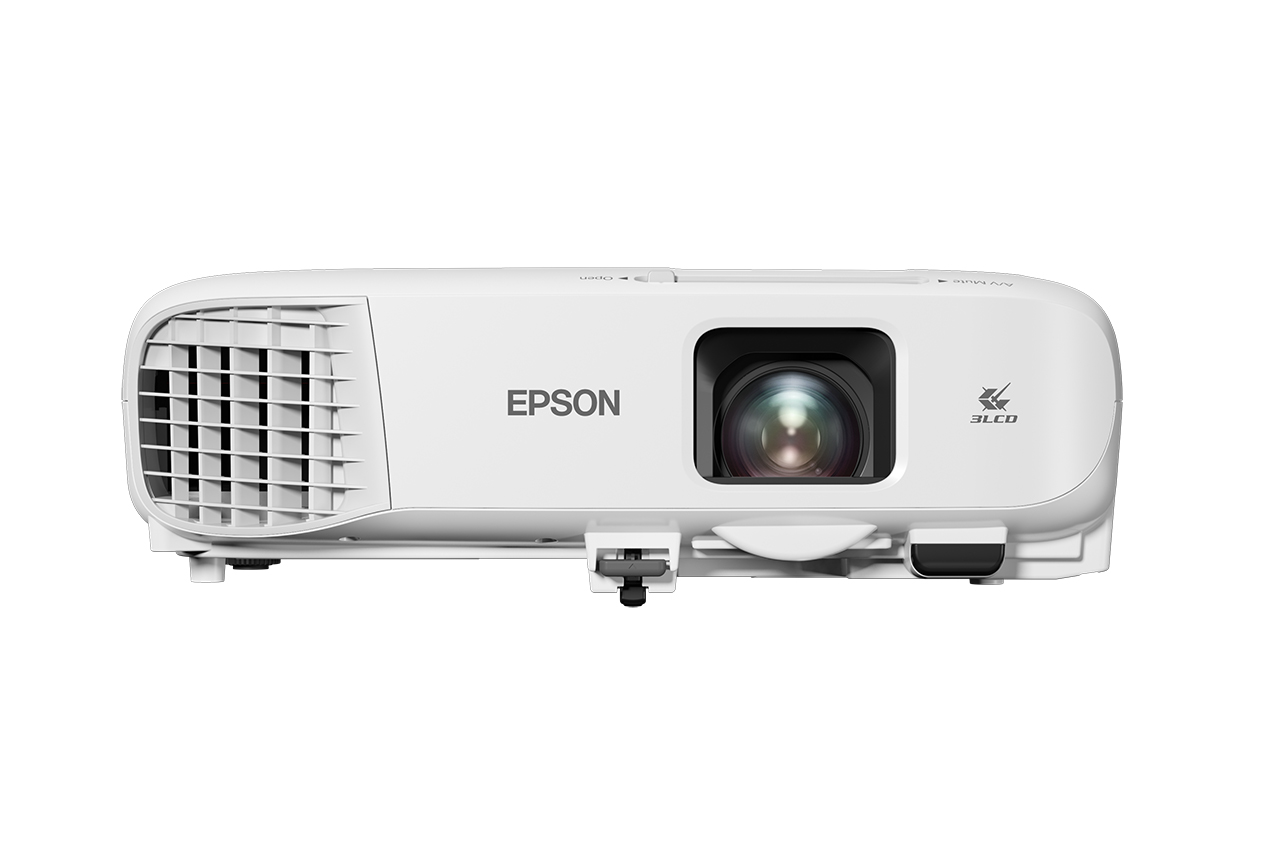

Epson EB-E20 data projector Standard throw projector 3400 ANSI lumens 3LCD XGA (1024x768) White
