Description

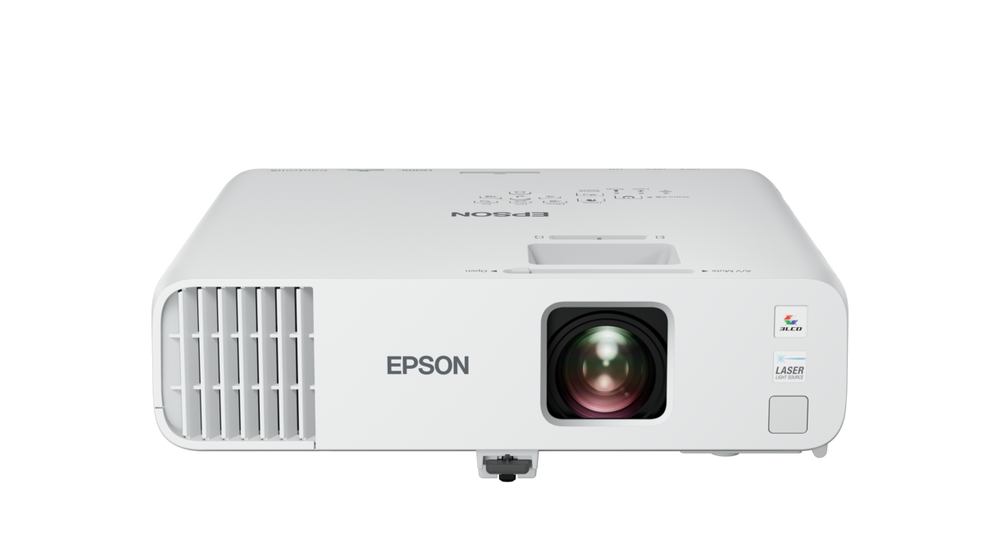

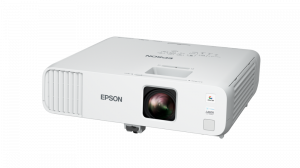

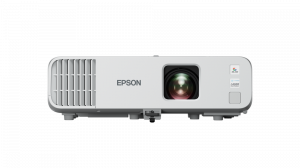

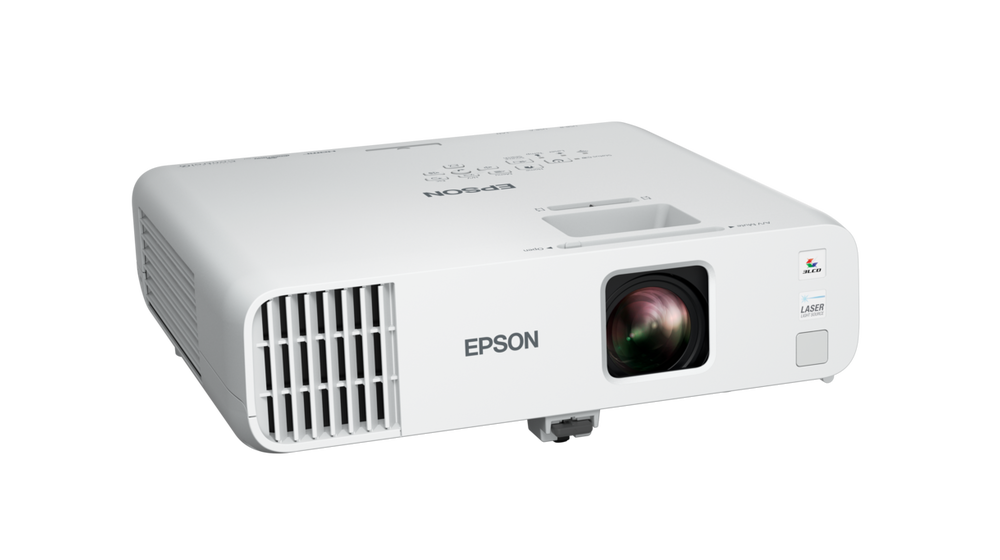

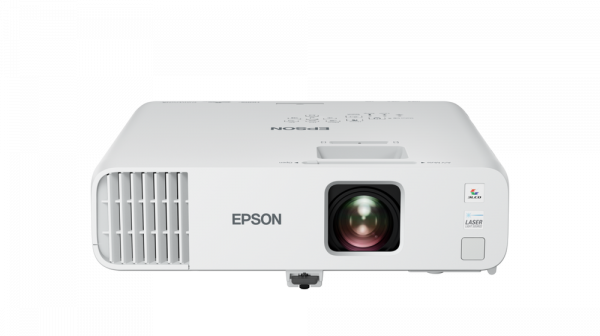

Epson EB-L260F. Projector brightness: 4600 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 18.2 - 29.1 mm, Aperture range (F-F): 1.51 - 1.77. Video colour modes: Blackboard, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB. Serial interface type: RS-232C

4,600 lumens brightness display Full HD crisp images and bright colours, even in well-lit rooms
A scalable display Flexibile scalable display from 31 inches up to 310 inches
Stream content easily Wireless, MTR auto power-on by HDMI and easy smart stick connection
Fit and forget reliability Easy installation with multi-projection and signage function
The complete solution With an incredible contrast ratio of 2,500,000:1, the EB-L260F delivers vivid, lifelike content and defined shadow detail with deeper blacks

Product Properties

Manufacturer
Epson

Model
V11HA69080

EAN
8715946715452

Bullet points

Point
4,600 lumens brightness display Full HD crisp images and bright colours, even in well-lit rooms

A scalable display Flexibile scalable display from 31 inches up to 310 inches

Fit and forget reliability Easy installation with multi-projection and signage function

Stream content easily Wireless, MTR auto power-on by HDMI and easy smart stick connection

The complete solution With an incredible contrast ratio of 2,500,000

Design

Cable lock slot
Y

Cable lock slot type
Kensington

Placement
Ceiling, Desktop, Floor, Wall

Product colour
White

Display

Built-in display
Y

Colour depth
10 bit

Display
LCD

Screen Size
1.57 cm (0.62")

Features

HDCP
Y

Noise level
37 dB

Noise level (economic mode)
27 dB

On Screen Display (OSD)
Y

Password protection
Y

Projection modes
Ceiling

Screen mirroring
Y

Lens system

Aperture range (F-F)
1.51 - 1.77

Focal length range
18.2 - 29.1 mm

Focus
Manual

Offset
1000%

Throw ratio
1.32 - 2.12:1

Zoom capability
Y

Zoom ratio
1:1.62

Zoom type
Manual

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Y

RMS rated power
16 W

Network

Ethernet LAN
Y

Ethernet LAN (RJ-45) ports
1

Miracast
Y

Wi-Fi
Y

Wi-Fi standards
Wi-Fi 5 (802.11ac)

Operational conditions

Operating temperature (T-T)
20 - 80 °C

Storage temperature (T-T)
10 - 90 °C

Packaging content

Batteries included
Y

Bundled software
Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management

Cables included
HDMI, Power

Remote control included
Y

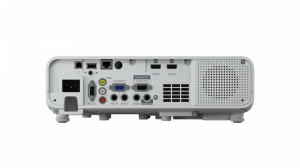

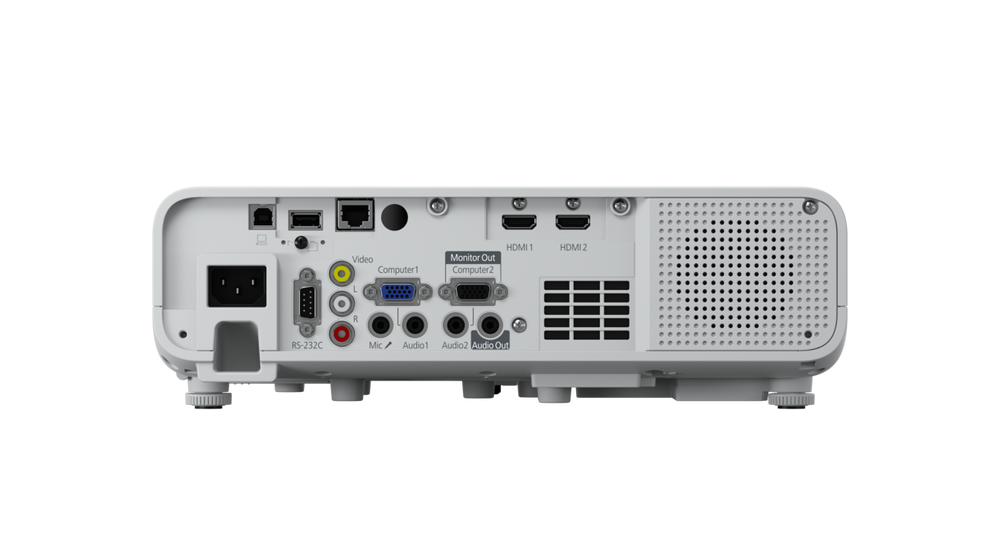

Ports & interfaces

Audio (L/R) in
2

Audio (L/R) out
1

Audio Return Channel (ARC)
Y

Composite video in
1

HDMI ports
2

HDMI version
2.2

Microphone in
Y

Serial interface type
RS-232C

USB 2.0 ports quantity
2

USB 2.0 Type-A ports quantity
1

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
220 - 240 V

Power consumption (economy mode)
191 W

Power consumption (standby)
0.5 W

Power consumption (typical)
260 W

Power source
AC

Projector

Contrast ratio (typical)
2500000:1

Heat dissipation
884 BTU/h

Keystone correction, horizontal
30°

Keystone correction, vertical
30°

Native aspect ratio
16:9

Number of colours
1.07 billion colours

Projection distance (wide)
88 - 906 m

Projection technology
3LCD

Projector brightness
4600 ANSI lumens

Projector native resolution
1080p (1920x1080)

Screen size compatibility
787.4 - 7874 mm (31 - 310")

Smart projector
Y

Vertical scan range
192 - 240 Hz

Video

Full HD
Y

Video colour modes
Blackboard, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB

Weight & dimensions

Depth
299 mm

Height
90 mm

Weight
4.2 kg

Width
325 mm

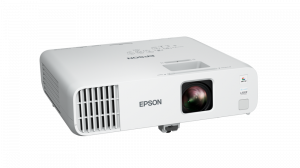

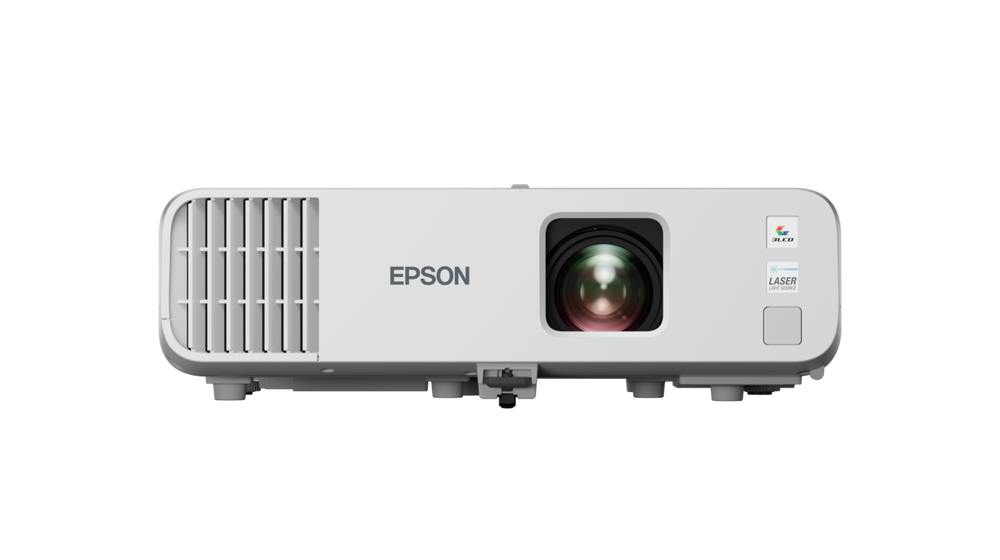

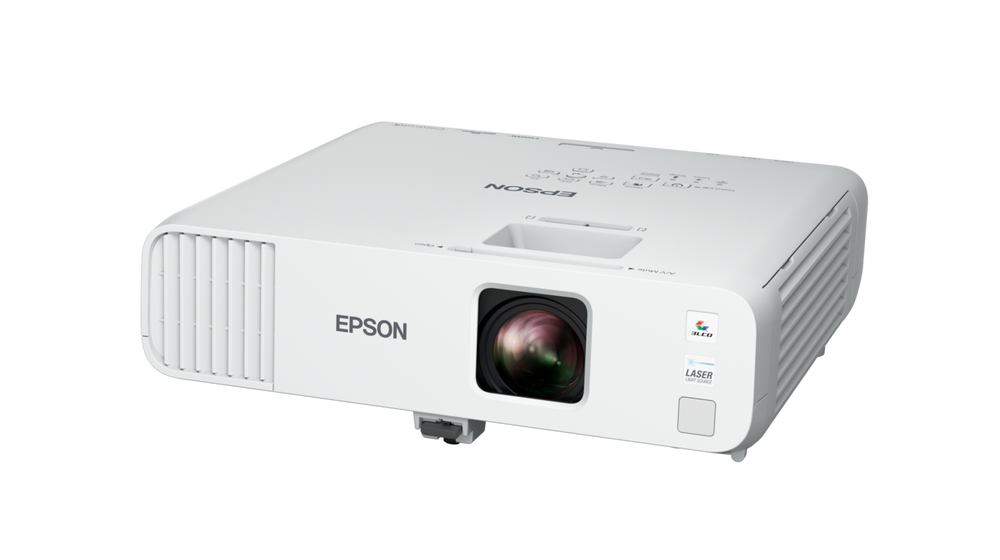

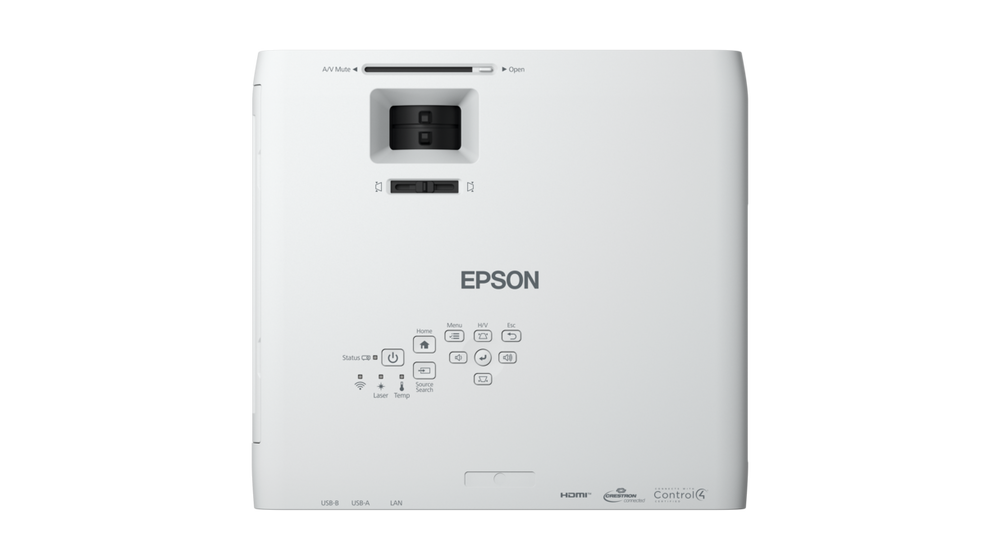

Epson EB-L260F data projector 4600 ANSI lumens 3LCD 1080p (1920x1080) White
