Description

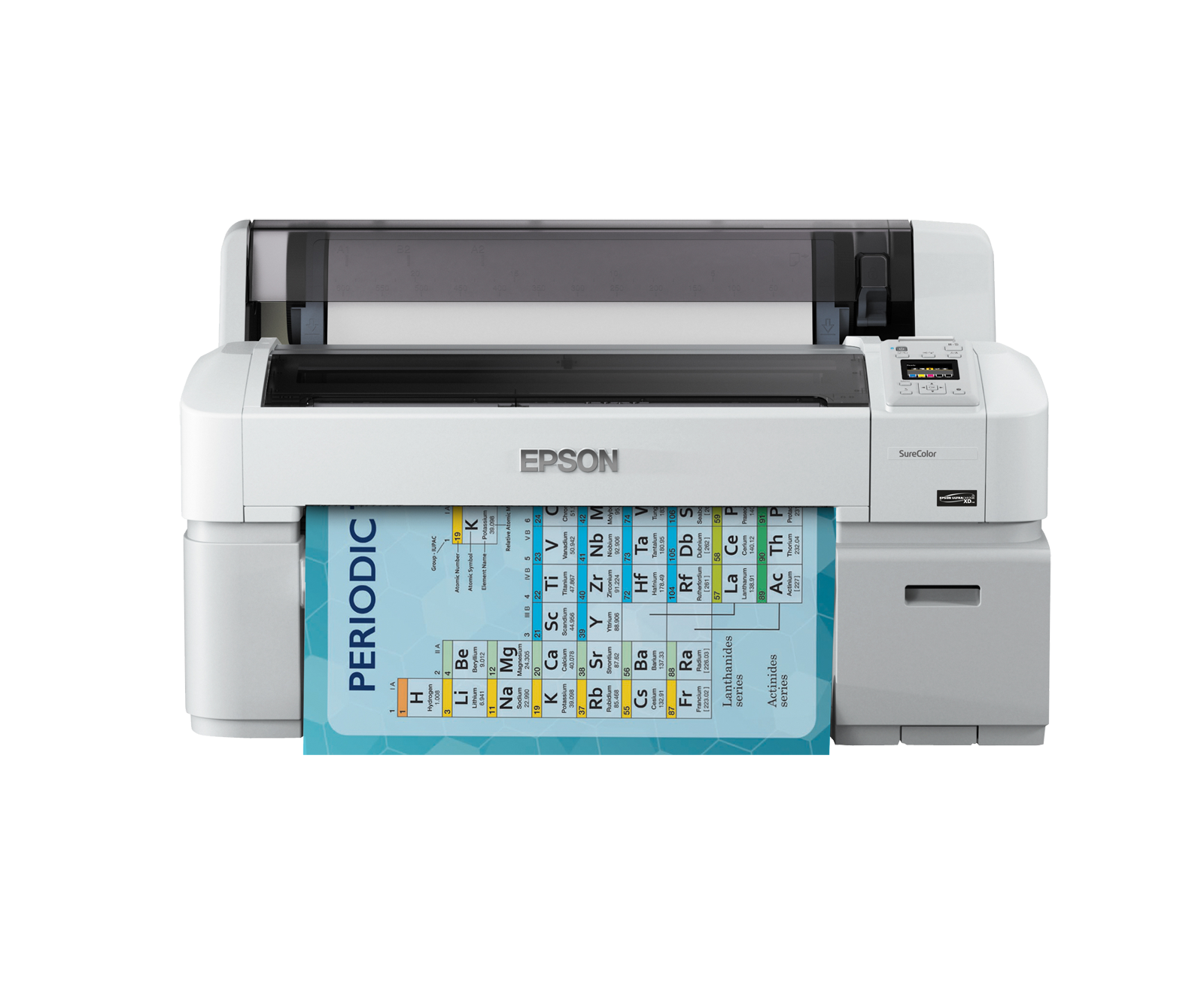

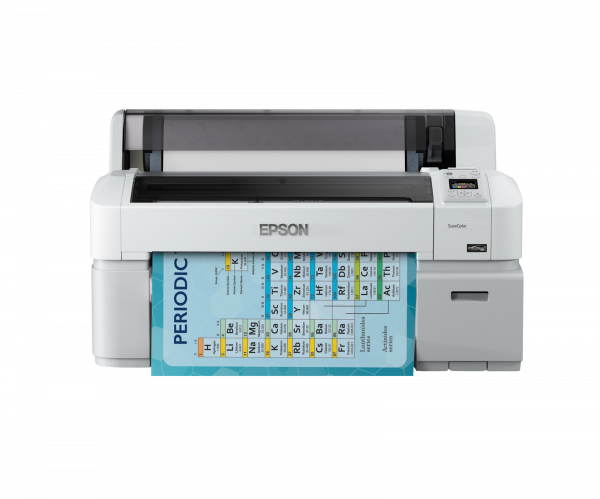

Epson SureColor SC-T3200 w/o stand. Print technology: Inkjet, Maximum resolution: 2880 x 1440 DPI, Page description languages: ESC/P-R, HP-GL/2, HP-RTL, PostScript 3. Maximum print size: A1 (594 x 841 mm), ISO A-series sizes (A0...A9): A1, A2, A3, A4, ISO B-series sizes (B0...B9): B2, B3, B4. Ethernet interface type: Gigabit Ethernet, USB connector: USB Type-A, Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Silver, Display: LCD, Display diagonal: 6.81 cm (2.68"). Power consumption (standby): 3 W, Power consumption (typical): 52 W, Power consumption (off): 0.5 W

Fast processing: High-speed printing of Graphics, CAD and GIS applications
Large-capacity ink cartridges: A choice of 110, 350 and 700 ml sizes mean a low TCO
PrecisionCore TFP printhead: Permanent printhead for duration of printer lifetime
UltraChrome XD inks: Produce quality, vibrant, smudge- and water-resistant images
PostScript support with 2x1.6GHz CPUs: Print multiple formats, including data-rich files, quickly and directly

Product Properties

Manufacturer
Epson

Model
C11CD66301A1

EAN
8715946544052

Bullet points

Point
Fast processing: High-speed printing of Graphics, CAD and GIS applications

Large-capacity ink cartridges: A choice of 110, 350 and 700 ml sizes mean a low TCO

PostScript support with 2x1.6GHz CPUs

PrecisionCore TFP printhead: Permanent printhead for duration of printer lifetime

UltraChrome XD inks: Produce quality, vibrant, smudge- and water-resistant images

Input & output capacity

Maximum number of input trays
1

Logistics data

Harmonized System (HS) code
84433210

Quantity per pack
1 pc(s)

Other features

Number of power supply units
1

Packaging data

Bundled software
LFP Accounting Tool (Free download from Epson website), HDD Utility Software (Free download from Epson website), LFP Remote Panel 2, EpsonNet Config, LFP Print Plug-In for Office, Remote Manager (Accessed via browser)

Cartridge(s) included
Y

Drivers included
Y

Manual
Y

Package depth
1170 mm

Package height
820 mm

Package weight
77 kg

Package width
980 mm

Quick start guide
Y

Paper handling

Cut sheets
Y

ISO A-series sizes (A0...A9)
A1, A2, A3, A4

ISO B-series sizes (B0...B9)
B2, B3, B4

Max Paper Size
A1 (594 x 841 mm)

Media thickness
0.08 - 1.5 mm

Media width (sheets)
3 mm

Print margin cut-sheet
14 mm

Roll paper
Y

Roll top margin
3 mm

Performance

Built-in display
Y

Country of origin
China

Display
LCD

Display diagonal
6.81 cm (2.68")

Internal memory
1024 MB

Product colour
Silver

Sound pressure level (printing)
50 dB

Ports & interfaces

Direct printing
Y

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Y

Ethernet LAN data rates
10,100,1000 Mbit/s

USB 2.0 ports quantity
1

USB connector
USB Type-A

USB port
Y

Wi-Fi
N

Power

Power consumption (off)
0.5 W

Power consumption (standby)
3 W

Power consumption (typical)
52 W

Printing

Colour
Y

Page description languages
ESC/P-R, HP-GL/2, HP-RTL, PostScript 3

Print Quality
2880 x 1440 DPI

Print Technology
Inkjet

Product Colour
Cyan, Magenta, Matte black, Photo black, Yellow

System requirements

Linux operating systems supported
Y

Mac operating systems supported
Mac OS X 10.5 Leopard

Windows operating systems supported
Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64, Windows XP

Weight & dimensions

Depth
691 mm

Height
613 mm

Weight
54 kg

Width
1050 mm
