Description

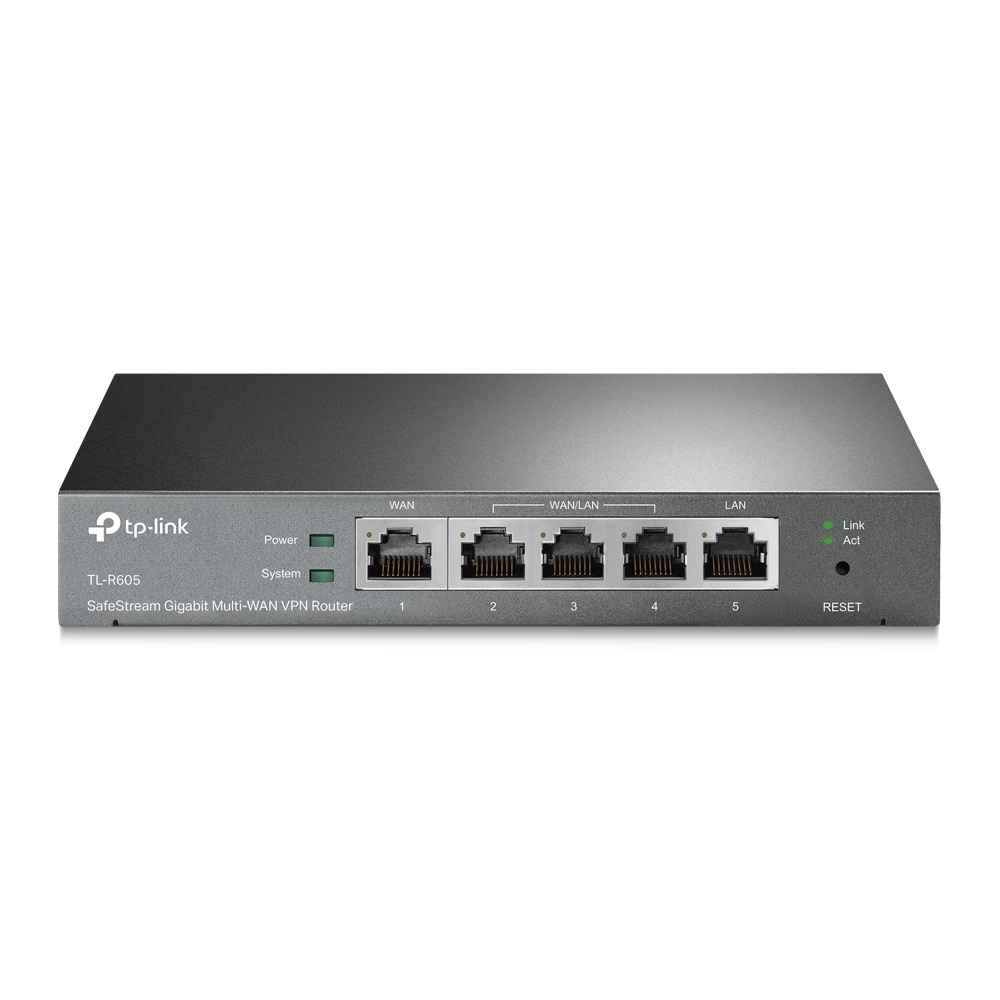

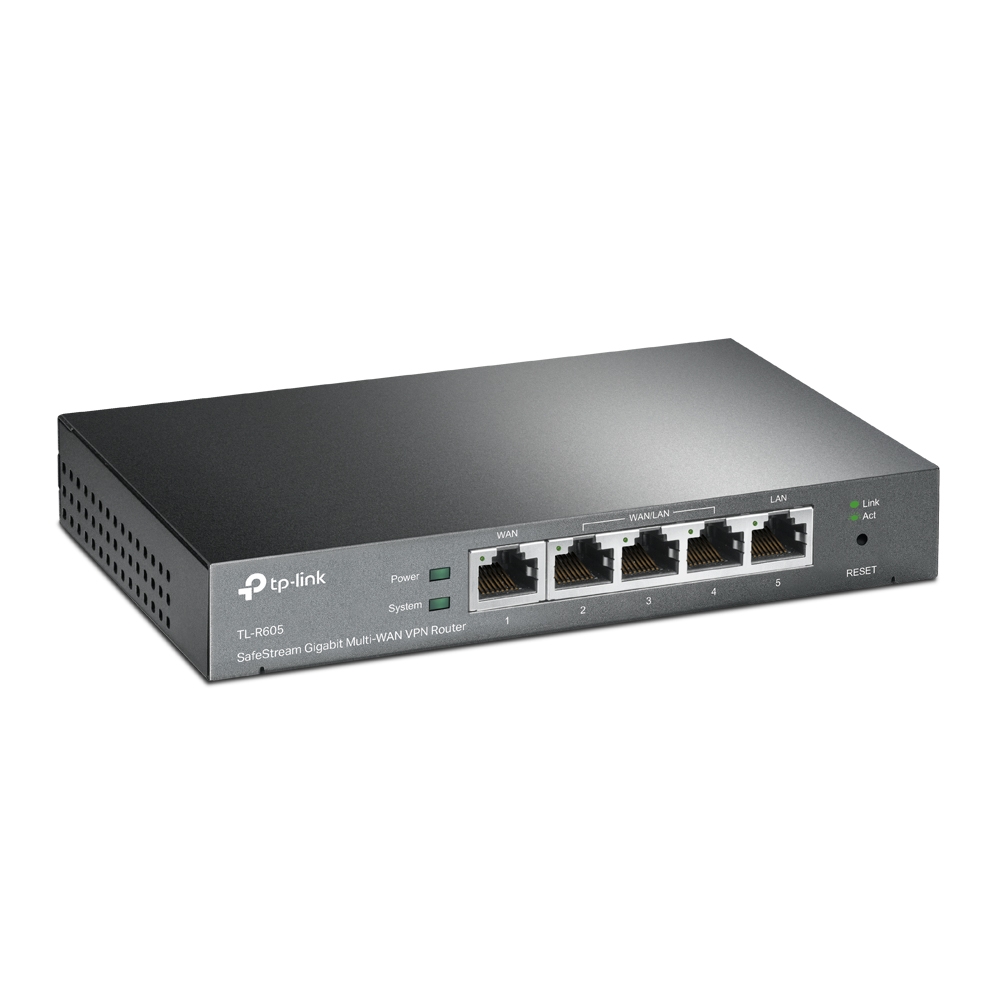

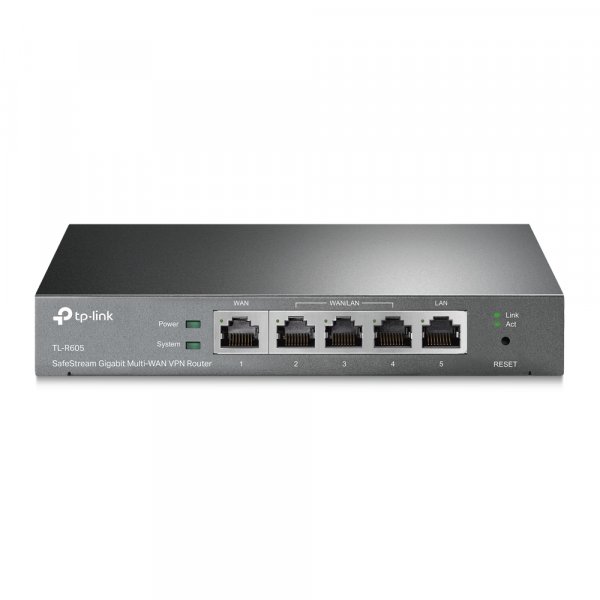

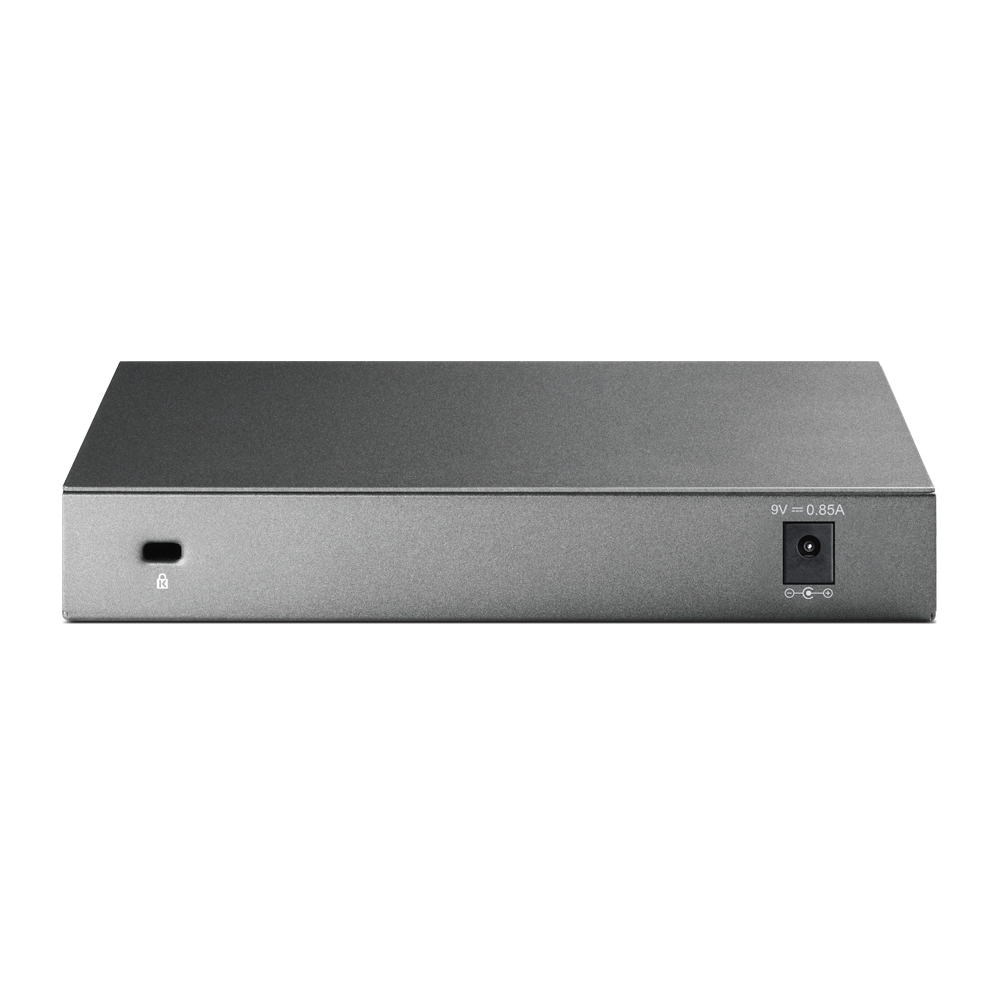

TP-Link SafeStream Gigabit Multi-WAN VPN Router. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Security algorithms: FTPES, SIPS, NAT functionality: One-to-One NAT5 Multi-Net NAT Virtual Server Port Triggering5 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP.... Flash memory: 128 MB, Internal memory: 256 MB, Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows Vista, Windows XP. Product colour: Black, LED indicators: LAN, Power, Status, WAN. Power source type: DC, Input current: 1 A, Output voltage: 12 V

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring

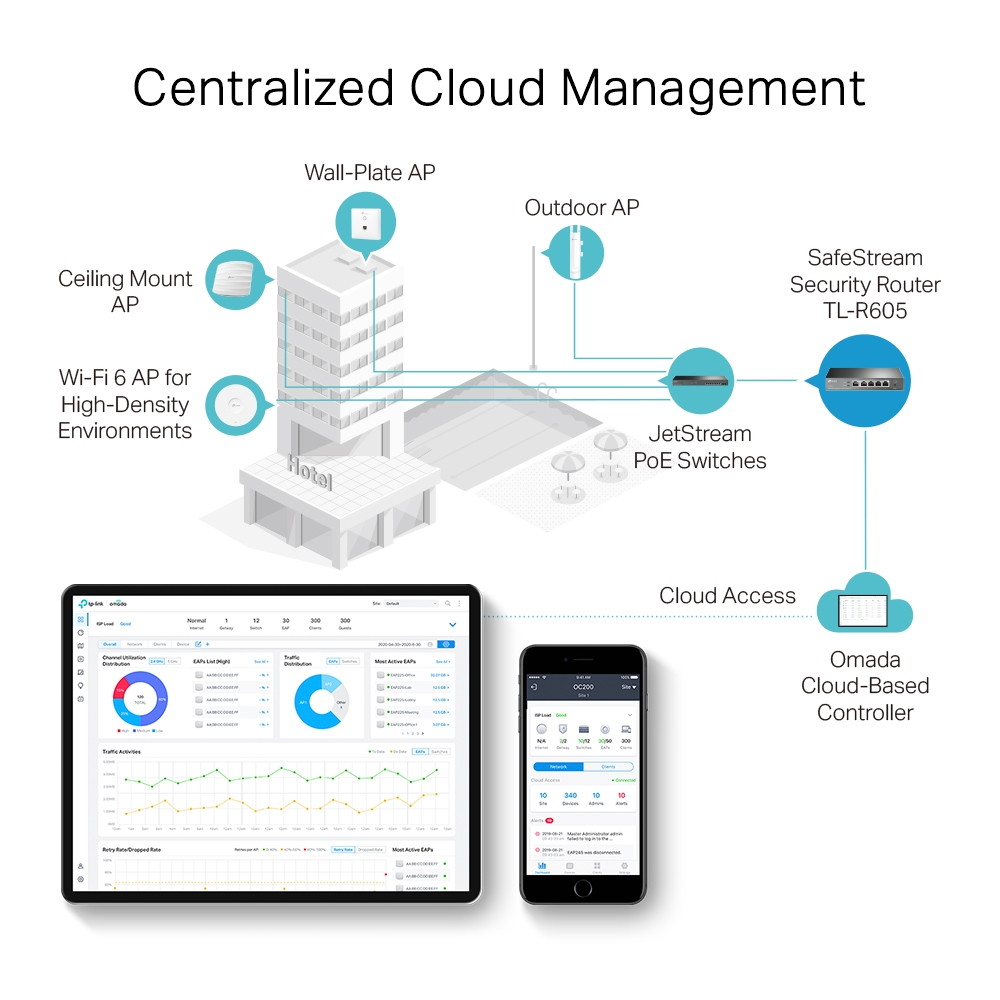

Centralized Management: Cloud access and Omada app for ultra convenience and easy management
Five Gigabit Ports: High-speed wired connectivity

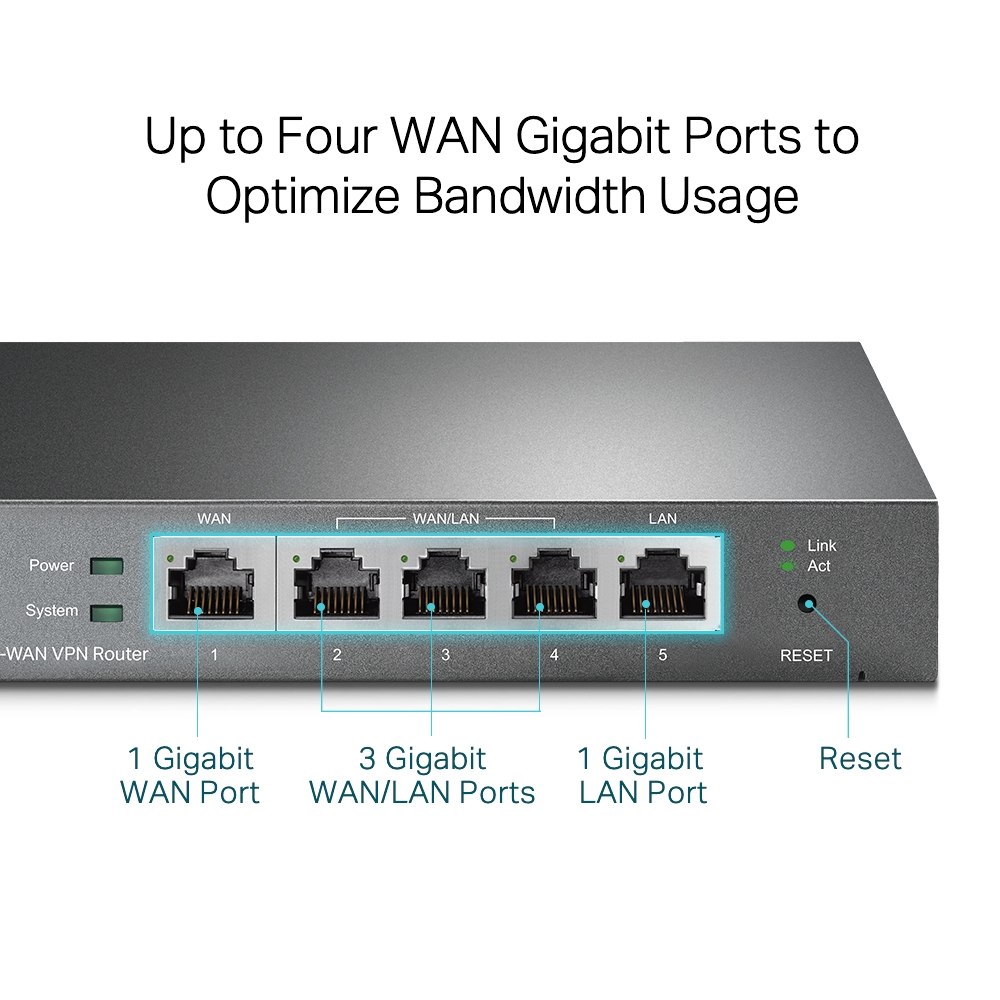

Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports optimize bandwidth usage

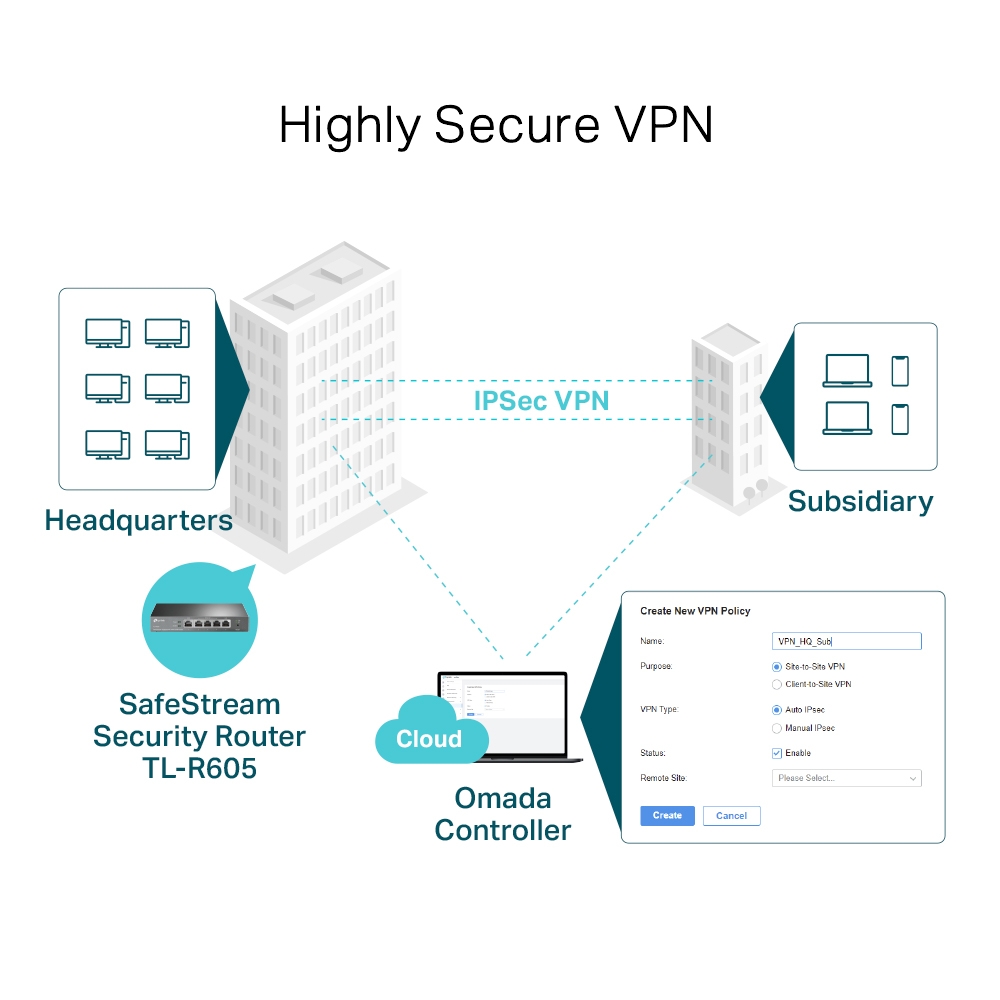

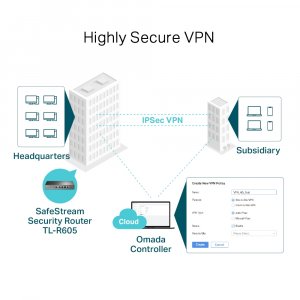

Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections

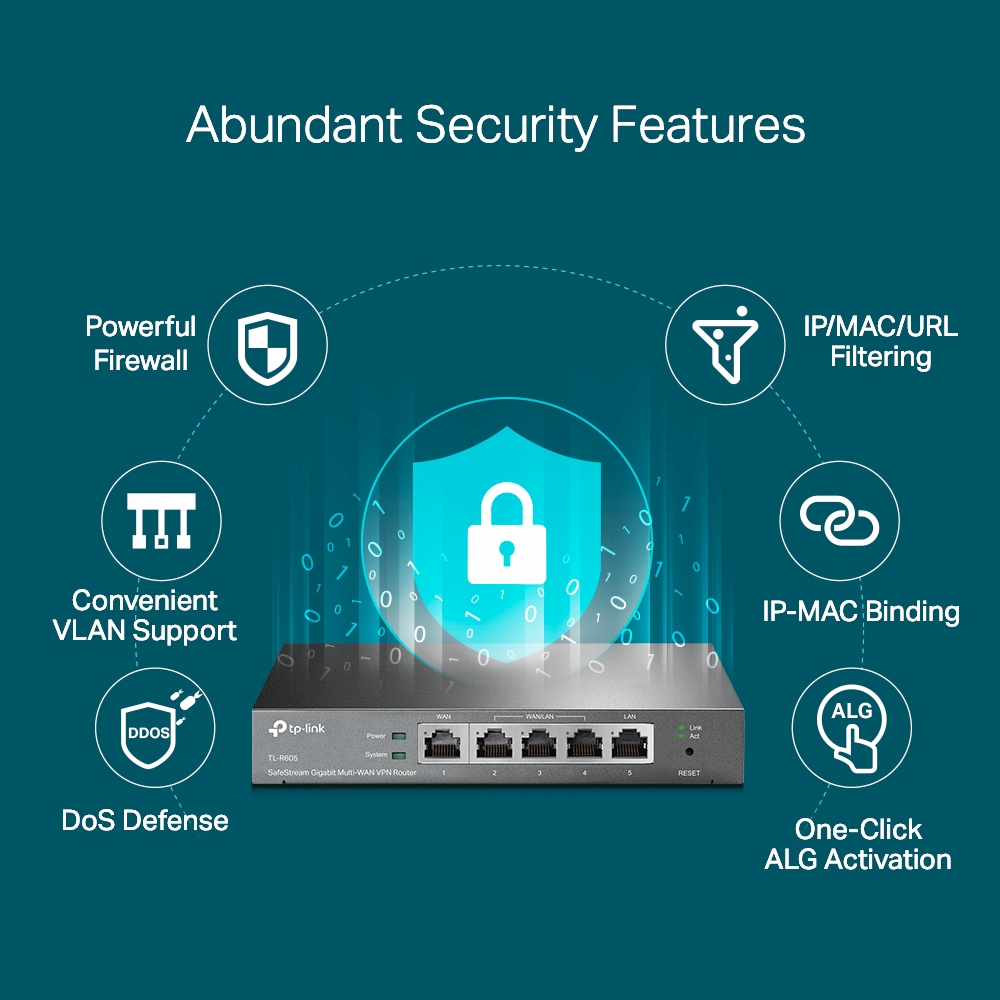

Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data

Product Properties

Manufacturer
TP-LINK

Model
ER605

EAN
6935364053031

Bullet points

Point
Abundant Security Features

Centralized Management: Cloud access and Omada app for ultra convenience and easy management

Five Gigabit Ports: High-speed wired connectivity

Highly Secure VPN

Integrated into Omada SDN

Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports optimize bandwidth usage

Design

LED indicators
LAN, Power, Status, WAN

Product colour
Black

Features

Certification
CE, FCC, RoHS

Flash memory
128 MB

Internal memory
256 MB

Linux operating systems supported
Yes

Mac operating systems supported
macOS

Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows Vista, Windows XP

Logistics data

Harmonized System (HS) code
85176990

Management features

Reset button
Yes

Universal Plug and Play (UPnP)
Yes

Web-based management
Yes

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
Gigabit Ethernet

Ethernet LAN data rates
10,100,1000 Mbit/s

Networking standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Policy-based routing
Yes

Static route
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

AC adapter included
Yes

Cables included
LAN (RJ-45)

Quick installation guide
Yes

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
4

Gigabit Ethernet (copper) ports quantity
4

Power

Input current
1 A

Output current
1 A

Output voltage
12 V

Power source type
DC

Protocols

DHCP server
Yes

DMZ support
Yes

Security

Access Control List (ACL)
Yes

ARP attack prevention
Yes

DoS attack prevention
Yes

Firewall
Yes

ICMP attack prevention
Yes

NAT functionality
One-to-One NAT5 Multi-Net NAT Virtual Server Port Triggering5 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Network address translation (NAT)
Yes

Security algorithms
FTPES, SIPS

System event log
Yes

URL filtering
Yes

VPN tunnels quantity
20

WAN connection

3G/4G USB modem compatibility
Yes

DSL WAN
No

Ethernet WAN
Yes

SFP WAN
No

SIM card slot
No

Weight & dimensions

Depth
101 mm

Height
25 mm

Width
158 mm
