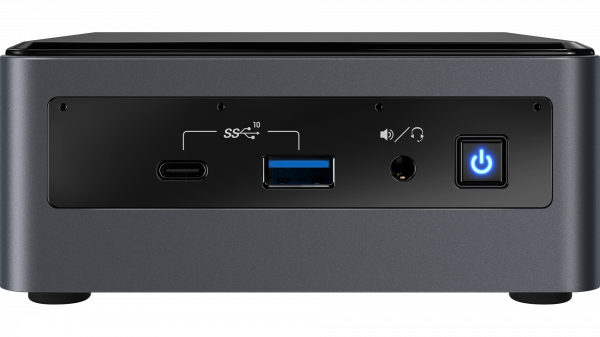

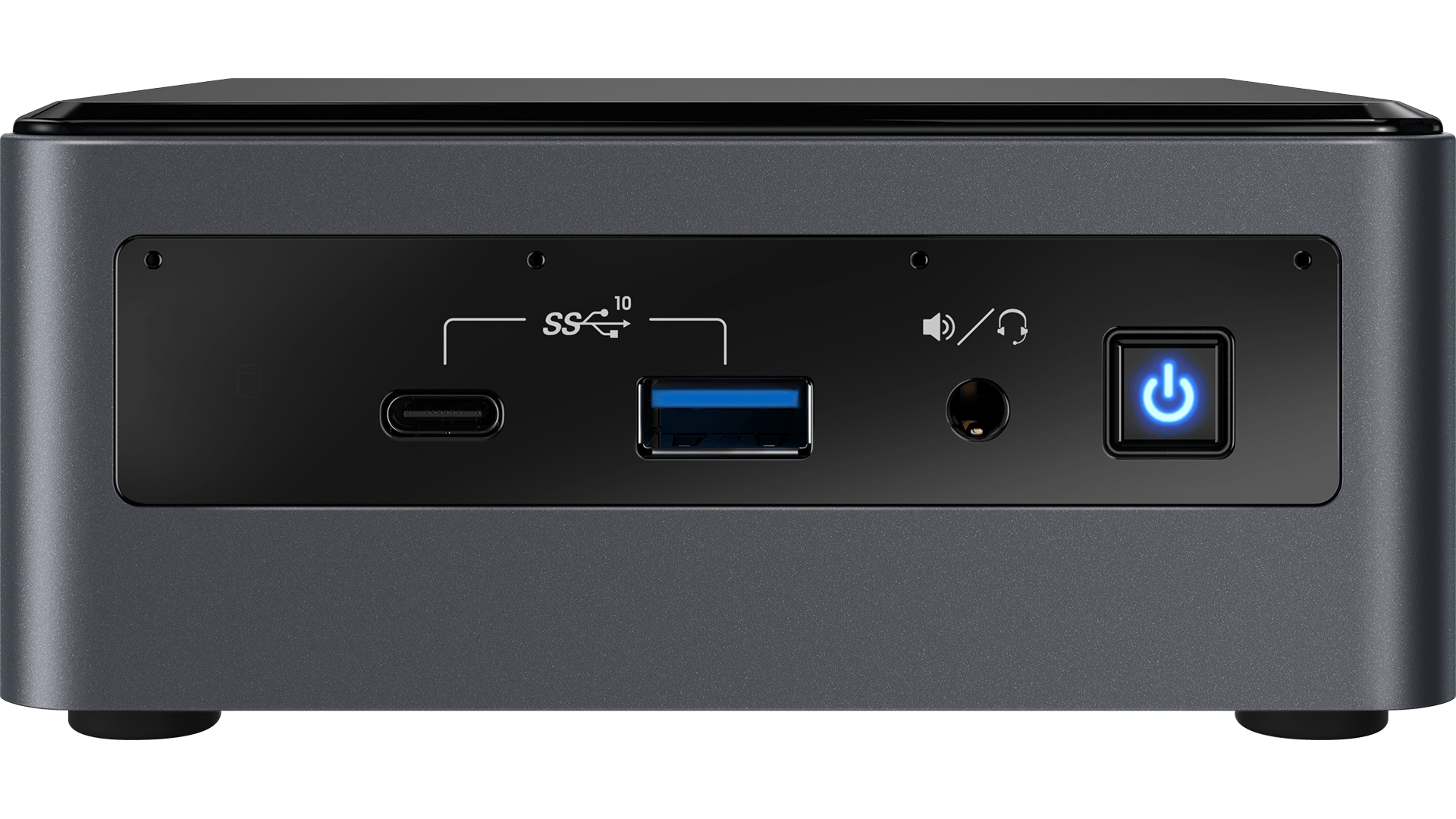

Intel NUC 10 Performance UCFF Black BGA 1528 i3-10110U 2.1 GHz

• Design

• ARK ID
• 214604

• Chassis type
• UCFF

• On/off switch
• Yes

• Product colour
• Black

• Product type
• Mini PC barebone

• Status
• Launched

• Expansion slots

• Number of M.2 (M) slots
• 1

• PCI Express configurations
• 1x4, 2x2, 1x2+2x1, 4x1

• PCI Express slots version
• 3.0

• Graphics

• Discrete graphics card model
• Not available

• Graphics card family
• Intel

• Number of displays supported
• 3

• On-board graphics card
• Yes

• On-board graphics card model
• Intel® UHD Graphics

• Logistics data

• Harmonized System (HS) code
• 84713000

• Memory

• ECC
• No

• Memory bandwidth (max)
• 42.6 GB/s

• Memory channels
• Dual-channel

• Memory Slot Support
• 64 GB

• Memory slots type
• SO-DIMM

• Memory voltage
• 1.2 V

• Number of DIMM slots
• 2

• Number of memory slots
• 2

• Removable memory card slot
• SDXC with UHS-II support

• Supported memory clock speeds
• 2666 MHz

• Supported memory types
• DDR4-SDRAM

• Network

• Bluetooth
• Yes

• Ethernet LAN
• Yes

• LAN controller
• Intel® I219-V

• Top Wi-Fi standard
• Wi-Fi 6 (802.11ax)

• Wi-Fi
• Yes

• Wi-Fi standards
• Wi-Fi 6 (802.11ax)

• WLAN controller model
• Intel Wi-Fi 6 AX201

• Other features

• Additional headers
• CEC, 2x USB2.0, FRONT_PANEL, RGB

• DC input voltage
• 19 V

• HDD size
• 2.5"

• Launch date
• Q2'21

• Number of SATA connectors
• 2

• Processor ARK ID
• 196451

• Packaging content

• Power cord included
• Yes

• Processor included
• Intel® Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz)

• Performance

• Audio output channels
• 7.1 channels

• Commodity Classification Automated Tracking System (CCATS)
• G157815L2

• Compatible operating systems
• Windows 11 (64-bit), Windows 10 (64-bit)

• Consumer infrared Rx sensor
• Yes

• Export Control Classification Number (ECCN)
• 5A992C

• Motherboard form factor
• UCFF

• Operating system installed
• No

• Processor socket
• BGA 1528

• Supported RAID configuration
• 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)

• Trusted Platform Module (TPM)
• No

• Windows operating systems supported
• Windows 10 x64

• Ports & interfaces

• Combo headphone/mic port
• Yes

• DC-in jack
• Yes

• DisplayPort version
• 1.2

• Ethernet LAN (RJ-45) ports
• 1

• Graphics output
• HDMI 2.0b; USB-C (DP1.2)

• HDMI ports
• 1

• HDMI version
• 2.0b

• Internal USB 2.0 ports quantity
• 2

• M.2 card slot (storage)
• 2242/2280

• SATA Ports
• 2

• Thunderbolt 3 ports quantity
• 1

• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
• 3

• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
• 2

• USB ports quantity
• 7

• USB version
• 2.0/3.2 Gen 2 (3.1 Gen 2)

• Power

• AC adapter output voltage
• 19 V

• Power supply type
• External AC adapter

• Processor

• Built-in processor
• Yes

• CPU configuration (max)
• 1

• Memory bandwidth supported by processor (max)
• 42.6 GB/s

• Number of Cores
• 2

• Processor
• i3-10110U

• Processor boost frequency
• 4.1 GHz

• Processor cache
• 4 MB

• Processor codename
• Comet Lake

• Processor family
• Intel® Core™ i3

• Processor frequency
• 2.1 GHz

• Processor generation
• 10th gen Intel® Core™ i3

• Processor lithography
• 14 nm

• Processor manufacturer
• Intel

• Processor threads
• 4

• Thermal Design Power (TDP)
• 25 W

• Processor special features

• Embedded options available
• No

• Enhanced Intel SpeedStep Technology
• Yes

• Execute Disable Bit
• Yes

• Idle States
• Yes

• Intel 64
• Yes

• Intel Clear Video Technology
• Yes

• Intel Flex Memory Access
• Yes

• Intel Rapid Storage Technology
• Yes

• Intel Stable Image Platform Program (SIPP)
• No

• Intel Trusted Execution Technology
• No

• Intel TSX-NI
• No

• Intel Virtualization Technology (VT-x)
• Yes

• Intel Virtualization Technology for Directed I/O (VT-d)
• Yes

• Intel VT-x with Extended Page Tables (EPT)
• Yes

• Intel® AES New Instructions (Intel® AES-NI)
• Yes

• Intel® Clear Video HD Technology (Intel® CVT HD)
• Yes

• Intel® High Definition Audio (Intel® HD Audio)
• No

• Intel® Hyper Threading Technology (Intel® HT Technology)
• Yes

• Intel® Identity Protection Technology (Intel® IPT)
• Yes

• Intel® My WiFi Technology (Intel® MWT)
• Yes

• Intel® Optane™ Memory Ready
• Yes

• Intel® OS Guard
• Yes

• Intel® Platform Trust Technology (Intel® PTT)
• Yes

• Intel® Quick Sync Video Technology
• Yes

• Intel® Secure Key
• Yes

• Intel® Turbo Boost Technology
• 2.0

• Intel® vPro™ Platform Eligibility
• No

• Thermal Monitoring Technologies
• Yes

• Storage

• Card reader integrated
• Yes

• Compatible memory cards
• SDXC

• Number of storage drives supported
• 2

• RAID levels
• 0, 1

• SSD form factor
• M.2

• Storage drive sizes supported
• M.2,2.5

• Supported storage drive types
• HDD & SSD

• Weight & dimensions

• Depth
• 112 mm

• Height
• 51 mm

• Width
• 117 mm
