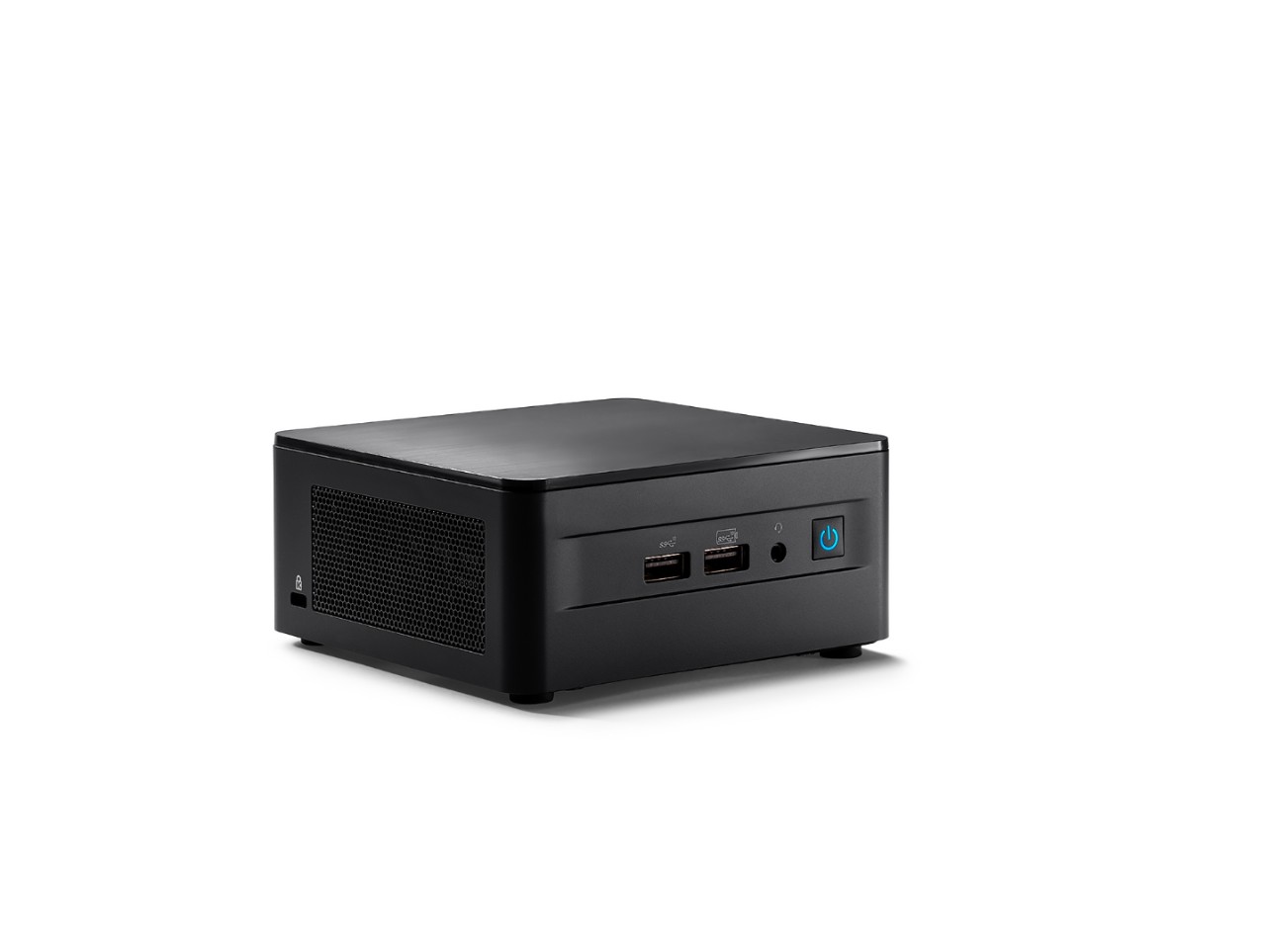

Intel NUC 12 Pro Kit NUC12WSHi7 UCFF Black i7-1260P
Roll over image to zoom inClick to Open expanded view
Intel NUC 12 Pro Kit NUC12WSHi7 UCFF Black i7-1260P
Print
Model: 90AB2WSH-MR8100
EAN: 5032037248402

Intel NUC 12 Pro Kit NUC12WSHi7 UCFF Black i7-1260P

Manufacturer:
Intel
Intel NUC 12 Pro Kit NUC12WSHi7, UCFF, Mini PC barebone, DDR4-SDRAM, M.2, Serial ATA III, Wi-Fi 6E (802.11ax), 120 W
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Intel NUC 12 Pro Kit NUC12WSHi7. Chassis type: UCFF, Product type: Mini PC barebone. BIOS type: EEPROM. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: M.2, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W

Product Properties

  • Model
  • 90AB2WSH-MR8100
  • EAN
  • 5032037248402
  • Audio
  • Built-in speaker(s)
  • No
  • Design
  • ARK ID
  • 121640
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • Chassis type
  • UCFF
  • Cooling type
  • Active
  • LED indicators
  • Yes
  • On/off switch
  • Yes
  • Product colour
  • Black
  • Product type
  • Mini PC barebone
  • Status
  • Launched
  • Expansion slots
  • PCI Express slots version
  • 3.0, 4.0
  • Graphics
  • Discrete graphics card model
  • Not available
  • Graphics card family
  • Intel
  • Maximum resolution
  • 7680 x 4320 pixels
  • Number of displays supported
  • 4
  • On-board graphics card
  • Yes
  • On-board graphics card model
  • Intel Iris Xe Graphics
  • Logistics data
  • Harmonized System (HS) code
  • 8471500150
  • Memory
  • ECC
  • No
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 64 GB
  • Memory slots type
  • SO-DIMM
  • Memory voltage
  • 1.2 V
  • Number of DIMM slots
  • 2
  • Number of memory slots
  • 2
  • Supported memory clock speeds
  • 3200 MHz
  • Supported memory types
  • DDR4-SDRAM
  • Network
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.3
  • Ethernet LAN
  • Yes
  • LAN controller
  • Intel I225-V
  • Top Wi-Fi standard
  • Wi-Fi 6E (802.11ax)
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • Wi-Fi 6E (802.11ax)
  • WLAN controller model
  • Intel Wi-Fi 6E AX211
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Other features
  • Additional headers
  • Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
  • Launch date
  • Q3'22
  • Number of SATA connectors
  • 1
  • Performance
  • Audio output channels
  • 7.1 channels
  • BIOS type
  • EEPROM
  • Commodity Classification Automated Tracking System (CCATS)
  • G157815L2
  • Compatible operating systems
  • Windows 10 IoT Enterprise*|Linux*
  • Export Control Classification Number (ECCN)
  • 5A992C
  • Linux operating systems supported
  • Yes
  • Motherboard form factor
  • UCFF
  • Number of processors supported
  • 1
  • Trusted Platform Module (TPM)
  • Yes
  • Trusted Platform Module (TPM) version
  • 2.0
  • Windows operating systems supported
  • Windows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64
  • Ports & interfaces
  • Combo headphone/mic port
  • Yes
  • DC-in jack
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports
  • 2
  • HDMI version
  • 2.0b
  • M.2 card slot (storage)
  • 2280 NVMe (M); 2242 SATA (B)
  • M.2 card slot (wireless)
  • 2230 (E-key) (E)
  • Serial port via internal header
  • No
  • Thunderbolt 4 ports quantity
  • 2
  • USB 2.0 ports quantity
  • 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 3
  • USB ports quantity
  • 4
  • Power
  • Power supply
  • 120 W
  • Power supply type
  • External AC adapter
  • Processor
  • Built-in processor
  • Yes
  • CPU configuration (max)
  • 1
  • Number of Cores
  • 12
  • Processor
  • i7-1260P
  • Processor boost frequency
  • 4.7 GHz
  • Processor cache
  • 18 MB
  • Processor family
  • Intel® Core™ i7
  • Processor generation
  • 12th gen Intel® Core™ i7
  • Processor manufacturer
  • Intel
  • Thermal Design Power (TDP)
  • 35 W
  • Processor special features
  • Embedded options available
  • No
  • Execute Disable Bit
  • Yes
  • Intel Flex Memory Access
  • Yes
  • Intel ME Firmware Version
  • 16
  • Intel Trusted Execution Technology
  • Yes
  • Intel Virtualization Technology (VT-x)
  • Yes
  • Intel Virtualization Technology for Directed I/O (VT-d)
  • Yes
  • Intel VT-x with Extended Page Tables (EPT)
  • Yes
  • Intel® AES New Instructions (Intel® AES-NI)
  • Yes
  • Intel® High Definition Audio (Intel® HD Audio)
  • Yes
  • Intel® Optane™ Memory Ready
  • No
  • Intel® Platform Trust Technology (Intel® PTT)
  • Yes
  • Storage
  • Card reader integrated
  • No
  • Number of storage drives supported
  • 3
  • NVMe
  • Yes
  • SSD form factor
  • M.2
  • Storage drive interface
  • M.2, Serial ATA III
  • Storage drive sizes supported
  • M.2,2.5
  • Supported storage drive types
  • SSD
  • Weight & dimensions
  • Depth
  • 112 mm
  • Height
  • 54 mm
  • Width
  • 117 mm
